Von Duprin 575 Strike Used with 5575, 5575L-F Wood Door Application Template

Original Source Document Full PDF Version

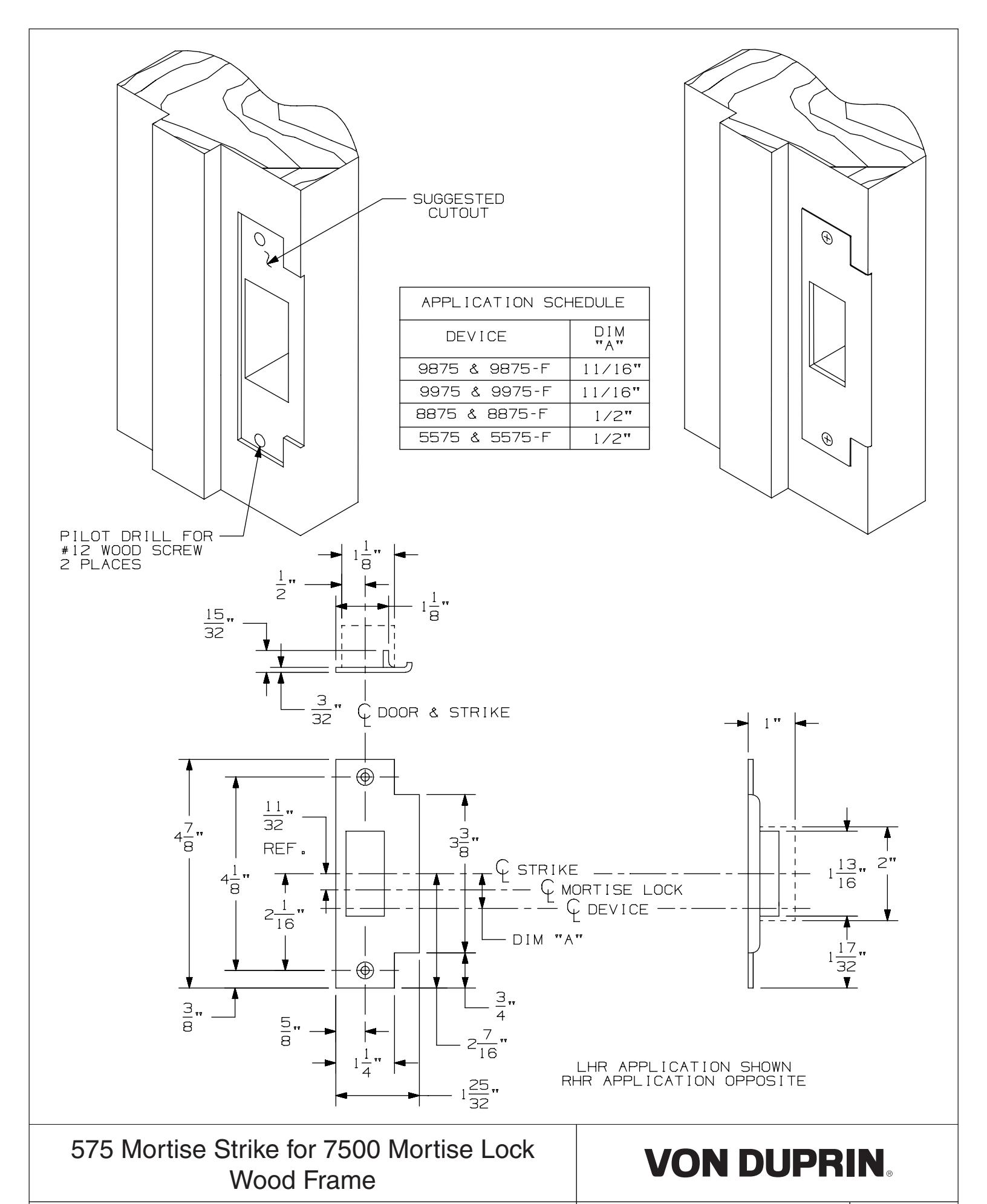

Von Duprin 575 Strike Used with 5575, 5575L-F Wood Door Application Template diagram on page 1

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

W30210_a

DATE: 05-29-13
