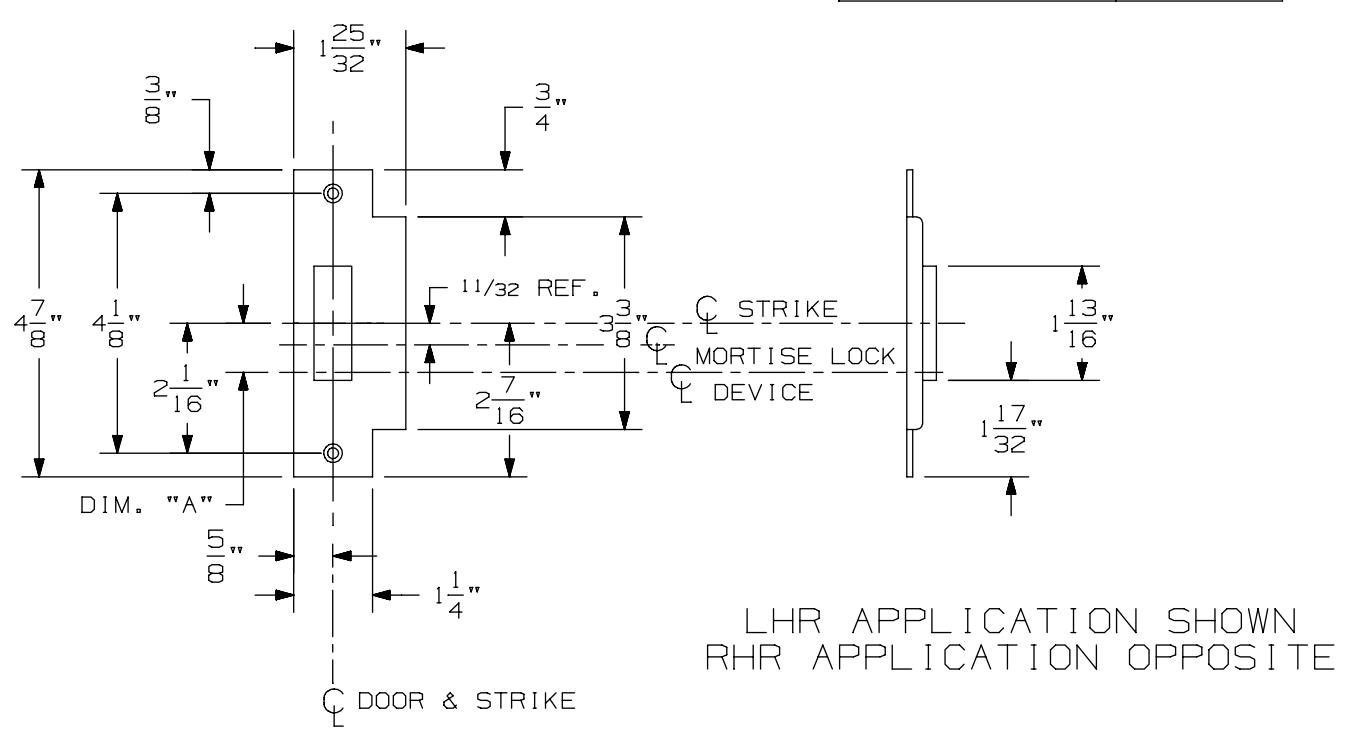

Von Duprin 575 Strike For 98 and 99 Series Exit Device Metal Door Template diagram on page 1

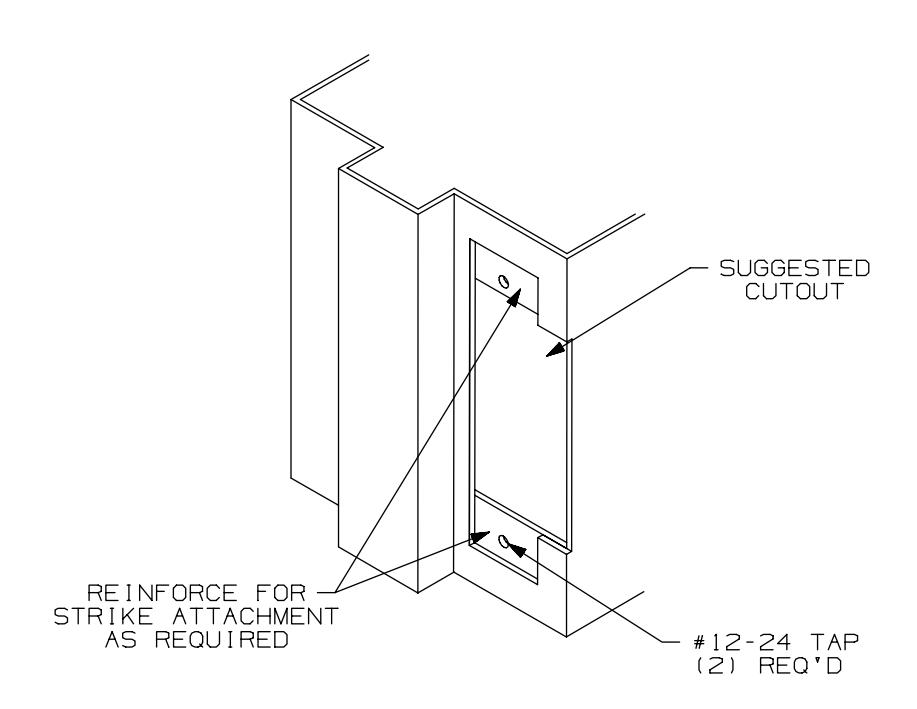

Von Duprin 575 Strike For 98 and 99 Series Exit Device Metal Door Template image on page 1

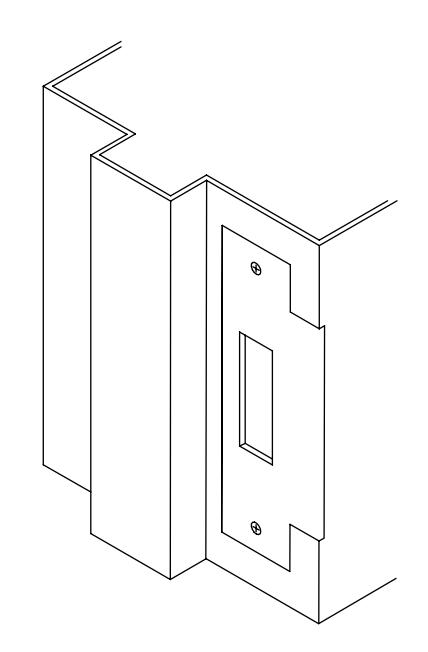

Von Duprin 575 Strike For 98 and 99 Series Exit Device Metal Door Template image on page 1

APPLICATION SCHEDULE
DEVICE DIM. "A"
9875 & 9875-F 11/16
9975 & 9975-F 11/16
8875 & 8875-F 1/2
5575 & 5575-F 1/2

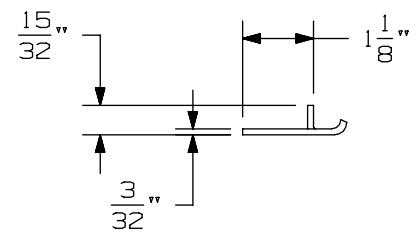

Von Duprin 575 Strike For 98 and 99 Series Exit Device Metal Door Template diagram on page 1

575 Mortise Strike (Single Door) for 7500 Mortise Lock

VON DUPRIN ®

TEMPLATE NUMBER:

30210_b

DATE: 07-22-13
