Von Duprin 575 Sgl Door Strike Used With 8875, 8875-F, E8875 For Wood Door Template

Original Source Document Full PDF Version

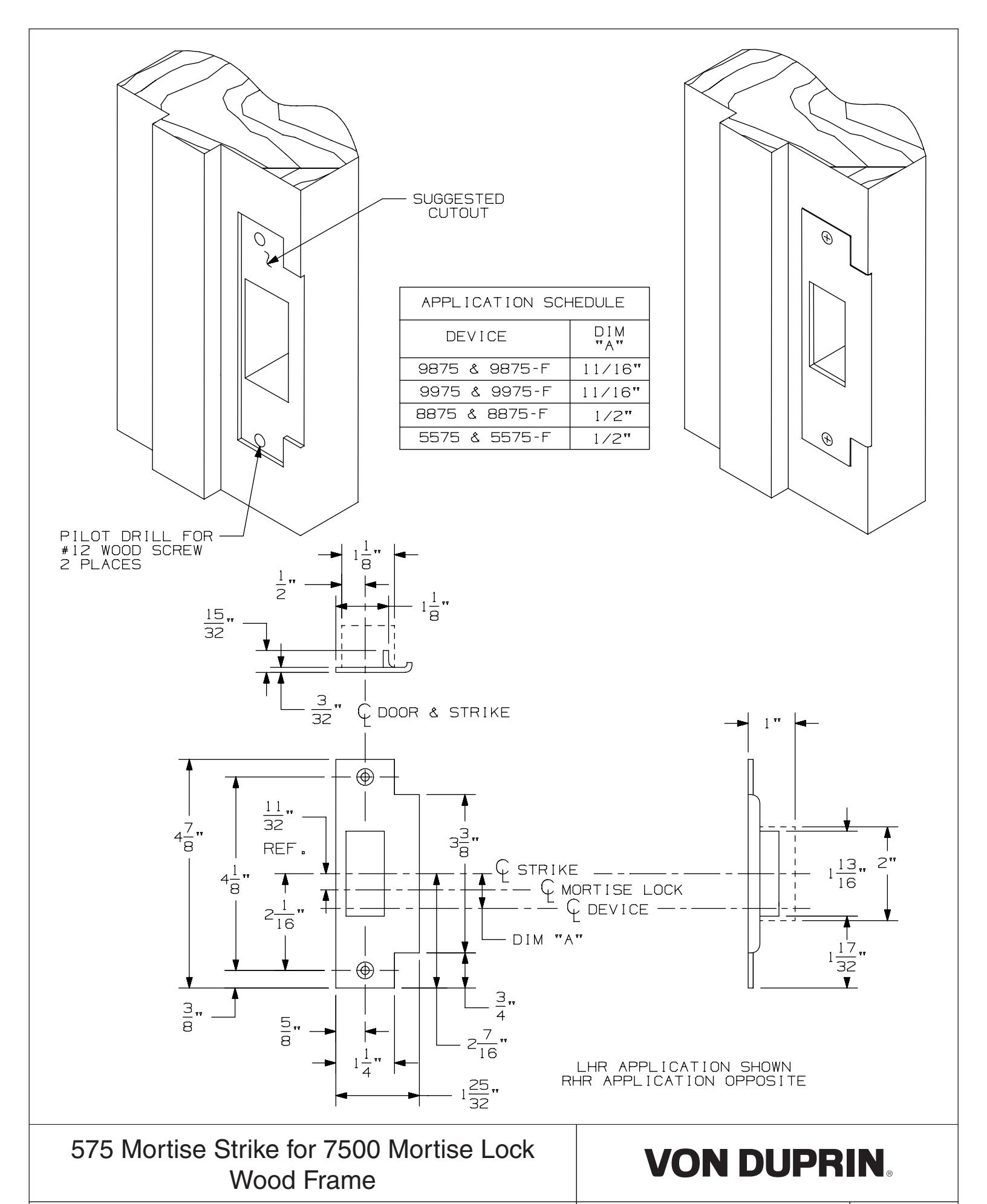

Von Duprin 575 Sgl Door Strike Used With 8875, 8875-F, E8875 For Wood Door Template diagram on page 1

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

W30210_a

DATE: 05-29-13
