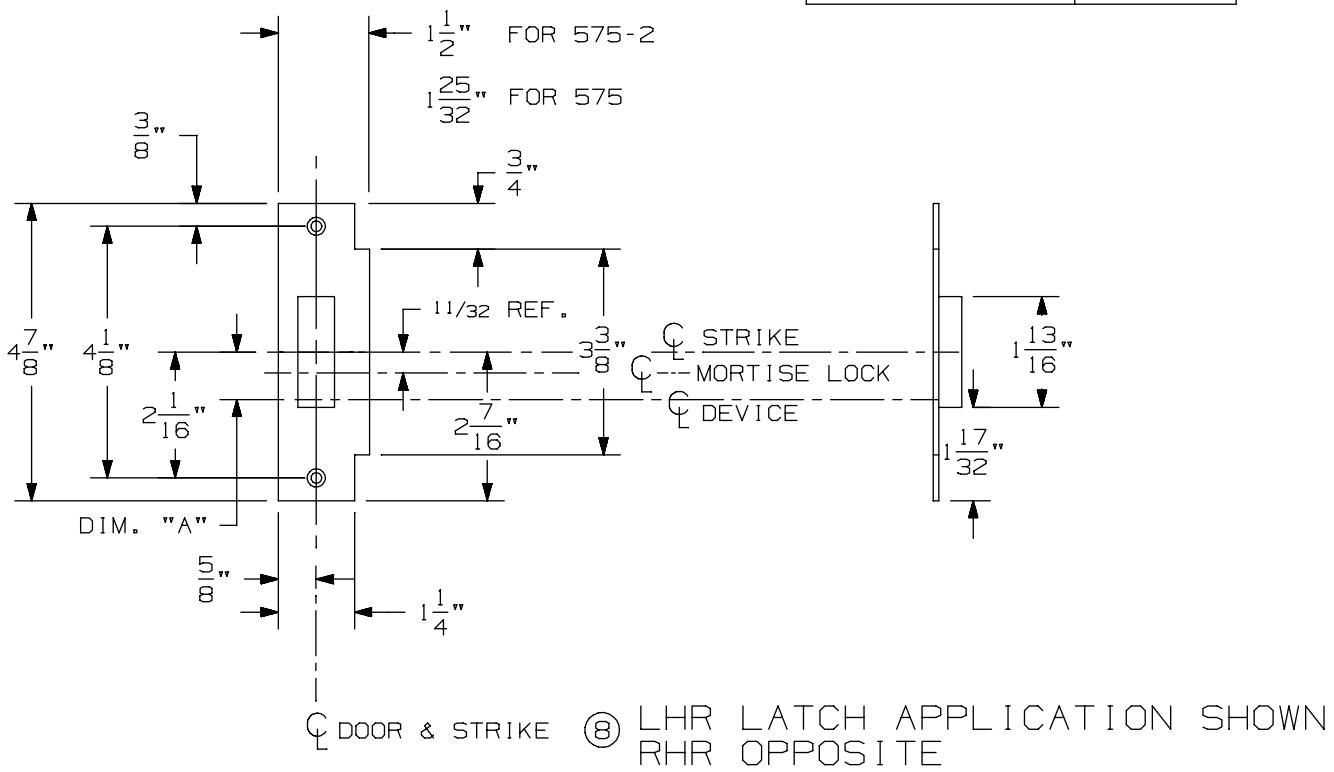

Von Duprin 575-2 Dbl Door Strike Used With 5575EO-F, 5575NL-F, 5575L-F For Metal Doors Template diagram on page 1

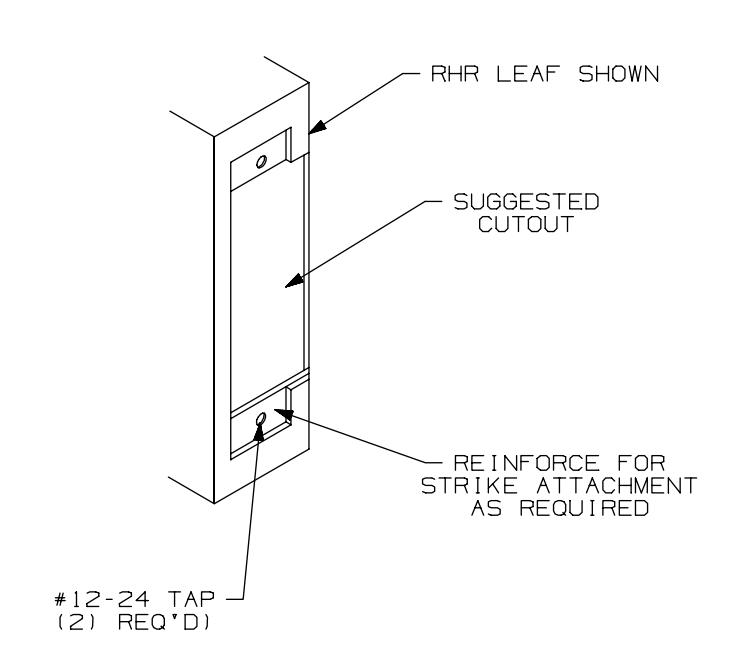

Von Duprin 575-2 Dbl Door Strike Used With 5575EO-F, 5575NL-F, 5575L-F For Metal Doors Template image on page 1

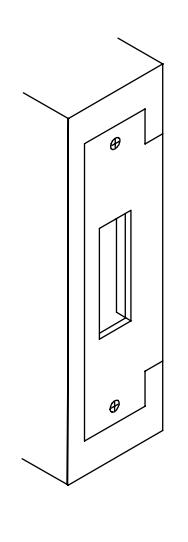

Von Duprin 575-2 Dbl Door Strike Used With 5575EO-F, 5575NL-F, 5575L-F For Metal Doors Template image on page 1

APPLICATION SCHEDULE
DEVICE DIM. "A"
9875 & 9875-F 11/16
9975 & 9975-F 11/16
8875 & 8875-F 1/2
5575 & 5575-F 1/2

Von Duprin 575-2 Dbl Door Strike Used With 5575EO-F, 5575NL-F, 5575L-F For Metal Doors Template diagram on page 1

575-2 Mortise Strike (Double Doors) for 7500 Mortise Lock

VON DUPRIN ®

TEMPLATE NUMBER:

30212_b

DATE: 07-22-13
