Von Duprin 55NL Series Rim Device For Wood Door Template

Original Source Document Full PDF Version

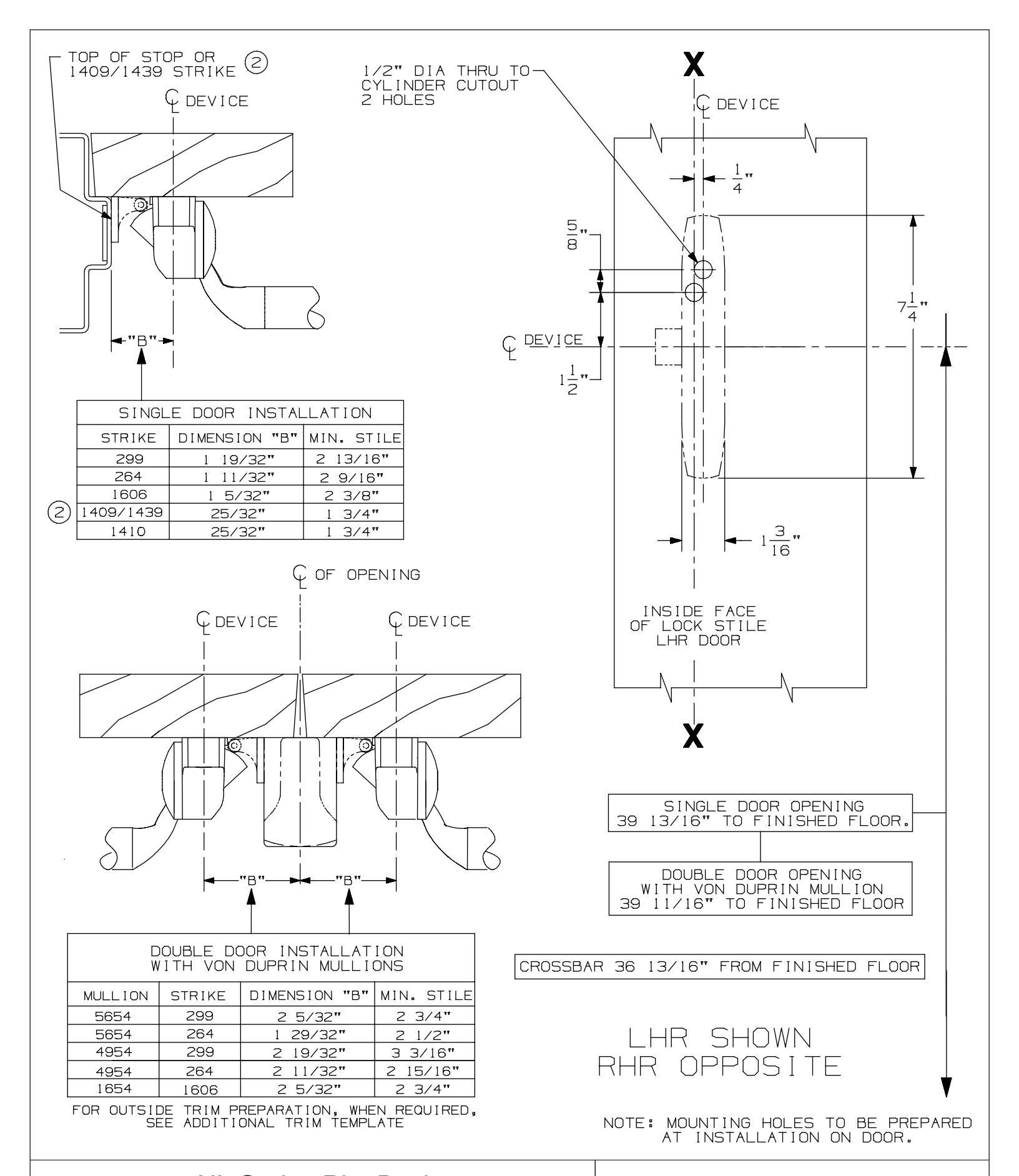

Von Duprin 55NL Series Rim Device For Wood Door Template diagram on page 1

55NL Series Rim Device (Wood Door)

VON DUPRIN ®

TEMPLATE NUMBER:

W10062 a

DATE: 05-29-13
