Von Duprin 55NL Series Rim Device For Metal Doors Template

Original Source Document Full PDF Version

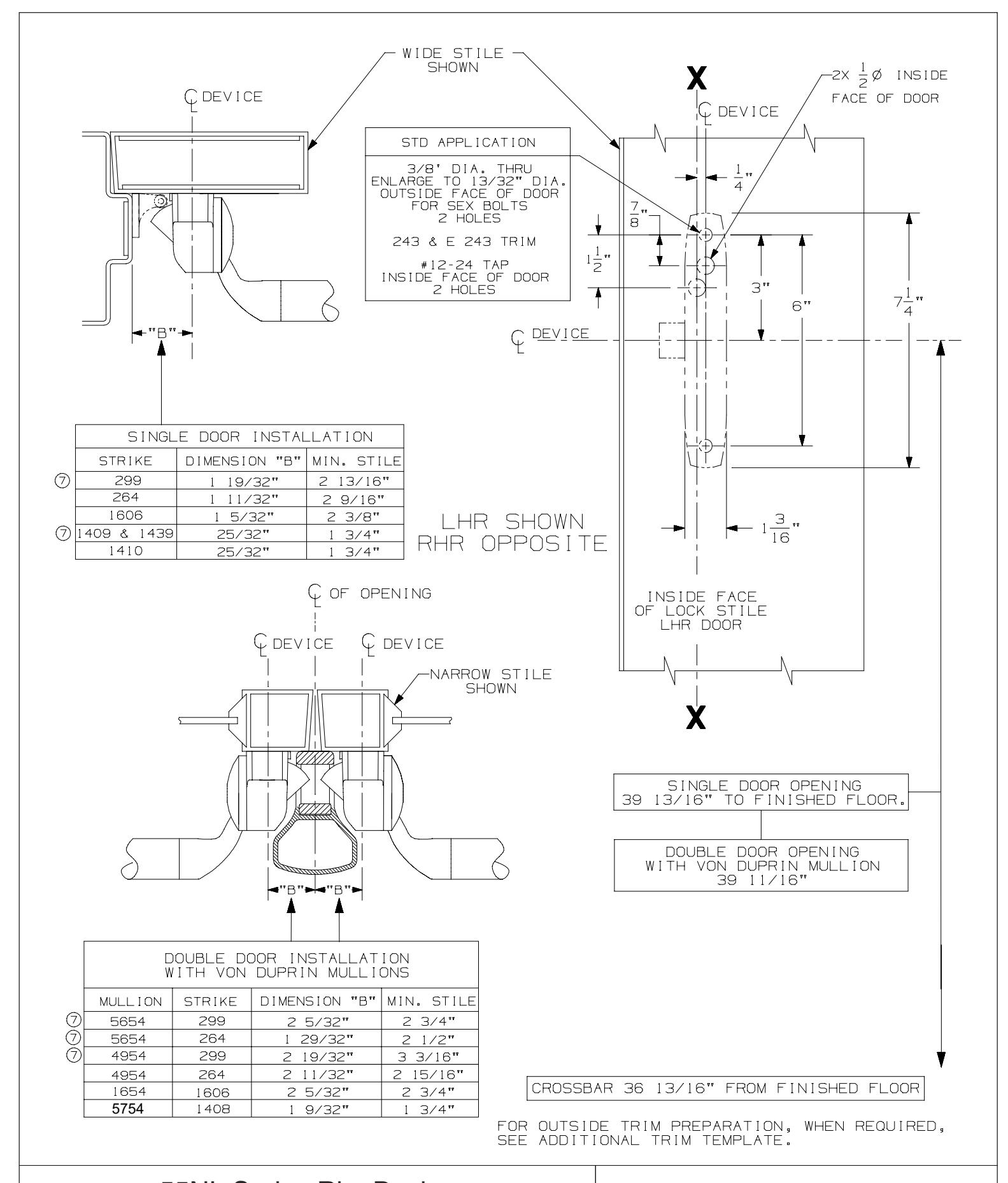

Von Duprin 55NL Series Rim Device For Metal Doors Template diagram on page 1

55NL Series Rim Device (Metal Door)

VON DUPRIN ®

TEMPLATE NUMBER:

10062 b

DATE: 02-12-18
