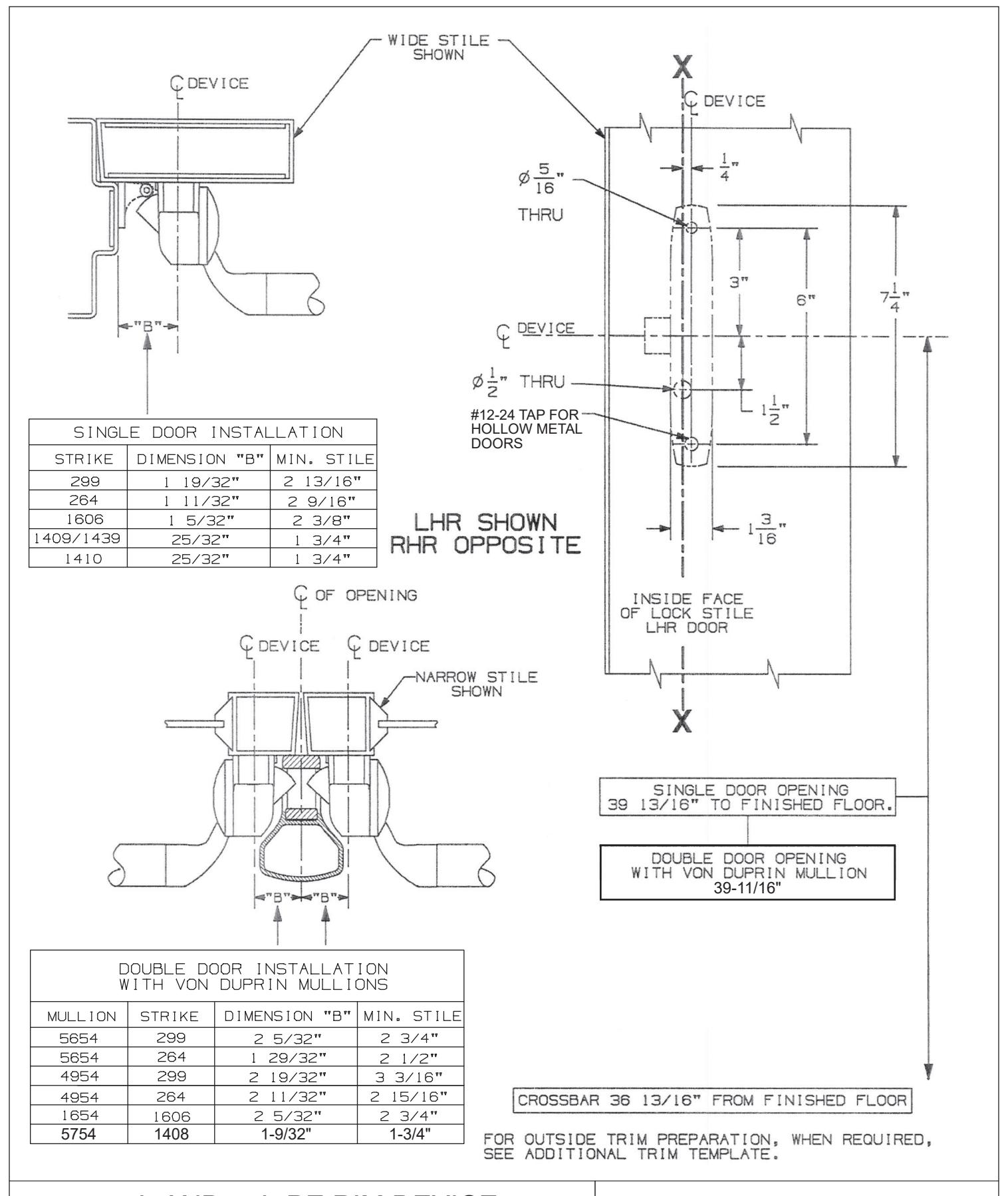

Von Duprin 55L AND 55L-BE Rim Device For Metal Doors Template diagram on page 1

55L AND 55L-BE RIM DEVICE (METAL DOOR)

VON DUPRIN

TEMPLATE NUMBER:

93-258 D

DATE: 01-22-18
