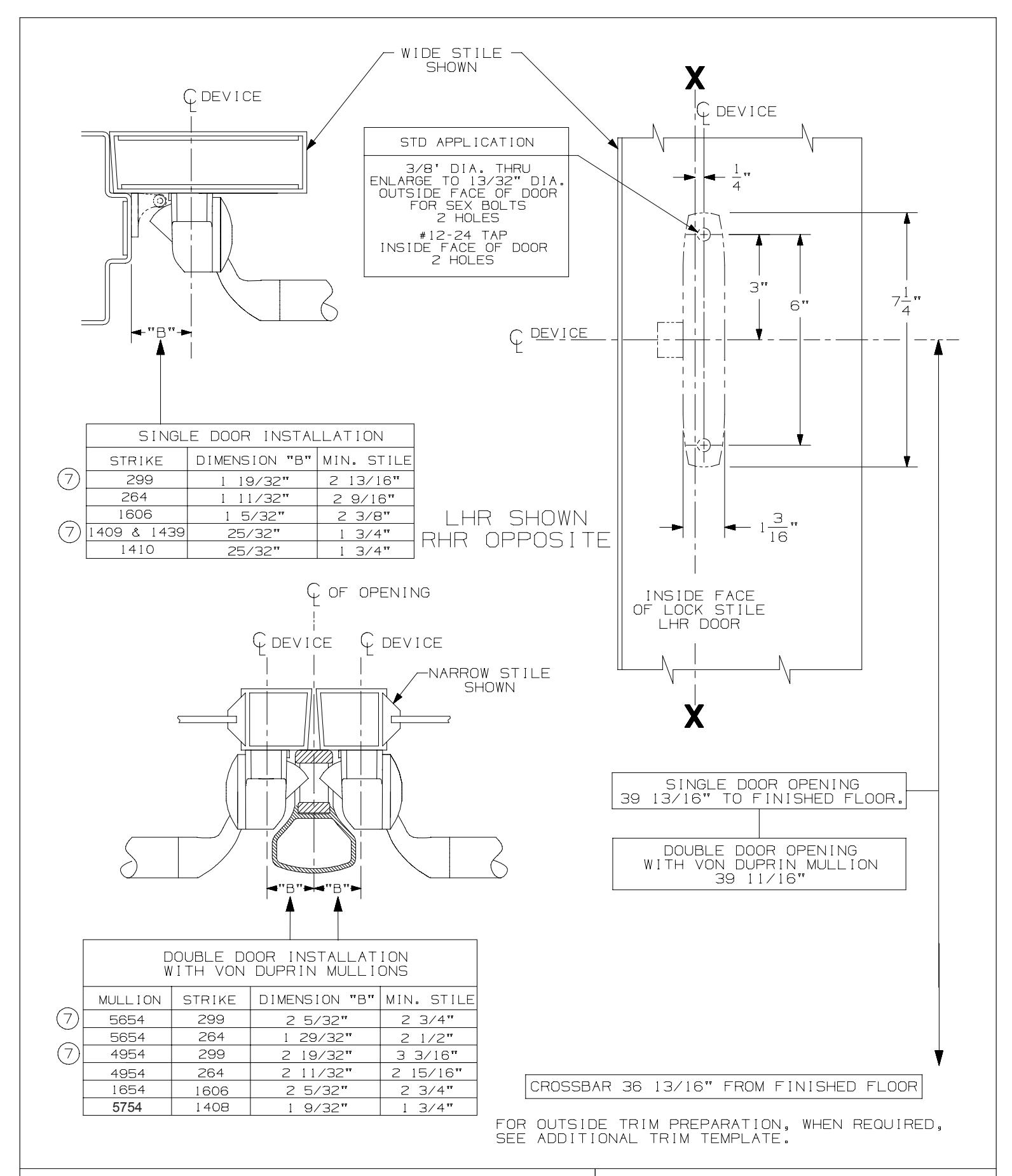

Von Duprin 55EO & 55DT Series Rim Devices For Metal Doors Template diagram on page 1

55EO & 55DT Series Rim Devices

VON DUPRIN ®

TEMPLATE NUMBER:

10061 b

DATE: 06-5-15
