Von Duprin 5575, 5575-F Mortise Devices For Metal Doors Template

Original Source Document Full PDF Version

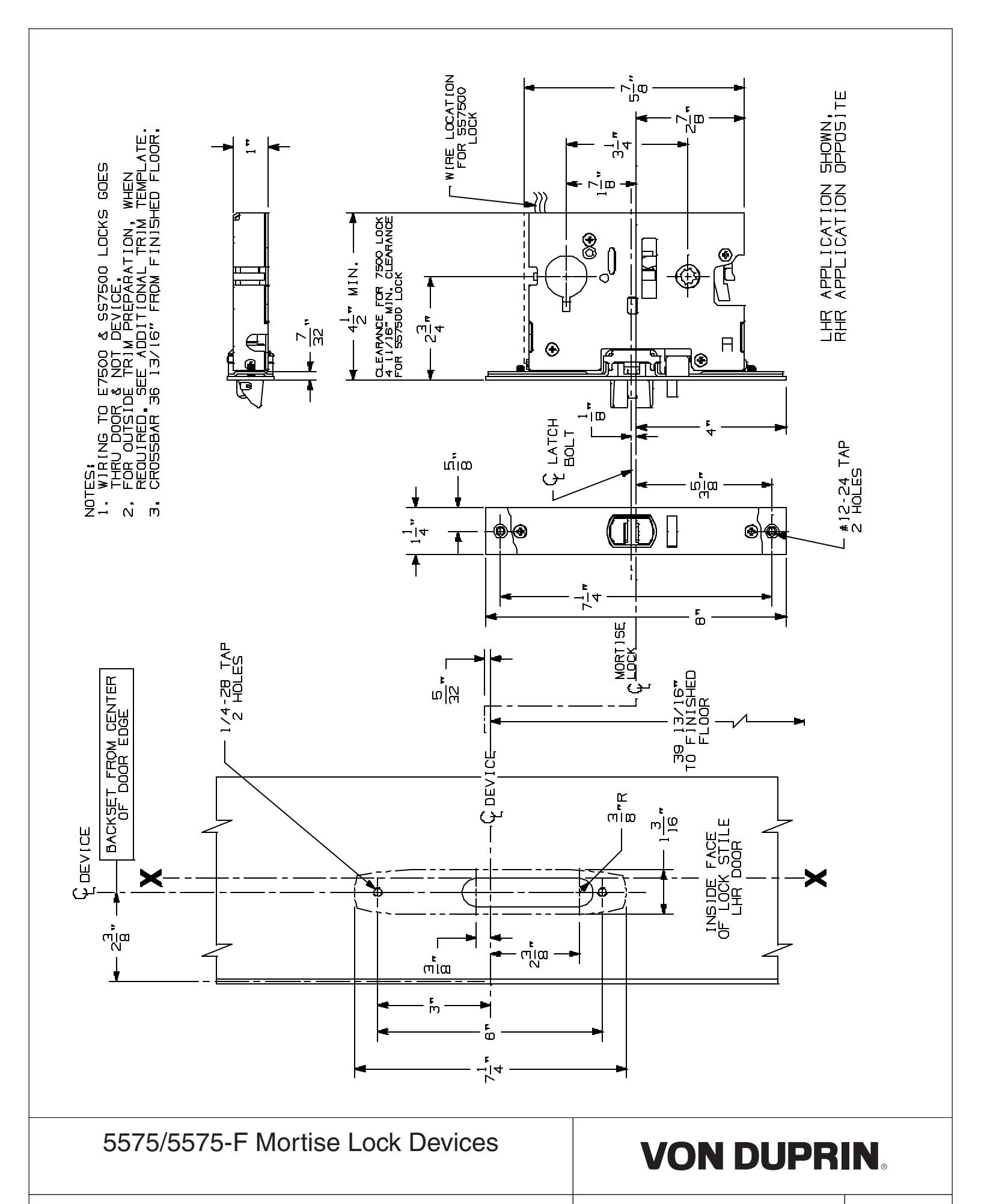

Von Duprin 5575, 5575-F Mortise Devices For Metal Doors Template diagram on page 1

TEMPLATE 10068_a

DATE: 05-15-13
