Von Duprin 550DT Trim For User With 3350A-WDC, 3550A-WDC Straddle Applications For Wood Door Template

Original Source Document Full PDF Version

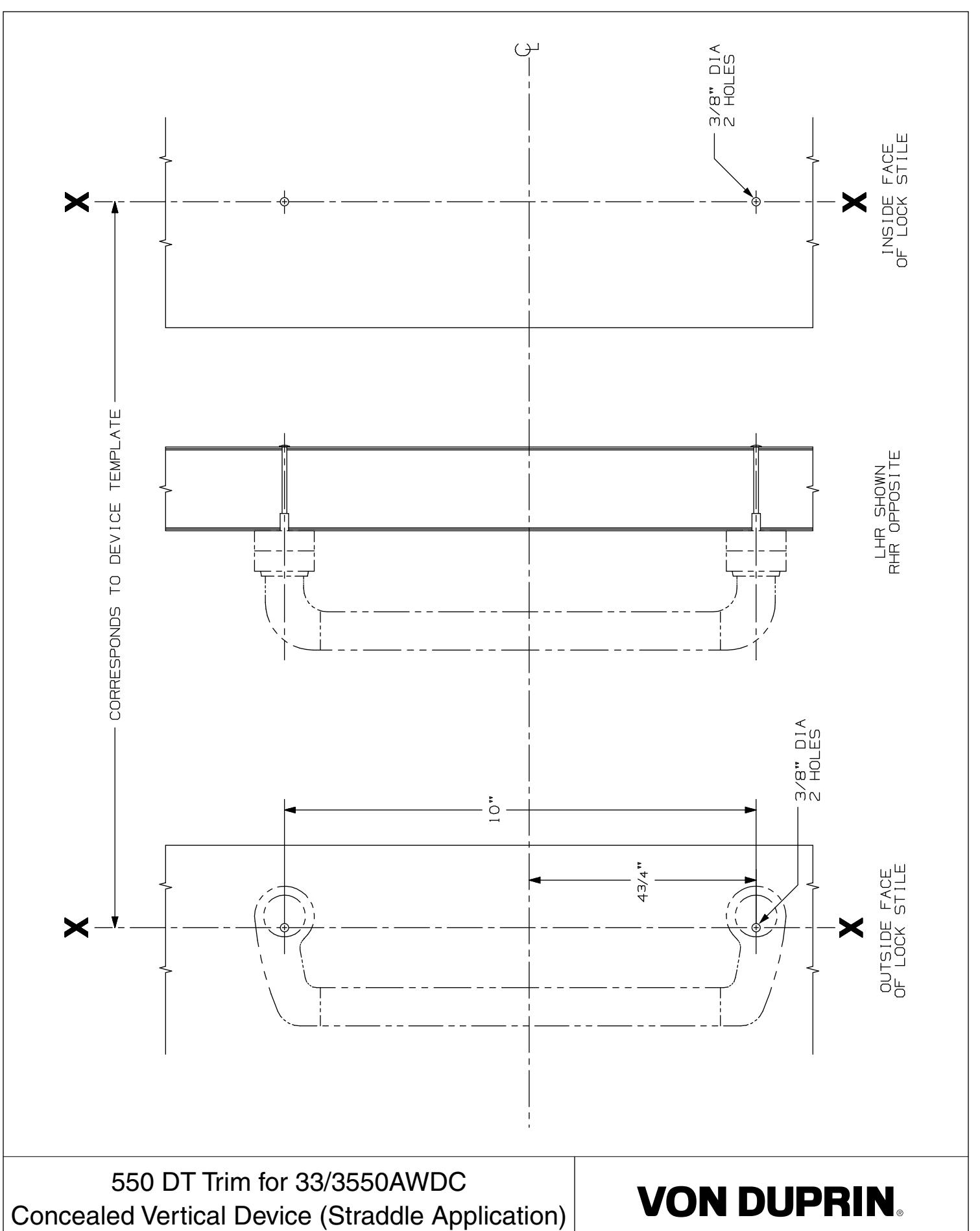

Von Duprin 550DT Trim For User With 3350A-WDC, 3550A-WDC Straddle Applications For Wood Door Template diagram on page 1

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

VON DUPRIN ®

TEMPLATE NUMBER:

911027_a

DATE: 1-21-15
