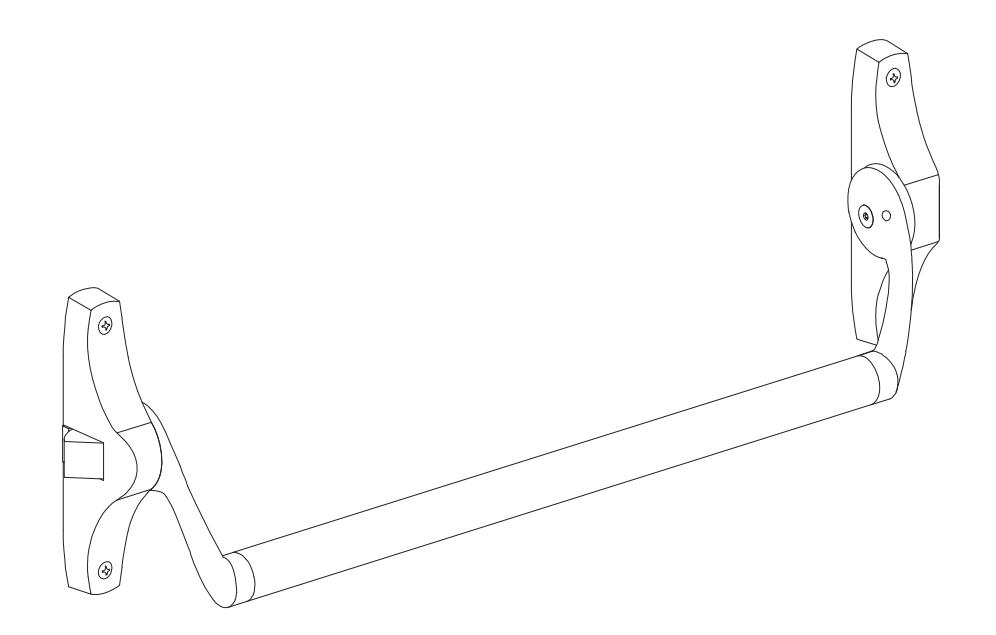

55 Series Exit Devices
Service manual
INDEX
General Information Introduction ..................................................................................................................................... 2 How to Order .................................................................................................................................. 2 Part Number Changes .................................................................................................................... 2 55 Series Finishes .......................................................................................................................... 3 Outside Trim Functions................................................................................................................... 3 Strikes ............................................................................................................................................ 4 55 Series Device Parts Crossbars ....................................................................................................................................... 5 LeverArm Kits ................................................................................................................................ 6 LeverArm Parts Packages ............................................................................................................. 7 End Case Kit and End Case Parts .................................................................................................. 8 Center Case Kits ............................................................................................................................ 9 Center Case Parts: 55 Rim Device ................................................................................................ 10 Center Case Parts: 5547 Device ................................................................................................... 11 Center Case Parts: 5547-F, 5547WDC, 5575, 5575-F Devices ...................................................... 12 Vertical Latches ............................................................................................................................ 13
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 55 Series Panic and FEH Devices.
Vertical Rods: 5547 Device ...................................................................................................... 14-15 Vertical Rods: 5547-F Device ................................................................................................... 14-15 Vertical Rods: 5547WDC Device ................................................................................................... 16
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, IN 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.
55 SERIES FINISHES
|
US
Number |
BHMA
Number |
Color |
|---|---|---|
| US3 | 605 |
Brass,
polished |
| US4 | 606 |
Brass,
dull |
| US10B | 613 |
Brass,
dull (oxidized) |
| US26 | 625 |
Chrome,
polished |
| US26D | 626 |
Chrome,
dull |
| US10 | 612 |
Bronze,
dull |
| SPBLK | 693 |
Gloss
black powder |

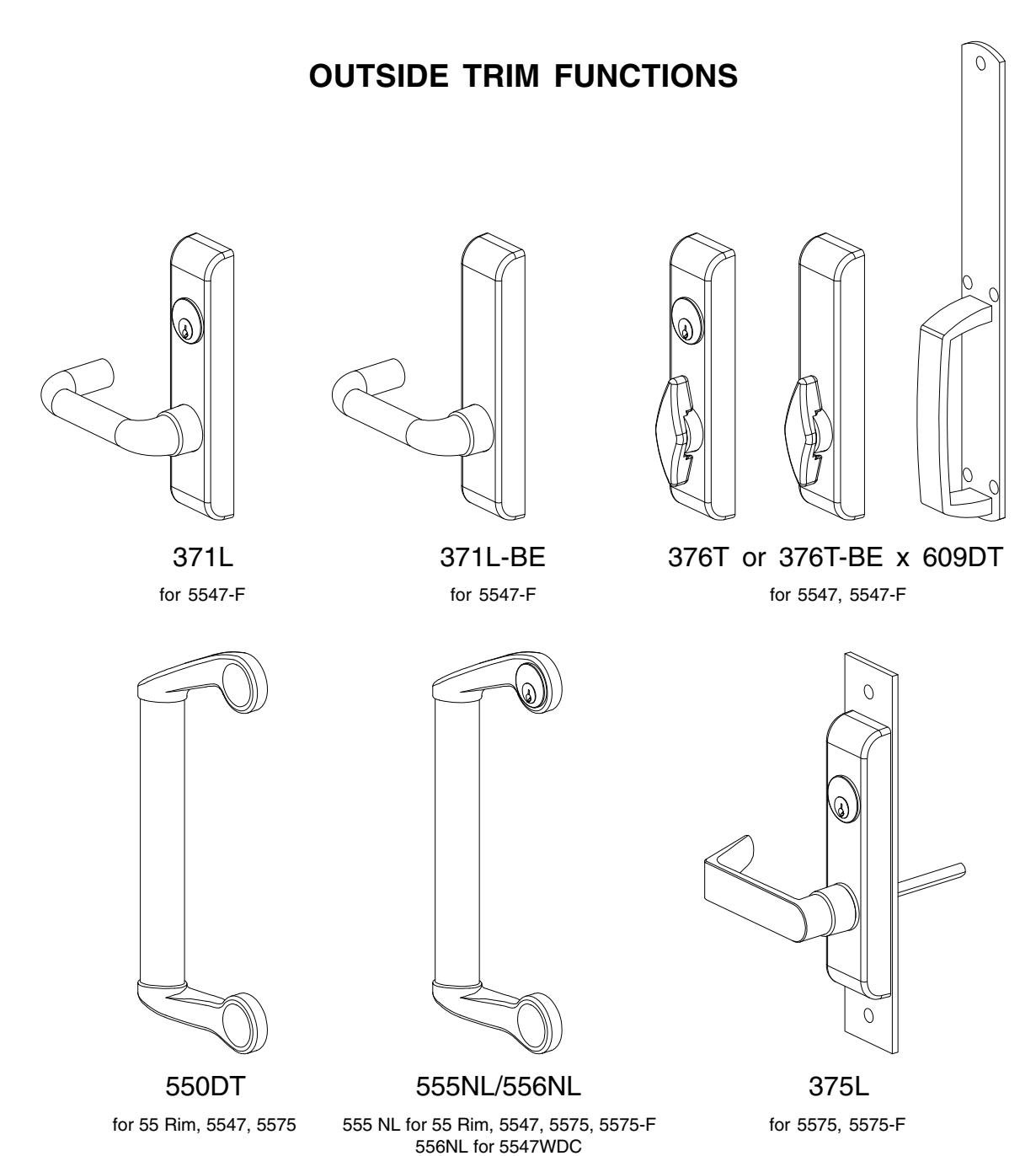

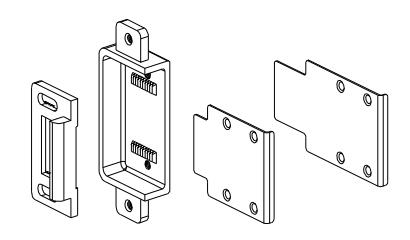

55 RIM STRIKES
299 Single door; double door with mullion
1606 Single door; double door with mullion
1409 Single door (wear plates available for 1-3/4" and 2-1/4" thick doors)
1410 Single door (wear plates available for 1-3/4" and 2-1/4" thick doors)
5575/5575-F STRIKES
575 single door
575-2 double door
5547-F STRIKES
385A (bottom)
301L (bottom)
283 soffit (top)
5547 STRIKES
471U (top)
472U (1-3/4" thick doors; top)
473U (2-1/4" thick doors; top)
301L (bottom)
5547WDC/5547WDC-F STRIKES
338 (top)
472U (1-3/4" thick doors; top)
473U (2-1/4" thick doors; top)

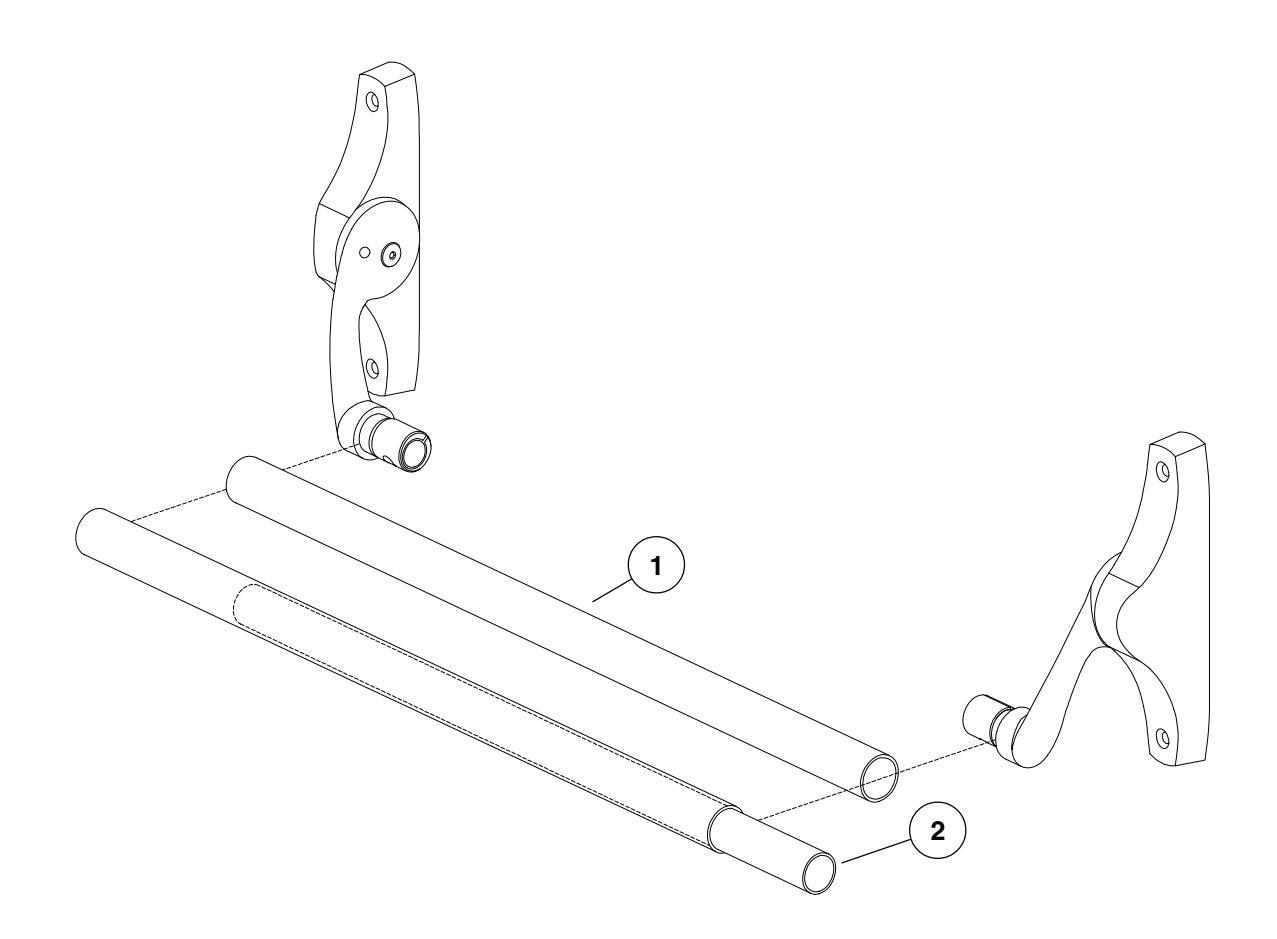

CROSSBARS
|
Item
No. |
Part
No. |
Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050004 |
42"
Standard Crossbar Kit |
1 | X |
| 1 | 050005 |
42"
Knurled Crossbar Kit |
1 | X |
| 2 | 050459 |
37"
Crossbar ReinforcementKit |
1 |
X in "Finish" column designates finished item; specify finish when ordering.
LEVER ARM KITS
|
Item
No. |
Part
No. |
Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050112 |
55
R/M/CV LH LeverArm Kit |
1 | X |
| 2 | 050136 |
55
R/M/CV RH LeverArm Kit |
1 | X |
| 3 | 050137 |
5547-F/75-F
LH LeverArm Kit |
1 | X |
| 4 | 050139 |
5547-F/75-F
RH LeverArm Kit |
1 | X |
X in "Finish" column designates finished item; specify finish when ordering.

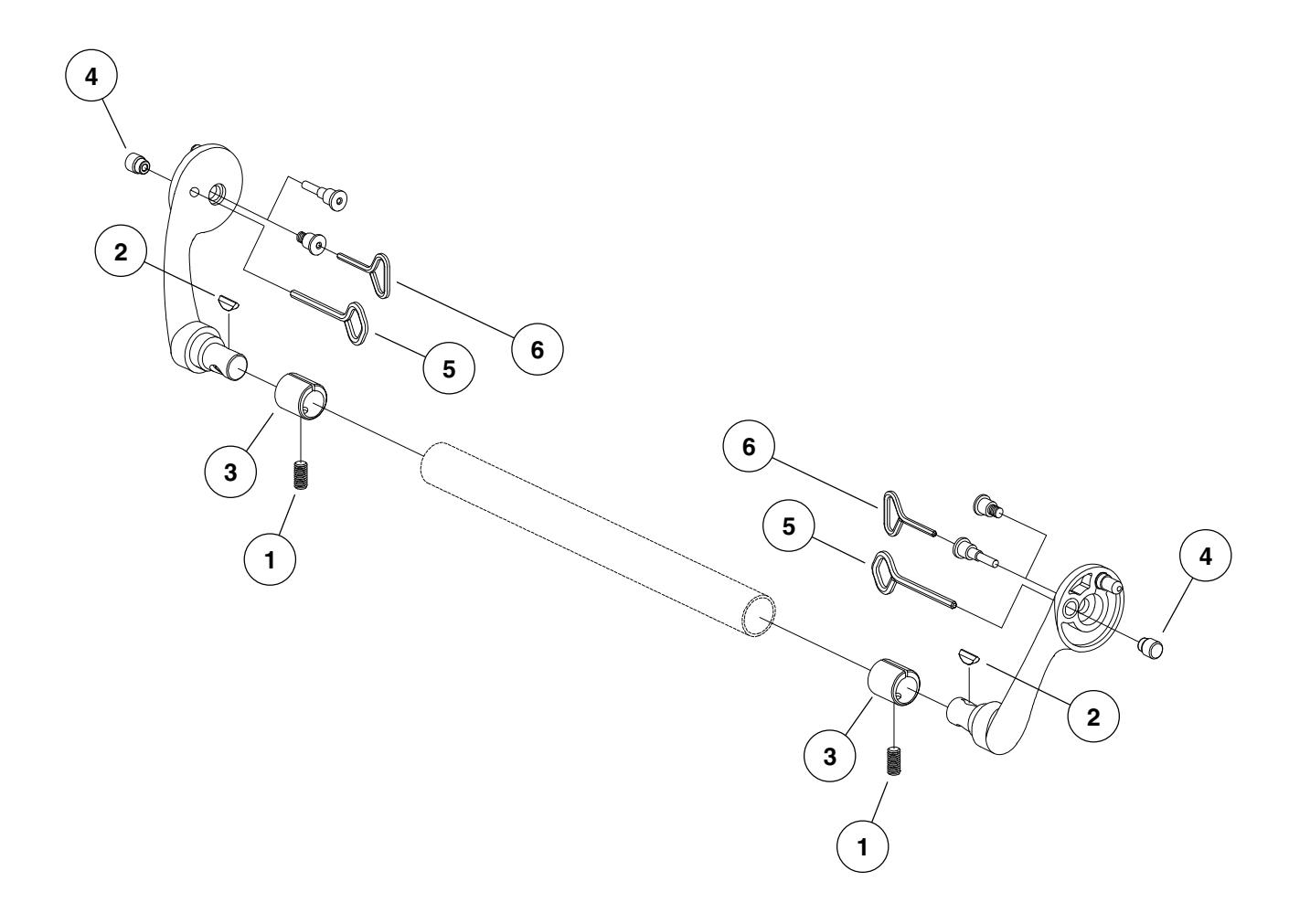

LEVER ARM PARTS PACKAGES
|
Item
No. |
Part
No. |
Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 090008 |
Wedgetite
Screw Pkg. |
2 | |
| 1 | 090081 |
Wedgetite
Screw Pkg. |
30 | |
| 2 | 090020 |
Crossbar
TubeAttaching Wedge Pkg. |
2 | |
| 3 | 090021 |
Crossbar
TubeAttaching Ring Pkg. |
2 | |
| 4 | 090029 |
55
Dog Screw Pkg. |
2 | |
| 4 | 090053 |
55
Dog Screw Pkg. |
10 | |
| 5 | 090005 |
227
Dog Key 5/32" Pkg. |
2 | |
| 5 | 090085 |
227
Dog Key 5/32" Pkg. |
10 | |
| 6 | 103866 |
55
Series Special Hex Key (Reversing Pkg.) |
1 |
X in "Finish" column designates finished item; specify finish when ordering.
END CASE KITS AND END CASE PARTS
|
Item
No. |
Part
No. |
Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050196 |
55
Rim/5575/5547 RHR End Case Kit |
1 | X |
| 2 | 050197 |
55
Rim/5575/5547 LHR End Case Kit |
1 | X |
| 3 | 050198 |
5547-F/5575-F
RHR End CaseKit |
1 | X |
| 4 | 050199 |
5547-F/5575-F
LHR End CaseKit |
1 | X |
| 5 | 050364 |
55
Series End Case Backplate |
1 | |
| 6 | 090051 |
55
Retaining Screw Pkg. |
10 | |
| 6 | 090026 |
55
Retaining Screw Pkg. |
2 | |
| 7 | 090052 |
55
End Case Spring Pkg. |
20 | |
| 7 | 090028 |
55
End Case Spring Pkg. |
4 | |
| 8 | 050366 |
55End
CaseSpring Lever |
1 | |
| 9 | 900507 |
55
Series End Case Mounting Pkg. |
2 | X |
X in "Finish" column designates finished item; specify finish when ordering.

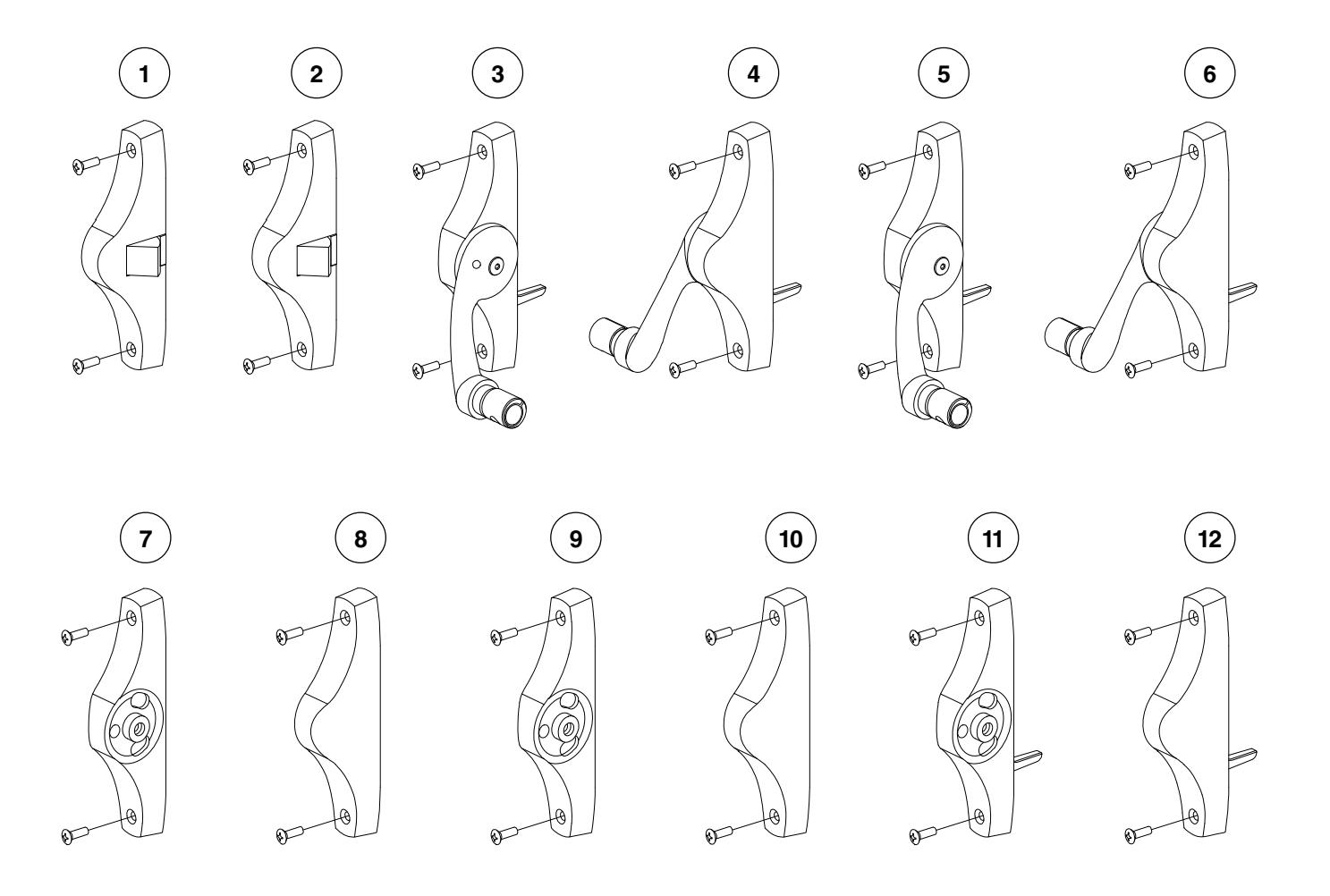

CENTER CASE KITS
|
Item
No. |
Part
No. |
Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050183 |
55EO
Center Case Kit |
1 | X |
| 2 | 050184 |
55NL
Center Case Kit |
1 | X |
| 3 | 050186 |
5575
Center case LHR Kit |
1 | X |
| 4 | 050185 |
5575
Center Case RHR Kit |
1 | X |
| 5 | 050188 |
5575-F
Center Case LHR Kit |
1 | X |
| 6 | 050187 |
5575-F
Center Case RHR Kit |
1 | X |
| 7 | 050191 |
5547
LHR Center Case Kit |
1 | X |
| 8 | 050189 |
5547
RHR Center Case Kit |
1 | X |
| 9 | 050193 |
5547-F
LHR Center Case Kit |
1 | X |
| 10 | 050192 |
5547-F
RHR Center CaseKit |
1 | X |
| 11 | 050195 |
5547WDC
LHR Center Case Kit |
1 | X |
| 12 | 050194 |
5547WDC
RHR Center CaseKit |
1 | X |
X in "Finish" column designates finished item; specify finish when ordering.

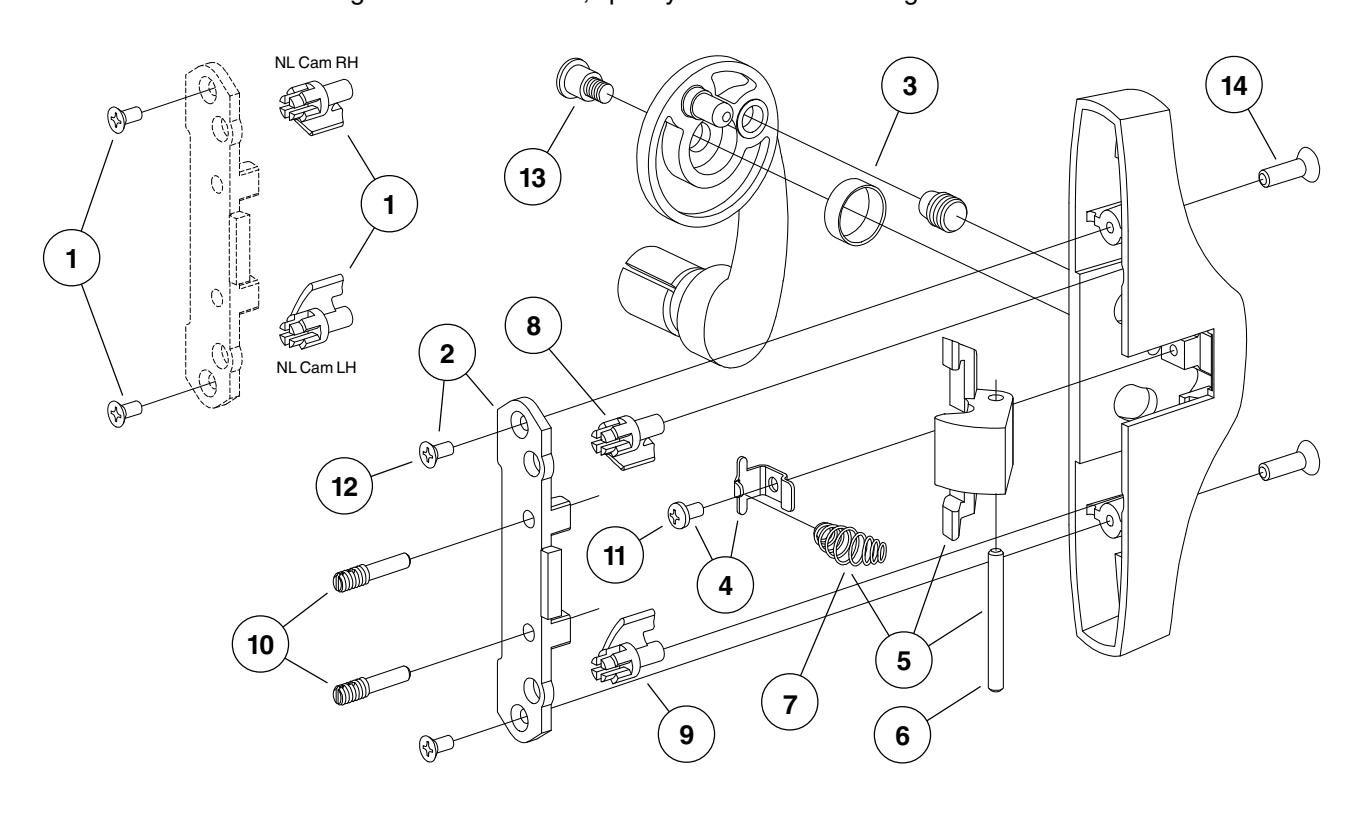

CENTER CASE PARTS: 55 RIM DEVICE
|
Item
No. |
Part
No. |
Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050105 |
55CK-NL
ConversionKit(ordertrim separate) |
1 | |
| 2 | 050332 |
55
Rim Backplate w/Screws |
1 | X |
| 3 | 050333 |
55
Case Bushing |
1 | |
| 4 | 050334 |
55
Rim Spring Clip w/Screws |
1 | |
| 5 | 050352 |
55
Rim Latch Bolt w/Axle and Spring |
1 | |
| 6 | 050353 |
55
Rim Latch Bolt Axle |
1 | |
| 7 | 050354 |
55
Rim Latch Bolt Spring |
1 | |
| 8 | 050355 |
55NL
Cam RH |
1 | |
| 9 | 050356 |
55NL
Cam LH |
1 | |
| 10 | 090023 |
55Axle
Retainer Pkg. |
2 | |
| 11 | 090024 |
55
SpringAnchor Screw Pkg. |
10 | |
| 12 | 090025 |
55
Backplate Screw Pkg. |
10 | |
| 13 | 090022 |
55
Rim Center Case Retaining Screw Pkg. |
2 | |
| 13 | 090050 |
55
Rim Center Case Retaining Screw Pkg. |
10 | |
| 14 | 900507 |
55
Rim Center Case Mounting Pkg. |
1 | X |
|
12-24
x 3/4" OPHMS |
2 | |||
| 14 | 900512 |
Rim
2" Dr SNB Mounting Pkg. |
1 | X |
|
12-24
x 1" OPHMS |
4 |
X in "Finish" column designates finished item; specify finish when ordering.

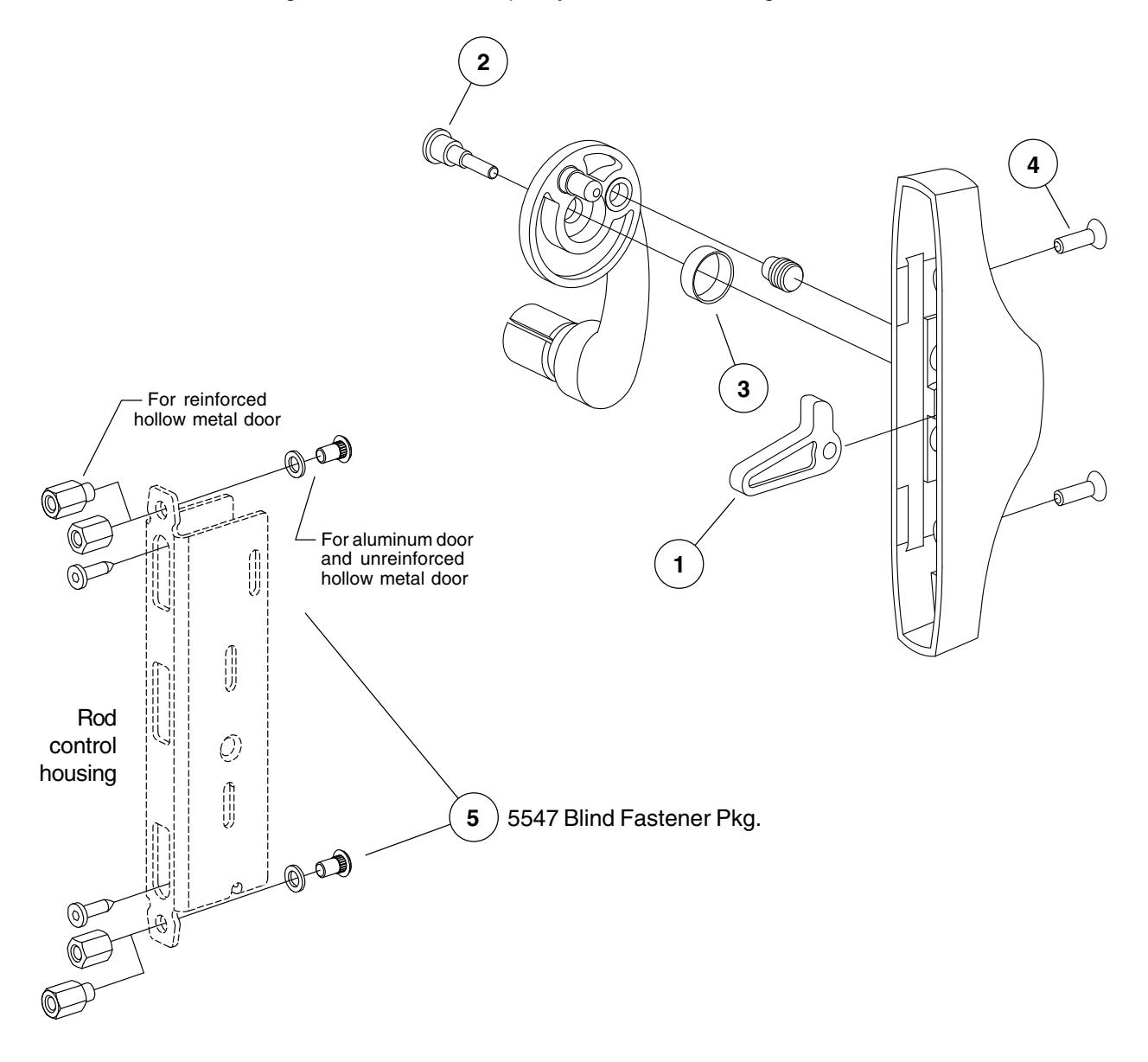

CENTER CASE PARTS: 5547 DEVICE
|
Item
No. |
Part
No. |
Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050357 |
5547Control
Lever |
1 | |
| 2 | 090051 |
55
Retaining Screw Pkg. |
10 | |
| 2 | 090026 |
55
Retaining Screw Pkg. |
2 | |
| 3 | 050333 |
55
Case Bushing |
1 | |
| 4 | 900508 |
5547
Center Case Mounting Pkg. |
X | |
|
12-24
x 1/2" OPHMS |
2 | |||
| 4 | 900514 |
5547
2" Dr SNB Mounting Pkg. |
X | |
|
12-24
x 1" OPHMS |
2 | |||
| 5 | 900539 |
5547
Blind Fastener Pkg. |
1 |
X in "Finish" column designates finished item; specify finish when ordering.

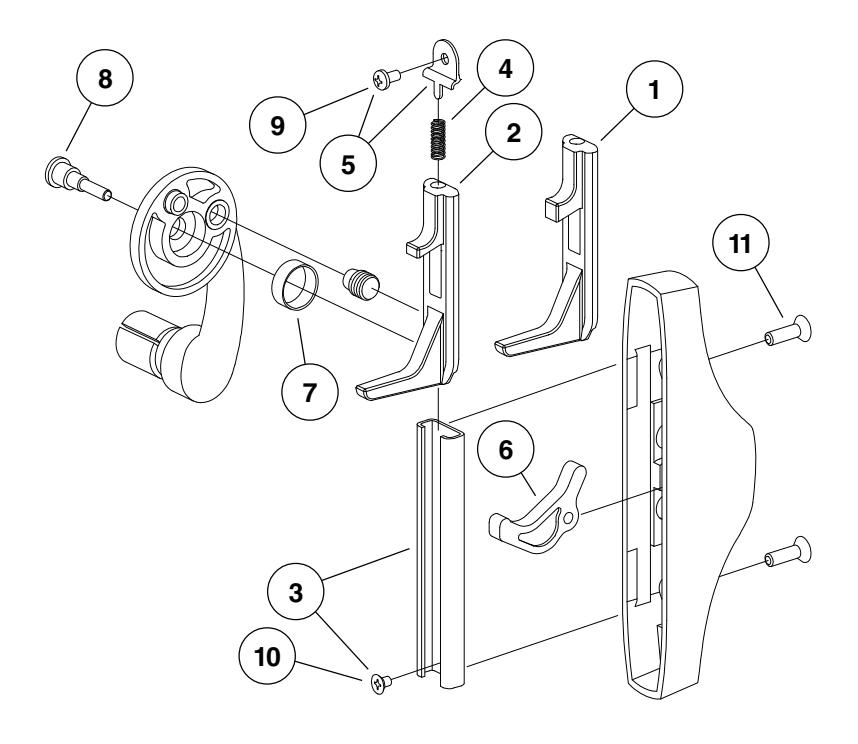

CENTER CASE PARTS: 5547-F, 5547WDC, 5575, 5575-F DEVICES
|
Item
No. |
Part
No. |
Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050360 |
5547-F/5547WDC
Lift Member |
1 | |
| 2 | 050361 |
5575/5575-F
Lift Member |
1 | |
| 3 | 050359 |
5547-F/5547WDC
Lift Member Channel |
1 | |
| 4 | 050362 |
5547/5547-F
Latch ReleaseSpring |
1 | |
| 5 | 050363 |
5547-F/5547WDC
SpringAnchor |
1 | |
| 6 | 050358 | 5547-F/5547WDC Lift Member Lever | 1 | |
| 7 | 050333 |
55
Case Bushing |
1 | |
| 8 | 090051 |
55
Retaining Screw Pkg. |
10 | |
| 8 | 090026 |
55
Retaining Screw Pkg. |
2 | |
| 9 | 090024 |
55
SpringAnchor Screw Pkg. |
10 | |
| 10 | 090027 |
Lift
Member Guide Screw Pkg. |
10 | |
| 11 | 900509 |
5547-F/5575/5575-F
Center Case MountingPkg. |
X | |
|
12-24
x 5/8" OPHMS |
2 | |||
| 11 | 900507 |
5547WDC
Center Case Mounting Pkg. |
X | |
|
12-24
x 3/4" OPHMS |
2 | |||
| 11 | 900512 |
5547WDC
2" Dr SNB Mounting Pkg. |
X | |
|
12-24
x 1" OPHMS |
4 | |||
| 11 | 900514 |
5547/5575
2" Dr SNB Mounting Pkg. |
X | |
|
12-24
x 1" OPHMS |
2 |
X in "Finish" column designates finished item; specify finish when ordering.

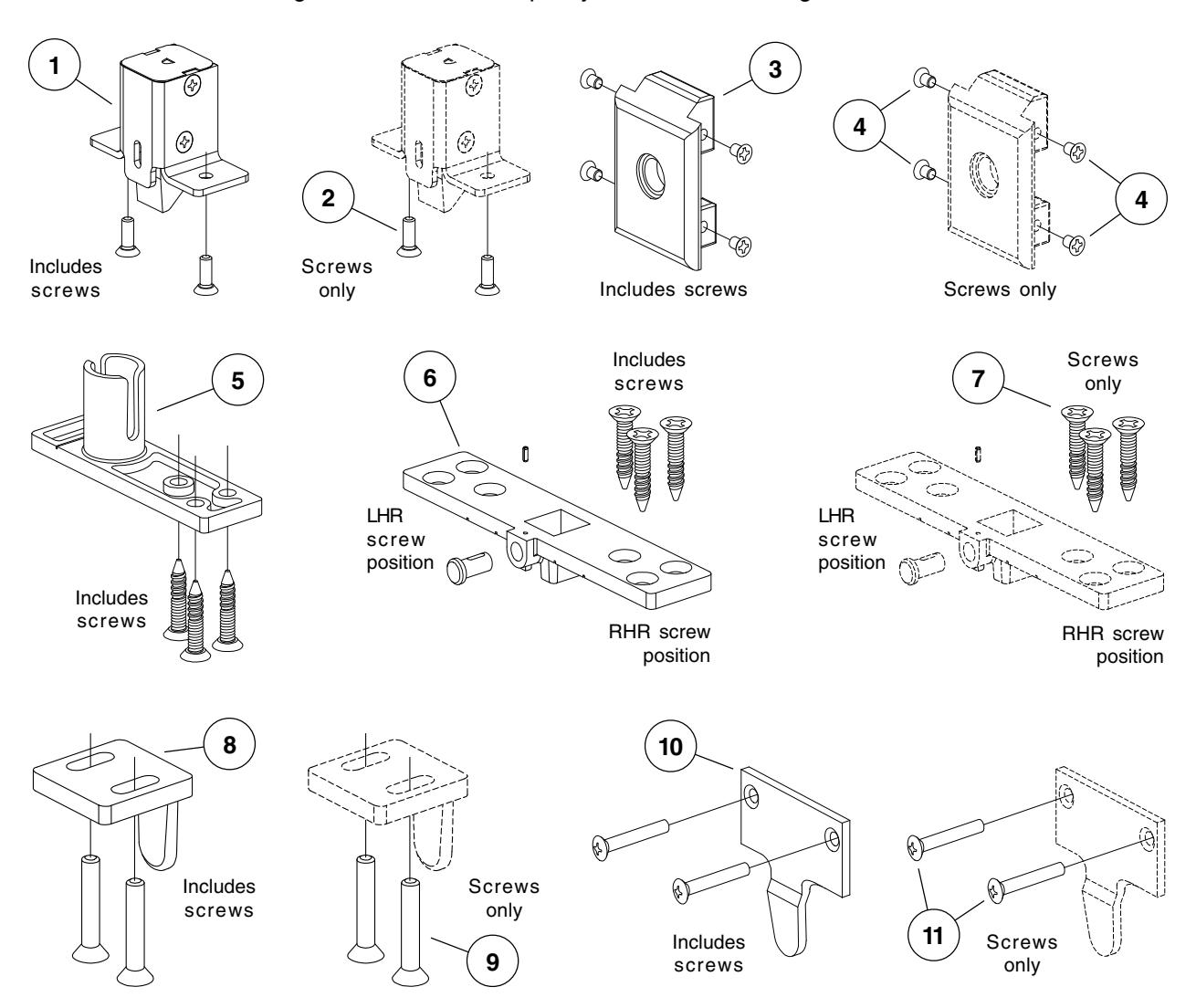

VERTICAL LATCHES
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 114141 | 5547-F Soffit Latch Kit (includes screws) | 1 | |
| 2 | 900502 | 5547 Soffit Latch Mounting Pkg. | 2 | |
| 3 | 050278 | 5547-F Release Guide Cover with Screws | 1 | Х |
| 4 | PKGSRV.1018 | 5547-F Top Latch Release Screw Pkg. | 20 | |
| 5 | 050370 | 5547/5547WDC Bottom Bracket Guide (includes screws) | 1 | |
| 6 | 100316 | 5547/5547WDC Top Plate (includes screws) | 1 | |
| 7 | 090033 | 5547WDC Top Plate Screw Pkg. | 10 | |
| 8 | 900576 | 5547-F Plunger Release Bracket (includes screws) | 1 | Х |
| 9 | 090034 | 5547-F Plunger Release Bracket Screw Pkg. | 10 | Х |
| 10 | 900614 | 5547-F Flush Transom Release Bracket with Screws | 1 | Х |
| 11 | 090035 | 5547-F Flush Transom release Bracket Screw Pkg. | 10 | Х |
X in "Finish" column designates finished item; specify finish when ordering.

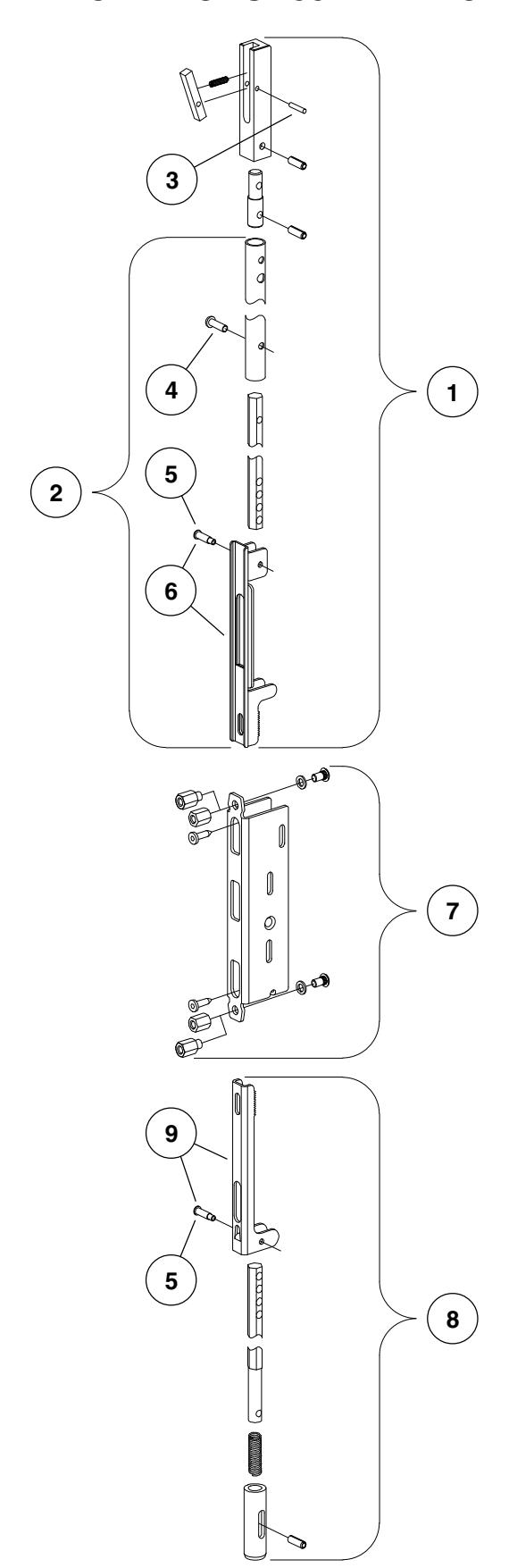

VERTICAL RODS: 5547 DEVICE
VERTICAL RODS: 5547-F DEVICE
VERTICAL RODS: 5547 DEVICE
|
Item
No. |
Part
No. |
Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050053 |
5547
Top Rod Kit 6'8"-8'Door |
1 | |
| 1 | 050372 |
5547
Top Rod Kit 8'-10'Door |
1 | |
| 2 | 051704 |
5547
Extension Rod Kit 8'-10' Door |
1 | |
| 3 | 090032 |
5547
Top Rod 1/8" x 5/8" Roll Pin Pkg. |
10 | |
| 4 | 090011 |
5547
Rod Connector RivetPkg. |
10 | |
| 5 | 090030 |
5547
Rod Connector Pin Pkg. |
2 | |
| 6 | 050368 |
5547
Top Rod Connector with Pin |
1 | |
| 7 | 050367 |
5547
Rod Control Housing |
1 | |
| 8 | 050036 |
5547
Bottom Rod Kit |
1 | |
| 9 | 050369 |
5547
Bottom Rod Connector with Pin |
1 |
X in "Finish" column designates finished item; specify finish when ordering.
VERTICAL RODS: 5547-F DEVICE
|
Item
No. |
Part
No. |
Description | Quantity | Finish |
|---|---|---|---|---|
| 10 | 050457 |
5547-FTop
Rod Kit 6'8"-8'Door |
1 | X |
| 10 | 050373 |
5547-FTop
Rod Kit 8'-10'Door |
1 | X |
| 11 | 051705 |
5547-F
Extension Rod Kit 8'-10' Door |
1 | |
| 12 | 900541 |
5547-F
Rod Set Mounting Pkg. |
1 | |
| 13 | 050458 |
5547-F
Bottom Rod Kit |
1 | |
| 14 | 105144 |
5547-F
Rod Guide Pkg. |
1 | |
| 15 | 090018 |
5547-F
Rod Guide Mounting Screw Pkg. |
10 | |
| 16 | 100741 |
5547-F
Bottom Guide Pkg. |
1 |
X in "Finish" column designates finished item; specify finish when ordering.
Assembly Procedure (LHR shown) 5547-F Bottom Guide Pkg. Part No. 100741

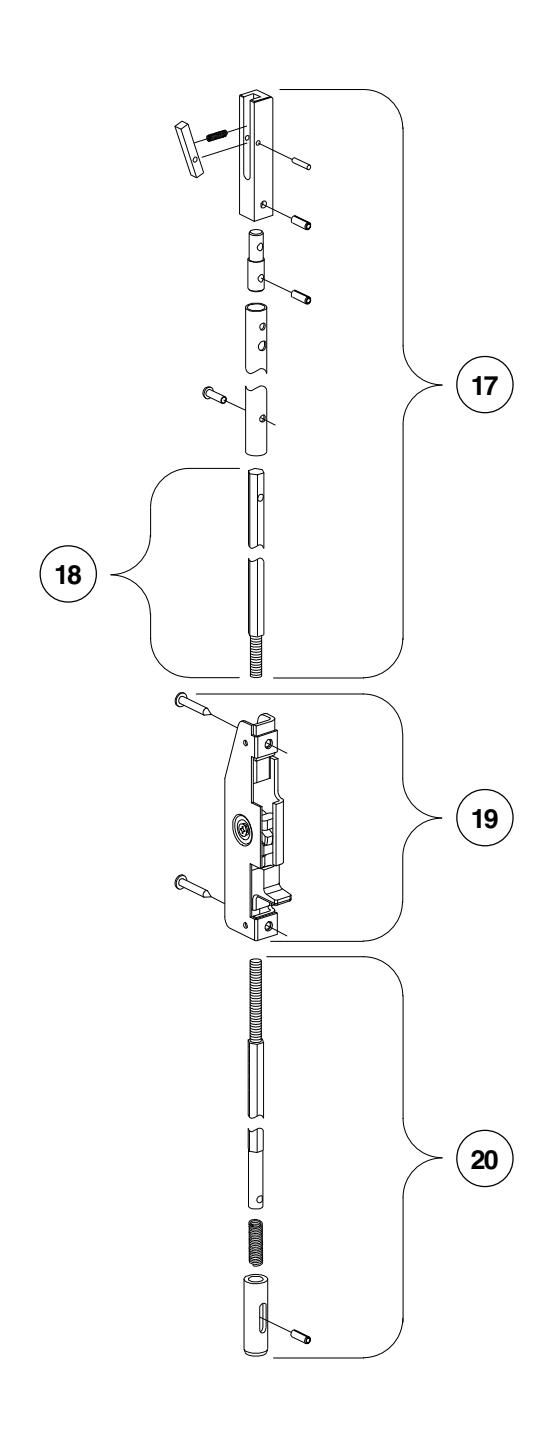

VERTICAL RODS: 5547WDC DEVICE
|
Item
No. |
Part
No. |
Description | Quantity | Finish |
|---|---|---|---|---|
| 17 | 050110 |
5547WDCTop
Rod Kit 6'8"-8'Door |
1 | |
| 17 | 050374 |
5547WDC
Top Rod Kit 8'-10'Door |
1 | |
| 18 | 051707 |
5547WDC
Extension Rod Kit 8'-10' Door |
1 | |
| 19 | 100315 |
5547WDC
Latch Control |
1 | |
| 20 | 050096 |
5547WDC
Bottom Rod Kit |
1 |
X in "Finish" column designates finished item; specify finish when ordering.
