← Von Duprin

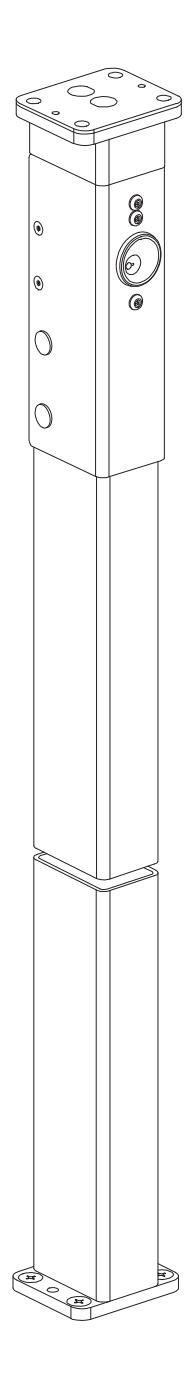

54 Series Mullions
Service manual
INDEX
|
General
Information |
|
|---|---|
|
Introduction
3 |
|
|
How
to Order 3 |
|
|
Part
Number Changes |
3 |
|
54
Series Mullions Finishes |
3 |
|
54
Series Mullions Parts |
|
|
1654
4 |
|
|
4954
4 |
|
|
9954
6 |
|
|
5654
8 |
|
|
5754
8 |
|
|
4754
10 |
|
|
4854
10 |
|
|
9854
12 |
|
|
KR1654
14 |
|
|
KR4954
14 |
|
|
KR9854
16 |
|
|
KR9954
16 |
|
|
KR54
Retrofit Kit18 |
|
|
KR54-F
Retrofit Kit |
19 |
INTRODUCTION
This manual contains a listing ofreplaceable parts and assemblies forthe 54 SeriesMullions.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, IN 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.
54 SERIES MULLIONS FINISHES
| Mullion |
US
Number |
BHMA
Number |
Color |
|---|---|---|---|
| US4 | 606 |
Brass,
dull |
|
| 5654 | US10 | 612 |
Bronze,
dull |
| and | US28 | ||
| 5754 | 313AN | ||
| All | SP28 | ||
| others | SP313 |

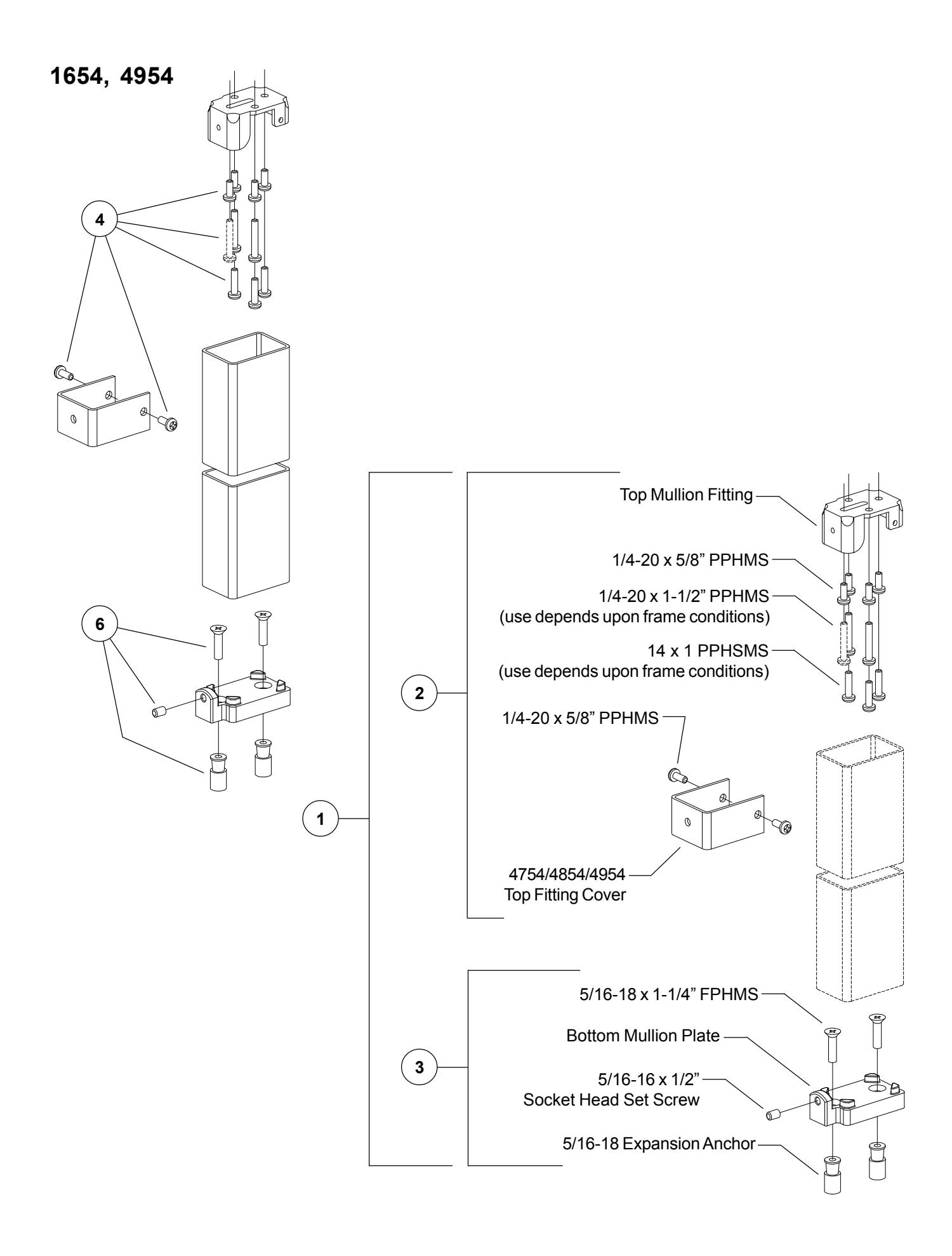

| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050330 | 1654/4954 Fitting Set | X | |
| Top Mullion Fitting | 1 | |||
| 4754/4854/4954TopFitting Cover | 1 | |||
| 1/4-20 x 5/8" PPHMS | 6 | |||
| 1/4-20 x 1-1/2" PPHMS | 2 | |||
| 14 x 1" PPHSMS | 3 | |||
| Bottom Mullion Plate | 1 | |||
| 5/16-18 x 1/2" Socket Head Set Screw | 1 | |||
| 5/16-18ExpansionAnchor | 2 | |||
| 5/16-18 x 1-1/4" FPHMS | 2 | |||
| 2 | 050335 | 4954Top Fitting & Cover | X | |
| Top Mullion Fitting | 1 | |||
| 4754/4854/4954TopFitting Cover | 1 | |||
| 1/4-20 x 5/8" PPHMS | 6 | |||
| 1/4-20 x 1-1/2" PPHMS | 2 | |||
| 14 x 1" PPHSMS | 3 | |||
| 3 | 050390 | 4754/4854/4954 Bottom Fitting | X | |
| Bottom Mullion Plate | 1 | |||
| 5/16-18 x 1/2" Socket Head Set Screw | 1 | |||
| 5/16-18ExpansionAnchor | 2 | |||
| 5/16-18 x 1-1/4" FPHMS | 2 | |||
| 4 | 900400 | Mullion (Top) Screw Pkg. | ||
| 1/4-20 x 5/8" PPHMS | 6 | |||
| 1/4-20 x 1-1/2" PPHMS | 2 | |||
| 14 x 1" PPHSMS | 3 | |||
| 5 | 961047 | 4754/4854/4954TopFitting Cover | 1 | X |
| 6 | 900402 | Mullion (Bottom) Screw Pkg. | ||
| 5/16-18 x 1/2" Socket Head Set Screw | 1 | |||
| 5/16-18ExpansionAnchor | 2 | |||
| 5/16-18 x 1-1/4" FPHMS | 2 |

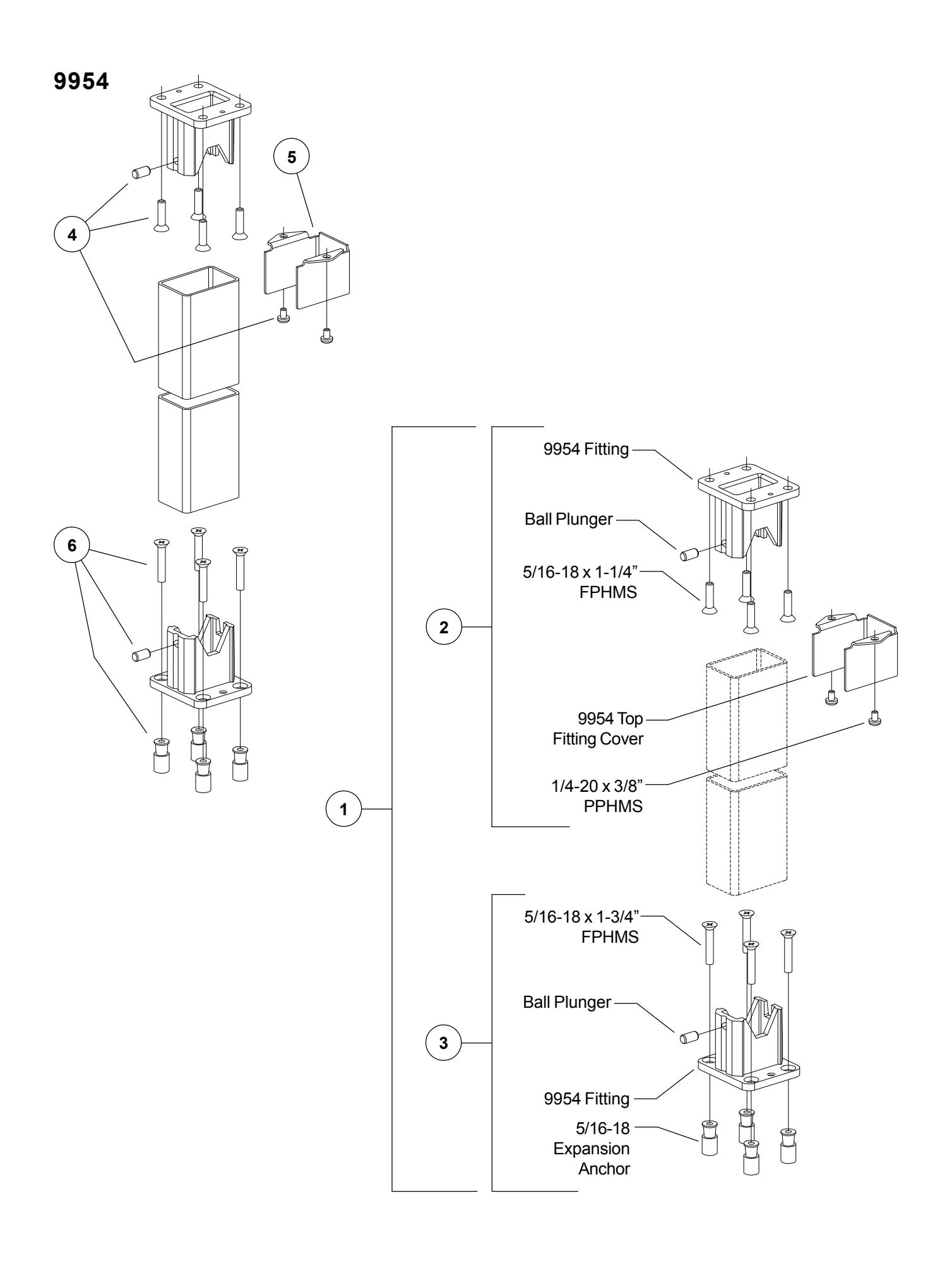

9954
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050241 | 9954 Fitting Set | X | |
| 9954 Fitting | 1 | |||
| 9954Top Fitting Cover | 1 | |||
| 5/16-18 x 1-1/4" FPHMS | 4 | |||
| 1/4-20 x 3/8" PPHMS | 2 | |||
| Ball Plunger | 1 | |||
| 9954 Fitting | 1 | |||
| 5/16-18ExpansionAnchor | 4 | |||
| 5/16-18 x 1-3/4" FPHMS | 4 | |||
| Ball Plunger | 1 | |||
| 2 | 050391 | 9954 Top Fitting & Cover | X | |
| 9954 Fitting | 1 | |||
| 9954Top Fitting Cover | 1 | |||
| 5/16-18 x 1-1/4" FPHMS | 4 | |||
| 1/4-20 x 3/8" PPHMS | 2 | |||
| Ball Plunger | 1 | |||
| 3 | 050392 | 9954 Bottom Fitting | X | |
| 9954 Fitting | 1 | |||
| 5/16-18ExpansionAnchor | 4 | |||
| 5/16-18 x 1-3/4" FPHMS | 4 | |||
| Ball Plunger | 1 | |||
| 4 | 900413 | 9954 (Top) Screw Pkg. | ||
| 5/16-18 x 1-1/4" FPHMS | 4 | |||
| 1/4-20 x 3/8" PPHMS | 2 | |||
| Ball Plunger | 1 | |||
| 5 | 968645 | 9954 Top Fitting Cover | X | |
| 6 | 900411 | 9954 (Bottom) Screw Pkg. | ||
| 5/16-18ExpansionAnchor | 4 | |||
| 5/16-18 x 1-3/4" FPHMS | 4 | |||
| Ball Plunger | 1 |

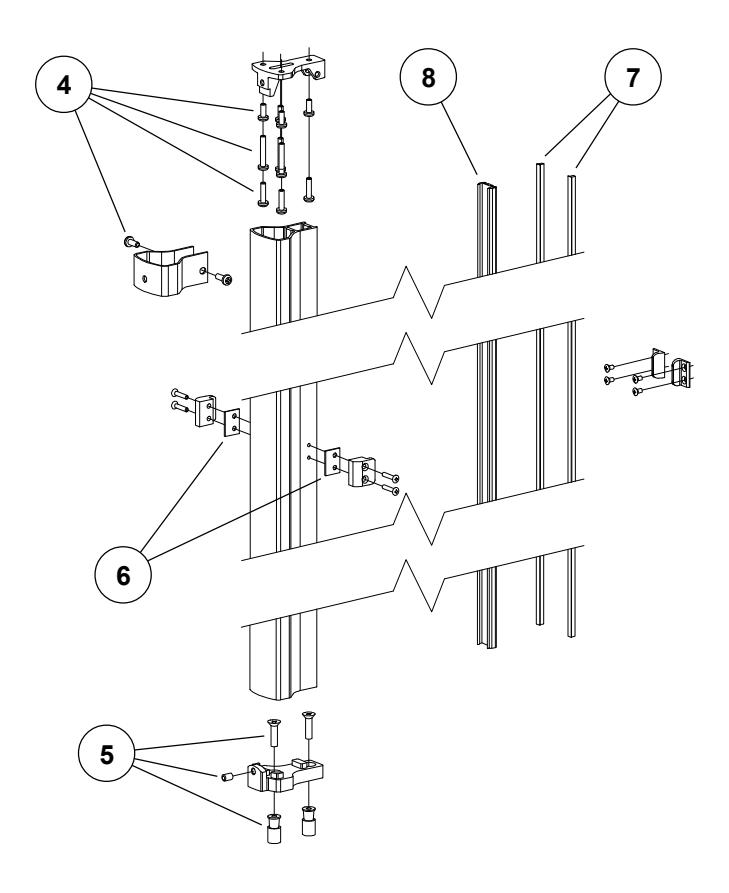

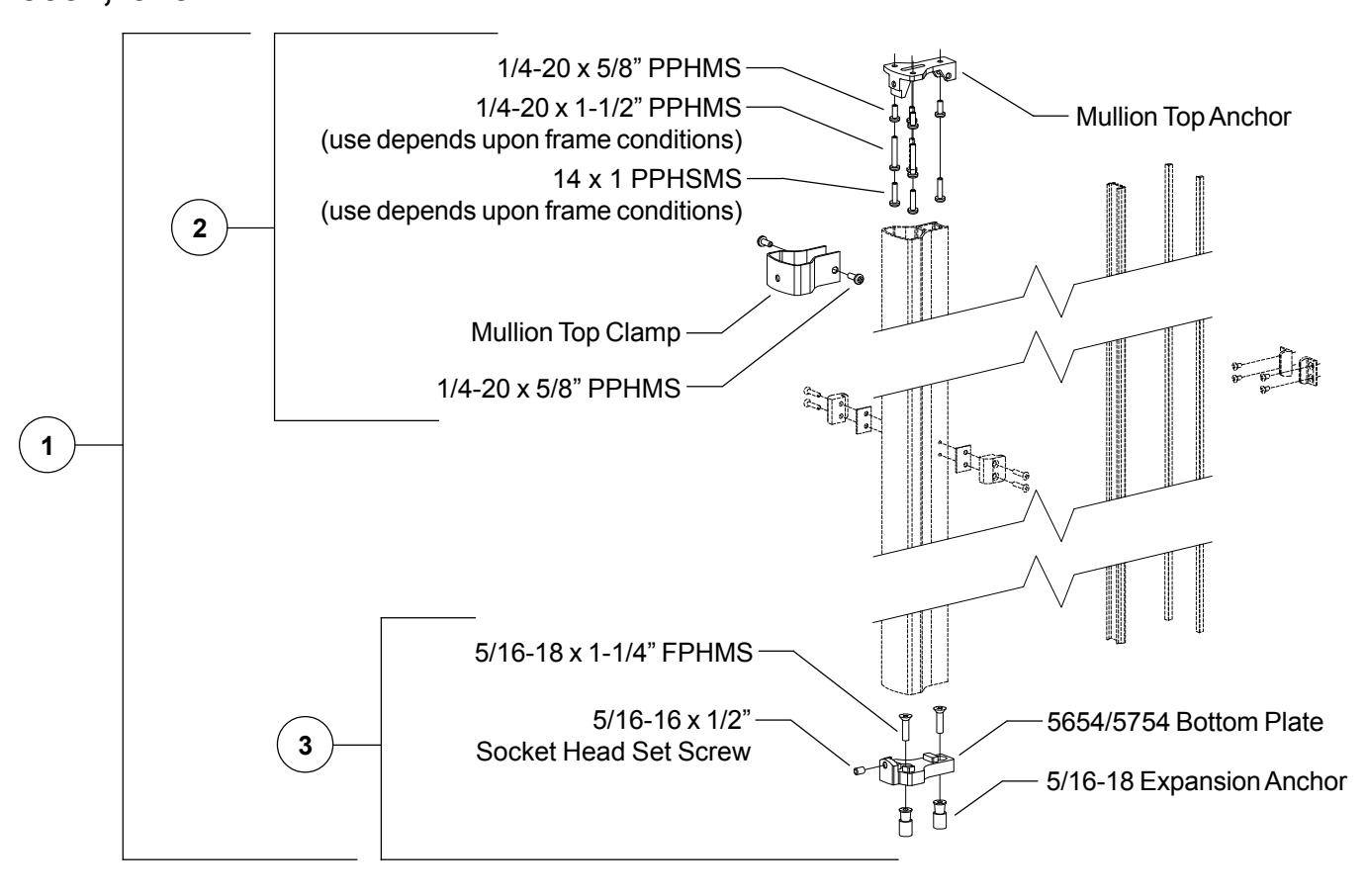

| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050130 | 5654/5754 Fitting Set | X | |
| Mullion TopAnchor | 1 | |||
| Mullion Top Clamp | 1 | |||
| 1/4-20 x 5/8" PPHMS | 6 | |||
| 1/4-20 x 1-1/2" PPHMS | 2 | |||
| 14 x 1" PPHSMS | 3 | |||
| 5654/5754 Bottom Plate | 1 | |||
| 5/16-18 x 1/2" Socket Head Set Screw | 1 | |||
| 5/16-18 ExpansionAnchor | 2 | |||
| 5/16-18 x 1-1/4" FPHMS | 2 | |||
| 2 | 050135 | 5654/5754 Top Fitting & Cover | X | |
| Mullion TopAnchor | 1 | |||
| Mullion Top Clamp | 1 | |||
| 1/4-20 x 5/8" PPHMS | 6 | |||
| 1/4-20 x 1-1/2" PPHMS | 2 | |||
| 14 x 1" PPHSMS | 3 | |||
| 3 | 050190 | 5654/5754 Bottom Fitting | X | |
| 5654/5754 Bottom Plate | 1 | |||
| 5/16-18 x 1/2" Socket Head Set Screw | 1 | |||
| 5/16-18 ExpansionAnchor | 2 | |||
| 5/16-18 x 1-1/4" FPHMS | 2 | |||
| 4 | 900400 | Mullion (Top) Screw Pkg. | ||
| 1/4-20 x 5/8" PPHMS | 6 | |||
| 1/4-20 x 1-1/2" PPHMS | 2 | |||
| 14 x 1" PPHSMS | 3 | |||
| 5 | 900402 | Mullion (Bottom) Screw Pkg. | ||
| 5/16-18 x 1/2" Socket Head Set Screw | 1 | |||
| 5/16-18 ExpansionAnchor | 2 | |||
| 5/16-18 x 1-1/4" FPHMS | 2 | |||
| 6 | 961530 | Mullion Stabilizer Shim | 1 | |
| 7 | 050580 | Weatherstripping (10') Use 2 Per Mullion | 1 | |
| 8 | 965712 | 5654 Mullion Edging - 7' | 1 | X |
| 8 | 965713 | 5654 Mullion Edging - 8' | 1 | X |
| 8 | 965714 | 5654 Mullion Edging - 10' | 1 | X |
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050371 | 4754/4854 Fitting Set | X | |
| Male Connector Wire Assembly | 1 | |||
| Female Receptacle Wire Assembly | 1 | |||
| Top Mullion Fitting | 1 | |||
| Top Fitting Cover | 1 | |||
| 1/4-20 x 5/8" PPHMS | 6 | |||
| 1/4-20 x 1-1/2" PPHMS | 2 | |||
| 14 x 1" PPHSMS | 3 | |||
| Bottom Mullion Plate | 1 | |||
| 5/16-18 x 1/2" Socket Head Set Screw | 1 | |||
| 5/16-18 Expansion Anchor | 2 | |||
| 5/16-18 x 1-1/4" FPHMS | 2 | |||
| 2 | 050381 | 4754/4854 Top Electrical Fitting & Cover | X | |
| Male Connector Wire Assembly | 1 | |||
| Female Receptacle Wire Assembly | 1 | |||
| Top Mullion Fitting | 1 | |||
| Top Fitting Cover | 1 | |||
| 1/4-20 x 5/8" PPHMS | 6 | |||
| 1/4-20 x 1-1/2" PPHMS | 2 | |||
| 14 x 1" PPHSMS | 3 | |||
| 3 | 050390 | 4754/4854/4954 Bottom Fitting | X | |
| Bottom Mullion Plate | 1 | |||
| 5/16-18 x 1/2" Socket Head Set Screw | 1 | |||
| 5/16-18 Expansion Anchor | 2 | |||
| 5/16-18 x 1-1/4" FPHMS | 2 | |||
| 4 | 900400 | Mullion (Top) Screw Pkg. | ||
| 1/4-20 x 5/8" PPHMS | 6 | |||
| 1/4-20 x 1-1/2" PPHMS | 2 | |||
| 14 x 1" PPHSMS | 3 | |||
| 5 | 961047 | 4754/4854/4954 Top Fitting Cover | X | |
| 6 | 900402 | Mullion (Bottom) Screw Pkg. | ||
| 5/16-18 x 1/2" Socket Head Set Screw | 1 | |||
| 5/16-18 Expansion Anchor | 2 | |||
| 5/16-18 x 1-1/4" FPHMS | 2 | |||
| 7 | 105988-00 | Female Receptacle Wire Assembly | 1 | |
| 8 | 105987-00 | Male Connector Wire Assembly | 1 |
9854
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050383 | 9854 Top Mullion Fitting Kit | Х | |
| Male Connector Wire Assembly | 1 | |||
| Female Receptacle Wire Assembly | 1 | |||
| Electric Mullion Shim Plate | 1 | |||
| 9954 Fitting | 1 | |||
| 9954 Top Fitting Cover | 1 | |||
| 5/16-18 x 1-1/4" FPHMS | 4 | |||
| 1/4-20 x 3/8" PPHMS | 2 | |||
| 8-32 x 3/8" UFPHMS | 2 | |||
| Ball Plunger | 1 | |||
| 2 | 050392 | 9954 Bottom Fitting & Cover | Х | |
| 9954 Fitting | 1 | |||
| 5/16-18 Expansion Anchor | 4 | |||
| 5/16-18 x 1-3/4" FPHMS | 4 | |||
| Ball Plunger | 1 | |||
| 3 | 900413 | 9954 (Top) Screw Pkg. | ||
| 5/16-18 x 1-1/4" FPHMS | 4 | |||
| 1/4-20 x 3/8" PPHMS | 2 | |||
| Ball Plunger | 1 | |||
| 4 | 968645 | 9954 Top Fitting Cover | Х | |
| 5 | 900402 | 9954 (Bottom) Screw Pkg. | ||
| 5/16-18 Expansion Anchor | 4 | |||
| 5/16-18 x 1-3/4" FPHMS | 4 | |||
| Ball Plunger | 1 | |||
| 6 | 105988-00 | Female Receptacle Wire Assembly | 1 | |
| 7 | 971313 | Electric Mullion Shim Plate | 1 | Х |
| 8 | 105987-00 | Male Connector Wire Assembly | 1 |
KR1654, KR4954
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 900409 | KR1654/KR4954 Mullion Mounting Pkg. | X | |
| 325 Sex Bolt | 2 | |||
| 1/4-20 x 1 FH Socket Security MS | 2 | |||
| 8-32 x 1/4" UFH Socket Security MS | 4 | |||
| Short Arm Hex Key | 1 | |||
| 5/16-18 x 1-1/4" PPHMS | 2 | |||
| 8-32 x 3/8" Socket Set Screw | 1 | |||
| KR Mullion Cylinder Locking Washer | 1 | |||
| Cylinder Locknut Nitched | 1 | |||
| 2 | 050390 | 4754/4854/4954 Bottom Fitting | X | |
| Bottom Mullion Plate | 1 | |||
| 5/16-18 x 1/2" Socket Head Set Screw | 1 | |||
| 5/16-18ExpansionAnchor | 2 | |||
| 5/16-18 x 1-1/4" FPHMS | 2 | |||
| 3 | 971212 | KR Shim Plate | 1 | |
| 4 | 971340 | KR1654/KR4954 Top Fitting | 1 | X |
| 5 | 971328 | KR Mullion Cylinder Locking Washer | 1 | |
| 6 | 050526 | KR Mullion Cylinder Lock Nut | 1 | |
| 7 | 971187 | KR Inner Mullion Back Cover Plate | 1 | X |
| 8 | 900402 | Mullion (Bottom) Screw Pkg. | ||
| 5/16-18 x 1/2" Socket Head Set Screw | 1 | |||
| 5/16-18 ExpansionAnchor | 2 | |||
| 5/16-18 x 1-1/4" FPHMS | 2 |

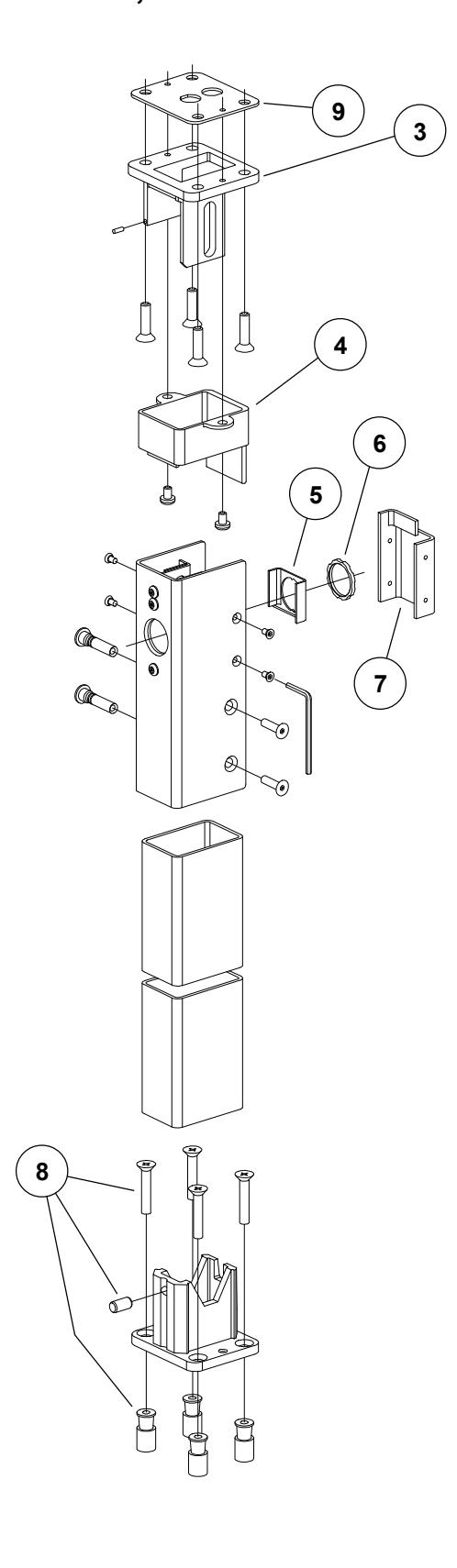

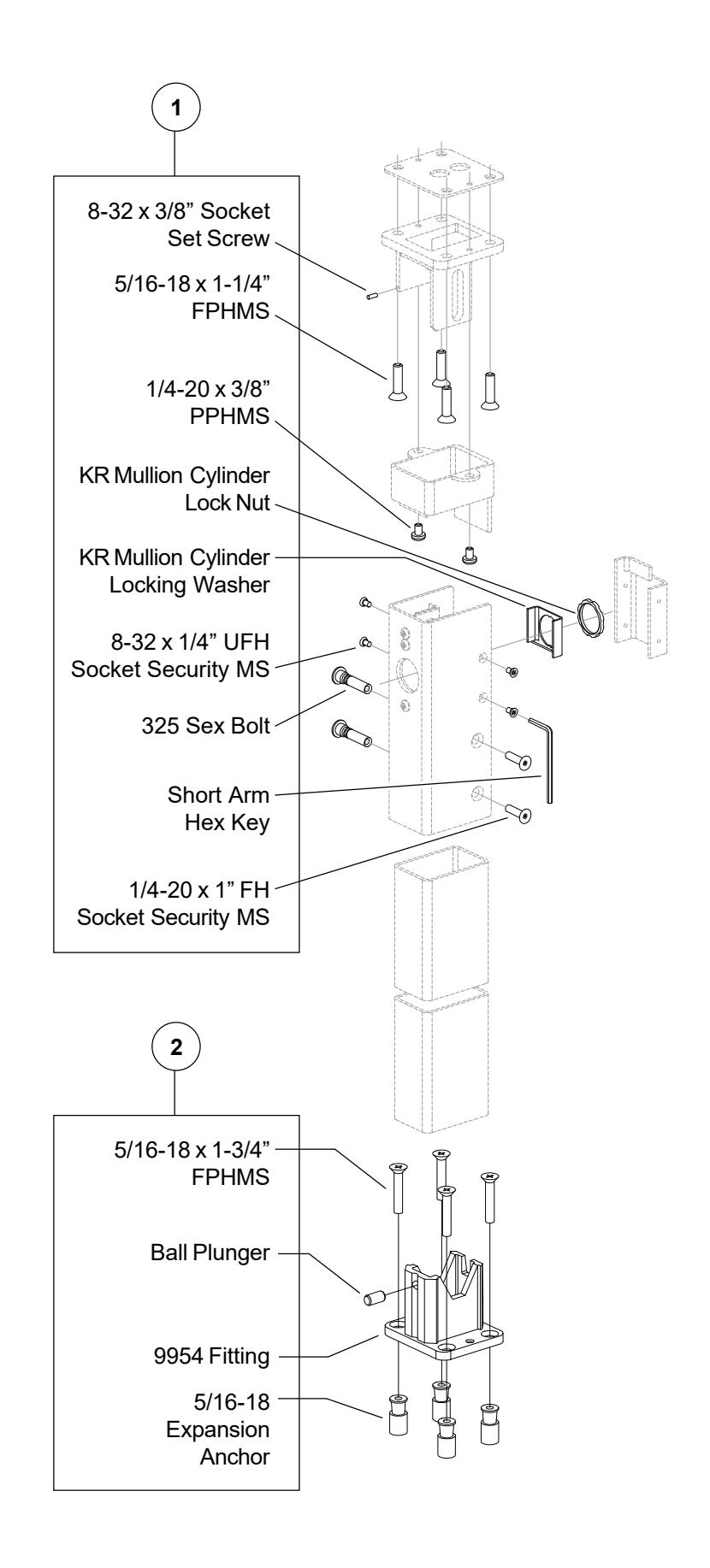

KR9854, KR9954
KR9854, KR9954
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 900410 | KR9854/KR9954 Mullion Mounting Pkg. | X | |
| 8-32 x 3/8" Socket Set Screw | 1 | |||
| 5/16-18 x 1-1/4" FPHMS | 4 | |||
| 8-32 x 1/4" UFH Socket Security MS | 4 | |||
| 325 Sex Bolt | 2 | |||
| 1/4-20 x 3/8" PPHMS | 2 | |||
| KR Mullion Cylinder Lock Nut | 1 | |||
| KR Mullion Cylinder Locking Washer | 1 | |||
| Short Arm Hex Key | 1 | |||
| 1/4-20 x 1" FH Socket Security MS | 2 | |||
| 2 | 050392 | 9954 Bottom Fitting & Cover | X | |
| 9954 Fitting | 1 | |||
| 5/16-18ExpansionAnchor | 4 | |||
| 5/16-18 x 1-3/4" FPHMS | 4 | |||
| Ball Plunger | 1 | |||
| 3 | 971312 | KR9954 Top Fitting | 1 | X |
| 4 | 971316 | KR9854/KR9954 Fusible Spacer | 1 | X |
| 5 | 971328 | KR Mullion Cylinder Locking Washer | 1 | |
| 6 | 050526 | KR Mullion Cylinder Lock Nut | 1 | |
| 7 | 971187 | KR Inner Mullion Back Cover Plate | 1 | X |
| 8 | 900402 | 9954 (Bottom) Screw Pkg. | ||
| 5/16-18ExpansionAnchor | 4 | |||
| 5/16-18 x 1-3/4" FPHMS | 4 | |||
| Ball Plunger | 1 | |||
| 9 | 971313 | Electric Mullion Shim Plate | 1 | X |
KR54 RETROFIT KIT
(Part No. 050168)
Specify finish when ordering
KR54-F RETROFIT KIT
(Part No. 050169)
Specify finish when ordering
