NOTE: LATCH CASE MOUNTING HOLES TO BE PREPARED AT INSTALLATION ON DOOR.

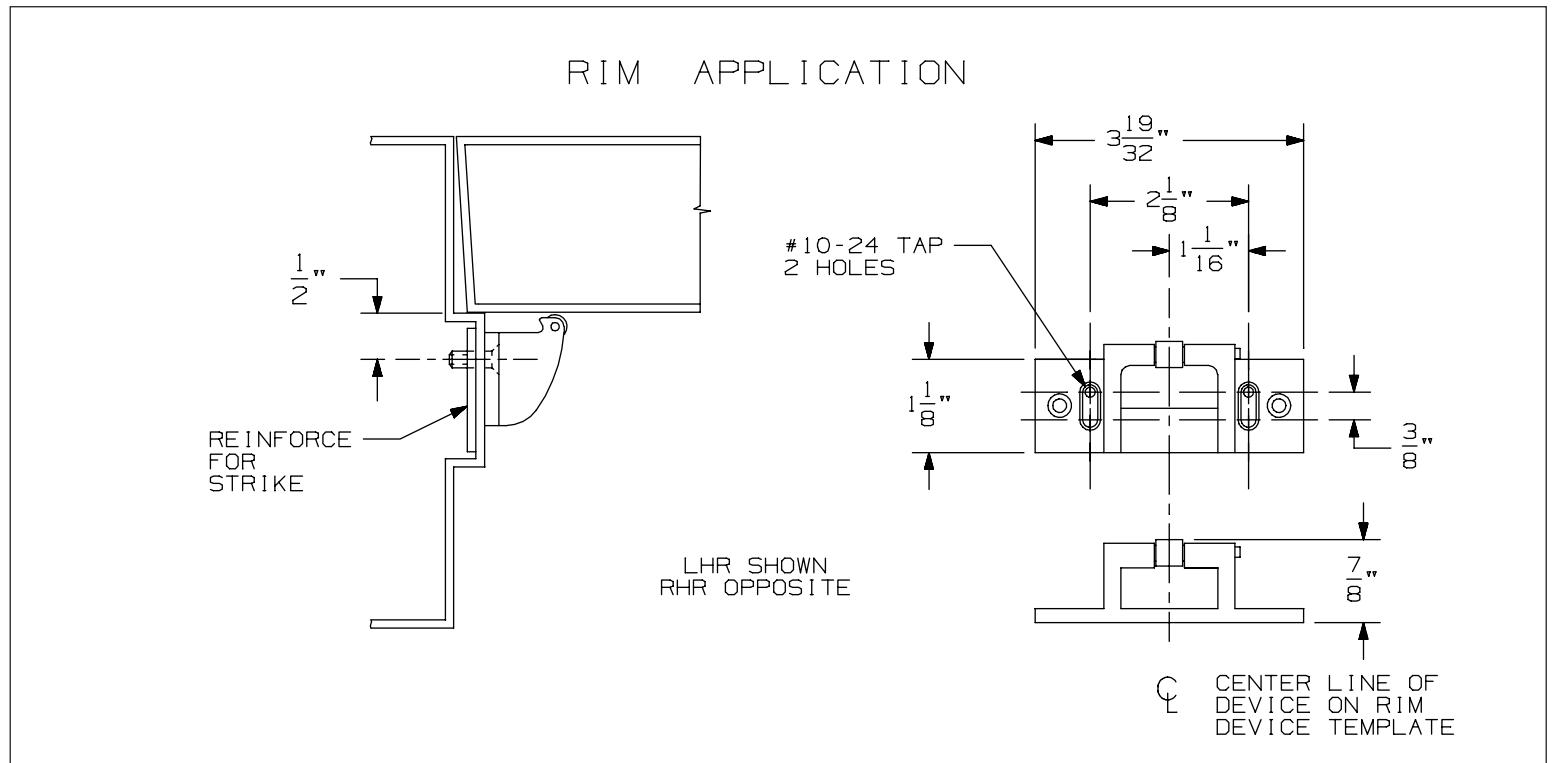

| 499-F Strike | VON DUPRIN. | ||
|---|---|---|---|
| NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING |
TEMPLATE
NUMBER: |
30040_a |
DATE:
05-23-13 |
