Von Duprin 471U Strike Used With 5547 Rim For Metal Doors Template

Original Source Document Full PDF Version

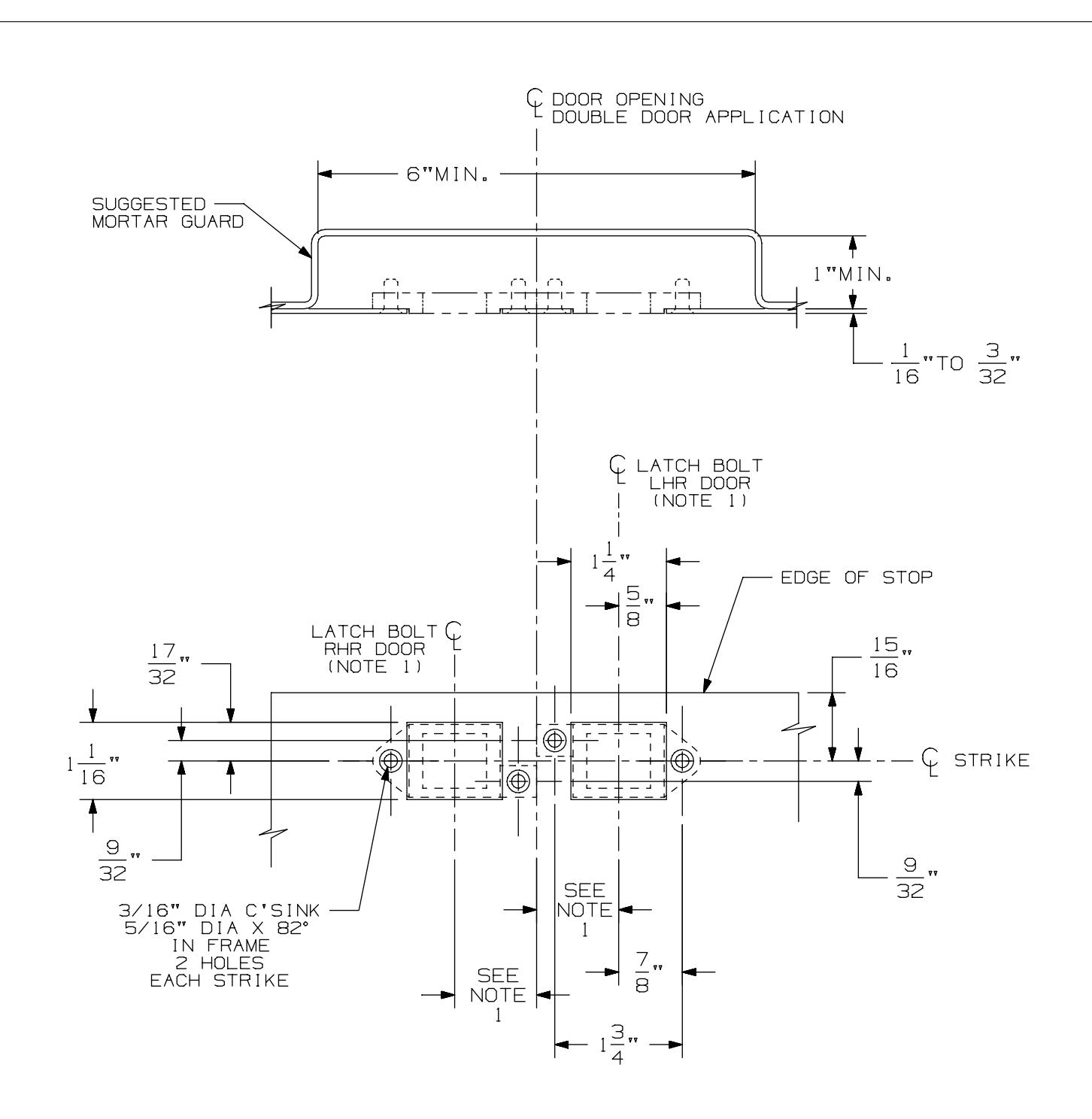

Von Duprin 471U Strike Used With 5547 Rim For Metal Doors Template diagram on page 1

DOUBLE DOOR APPLICATION SHOWN. FOR SINGLE DOOR APPLICATION USE APPROPRIATE HANDING AS SHOWN.

NOTES: 1. SEE DEVICE TEMPLATE FOR LOCATION OF LATCH BOLT.

471-U Strike for 5547 Hollow Metal Frame Preparation

TEMPLATE NUMBER:

30013_a

DATE: 05-23-13
