DEVICE APPLICATION SCHEDULE 98/99 SERIES RIM (DT OR NL) 98/99 SERIES SURFACE VERTICAL (DT, NL OR TL) 98/99 SERIES MORTISE (DT OR NL) 98/99 SERIES CONCEALED VERTICAL (DT, NL OR TL)

LHR SHOWN RHR OPPOSITE

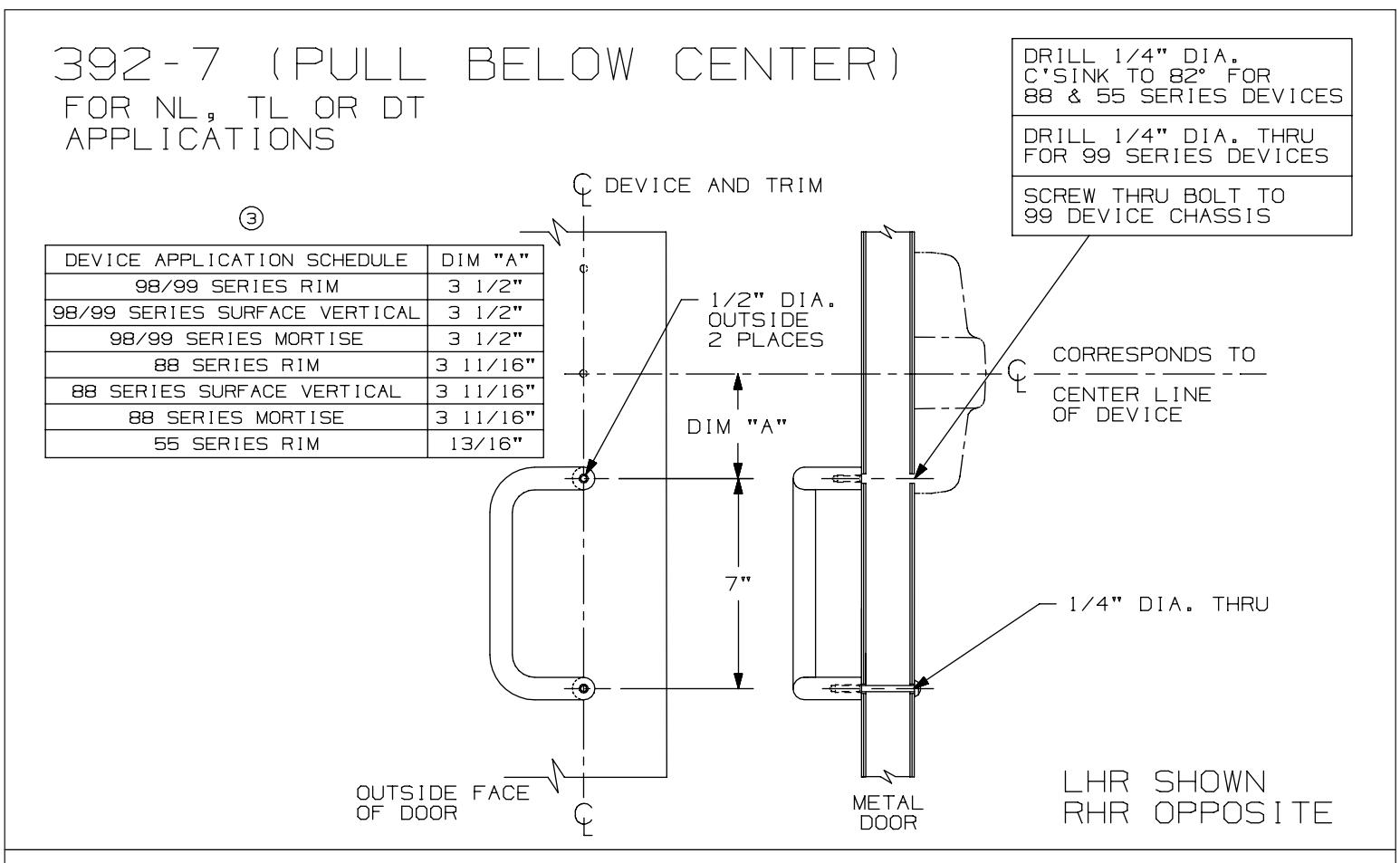

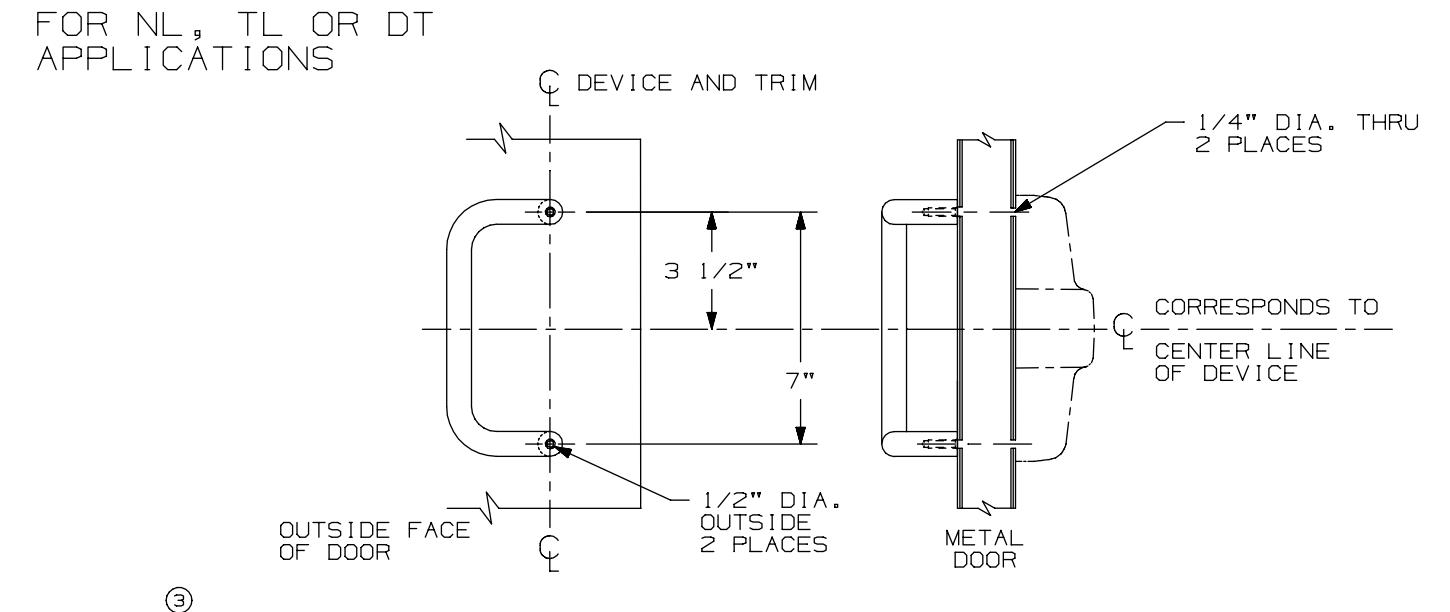

392-7 Pull	VON DUPRIN ®
NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING	TEMPLATE NUMBER:	20447_a	DATE: 05-23-13
