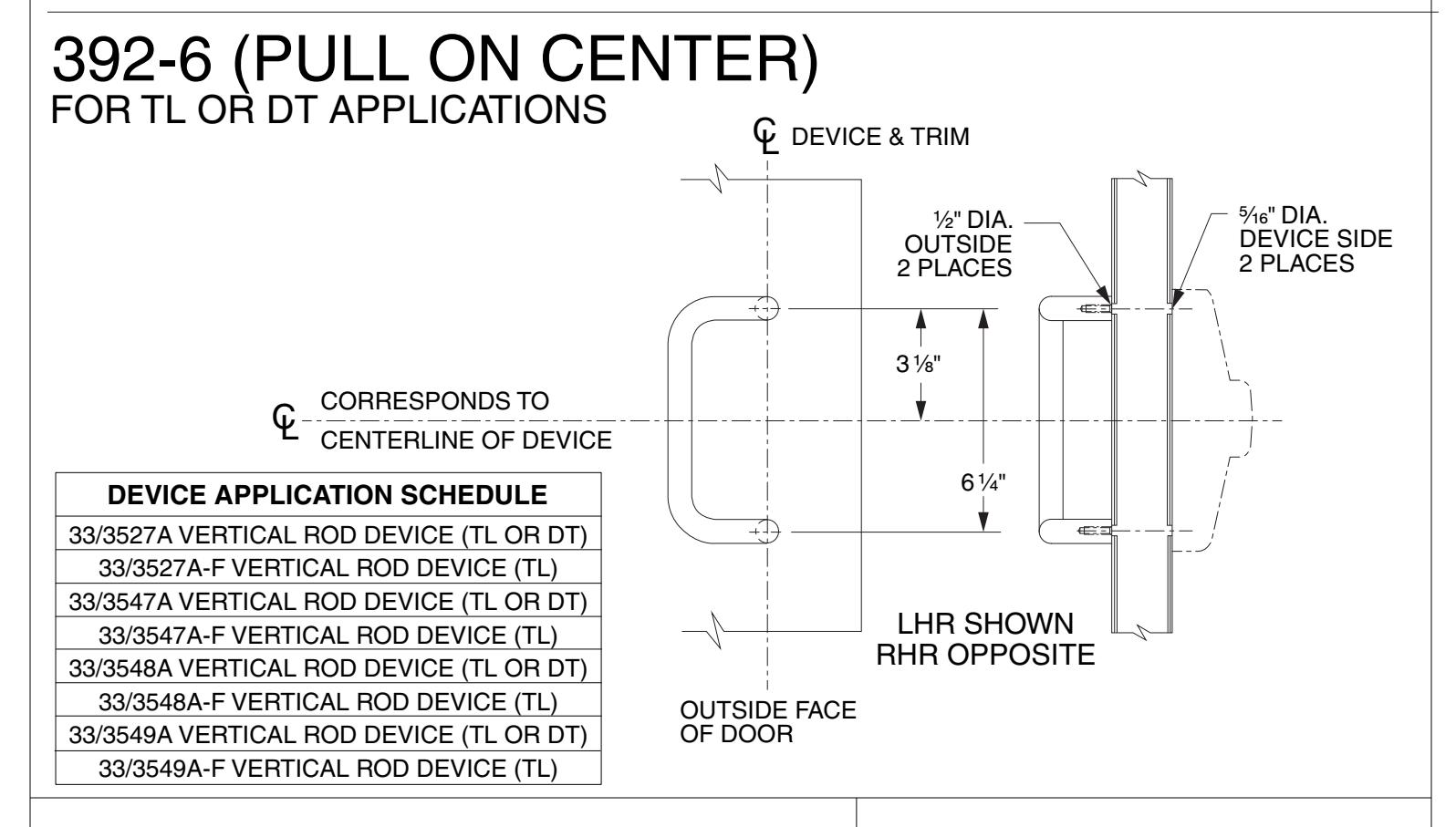

DEVICE & TRIM CORRESPONDS TO CENTERLINE OF DEVICE OUTSIDE FACE OF DOOR LHR SHOWN RHR OPPOSITE 392-6 (PULL BELOW CENTER) CL CL ⁵⁄₁₆" DIA. DEVICE SIDE 2 PLACES ¹⁄₂" DIA. OUTSIDE 2 PLACES FOR 388 CYLINDER ASSY, TL OR DT APPLICATIONS 4 ³⁄₄" 6 ¹⁄₄" 33A/35A RIM (388 CYL. ASSY. OR DT) 33/3527A (388 CYL. ASSY., TL OR DT) 33/3527A-F (388 CYL. ASSY. OR TL) DEVICE APPLICATION SCHEDULE

TEMPLATE NUMBER: DATE: 20454_c 392-6 PULL 05-31-13 NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING
