Von Duprin 379L and 379L-BE Control Used with 55 Rim Wood Door Application Template

Original Source Document Full PDF Version

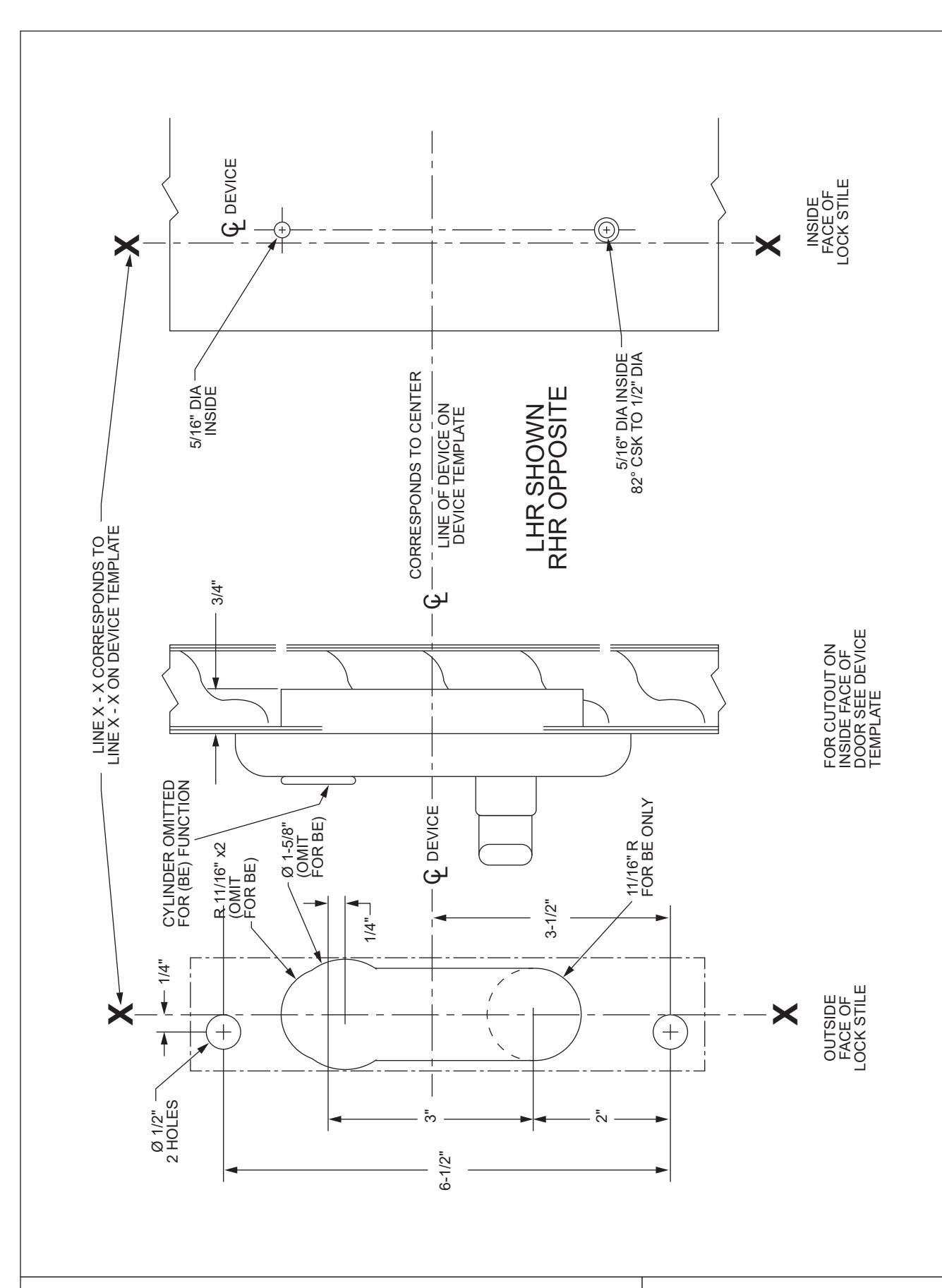

Von Duprin 379L and 379L-BE Control Used with 55 Rim Wood Door Application Template diagram on page 1

E379L-BE: USE 379L PREP AND 3/8" RACEWAY FROM TOP OF CUTOUT.

379L and 379L-BE Control (Wood Door)

VON DUPRIN ®

TEMPLATE NUMBER:

931006-00_a

DATE: 12-28-17
