Original Source Document Full PDF Version
View PDF
← Von Duprin

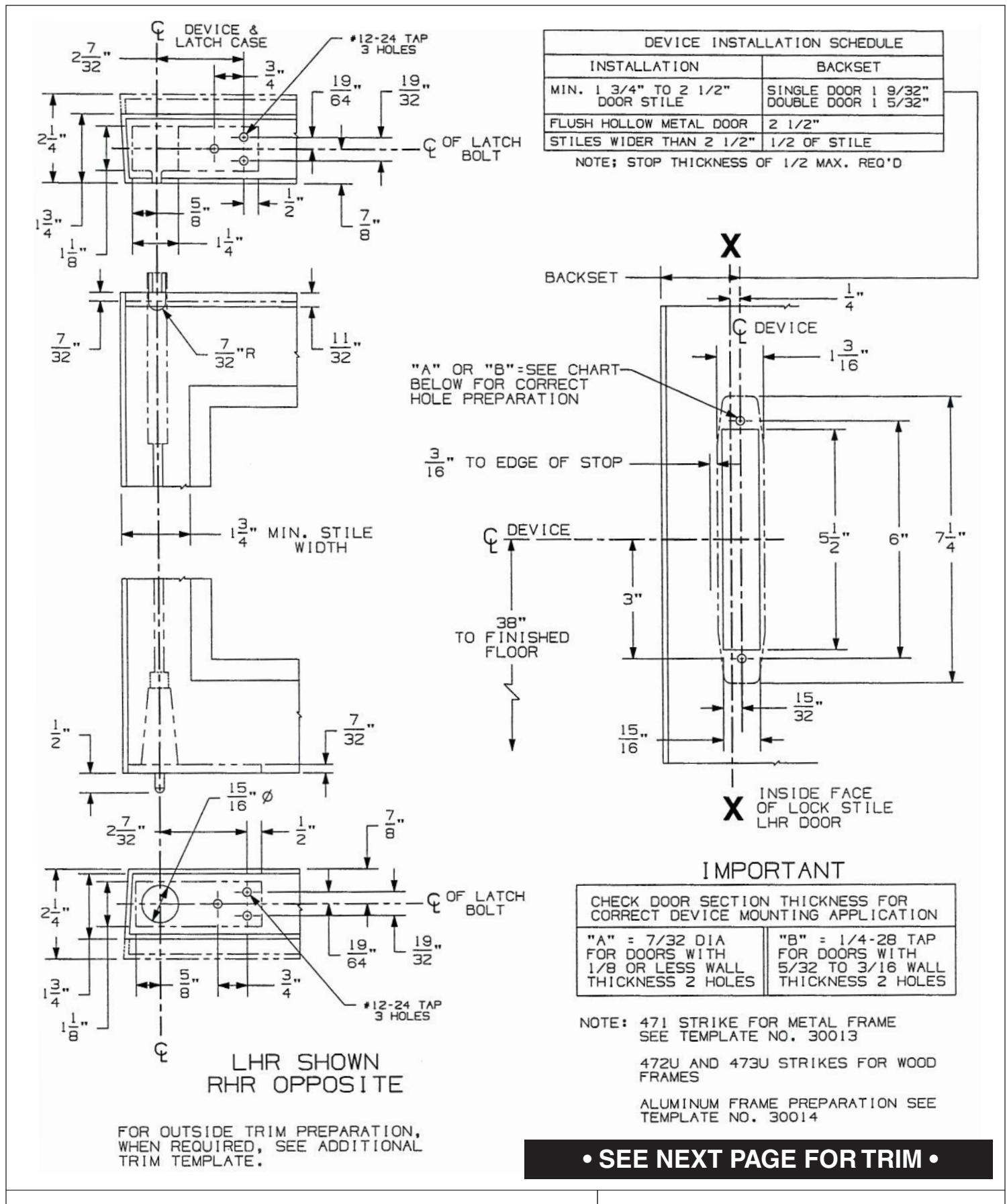

Von Duprin 376T, 376L Control Used With NY5547L @ 38 inch CL (for California) For Metal Doors Template diagram on page 1

NY5547L @ 38" CL (FOR CALIFORNIA) VERTICAL ROD DEVICES (METAL DOOR)

VON DUPRIN ®

TEMPLATE NUMBER:

931048_a

DATE: 04-28-20

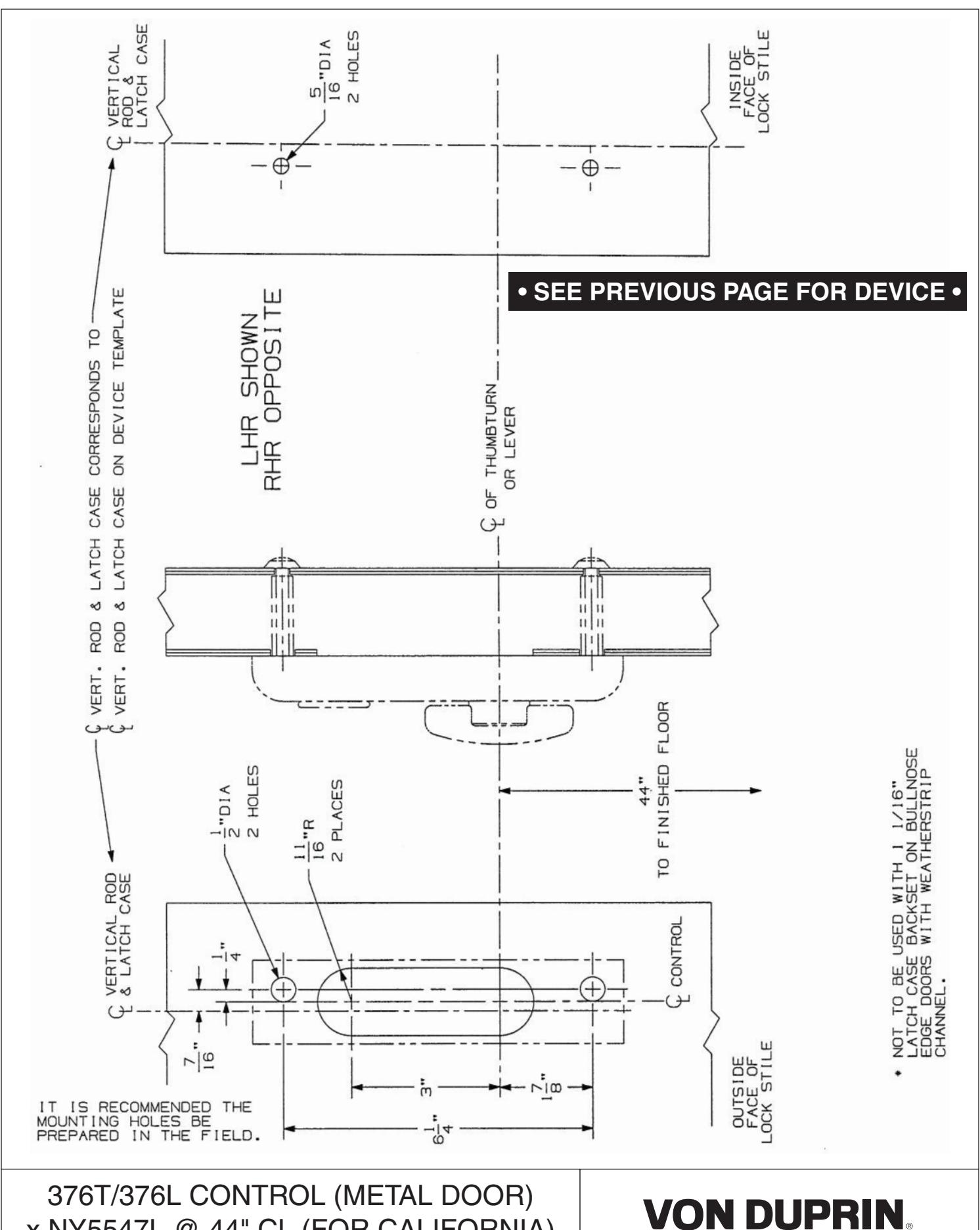

Von Duprin 376T, 376L Control Used With NY5547L @ 38 inch CL (for California) For Metal Doors Template diagram on page 2

x NY5547L @ 44" CL (FOR CALIFORNÍA)

TEMPLATE NUMBER:

931049_a

DATE: 04-28-20
