Von Duprin 376L, 376LBE Control Used with 5547WDC @ 44 inch CL (for California) Wood Door Application Template

Original Source Document Full PDF Version

Von Duprin 376L, 376LBE Control Used with 5547WDC @ 44 inch CL (for California) Wood Door Application Template diagram on pag

- SEE 370E CONTROL TEMPERTE UI_US4_UI FOR POLE SIDE FACE COTOUT.

5547WDC & 5547WDC-F SERIES x 376LWDC @ 38" CL (FOR CALIFORNIA) VERTICAL ROD DEVICES (WOOD DOOR)

VON DUPRIN

TEMPLATE NUMBER:

931052_a

DATE: 04-28-20

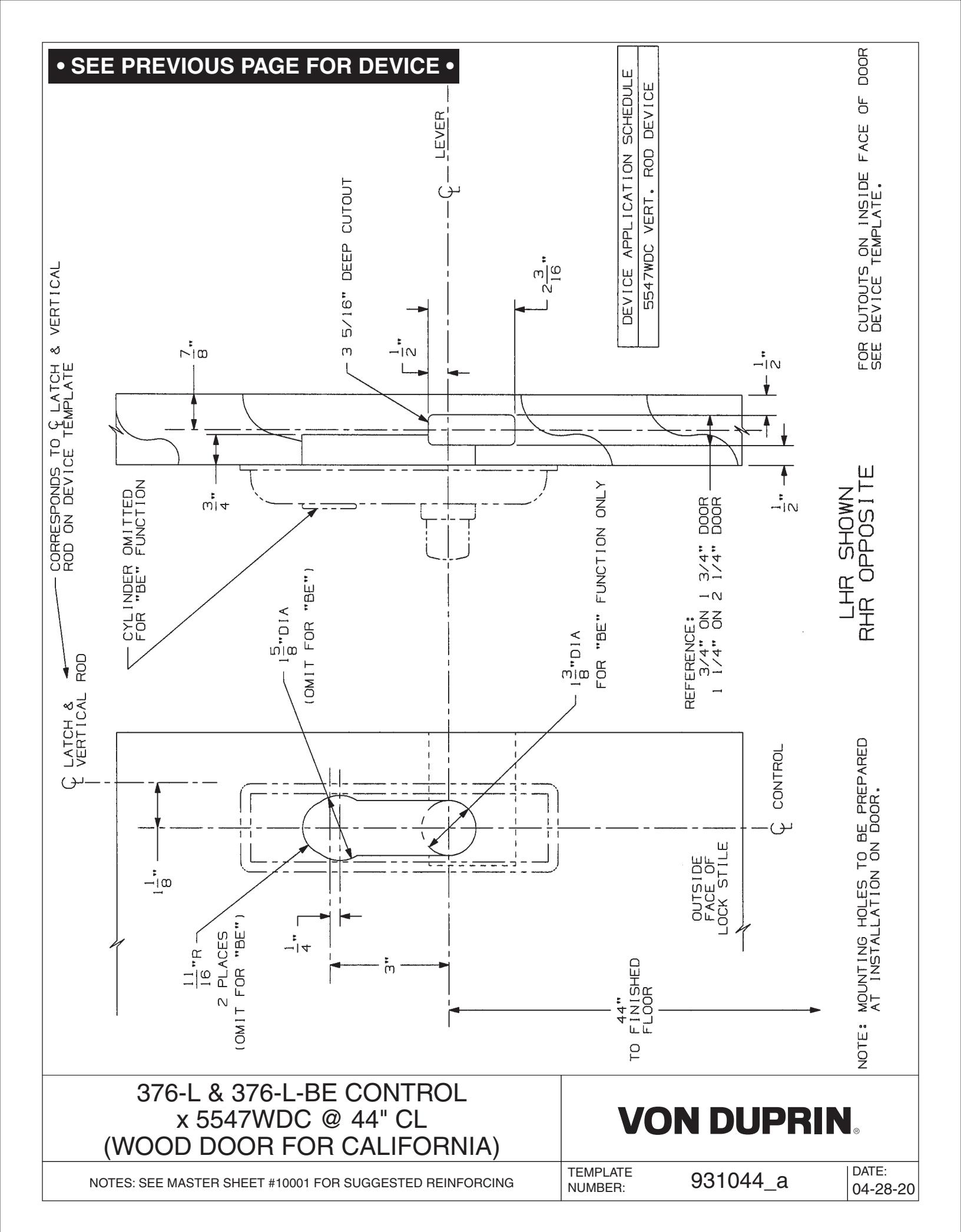

Von Duprin 376L, 376LBE Control Used with 5547WDC @ 44 inch CL (for California) Wood Door Application Template diagram on pag
