Von Duprin 374T-BE Control Template

Home
Resource Library
Request a Quote

Original Source Document Full PDF Version

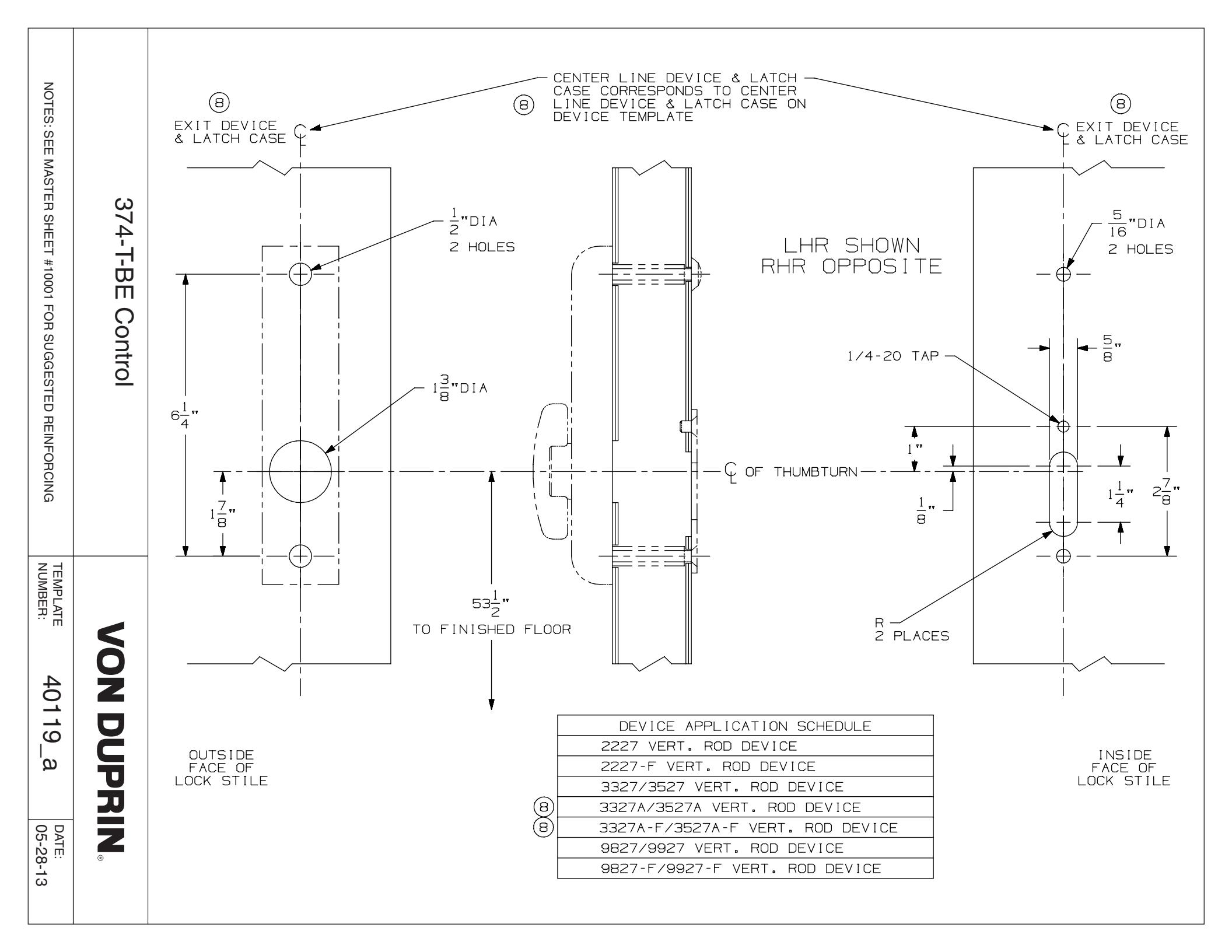

Von Duprin 374T-BE Control Template diagram on page 1
