Von Duprin 374T, 347T-BE Control For Use With 3327, 3527, 3327A, 3527A Devices For Wood Door Template

Original Source Document Full PDF Version

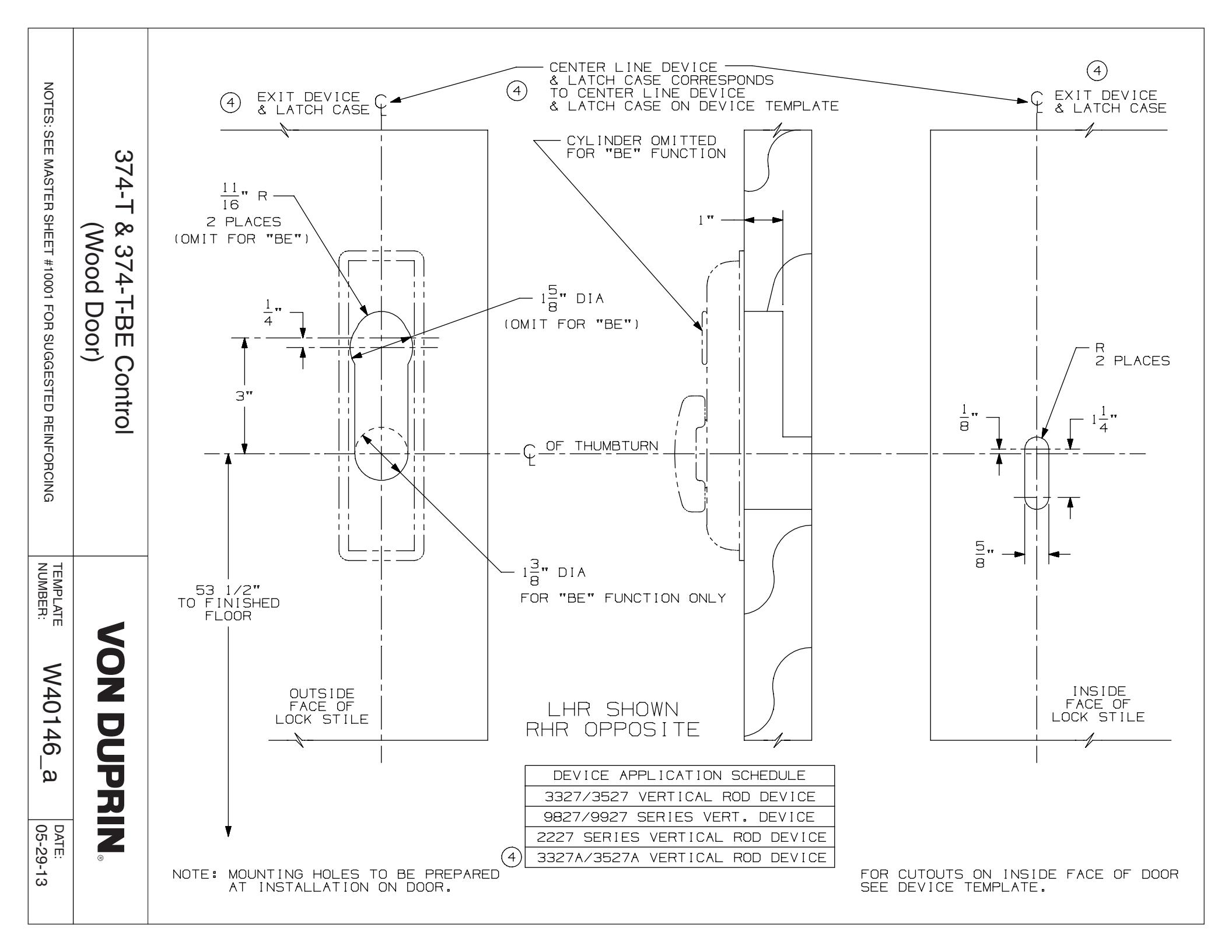

Von Duprin 374T, 347T-BE Control For Use With 3327, 3527, 3327A, 3527A Devices For Wood Door Template diagram on page 1
