Von Duprin 360L-DT Control for Back to Back Mount Template

Home
Resource Library
Request a Quote

Original Source Document Full PDF Version

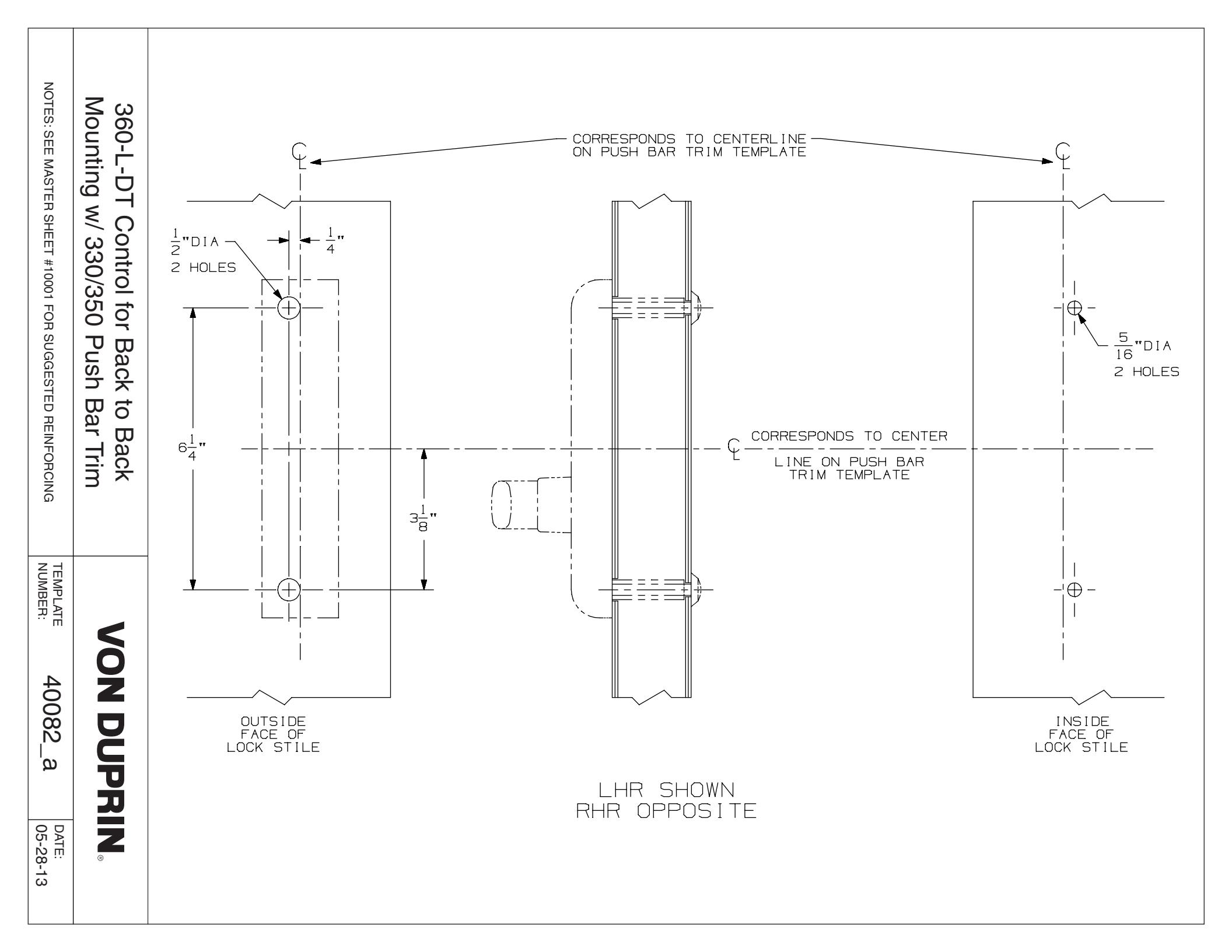

Von Duprin 360L-DT Control for Back to Back Mount Template diagram on page 1
