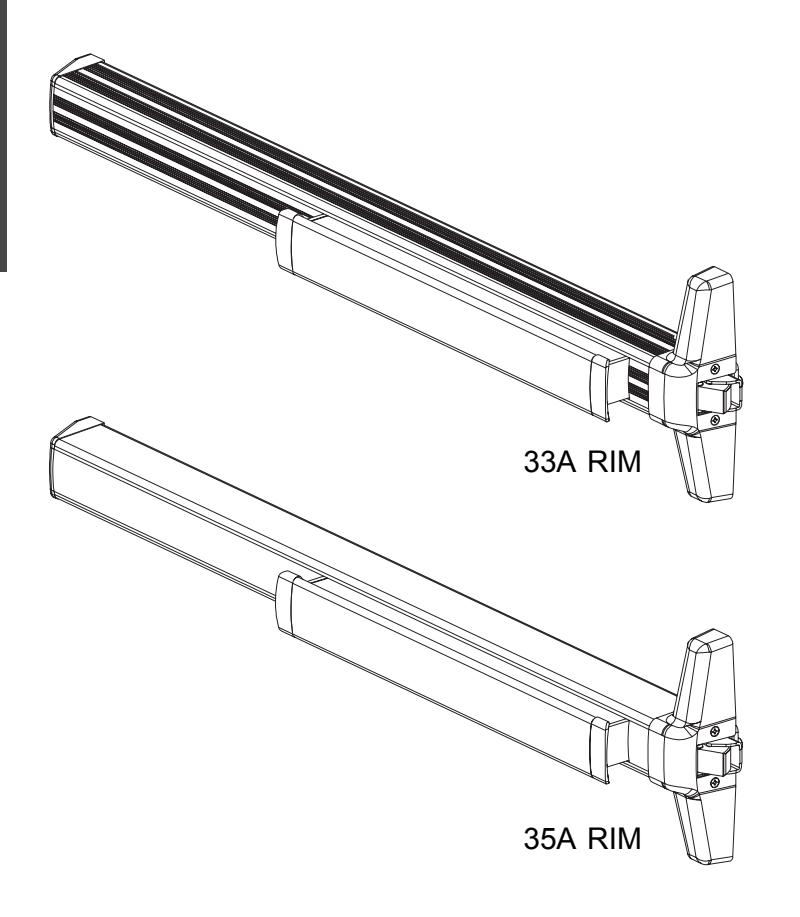

33A/35A Series Rim Exit Device
Service manual
INDEX
|
33A/35A Rim Panic Devices
Basic Device |
4-5 |
|---|---|
| BaseplateAssembly | 6 |
| Variations of the Basic Device | |
| CD (Cylinder Dogging) | 4 |
| HD-EL (Hex Dogging/Electric Latch Retraction) | 7 |
| EL (Electric Latch Retraction) | 8 |
| SS (Signal Switch) | 8 |
| CX (Chexit) | 9 |
| RX (Request to Exit) | 10-11 |
| LX (Latch Bolt Monitoring) | 10-11 |
| ALK (Exit Alarm Kit) | 12 |
| General Information | |
| Introduction | 2 |
| How to Order | 2 |
| Part Number Changes | 2 |
| Finishes | 3 |
| Outside Trim Functions | 3 |
| Strikes | 3 |
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 33A/35A Rim Panic Exit Hardware Devices. (33A Series and 35A Series devices are almost identical. The 33A Series has a grooved case; the 35A Series has a smooth case.)
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, IN 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.

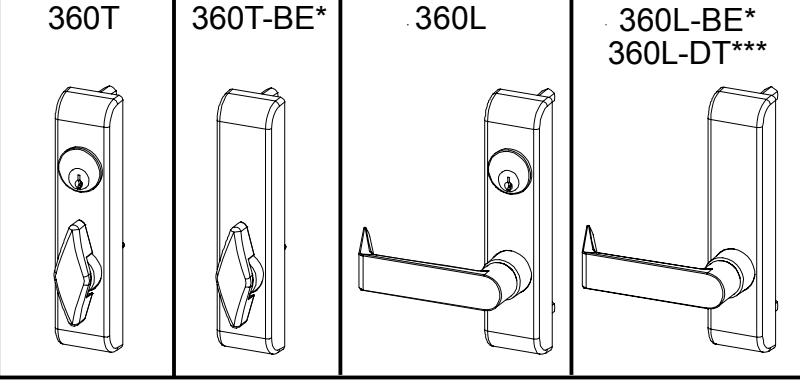

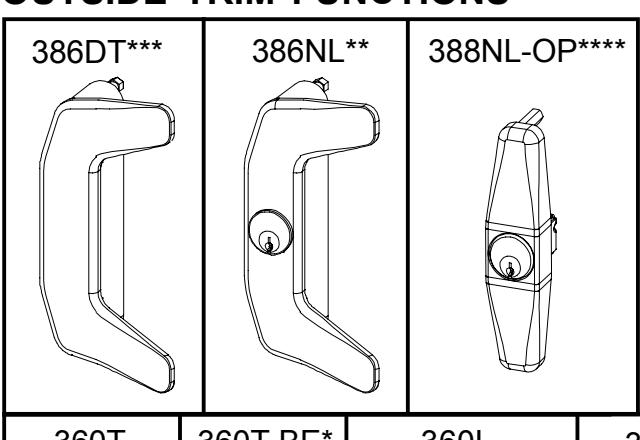

OUTSIDE TRIM FUNCTIONS
33A/35A SERIES FINISHES
|
U.S. Std
Reference |
BHMA
Reference |
Description |
| US3 | 605 | Polished Brass |
| US4 | 606 | Dull Brass |
| US10 | 612 | Dull Bronze |
| US15 | 619 | Satin Nickel |
| US26 | 625 | Polished Chrome |
| US26D | 626 | Dull Chrome |
| US28 | 628 | AnodizedAlum. (Clear) |
| 313AN | 710 | AnodizedAlum. (313) |
| Dark Bronze | ||
| 315AN | 711 | AnodizedAlum. (Black) |
- * "BE" (Blank Escutcheon) no cylinder used lever always active
- ** "NL" (Night Latch) rigid lever key retracts latch bolt
- *** "DT" (Dummy Trim) rigid lever for pull operation
- **** "NL-OP" (Optional Pull) needs to be added

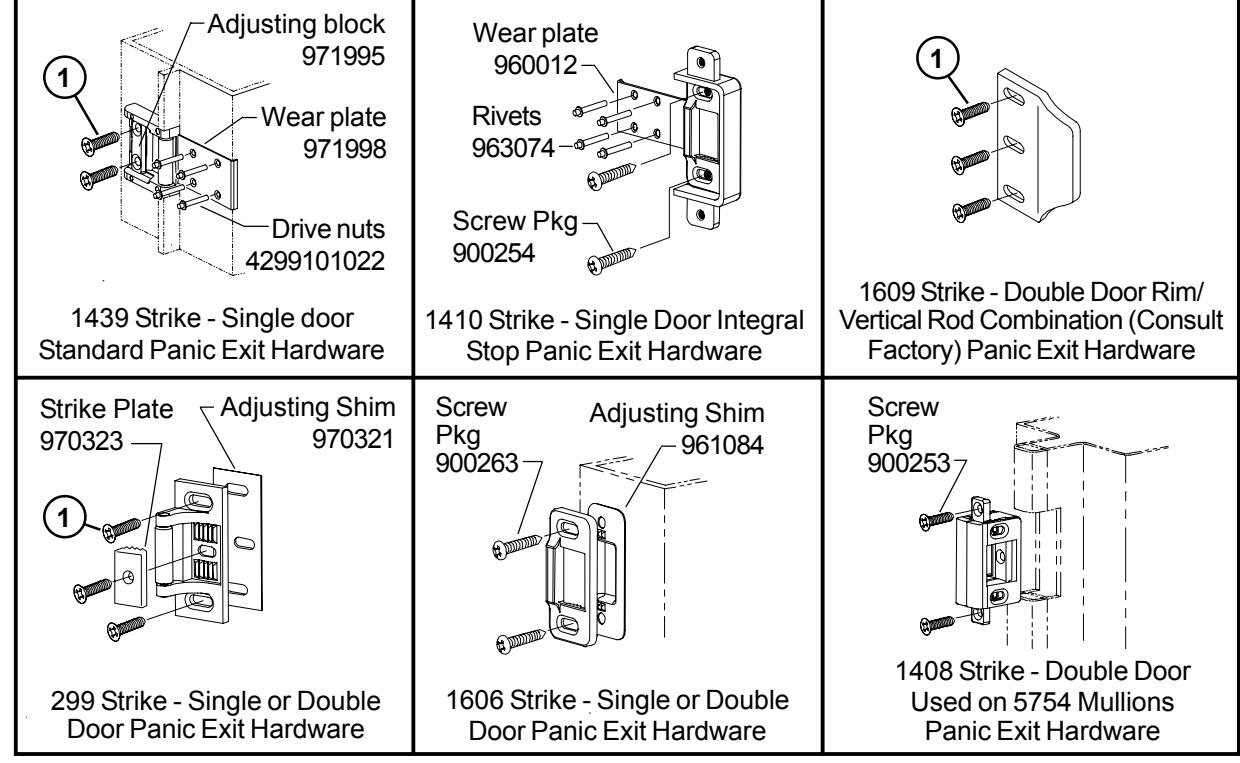

STRIKES
1 Metal Door Screw Package PKGSRV.1023 (Pkg of 10) Wood Door Screw 964291 (Qty of 1)

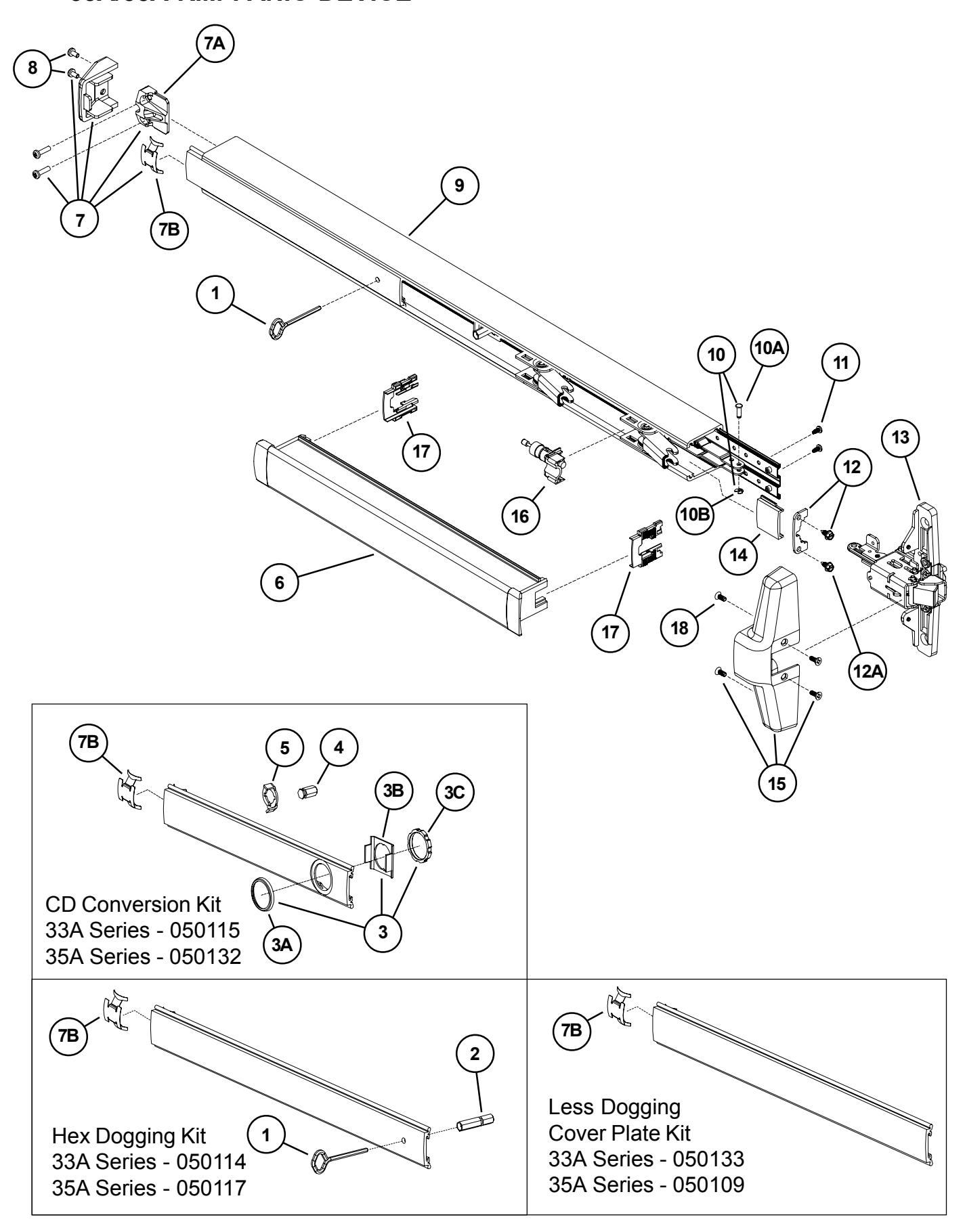

33A/35A RIM PANIC DEVICE
33A/35A RIM PANIC DEVICE
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 900619 |
33A/35A
Series Mounting Pkg. (1-3/4 & 2-1/4) |
||
| 1 | 1 | 090085 |
227
Dog Key 5/32" Hex (Pkg of 10) |
|
| 1 | 1 | 090005 |
227
Dog Key 5/32" Hex (Pkg of 2) |
|
| 2 | 1 | 090040 |
Hex
Dog Shaft (Pkg of 2) |
|
| 3 | 1 | 107813 |
Cylinder
MountingPkg |
X |
| 3A | 1 | 050525 |
Cylinder
Collar |
X |
| 3B | 1 | 050490 |
Cylinder
Locating Washer - CD/SS |
|
| 3C | 1 | 050526 |
Cylinder
Locknut |
|
| 4 | 1 | 090046 |
CD
Dogging Plug (Pkg of 2) |
|
| 5 | 1 | 090045 |
CDActuatorArm
(Pkg of 2) |
|
| 6 | 1 | *PBKIT |
33A/35A
Series Push Bar Retrofit Kit - 3' Door |
X |
| 6 | 1 | *PBKIT |
33A/35A
Series Push Bar Retrofit Kit - 4' Door |
X |
| 7 | 1 | 050014 |
33A/35A
Series Series End Cap Kit |
X |
| 7A | 1 | 050524 |
Impact
ResistantEnd CapBracket |
|
| 7B | 1 | 090036 |
Cover
PlateAnti-rattle Spring (Pkg of 10) |
|
| 8 | 1 | 900597 |
Device
End Cap and C/Case Screw Pkg. |
X |
| 9 | 1 | 050486 |
33A
Series Mechanism Case - 3' Door |
X |
| 9 | 1 | 050487 |
33A
Series Mechanism Case - 4' Door |
X |
| 9 | 1 | 050488 |
35A
Series Mechanism Case - 3' Door |
X |
| 9 | 1 | 050489 |
35A
Series Mechanism Case - 4' Door |
X |
| 10 | 1 | 050529 |
Control
LinkPin& Ret. Ring |
|
| 10A | 1 | 090031 |
Series
Control Link Pin |
|
| 10B | 1 | 090107 |
Retaining
Ring (Pkg of 10) |
|
| 11 | 2 | 090037 |
#8-32
x 3/8" Baseplate Screw (Pkg of 10) |
|
| 12 | 1 | 050530 |
Mechanism
Case Bracket Kit |
|
| 12A | 2 | 090073 |
Mechanism
Case Bracket Screw (Pkg of 10) |
|
| 13** | 1 | 050403 |
33A/35A Rim
Center Case Less Cover |
|
| 14 | 1 | 050474 |
33A
Series Cover Plate - C. Case Side |
X |
| 14 | 1 | 050475 |
35A
Series Cover Plate - C. Case Side |
X |
| 15 | 1 | 050483 |
33A/35A
Rim Center Case Cover Kit |
X |
| 16 | 1 | 050491 |
ShockAbsorber
& HolderAssembly |
|
| 17 | 2 | 090049 |
Push
Bar Guide (Pkg of 10) |
|
| 18 | 4 | 900892 |
Center
Case Cover Screws (Pkg of 4) |
X |
X in "Finish" column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 33A3' US28
** Device mounting screws 900619 included.

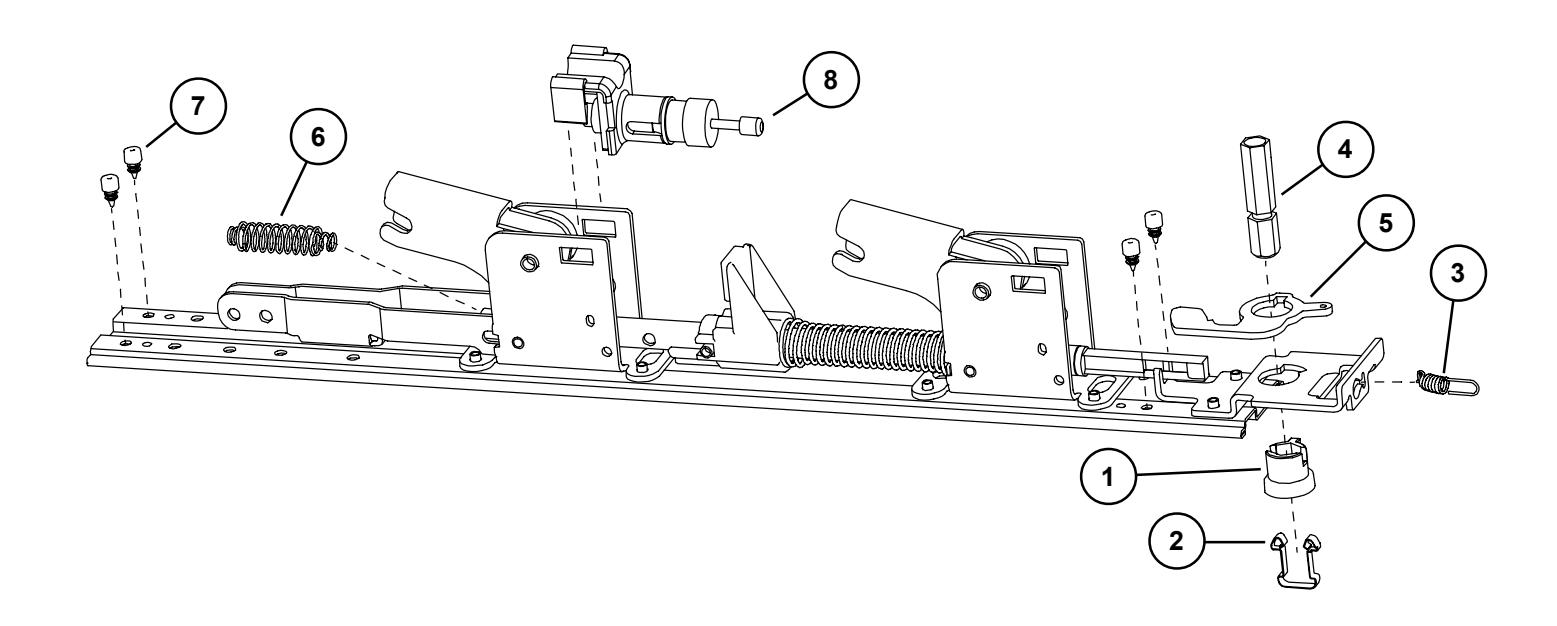

33A/35A RIM PANIC DEVICE BASEPLATE ASSEMBLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 090043 |
Dogging
adapter (Pkg of 2) |
|
| 2 | 1 | 090042 |
Dogging
adapter spring (Pkg of 2) |
|
| 3 | 1 | 090041 |
Dogging
spring (Pkg of 2) |
|
| 4 | 1 | 090040 |
Hex
dogging shaft (Pkg of 2) |
|
| 5 | 1 | 090044 |
Dogging
hook (Pkg of 2) |
|
| 6 | 1 | 090039 |
Latch
return spring (Pkg of 10) |
|
| 7 | 4 | 090038 |
Rubber
bumper (Pkg of 4) |
|
| 8 | 1 | 050491 |
Shock
absorber |

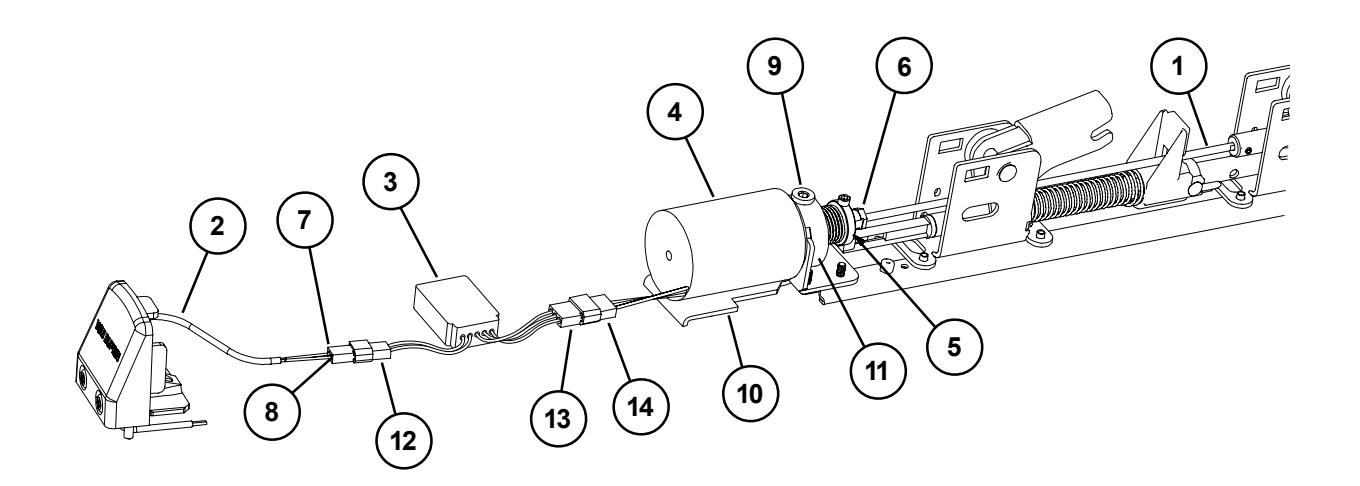

HD-EL33A/HD-EL35A HEX DOGGING/ELECTRIC LATCH RETRACTION OPTION - PANIC DEVICE ONLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050531 | EL Dogging Rod Kit - 3' device | |
| 1 | 1 | 050532 | EL Dogging Rod Kit - 4' device | |
| 2 | 1 | 110388 | EL 6' Cable and Connector | |
| 3 | 1 | 050534 | EL Potted Module | |
| 4 | 1 | 050536 | HD-EL Solenoid | |
| 5 | 1 | 050537 | HD-EL Solenoid Plunger | |
| 6 | 1 | 050538 | EL Dogging Rod Retainer | |
| 7 | 1 | 050539 | EL Receptacle Connector - 2 Position | |
| 8 | 2 | 050540 | EL Female Terminal | |
| 9 | 1 | 050541 | HD-EL Dog Screw | |
| 10 | 1 | 050542 | HD-EL Solenoid Bracket | |
| 11 | 1 | 050543 | HD-EL Dogging Spring | |
| 12 | 1 | 990599 | EL Plug Connector - 2 Position | |
| 13 | 1 | 990857 | EL Receptacle Connector - 3 Position | |
| 14 | 1 | 990858 | EL Plug Connector - 3 Position | |
| * | 1 | 050384 | HD-EL Conversion Kit - 3' | |
| * | 1 | 050385 | HD-EL Conversion Kit - 4' |
* Kit includes items 1-11 plus new control link, retaining ring, and baseplate screws.

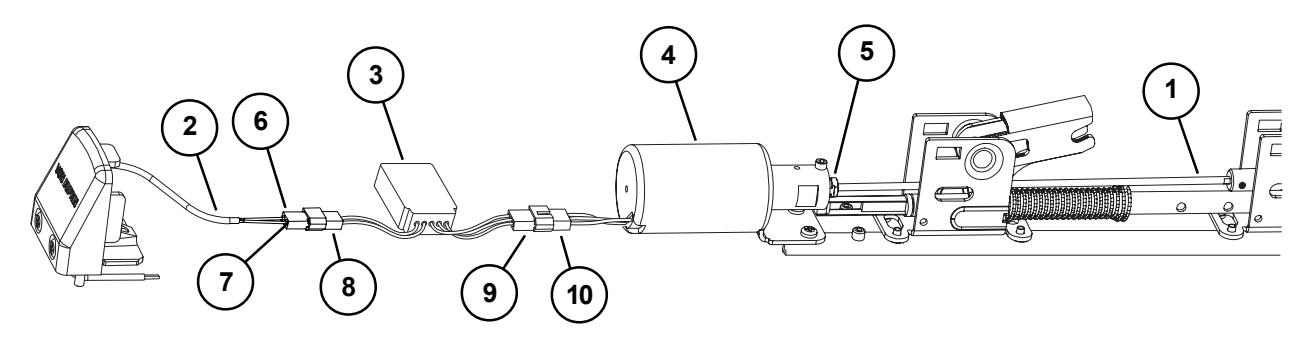

EL33A/EL35A SERIES ELECTRIC LATCH RETRACTION OPTION
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050531 | EL Dogging Rod Kit - 3' device | |
| 1 | 1 | 050532 | EL Dogging Rod Kit - 4' device | |
| 2 | 1 | 110388 | EL 6' Cable and Connector | |
| 3 | 1 | 050534 | EL Potted Module | |
| 4 | 1 | 050535 | EL Solenoid Assembly | |
| 5 | 1 | 050538 | EL Dogging Rod Retainer | |
| 6 | 1 | 050539 | EL Receptacle Connector | |
| 7 | 2 | 050540 | EL Female Terminal | |
| 8 | 1 | 990599 | EL Plug Connector - 2 Position | |
| 9 | 1 | 990857 | EL Receptacle Connector - 3 Position | |
| 10 | 1 | 990858 | EL Plug Connector - 3 Position | |
| * | 1 | 050070 | EL Conversion Kit - 3' | |
| * | 1 | 050078 | EL Conversion Kit - 4' |
* Kit includes items 1-7 plus new control link pin, retaining ring, and baseplate screws.

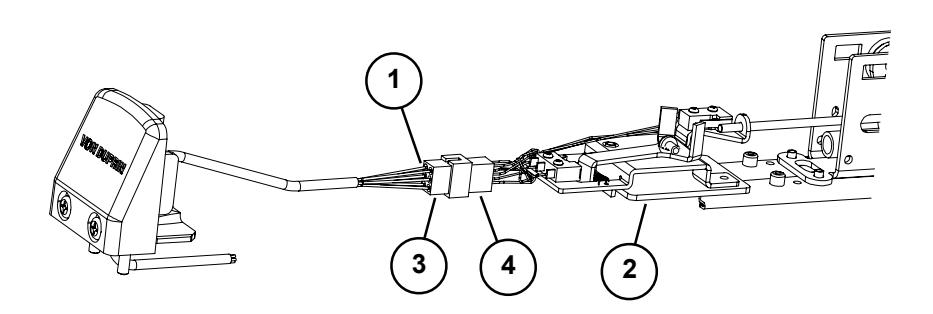

SS33A/SS35A SERIES (SIGNAL SWITCH) OPTION
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050544 |
SS
Cable |
|
| 2 | 1 | 050545 |
SS
Housing |
|
| 3 | 1 | 990601 |
SS
Plug Connector - 6 Position |
|
| 4 | 1 | 990602 |
SS
Receptacle Connector - 6 Position |

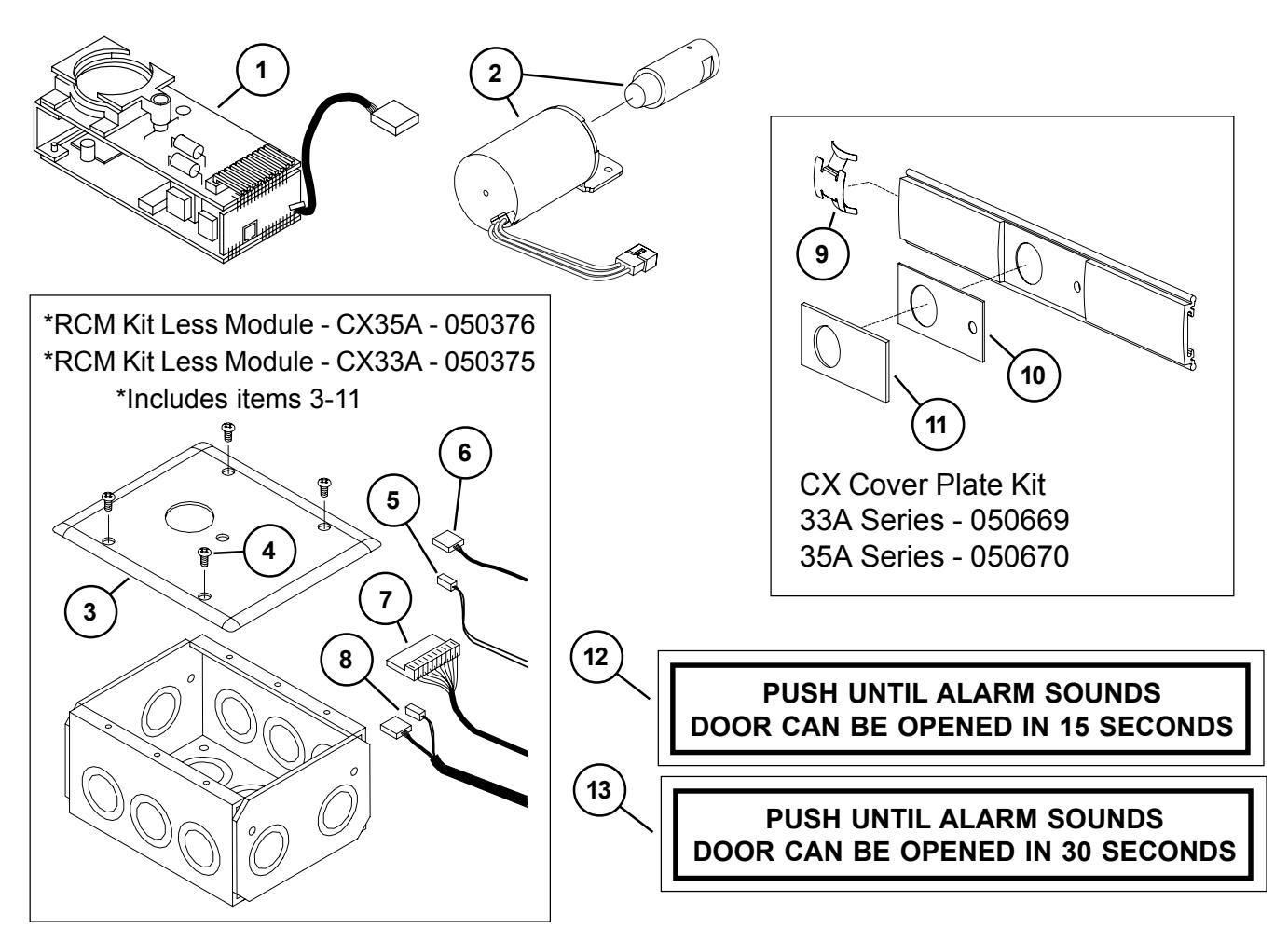

CX33A/35A SERIES CHEXIT AND CX-RCM OPTION
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050228 |
Chexit
PCB Kit - 15 Second Release |
|
| 1* | 1 | 050700 |
Chexit
PCB Kit - 30 Second Release |
|
| 1 | 1 | 050701 |
Chexit
PCB Kit - 0 Second Release |
|
| 1 | 1 | 050702 |
Chexit
PCB Kit - Boca 15 Second Release |
|
| 1* | 1 | 050703 |
Chexit
PCB Kit - Boca 30 Second Release |
|
| 2 | 1 | 050533 |
CX
Solenoid and Plunger |
|
| 3 | 1 | 113111 |
Faceplate
andAdapter |
X |
| 4 | 4 | 963898 |
6-32
x 3/8" OPHMS Faceplate Screws |
X |
| 5 | 1 | 991338 |
RCM
2-Wire RX Cable |
|
| 6 | 1 | 991339 |
RCM
3-Wire Solenoid Cable |
|
| 7 | 1 | 112018 |
Chexit
Wiring Assembly |
|
| 8 | 1 | 991336 |
CX-RCM
Cable Assy - 5 Wire |
|
| 9 | 1 | 090036 |
Cover
PlateAnti-rattle Spring (Pkg of 10) |
|
| 10 | 1 | 970513 |
LED
Cover Mask - Chexit |
|
| 11 | 1 | 970519 |
LED
Cover - Chexit |
|
| 12 | 1 | 113781 |
Sign
15 Second - Chexit |
|
| 13 | 1 | 113782 |
Sign
30 Second - Chexit |
* Over 15 seconds delay requires a letter of approval from authority having local jurisdiction. Fax letter in with sales order. The order cannot be processed without the letter.

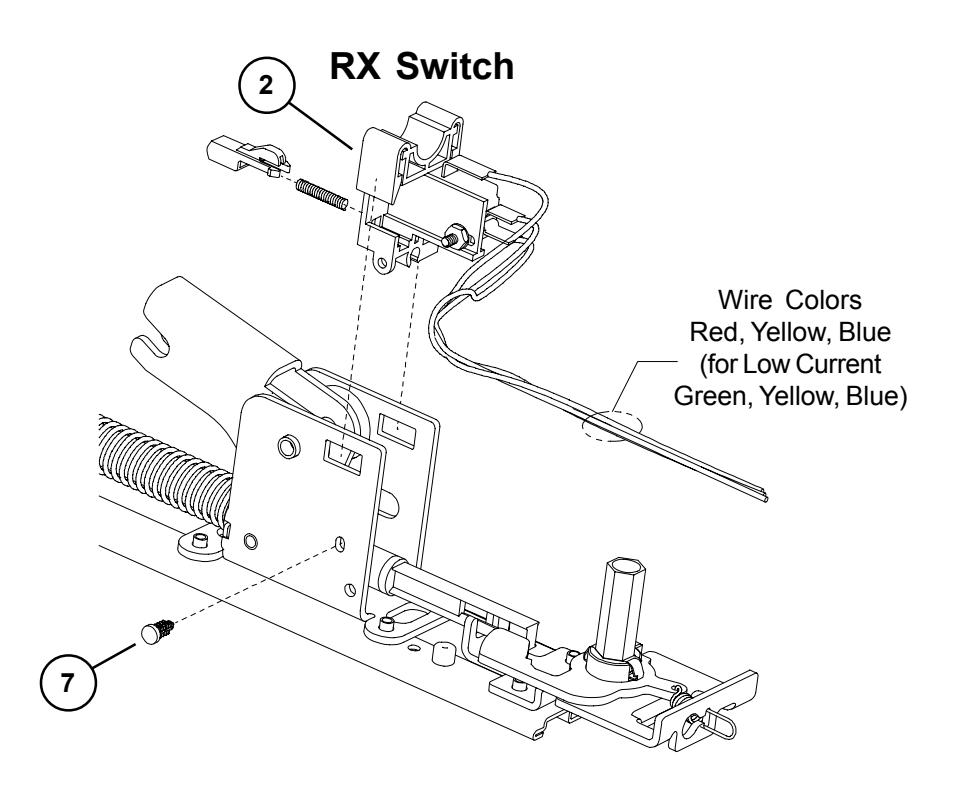

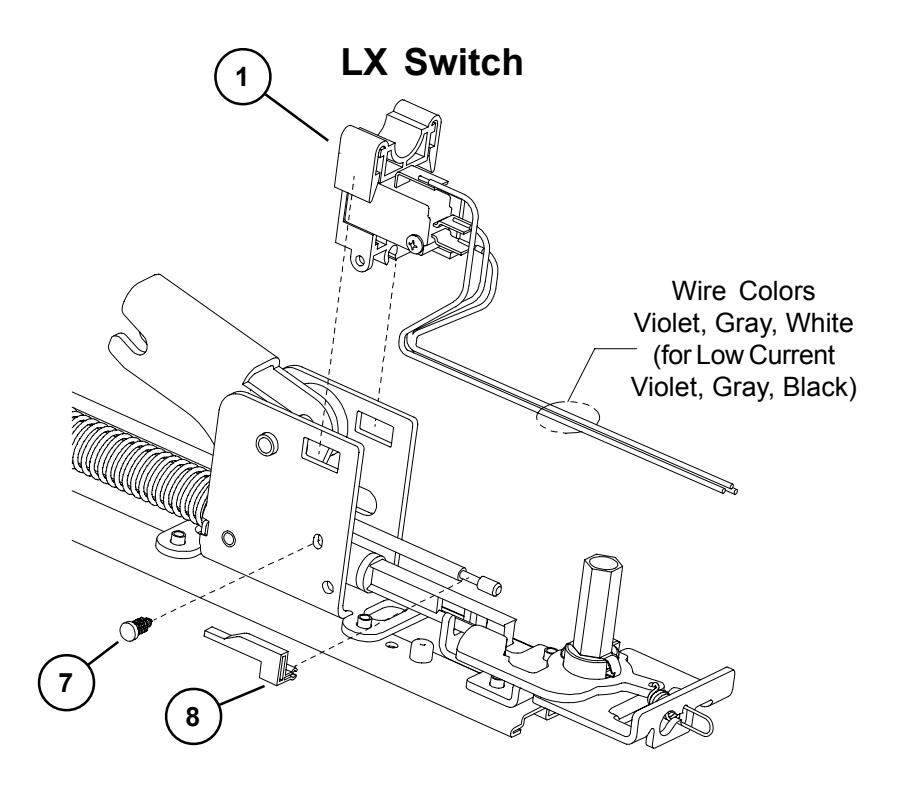

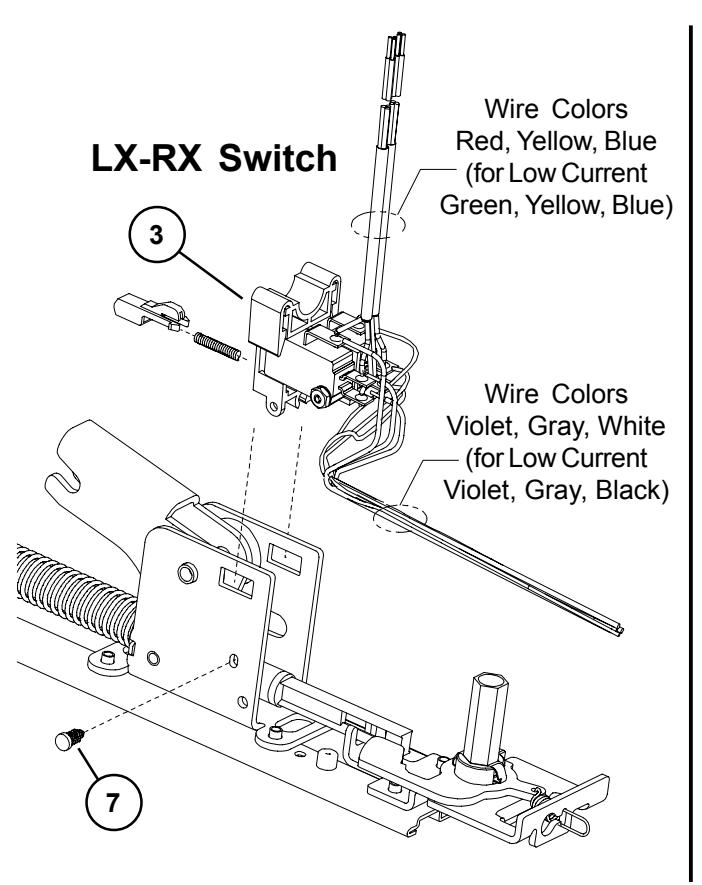

33A/35A SERIES LX (LATCH BOLT MONITOR) & RX (REQUEST TO EXIT) OPTIONS
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050254 |
LX Switch
Kit 3' Device |
|
| 1 | 1 | 050255 |
LX Switch
Kit 4' Device |
|
| 1 | 1 | 050247 |
LX-EL
Switch Kit |
|
| 1 | 1 | 050283 |
LX-LC
(Low Current) Switch Kit 3' Device |
|
| 1 | 1 | 050285 |
LX-LC
(Low Current) Switch Kit 4' Device |
|
| 1 | 1 | 050287 |
LX-LC-EL
(Low Current) Switch Kit |
|
| 2 | 1 | 050251 |
RX Switch
Kit |
|
| 2 | 1 | 050281 |
RX-LC
(Low Current) Switch Kit |
|
| 3 | 1 | 050256 |
LX-RX
Switch Kit 3' Device |
|
| 3 | 1 | 050257 |
LX-RX
Switch Kit 4' Device |
|
| 3 | 1 | 050259 |
LX-RX-EL
Switch Kit |
|
| 3 | 1 | 050289 |
LX-RX-LC
(Low Current) Sw. Kit 3' Device |
|
| 3 | 1 | 050291 |
LX-RX-LC
(Low Current) Sw. Kit 4' Device |
|
| 3 | 1 | 050293 |
LX-RX-LC-EL
(Low Current) Switch Kit |
|
|
2
& 4 |
1 | 050270 |
RX-2
Switch Kit |
|
| 4 | 1 | 050271 |
RX-AUX
Switch Kit |
|
| 5 | 1 | 964558 |
8-32
x 5/16" PPHMS |
|
| 6 | 1 | 964019 |
#8
Washer |
|
| 7 | 1 | 090099 |
Pine
Tree Clip (Pkg of 10) |
|
| 8 | 1 | 971091 | LXActuator |

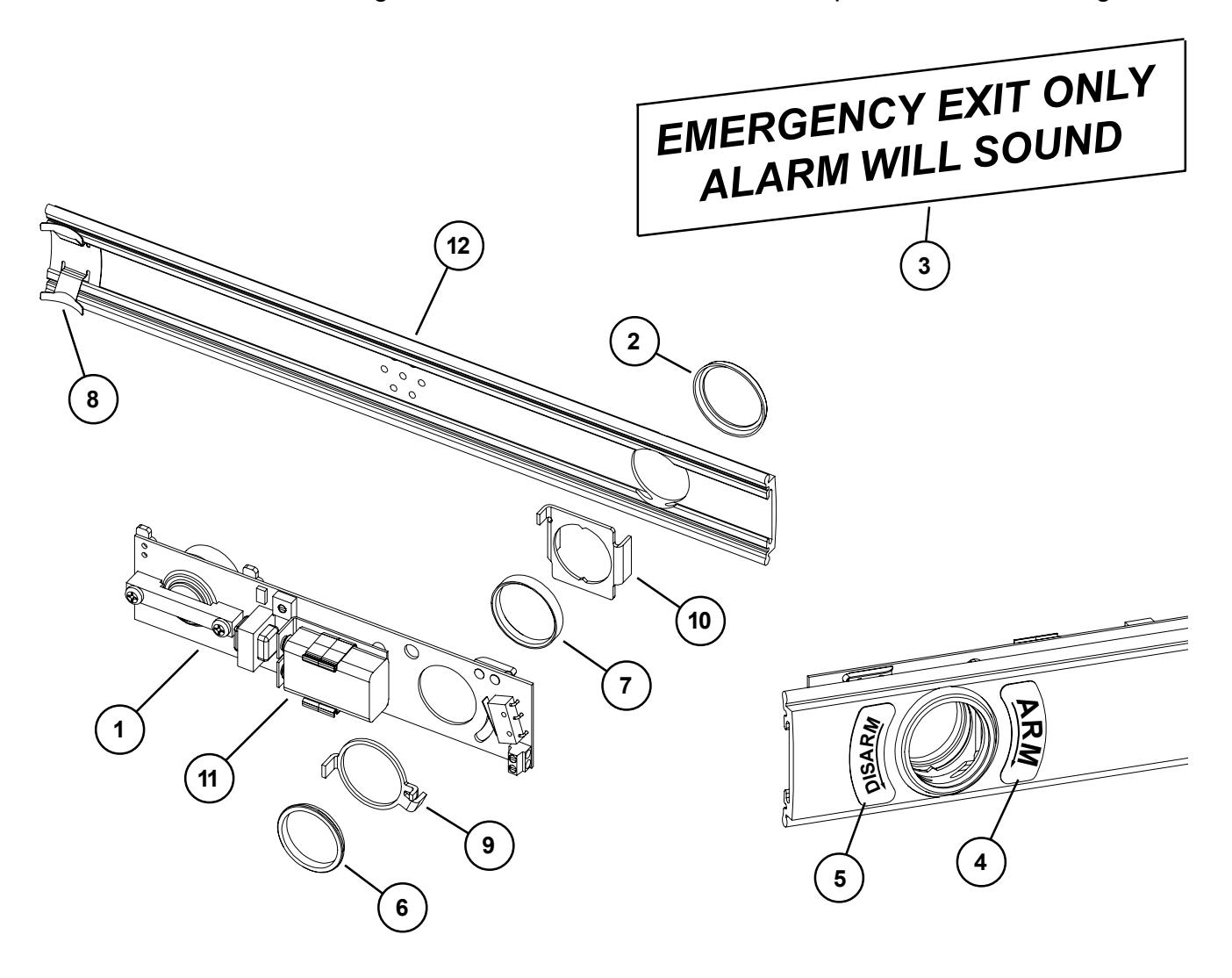

33A/35A ALK EXIT ALARM KIT
| Item No. | Quantity | Part No. | Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 111795 | ALK PCB Assembly | |
| 2 | 1 | 050525 | Cylinder Collar | X |
| 3 | 1 | 969122 | ALK Alarm Device Sign | |
| 4 | 1 | 969349 | ALK Arming Label | |
| 5 | 1 | 969350 | ALK Disarming Label | |
| 6 | 1 | 969354 | Retainer Nut | |
| 7 | 1 | 970594 | ALK Cylinder Spacer | |
| 8 | 1 | 090036 | Cover Plate Anti-rattle spring (Pkg of 10) | |
| 9 | 1 | 971556 | ALK Switch Actuator | |
| 10 | 1 | 971557 | ALK Cylinder Bracket | |
| 11 | 1 | 990637 | ALK Battery | |
| 12 | 1 | 050406 | 33A Series ALK Cover Plate Kit | X |
| 12 | 1 | 050407 | 35A Series ALK Cover Plate Kit | Х |
X in "Finish" column designates finished items; finish must be specified when ordering.
