3" DIA X 82° C'SINK

IN FRAME 2 HOLES EACH STRIKE

DOUBLE DOOR APPLICATION SHOWN. FOR SINGLE DOOR APPLICATION USE APPROPRIATE HANDING AS SHOWN.

	DEVICE APPLICATION SCHEDULE
	33/3547 & 33/3547-F SERIES DEVICE
	98/99/47 & 98/99/47-F SERIES DEVICE
	5547/5547 WDC SERIES
	33/3547A & 33/3547A-F SERIES DEVICE
9	94/9547 SERIES DEVICE

• NOTES: 1. SEE DEVICE TEMPLATE FOR LOCATION OF LATCH BOLT.
  • 2. IF DEVICE IS TO BE MOUNTED ON WOOD DOORS, SEE WOOD DOOR TEMPLATE FOR LATCH BOLT LOCATION.

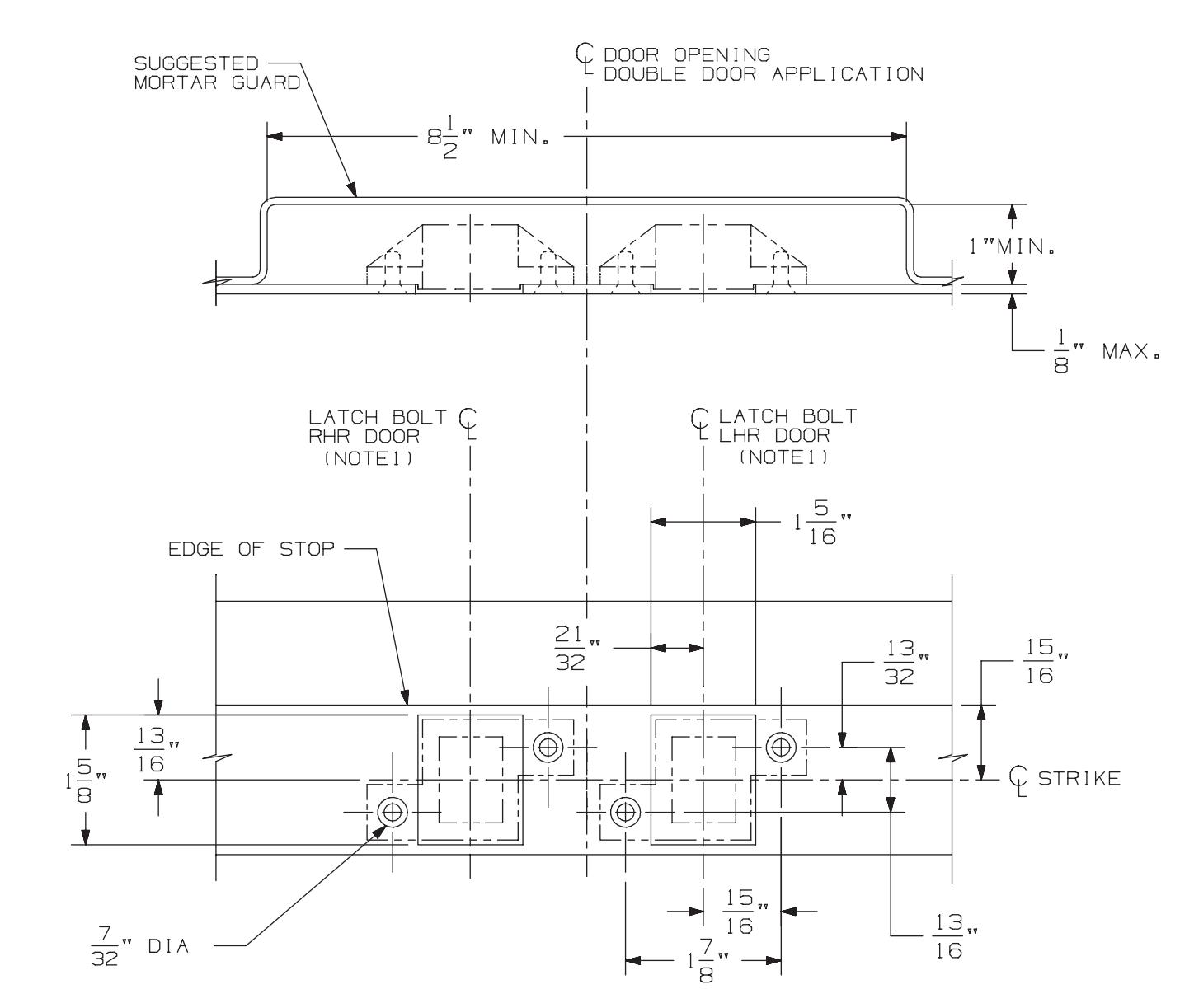

338 Strike for Hollow Metal Frame Preparation

VON DUPRIN ®

TEMPLATE NUMBER:

30038_a

DATE: 05-23-13

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING
