Von Duprin 3349A-F-LBL & 3549A-F-LBL Concealed Vertical Cable Fire Rated Less Bottom Latch Hollow Metal Door Template

Original Source Document Full PDF Version

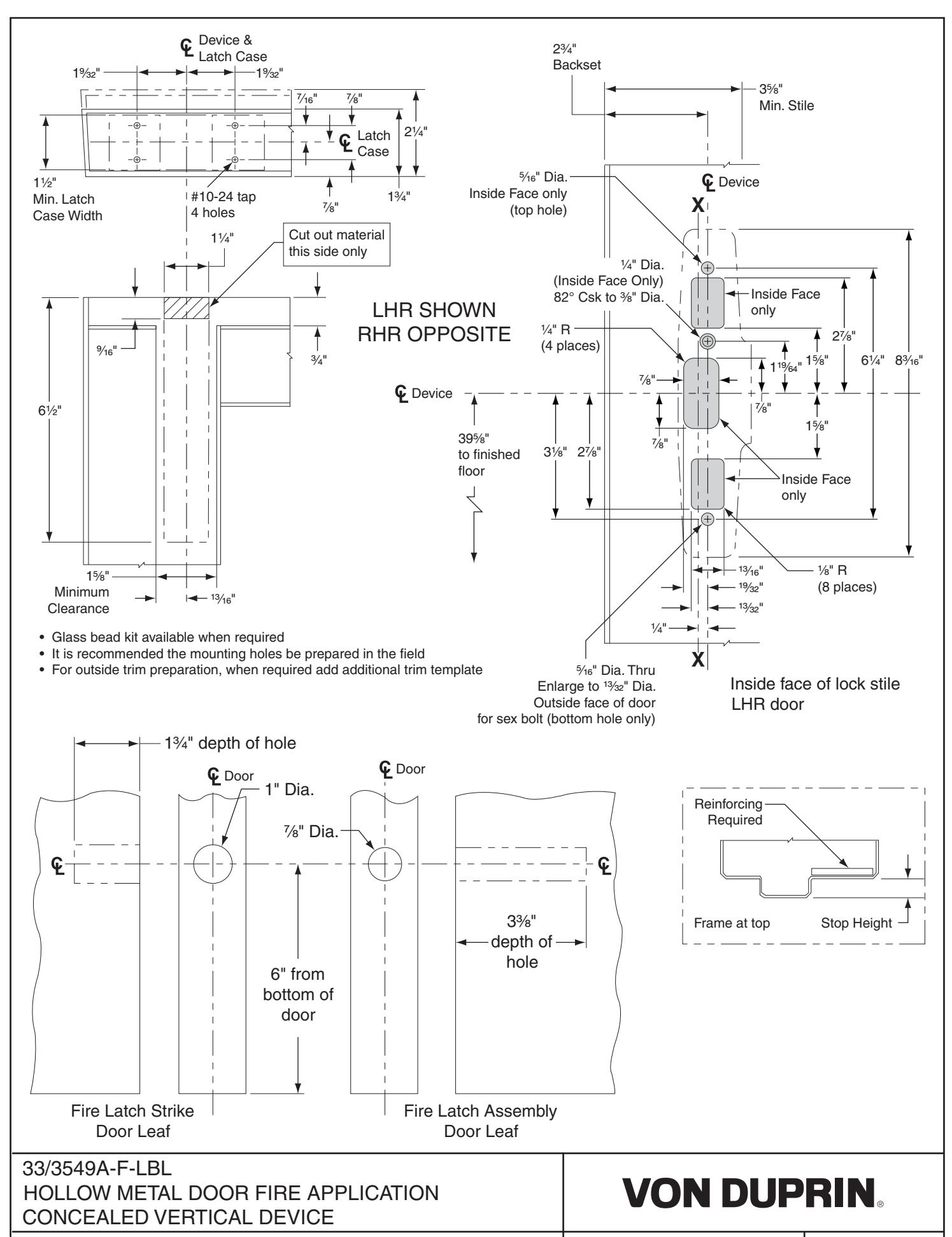

Von Duprin 3349A-F-LBL & 3549A-F-LBL Concealed Vertical Cable Fire Rated Less Bottom Latch Hollow Metal Door Template diagram

NOTE: SEE MASTER SHEET NO. 10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

941358_b

DATE: 10-27-15
