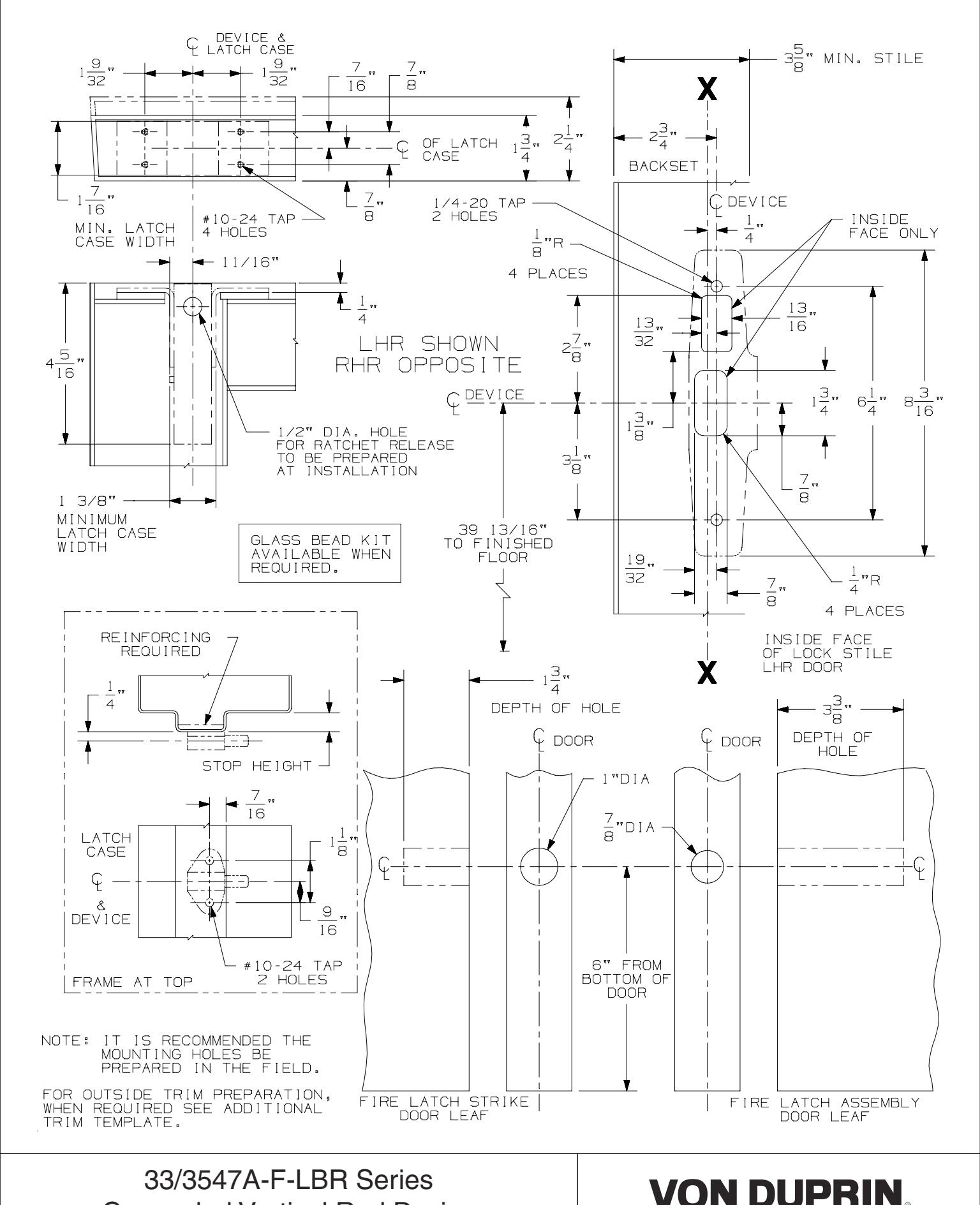

Von Duprin 3347A-F & 3547A-F Concealed Vertical Rod Fire Less Bottom Rod Series Metal Door Template diagram on page 1

Concealed Vertical Rod Device

VON DUPRIN

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

10058_a

DATE: 05-15-13
