Von Duprin 3327A-F-LBR, 3527A-F-LBR Concealed Vertical Rod Less Bottom Rod Series Metal Door Template

Original Source Document Full PDF Version

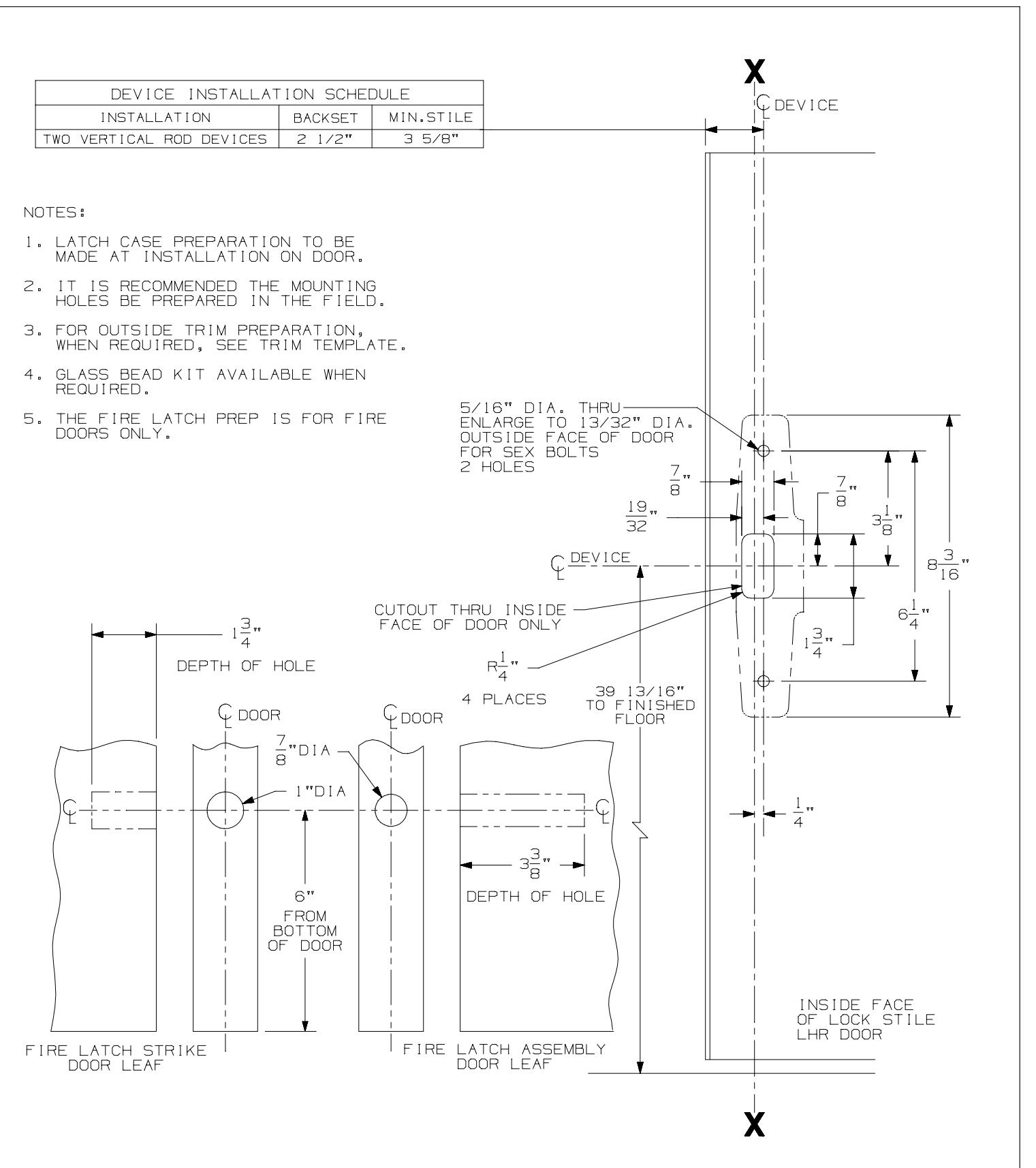

Von Duprin 3327A-F-LBR, 3527A-F-LBR Concealed Vertical Rod Less Bottom Rod Series Metal Door Template diagram on page 1

LHR SHOWN RHR OPPOSITE

33/3527A-F-LBR Series Concealed Vertical Rod Device

TEMPLATE NUMBER:

10050_b

DATE: 03-26-14
