3327A/3527A Series Exit Device
Service manual
INDEX
| 3327A/3527A Fire and Panic Devices | |
|---|---|
| Basic Device | 4-5 |
| Vertical Rods and Latches | 6-7 |
| LBR Fire Latch Kit | 8 |
| BaseplateAssembly | 9 |
| Variations of the Basic Device | |
| CD (Cylinder Dogging) | 4-5 |
| HD-EL (Hex Dogging/Electric Latch Retraction) | 10 |
| EL (Electric Latch Retraction) | 11 |
| SS (Signal Switch) | 11 |
| RX (Request to Exit) | 12-13 |
| LX (Latch Bolt Monitoring) | 12-13 |
| ALK (Exit Alarm Kit ) | 14-15 |
| General Information | |
| Introduction | 2 |
| How to Order | 2 |
| Part Number Changes | 2 |
| Finishes | 3 |
| Outside Trim Functions | 3 |
| Strikes | 3 |
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 3327A/3527A Panic Exit Hardware Devices. (3327A Series and 3527A Series devices are almost identical. The 3327A Series has a grooved case; the 3527A Series has a smooth case.)
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, IN 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.

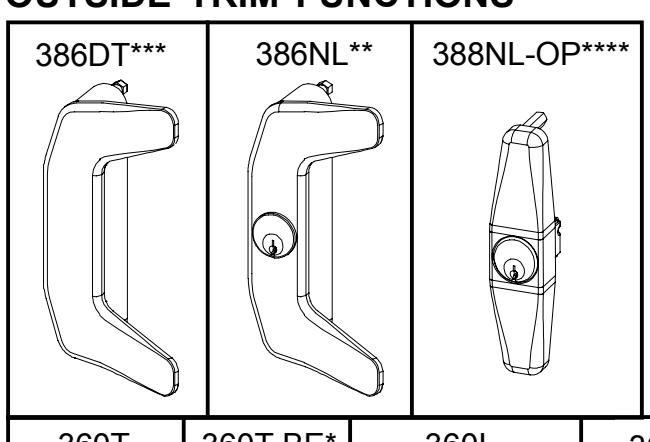

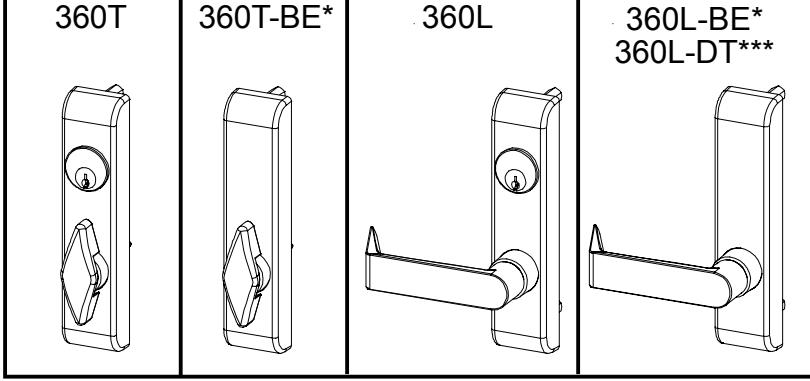

OUTSIDE TRIM FUNCTIONS
33A/35A SERIES FINISHES
| U.S. Std | BHMA | |
| Reference | Reference | Description |
| US3 | 605 | Polished Brass |
| US4 | 606 | Dull Brass |
| US10 | 612 | Dull Bronze |
| US15 | 619 | Satin Nickel |
| US26 | 625 | Polished Chrome |
| US26D | 626 | Dull Chrome |
| US28 | 628 | Anodized Alum. (Clear) |
| 313AN | 710 | Anodized Alum. (313) |
| Dark Bronze | ||
| 315AN | 711 | Anodized Alum. (Black) |
- * "BE" (Blank Escutcheon) no cylinder used lever always active
- ** "NL" (Night Latch) rigid lever key retracts latch bolt
- *** "DT" (Dummy Trim) rigid lever for pull operation
- **** "NL-OP" (Optional Pull) needs to be added

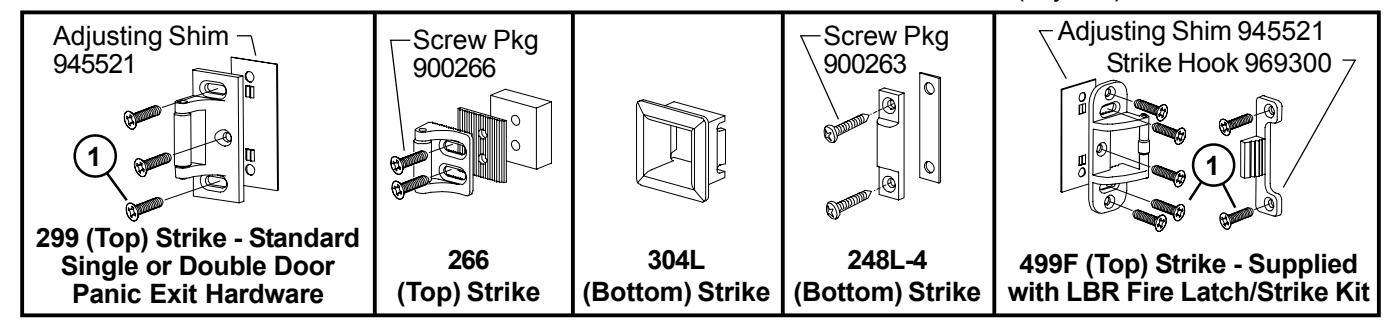

STANDARD STRIKES
Metal Door Screw Package PKGSRV.1023 (Pkg of 10) Wood Door Screw 964291 (Qty of 1)

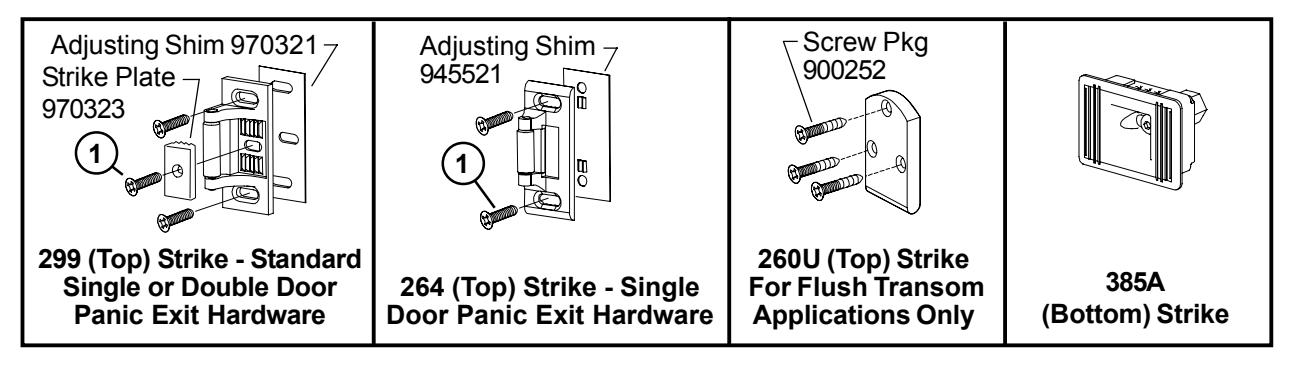

OPTIONAL STRIKES FOR PANIC EXIT HARDWARE

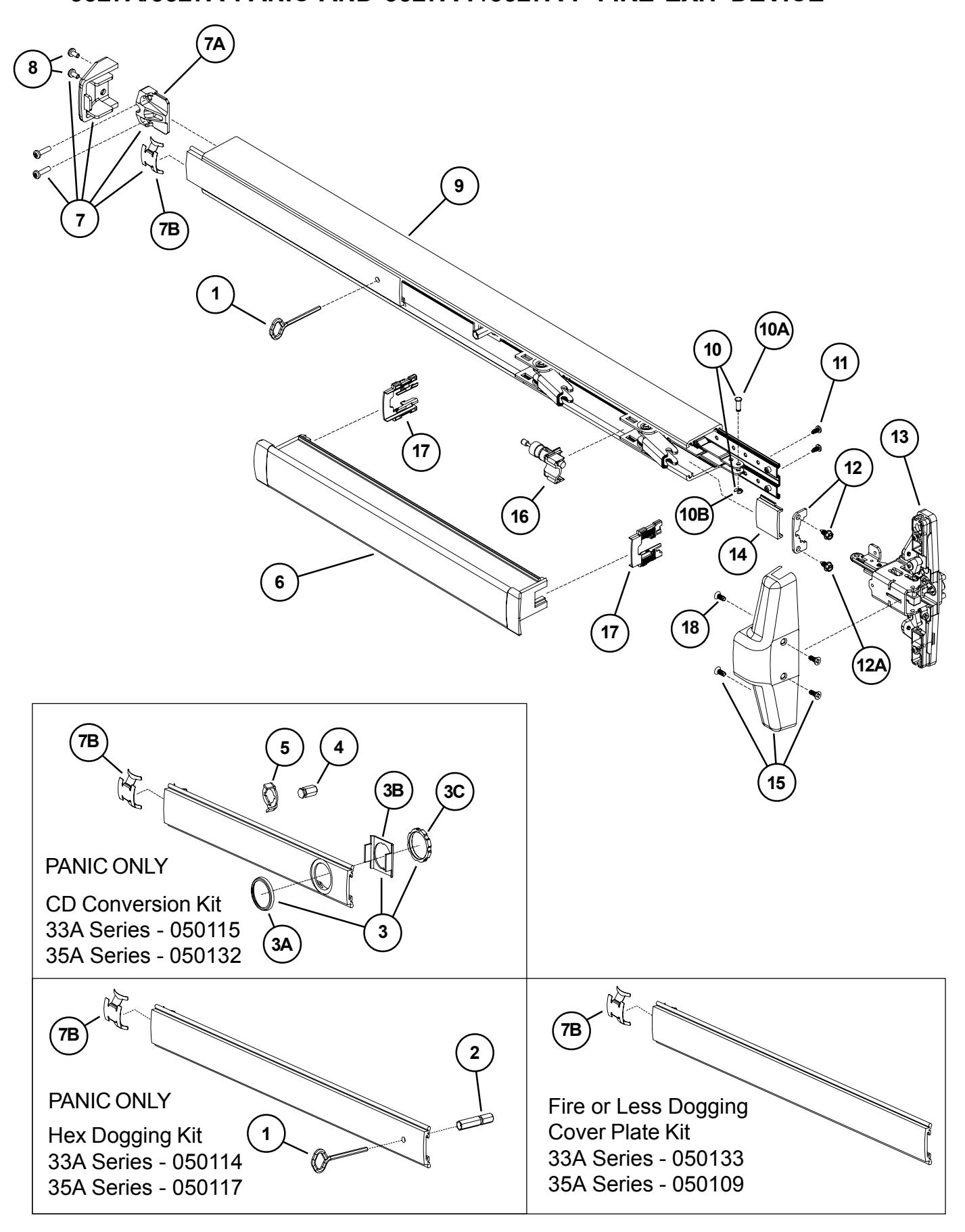

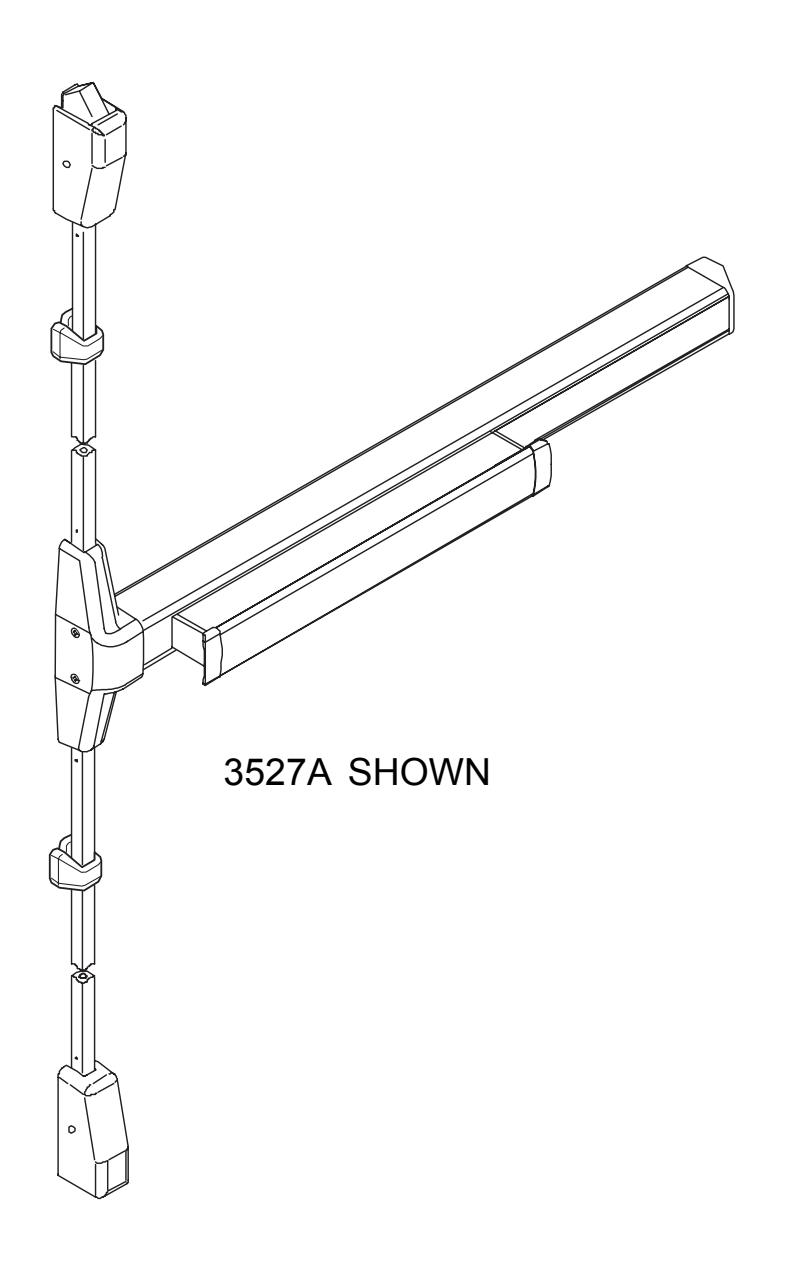

3327A/3527A PANIC AND 3327A-F/3527A-F FIRE EXIT DEVICE
3327A/3527A PANIC AND 3327A-F/3527A-F FIRE EXIT DEVICE
| ItemNo. | Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 900619 |
33A/35A
Series Mounting Pkg. (1-3/4 & 2-1/4) |
||
| 1 | 1 | 090085 |
227
Dog Key 5/32" Hex (Pkg of 10) |
|
| 1 | 1 | 090005 |
227
Dog Key 5/32" Hex (Pkg of 2) |
|
| 2 | 1 | 090040 |
Hex
Dog Shaft (Pkg of 2) |
|
| 3 | 1 | 107813 |
Cylinder
MountingPkg |
X |
| 3A | 1 | 050525 |
Cylinder
Collar |
X |
| 3B | 1 | 050490 |
Cylinder
Locating Washer - CD/SS |
|
| 3C | 1 | 050526 |
Cylinder
Locknut |
|
| 4 | 1 | 090046 |
CD
Dogging Plug (Pkg of 2) |
|
| 5 | 1 | 090045 |
CDActuatorArm
(Pkg of 2) |
|
| 6 | 1 | *PBKIT |
33A/35A
Series Push Bar Retrofit Kit - 3' Door |
X |
| 6 | 1 | *PBKIT |
33A/35A
Series Push Bar Retrofit Kit - 4' Door |
X |
| 7 | 1 | 050014 |
33A/35A
Series End Cap Kit |
X |
| 7A | 1 | 050524 |
Impact
ResistantEnd CapBracket |
|
| 7B | 1 | 090036 |
Cover
PlateAnti-rattle Spring (Pkg of 10) |
|
| 8 | 1 | 900597 |
Device
End Cap and C/Case Screw Pkg. |
X |
| 9 | 1 | 050486 |
33A
Series Mechanism Case - 3' Door |
X |
| 9 | 1 | 050487 |
33A
Series Mechanism Case - 4' Door |
X |
| 9 | 1 | 050488 |
35A
Series Mechanism Case - 3' Door |
X |
| 9 | 1 | 050489 |
35A
Series Mechanism Case - 4' Door |
X |
| 10 | 1 | 050529 |
Control
LinkPin& Ret. Ring |
|
| 10A | 1 | 090031 |
Control
Link Pin (Pkg of 10) |
|
| 10B | 1 | 090107 |
Retaining
Ring (Pkg of 10) |
|
| 11 | 2 | 090037 |
#8-32
x 3/8" Baseplate Screw (Pkg of 10) |
|
| 12 | 1 | 050530 |
Mechanism
Case Bracket Kit |
|
| 12A | 2 | 090073 |
Mechanism
Case Bracket Screw (Pkg of 10) |
|
| 13** | 1 | 050404 |
3327A/3527A
Center Case Less Cover |
|
| 14 | 1 | 050474 |
33A
Series Cover Plate - C. Case Side |
X |
| 14 | 1 | 050475 |
35A
Series Cover Plate - C. Case Side |
X |
| 15 | 1 | 050484 |
3327A/3527A
Center Case Cover Kit |
X |
| 16 | 1 | 050491 |
ShockAbsorber
& HolderAssembly |
|
| 17 | 2 | 090049 |
Push
Bar Guide (Pkg of 10) |
|
| 18 | 4 | 900892 |
Center
Case Cover Screws (Pkg of 4) |
X |
Xin "Finish" column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 33A3' US28
** Device mounting screws 900619 included.

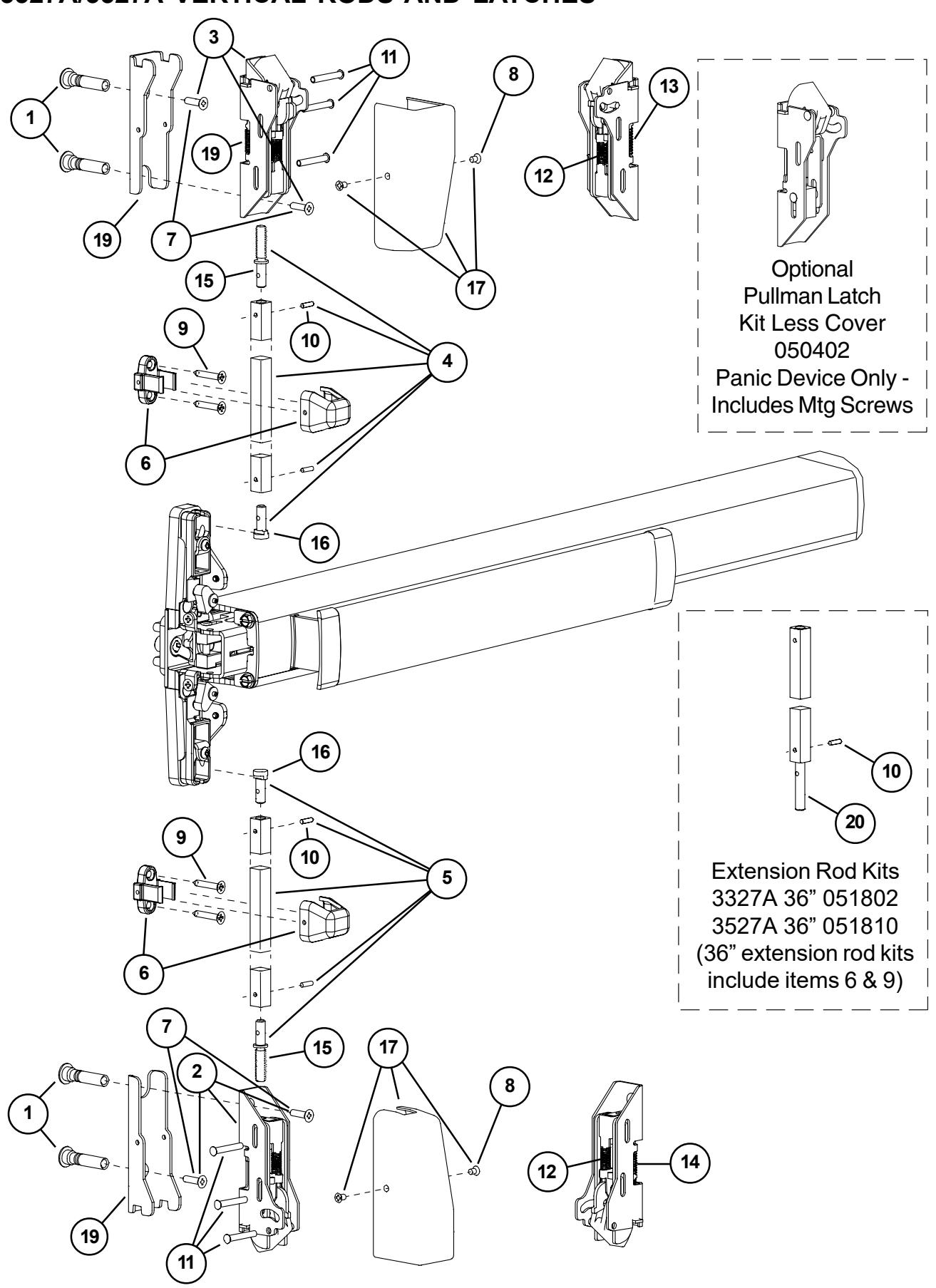

3327A/3527A VERTICAL RODS AND LATCHES
3327A/3527A VERTICAL RODS AND LATCHES
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 2 | 034902 |
325
Sex Bolt Package (Pkg of 2) |
X |
| 2 | 1 | 050401 |
33/3527A
Bottom Latch Kit Less Cover |
|
| 3 | 1 | 050400 |
33/3527A
Top Latch Kit Less Cover |
|
| 4 | 1 | 050512 |
3327A
Top Rod Kit |
X |
| 4 | 1 | 050513 |
3527A
Top Rod Kit |
X |
| 5 | 1 | 050514 |
3327A
Bottom Rod Kit |
X |
| 5 | 1 | 050515 |
3527A
Bottom Rod Kit |
X |
| 6 | 2 | 105952 |
33/3527A
Rod Guide Pkg |
X |
| 7 | 1 | 900589 |
Latch
Mounting Package (Pkg of 4) |
|
| 8 | 2 | 900850 |
Latch
Case Cover Screw (Pkg of 2) |
X |
| 9 | 2 | 900565 |
Rod
Guide Mounting Package |
|
| 10 | 4 | 090054 |
Rod
Roll Pin (Pkg of 10) |
|
| 11 | 6 | 090055 |
Housing
Guide Pin (Pkg of 10) |
|
| 12 | 2 | 090065 |
Bolt
Return Spring (Pkg of 10) |
|
| 13 | 1 | 090056 |
Top
Latch Compression Spring (Pkg of 10) |
|
| 13 | 1 | 090057 |
PL
Top Latch Spring (Pkg of 10) |
|
| 14 | 1 | 090058 |
Bottom
Latch Case Spring (Pkg of 10) |
|
| 15 | 2 | 090067 |
Rod
Connector - Latch (Pkg of 2) |
|
| 16 | 2 | 090068 |
Rod
Connector - Center Case (Pkg of 2) |
|
| 17 | 2 | 050496 |
Latch
Case Cover Kit w/Screws |
X |
| 18 | 1 | 090076 |
Aux.
Bolt Spring (Pkg of 10) |
|
| 19 | 2 | 050546 |
Latch
Case Mtg. Bracket |
|
| 20 | 1 | 090075 |
Rod
Extension Connector (Pkg of 4) |
X in "Finish" column designates finished items; finish must be specified when ordering.

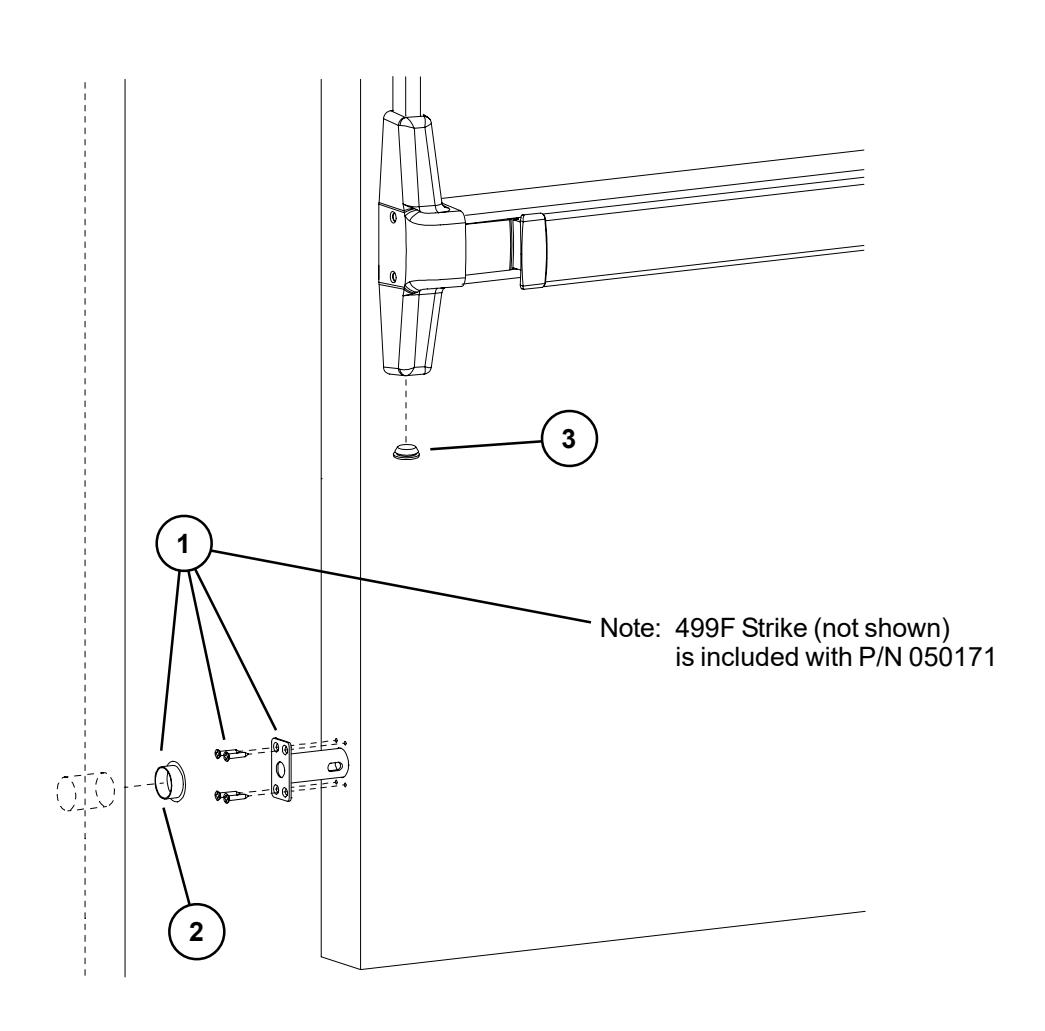

33/3527A-F LBR (LESS BOTTOM ROD) FIRE LATCH KIT
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050171 |
LBR
Fire Latch/Strike kit |
|
| 2 | 1 | 050509 |
LBR
Fire Strike Plug |
|
| 3 | 1 | 113334 |
LBR
Center Case Hole Plug |

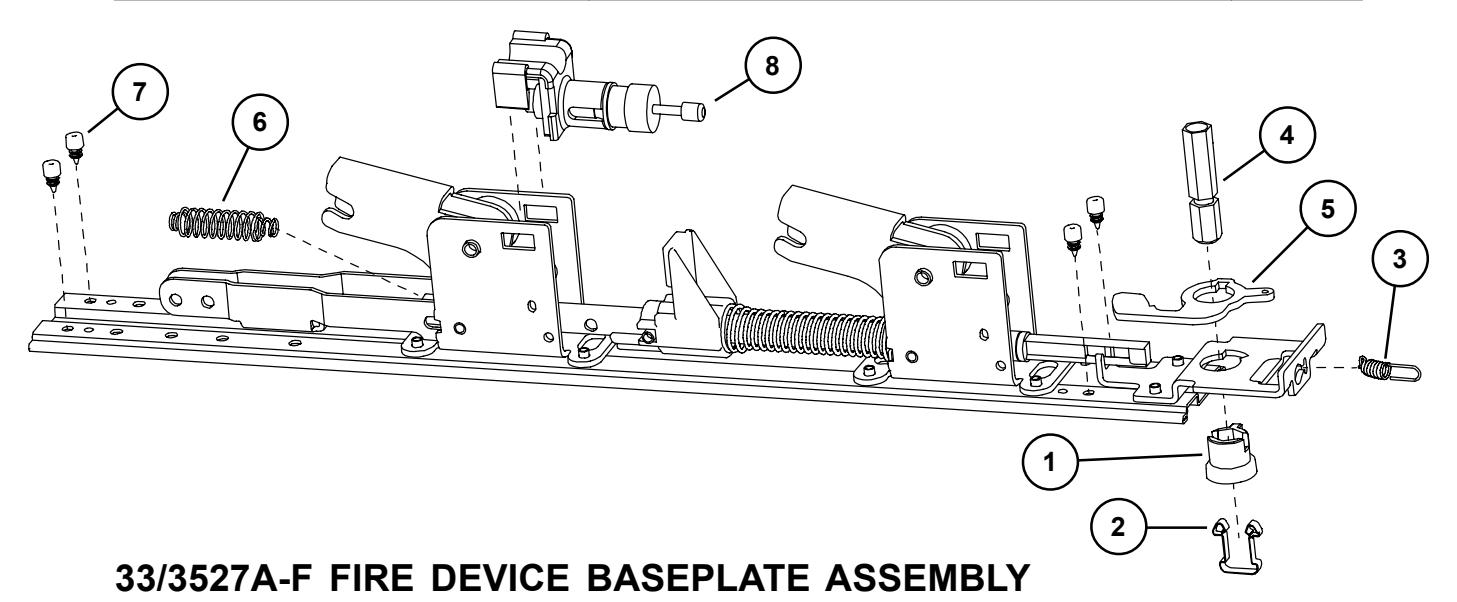

3327A/3527A PANIC DEVICE BASEPLATE ASSEMBLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 090043 |
Dogging
adapter (Pkg of 2) |
|
| 2 | 1 | 090042 |
Dogging
adapter spring (Pkg of 2) |
|
| 3 | 1 | 090041 |
Dogging
spring (Pkg of 2) |
|
| 4 | 1 | 090040 |
Hex
dogging shaft (Pkg of 2) |
|
| 5 | 1 | 090044 |
Dogging
hook (Pkg of 2) |
|
| 6 | 1 | 090039 |
Latch
return spring (Pkg of 10) |
|
| 7 | 4 | 090038 |
Rubber
bumper (Pkg of 4) |
|
| 8 | 1 | 050491 |
Shock
absorber |
Item No. Quantity Part No. Description Finish
| 1 | 4 | 090038 |
Rubber
bumper (Pkg of 4) |
|
| 2 | 1 | 090039 |
Latch
return spring (Pkg of 10) |
|
| 3 | 1 | 050491 |
Shock
absorber |
|

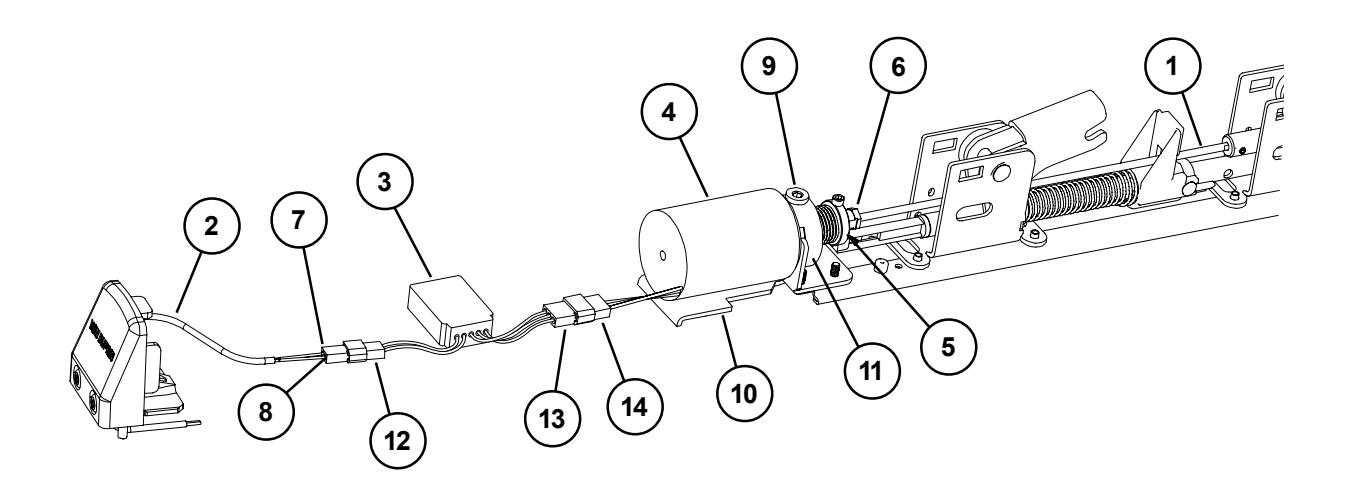

HD-EL3327A/HD-EL3527A HEX DOGGING/ELECTRIC LATCH RETRACTION OPTION - PANIC DEVICE ONLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050531 | EL Dogging Rod Kit - 3' device | |
| 1 | 1 | 050532 | EL Dogging Rod Kit - 4' device | |
| 2 | 1 | 110388 | EL 6' Cable and Connector | |
| 3 | 1 | 050534 | EL Potted Module | |
| 4 | 1 | 050536 | HD-EL Solenoid | |
| 5 | 1 | 050537 | HD-EL Solenoid Plunger | |
| 6 | 1 | 050538 | EL Dogging Rod Retainer | |
| 7 | 1 | 050539 | EL Receptacle Connector - 2 Position | |
| 8 | 2 | 050540 | EL Female Terminal | |
| 9 | 1 | 050541 | HD-EL Dog Screw | |
| 10 | 1 | 050542 | HD-EL Solenoid Bracket | |
| 11 | 1 | 050543 | HD-EL Dogging Spring | |
| 12 | 1 | 990599 | EL Plug Connector - 2 Position | |
| 13 | 1 | 990857 | EL Receptacle Connector - 3 Position | |
| 14 | 1 | 990858 | EL Plug Connector - 3 Position | |
| * | 1 | 050384 | HD-EL Conversion Kit - 3' | |
| * | 1 | 050385 | HD-EL Conversion Kit - 4' |
* Kit includes items 1-11 plus new control link, retaining ring, and baseplate screws.
EL3327A/EL3527A ELECTRIC LATCH RETRACTION OPTION
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050531 | EL Dogging Rod Kit - 3' device | |
| 1 | 1 | 050532 | EL Dogging Rod Kit - 4' device | |
| 2 | 1 | 110388 | EL 6' Cable and Connector | |
| 3 | 1 | 050534 | EL Potted Module | |
| 4 | 1 | 050535 | EL Solenoid Assembly | |
| 5 | 1 | 050538 | EL Dogging Rod Retainer | |
| 6 | 1 | 050539 | EL Receptacle Connector | |
| 7 | 2 | 050540 | EL Female Terminal | |
| 8 | 1 | 990599 | EL Plug Connector - 2 Position | |
| 9 | 1 | 990857 | EL Receptacle Connector - 3 Position | |
| 10 | 1 | 990858 | EL Plug Connector - 3 Position | |
| * | 1 | 050070 | EL Conversion Kit - 3' | |
| * | 1 | 050078 | EL Conversion Kit - 4' |
* Kit includes items 1-7 plus new control link pin, retaining ring, and baseplate screws.

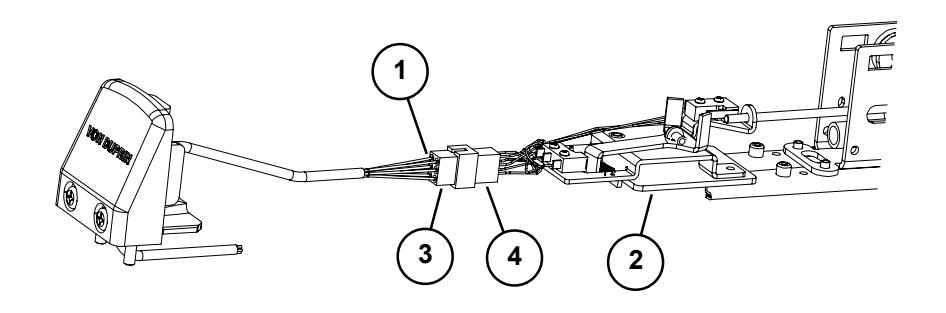

SS3327A/SS3527A (SIGNAL SWITCH) OPTION
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050544 |
SS
Cable |
|
| 2 | 1 | 050545 |
SS
Housing |
|
| 3 | 1 | 990601 |
SS
Plug Connector - 6 Position |
|
| 4 | 1 | 990602 |
SS
Receptacle Connector - 6 Position |

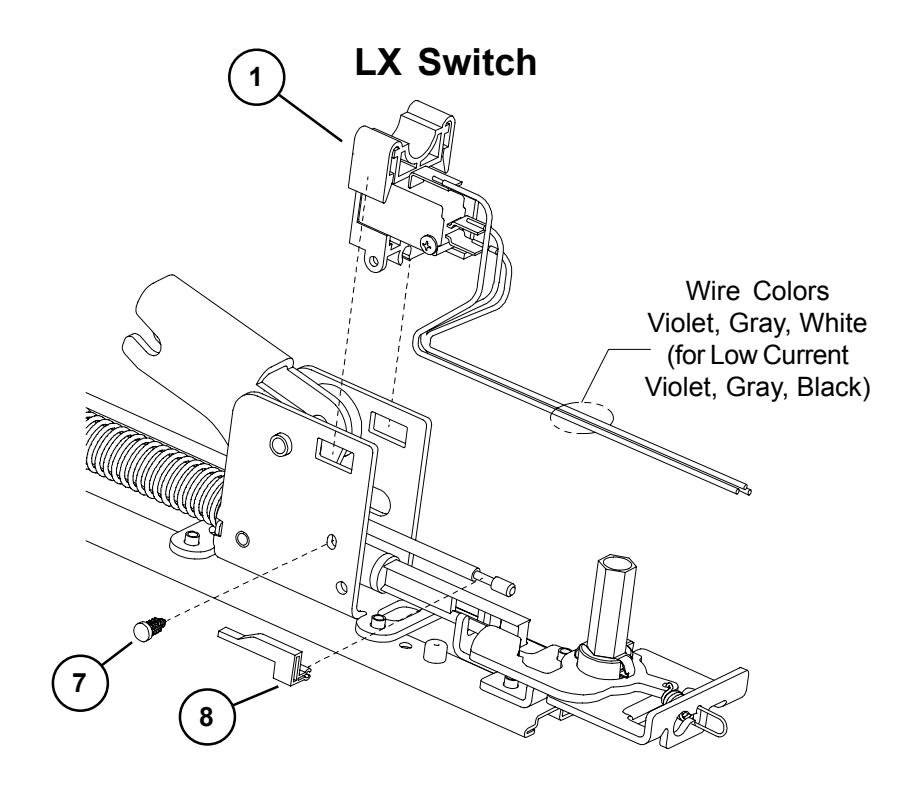

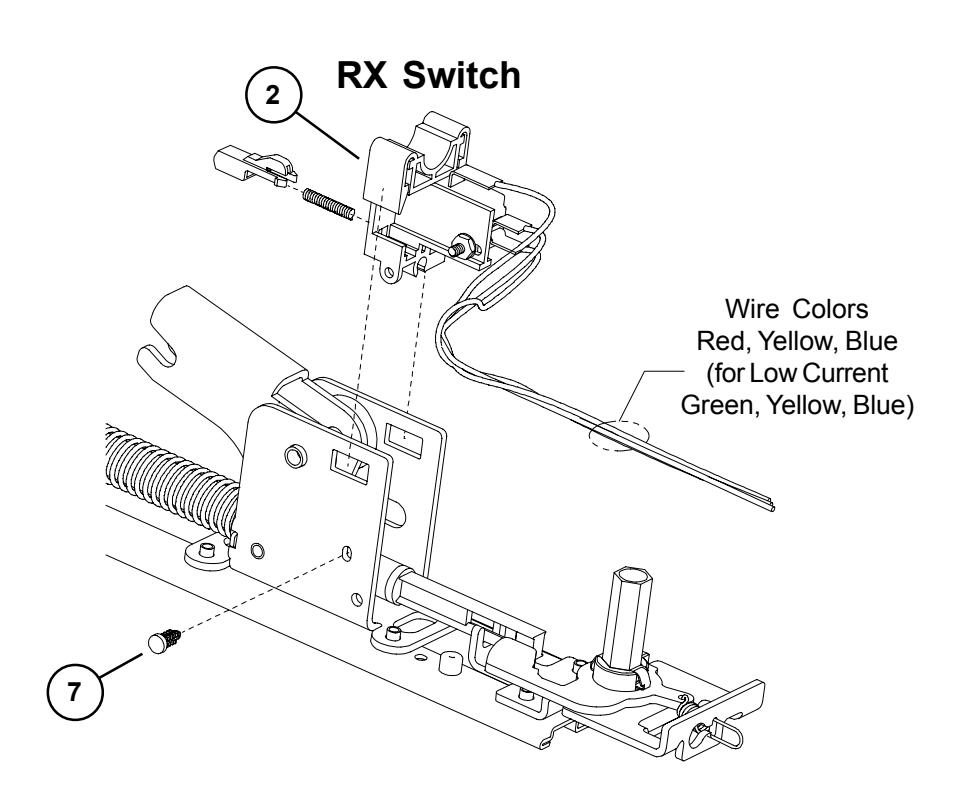

3327A/3527A LX (LATCH BOLT MONITOR) & RX (REQUEST TO EXIT) OPTIONS
3327A/3527A LX (LATCH BOLT MONITOR) & RX (REQUEST TO EXIT) OPTIONS
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050254 |
LX Switch
Kit 3' Device |
|
| 1 | 1 | 050255 |
LX Switch
Kit 4' Device |
|
| 1 | 1 | 050247 |
LX-EL
Switch Kit |
|
| 1 | 1 | 050283 |
LX-LC
(Low Current) Switch Kit 3' Device |
|
| 1 | 1 | 050285 |
LX-LC
(Low Current) Switch Kit 4' Device |
|
| 1 | 1 | 050287 |
LX-LC-EL
(Low Current) Switch Kit |
|
| 2 | 1 | 050251 |
RX Switch
Kit |
|
| 2 | 1 | 050281 |
RX-LC
(Low Current) Switch Kit |
|
| 3 | 1 | 050256 |
LX-RX
Switch Kit 3' Device |
|
| 3 | 1 | 050257 |
LX-RX
Switch Kit 4' Device |
|
| 3 | 1 | 050259 |
LX-RX-EL
Switch Kit |
|
| 3 | 1 | 050289 |
LX-RX-LC
(Low Current) Sw. Kit 3' Device |
|
| 3 | 1 | 050291 |
LX-RX-LC
(Low Current) Sw. Kit 4' Device |
|
| 3 | 1 | 050293 |
LX-RX-LC-EL
(Low Current) Switch Kit |
|
|
2
& 4 |
1 | 050270 |
RX-2
Switch Kit |
|
| 4 | 1 | 050271 |

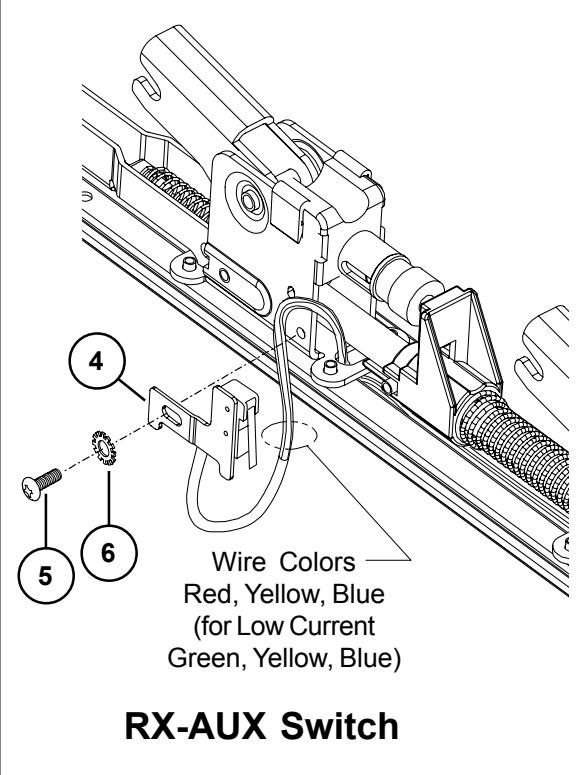

RX-AUX
Switch Kit |
|
| 5 | 1 | 964558 |
8-32
x 5/16" PPHMS |
|
| 6 | 1 | 964019 |
#8
Washer |
|
| 7 | 1 | 090099 |
Pine
Tree Clip (Pkg of 10) |
|
| 8 | 1 | 971091 | LXActuator |
33A/35A ALK EXIT ALARM KIT
| Item No. | Quantity | Part No. | Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 111795 | ALK PCB Assembly | |
| 2 | 1 | 050525 | Cylinder Collar | X |
| 3 | 1 | 969122 | ALK Alarm Device Sign | |
| 4 | 1 | 969349 | ALK Arming Label | |
| 5 | 1 | 969350 | ALK Disarming Label | |
| 6 | 1 | 969354 | Retainer Nut | |
| 7 | 1 | 970594 | ALK Cylinder Spacer | |
| 8 | 1 | 090036 | Cover Plate Anti-rattle spring (Pkg of 10) | |
| 9 | 1 | 971556 | ALK Switch Actuator | |
| 10 | 1 | 971557 | ALK Cylinder Bracket | |
| 11 | 1 | 990637 | ALK Battery | |
| 12 | 1 | 050406 | 33A Series ALK Cover Plate Kit | Х |
| 12 | 1 | 050407 | 35A Series ALK Cover Plate Kit | Х |
X in "Finish" column designates finished items; finish must be specified when ordering.
About Allegion
Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security. As a $2 billion provider of security solutions for homes and businesses, Allegion employs more than 7,800 people and sells products in more than 120 countries across the world. Allegion comprises 23 global brands, including strategic brands CISA®, Interflex®, LCN®, Schlage® and Von Duprin®.
For more, visit www.allegion.com .
