Von Duprin 3327A, 3527A, 3335A-F & 3527A-F Vertical Rod Series Metal Door Template

Original Source Document Full PDF Version

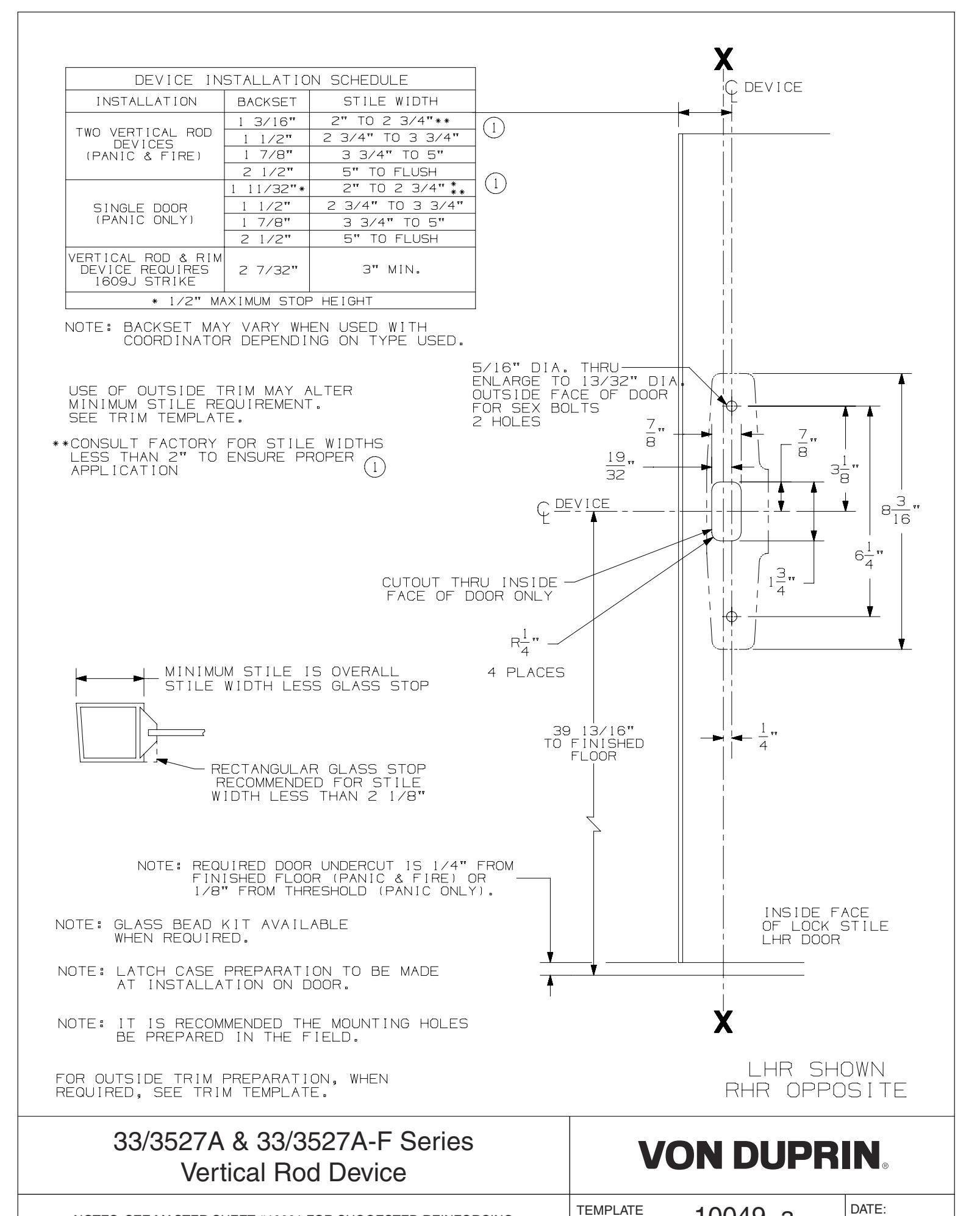

Von Duprin 3327A, 3527A, 3335A-F & 3527A-F Vertical Rod Series Metal Door Template diagram on page 1

NUMBER:

10049 a

DATE: 05-15-13
