Von Duprin 330 & 350 Push Bar Trim Metal Door Template

Home
Resource Library
Request a Quote

Original Source Document Full PDF Version

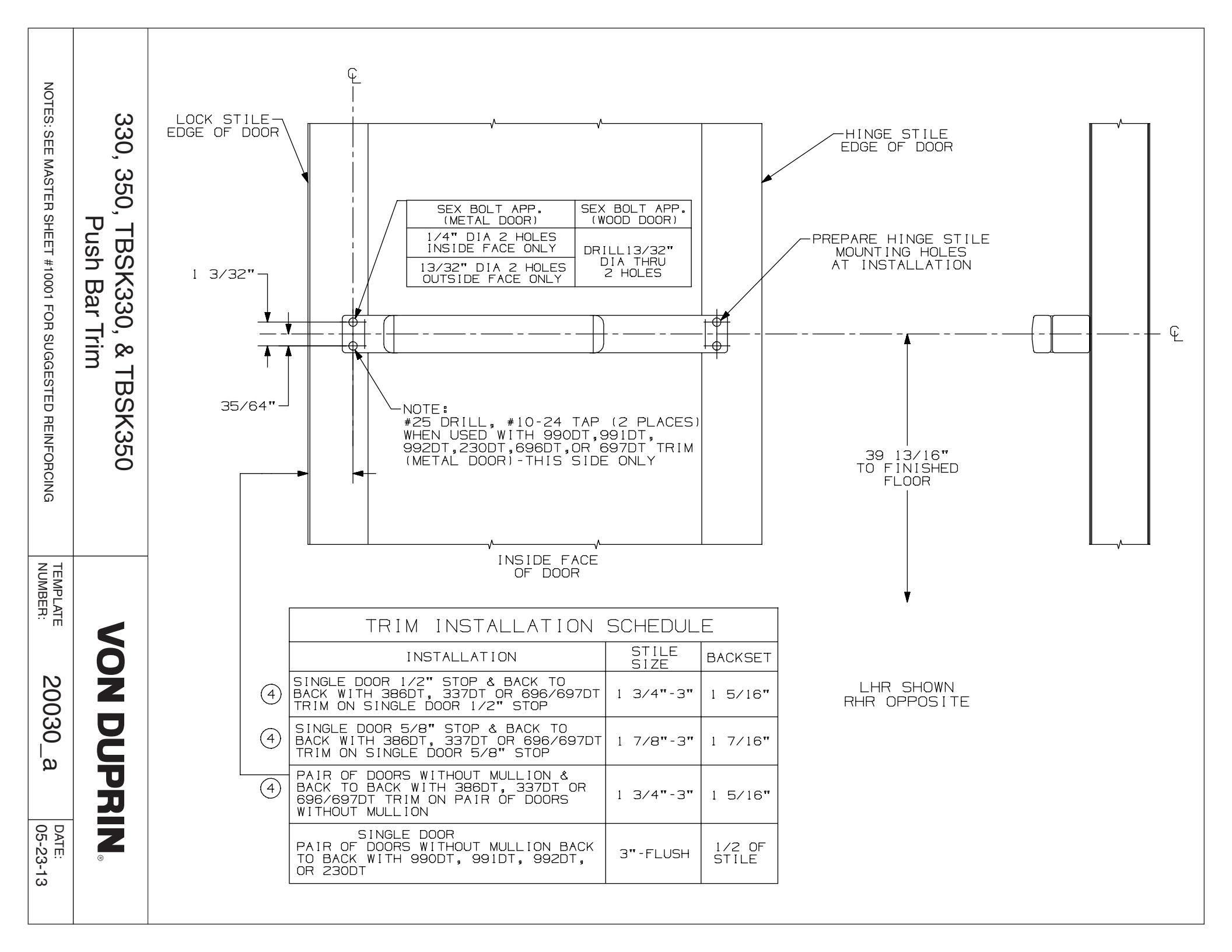

Von Duprin 330 & 350 Push Bar Trim Metal Door Template diagram on page 1
