Von Duprin 299F Strike For 98 and 99 Series Exit Device Metal Door Template

Original Source Document Full PDF Version

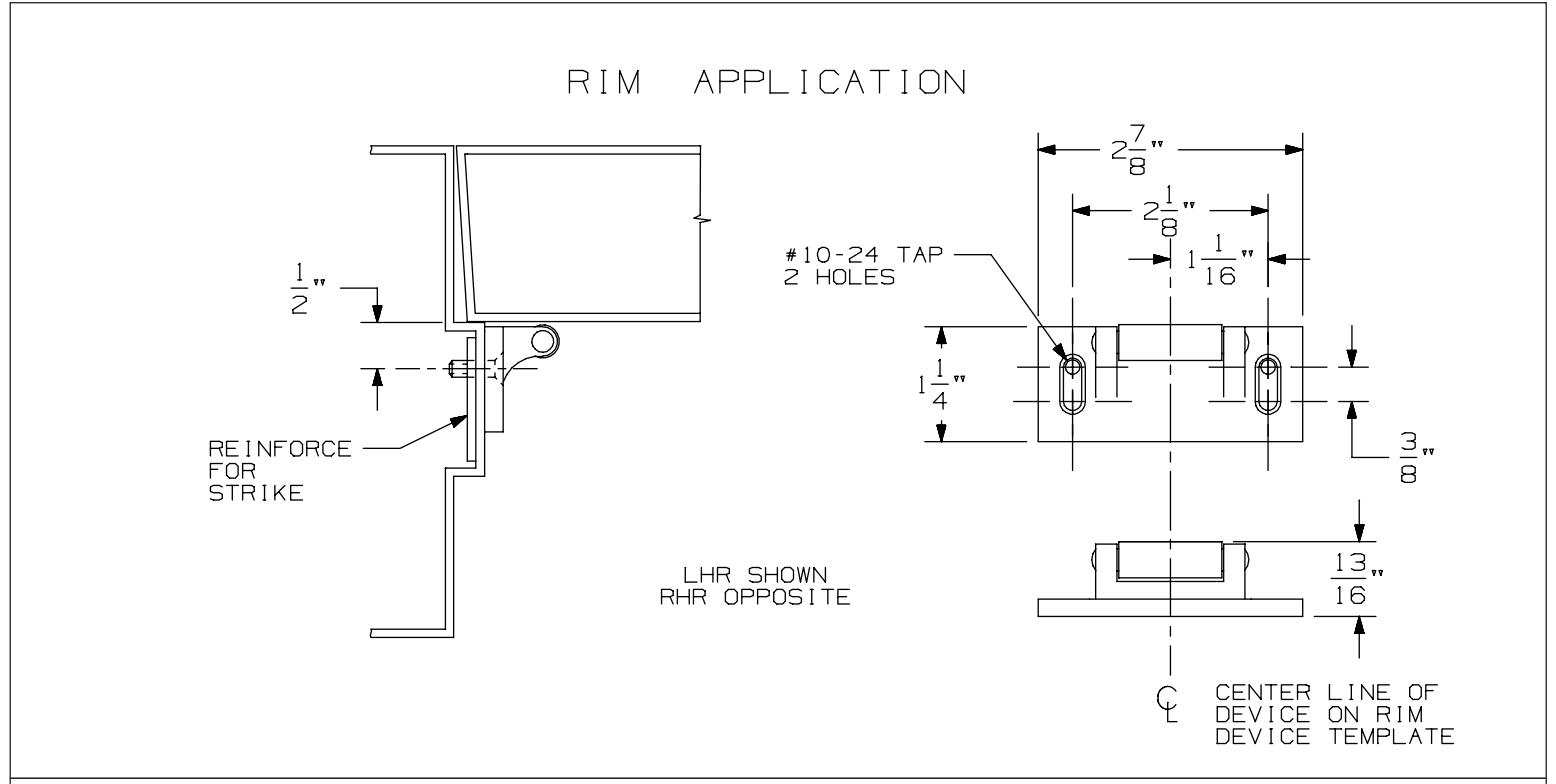

Von Duprin 299F Strike For 98 and 99 Series Exit Device Metal Door Template diagram on page 1

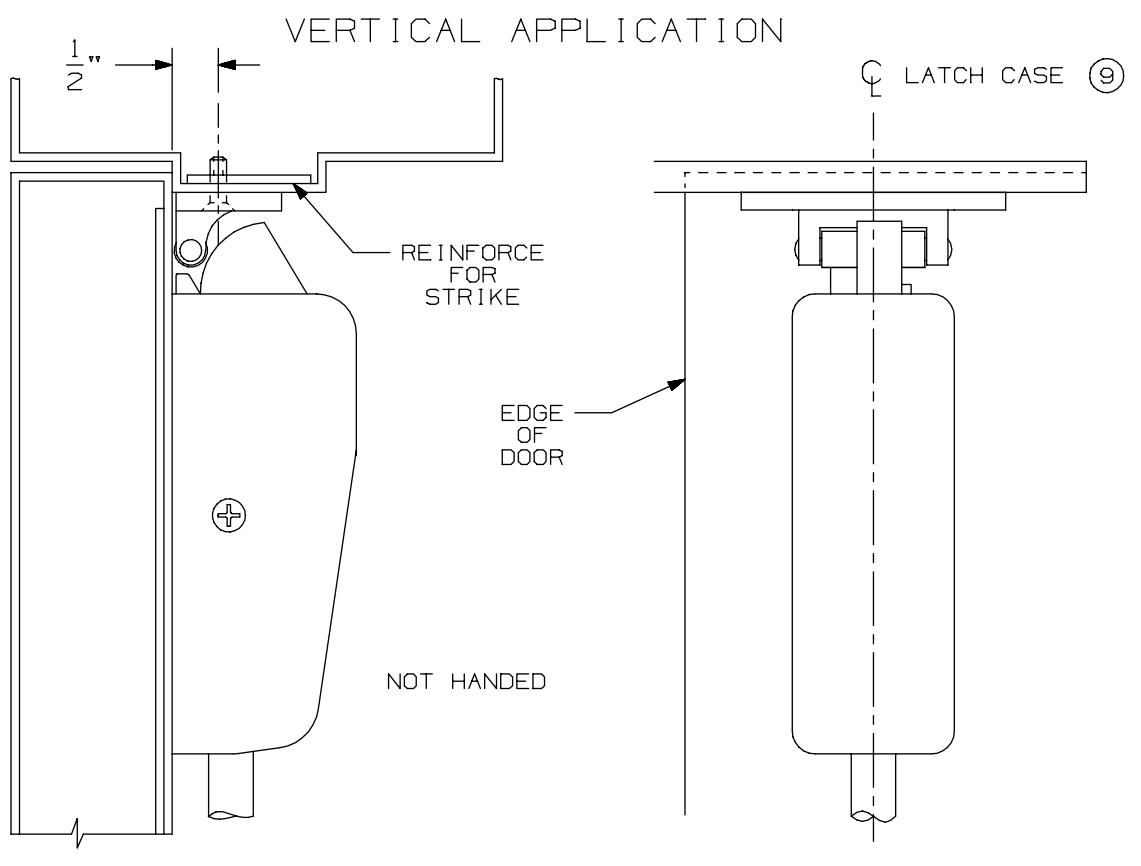

Von Duprin 299F Strike For 98 and 99 Series Exit Device Metal Door Template image on page 1

NOTE: LATCH CASE MOUNTING HOLES TO BE PREPARED AT INSTALLATION ON DOOR.

299 & 299F Strike VON DUPRIN<sub>®</sub>

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

30039_a

DATE: 05-23-13
