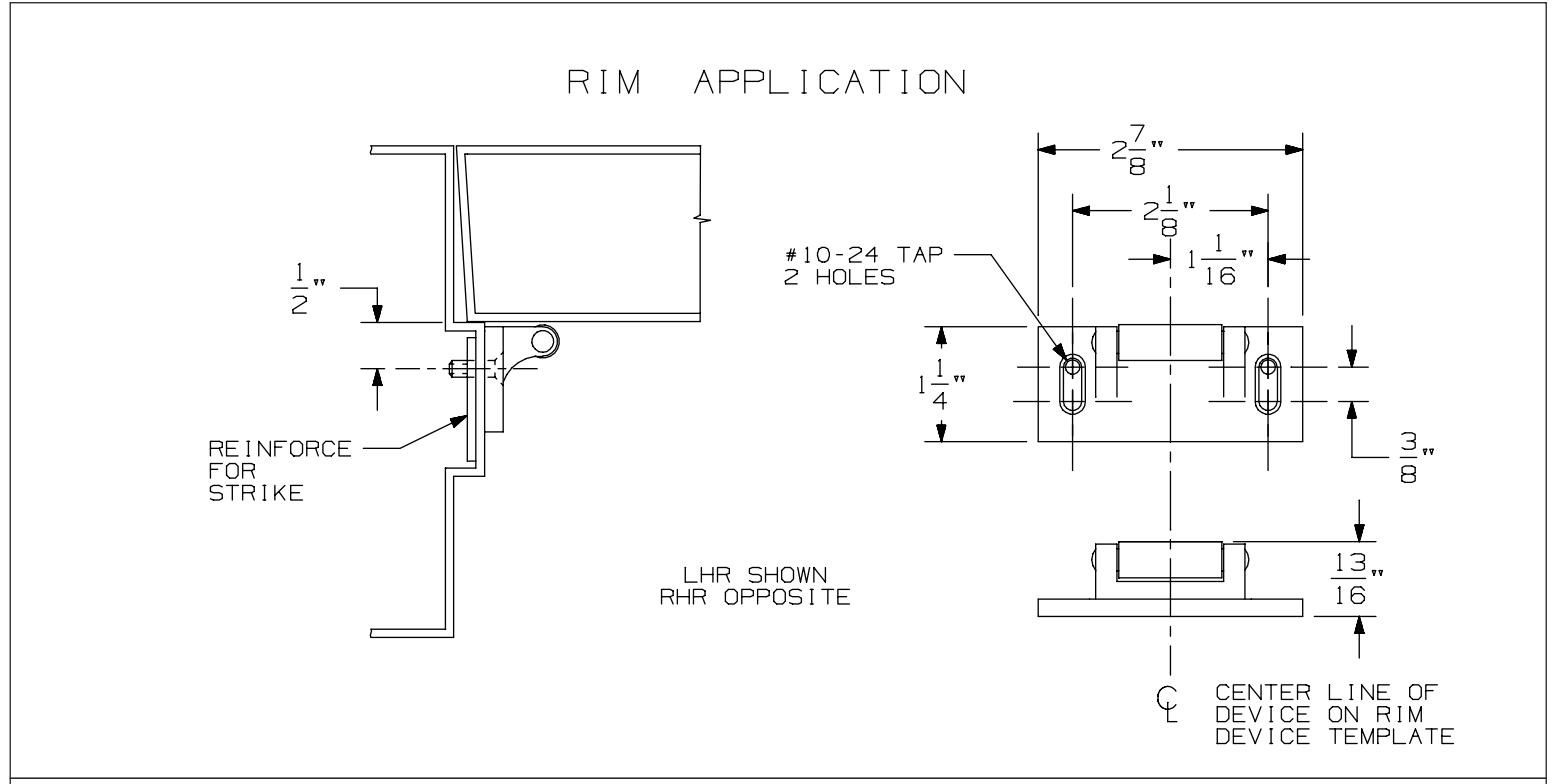

Von Duprin 299 Strike Used with 88 Rim, E88 Rim, 8827 For Metal Applications Template diagram on page 1

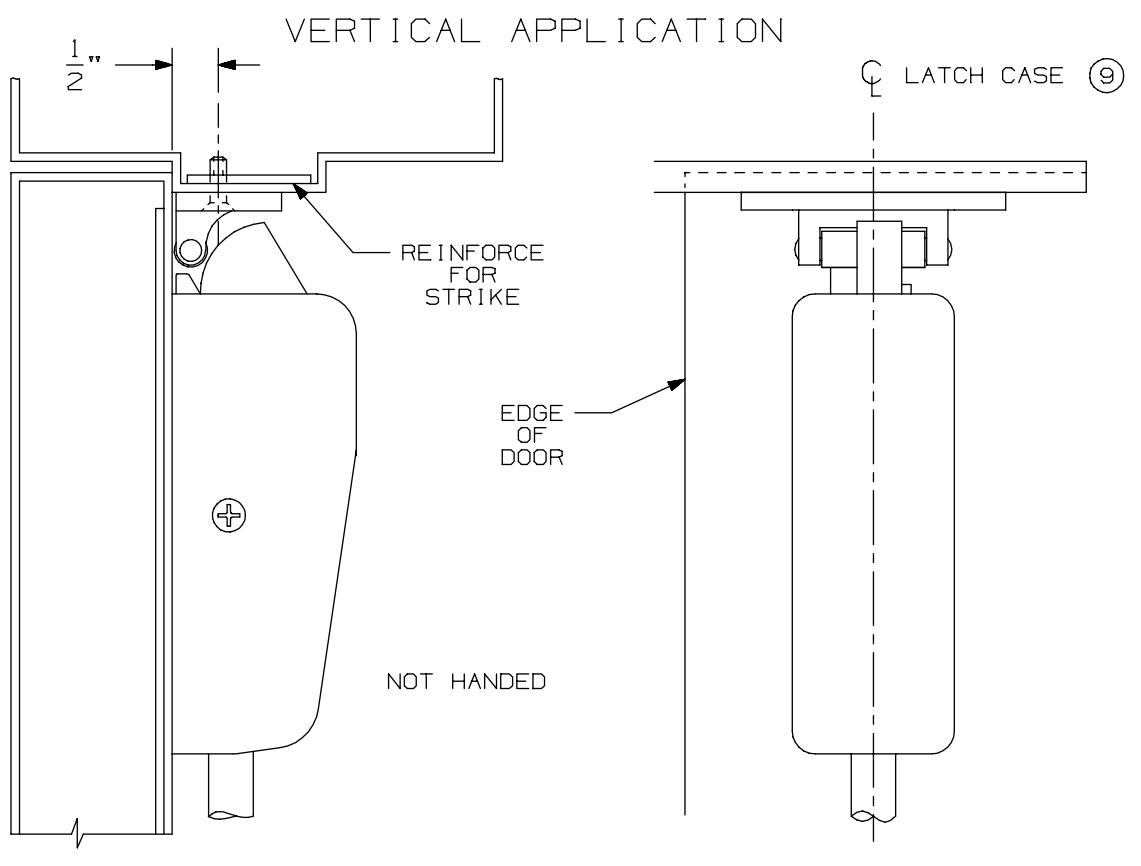

Von Duprin 299 Strike Used with 88 Rim, E88 Rim, 8827 For Metal Applications Template image on page 1

NOTE: LATCH CASE MOUNTING HOLES TO BE PREPARED AT INSTALLATION ON DOOR.

299 & 299F Strike VON DUPRIN<sub>®</sub>

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

30039_a

DATE: 05-23-13
