Von Duprin 299 Strike For Use With 22 and 2227 Series Exit Device Template

Original Source Document Full PDF Version

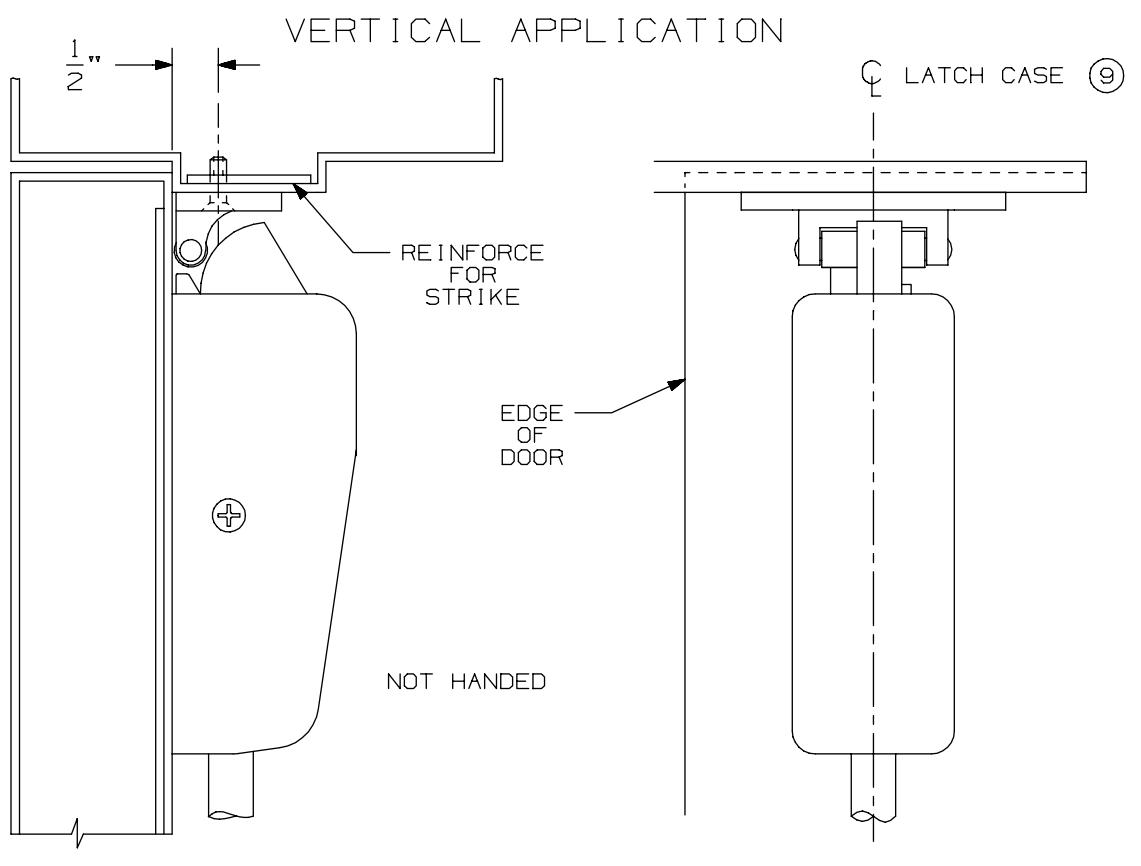

Von Duprin 299 Strike For Use With 22 and 2227 Series Exit Device Template diagram on page 1

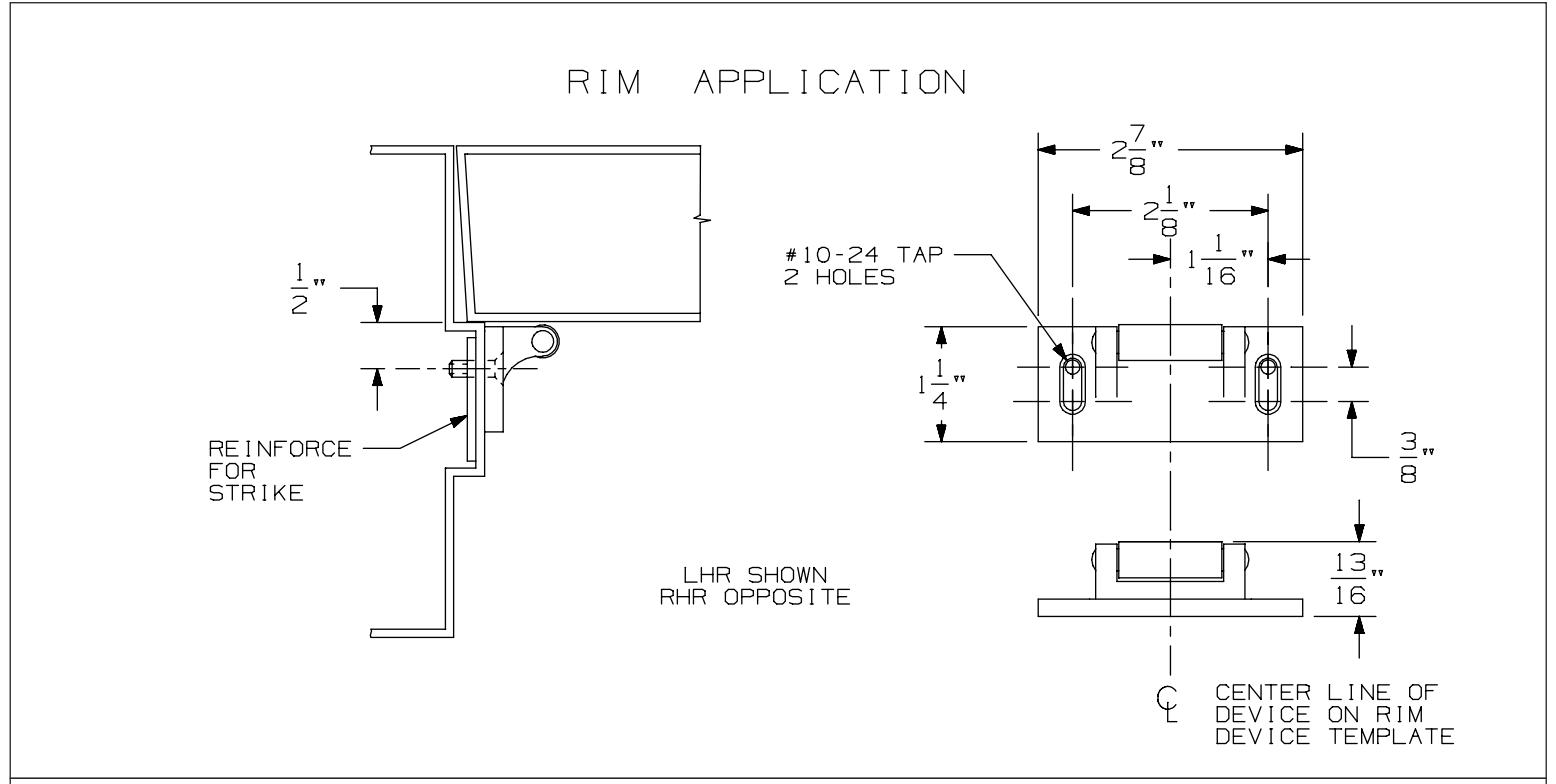

Von Duprin 299 Strike For Use With 22 and 2227 Series Exit Device Template image on page 1

NOTE: LATCH CASE MOUNTING HOLES TO BE PREPARED AT INSTALLATION ON DOOR.

299 & 299F Strike VON DUPRIN<sub>®</sub>

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

30039_a

DATE: 05-23-13
