Von Duprin 268 Strike Used with e 88-F Rim, E88-F Rim For Metal Applications Template diagram on page 1

Von Duprin 268 Strike Used with e 88-F Rim, E88-F Rim For Metal Applications Template diagram on page 1

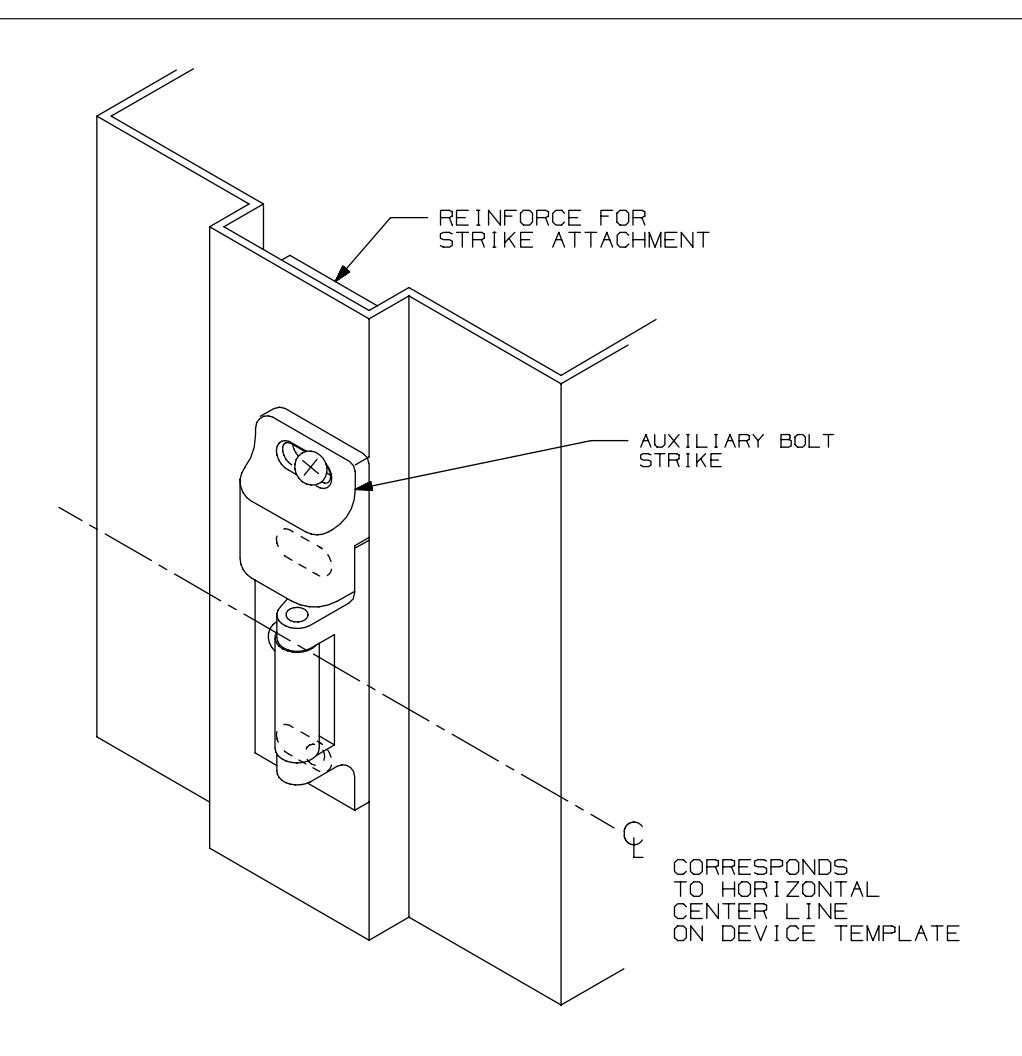

NOTE: AUXILARY BOLT STRIKE ALWAYS ABOVE STRIKE ROLLER

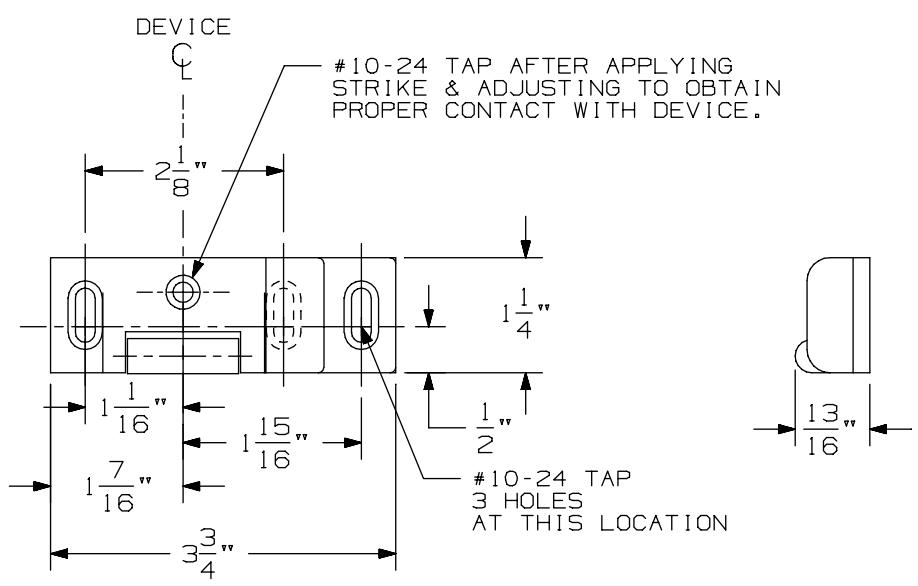

268 Rim Strike

VON DUPRIN ®

TEMPLATE NUMBER:

30011_a

DATE: 05-23-13
