98/9927 AND 98/9957LATCH AND STRIKE TEMPLATES

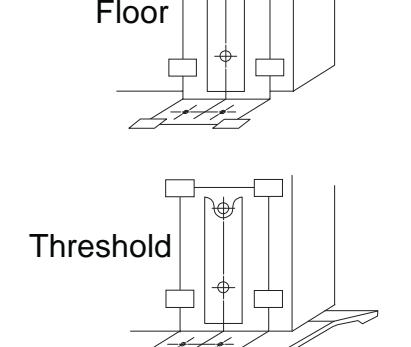

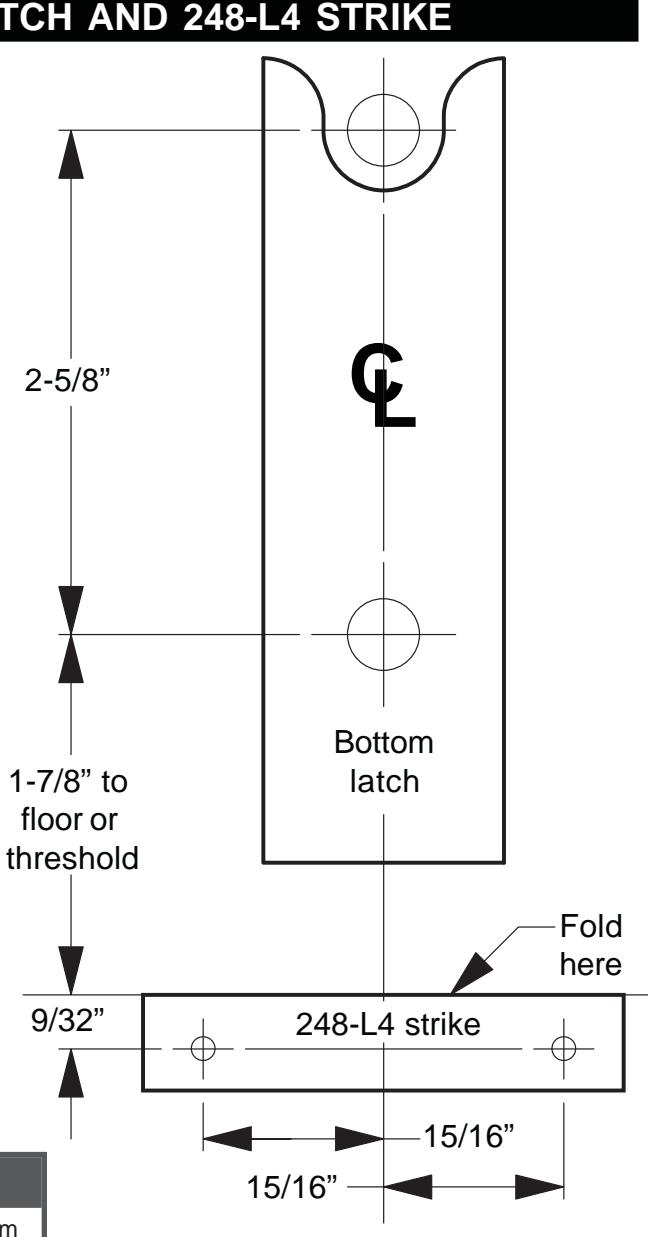

BOTTOM LATCH AND 248-L4 STRIKE

Von Duprin 248L-4 Strike For Use With 2227 Series Exit Device Template image on page 1

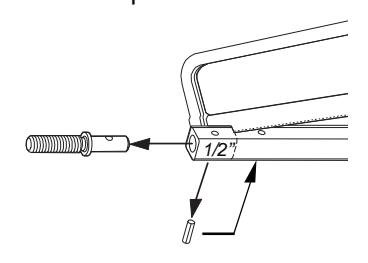

For threshold application, remove roll pin and fitting, cut bottom rod, reinstall fitting and roll pin in second hole

Von Duprin 248L-4 Strike For Use With 2227 Series Exit Device Template image on page 1

Von Duprin 248L-4 Strike For Use With 2227 Series Exit Device Template image on page 1

911379-00

Customer Service

1-877-671-7011 www.allegion.com

Von Duprin 248L-4 Strike For Use With 2227 Series Exit Device Template diagram on page 1

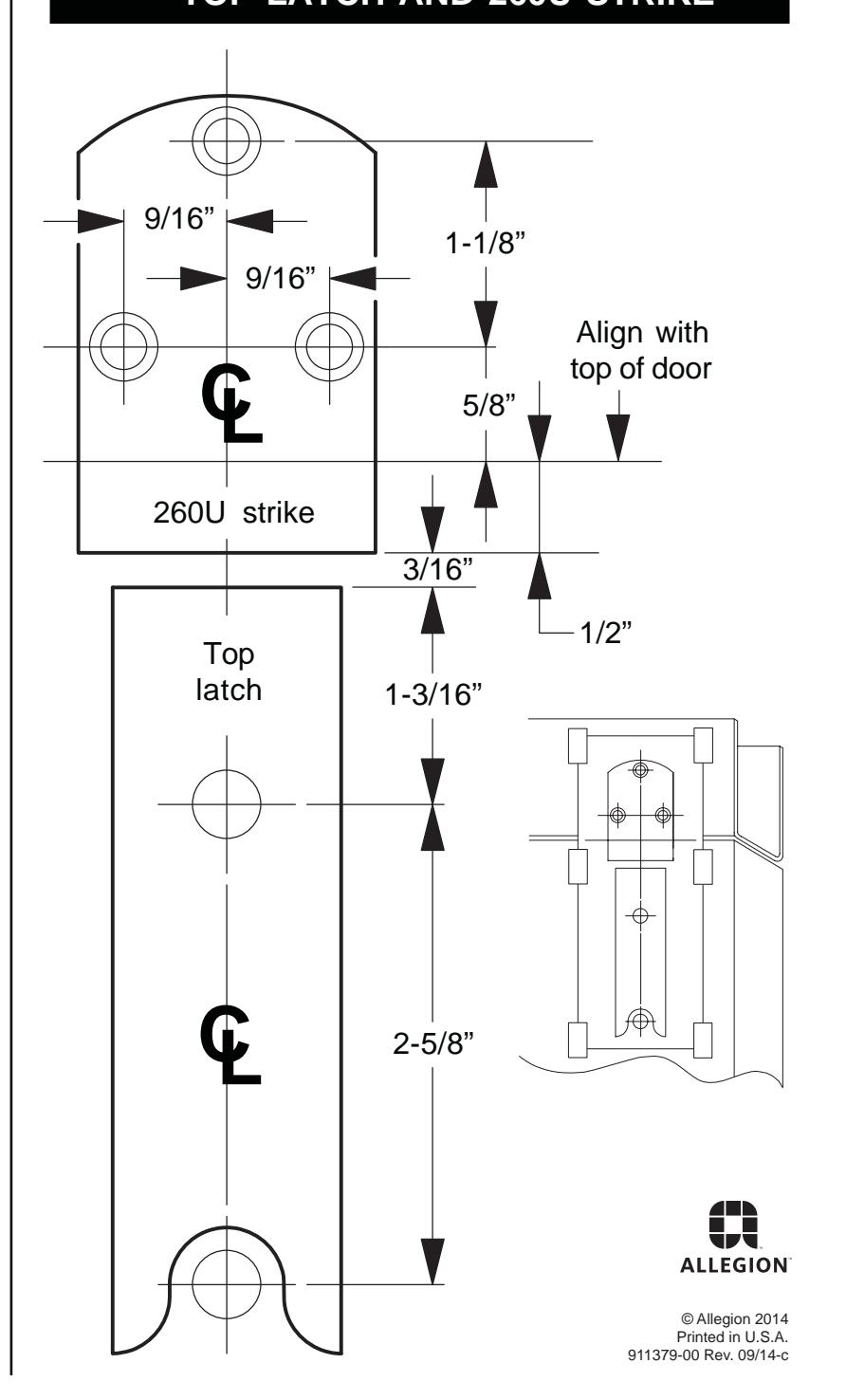

TOP LATCH AND 260U STRIKE

Von Duprin 248L-4 Strike For Use With 2227 Series Exit Device Template diagram on page 1

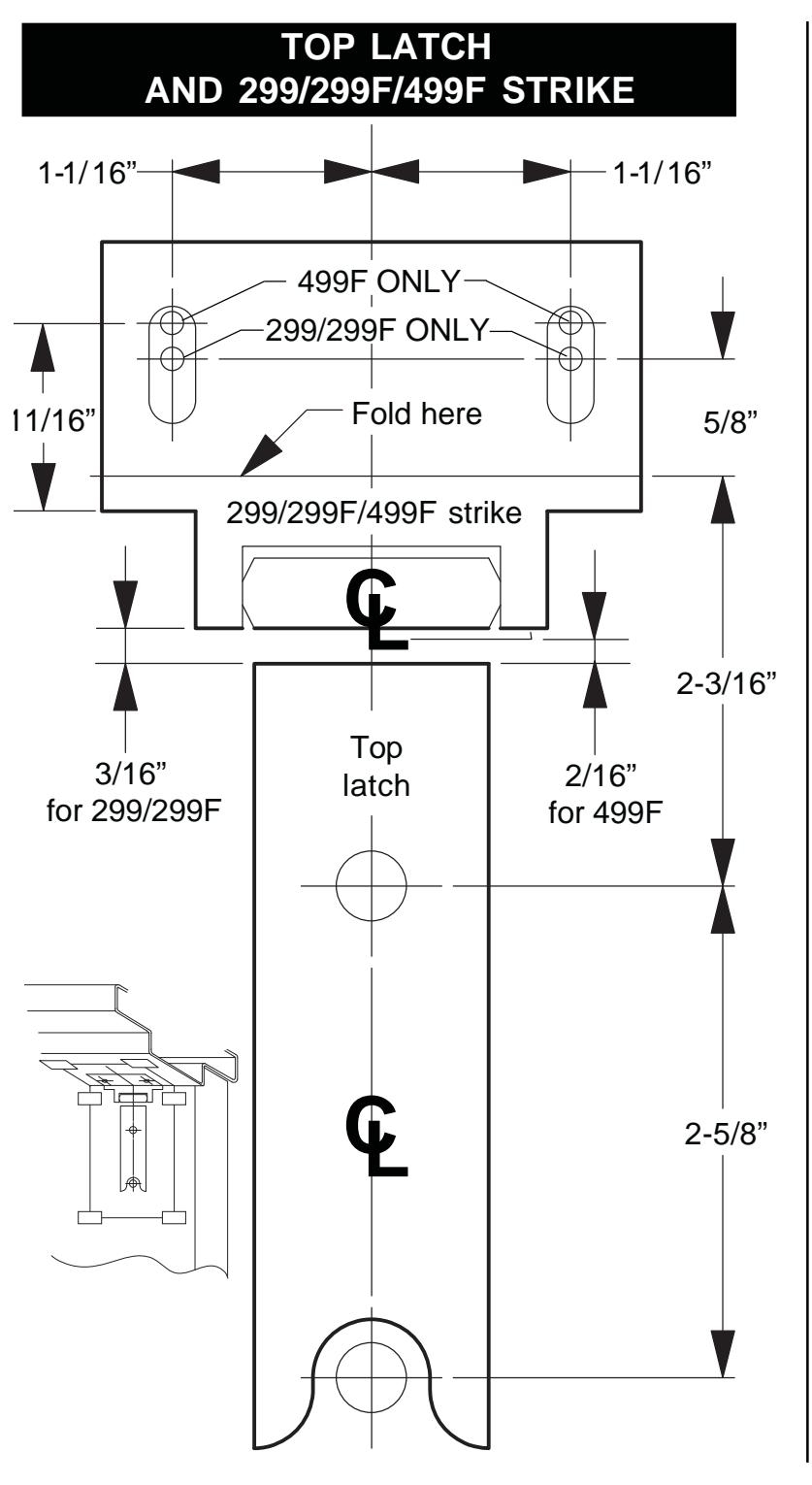

Von Duprin 248L-4 Strike For Use With 2227 Series Exit Device Template diagram on page 2

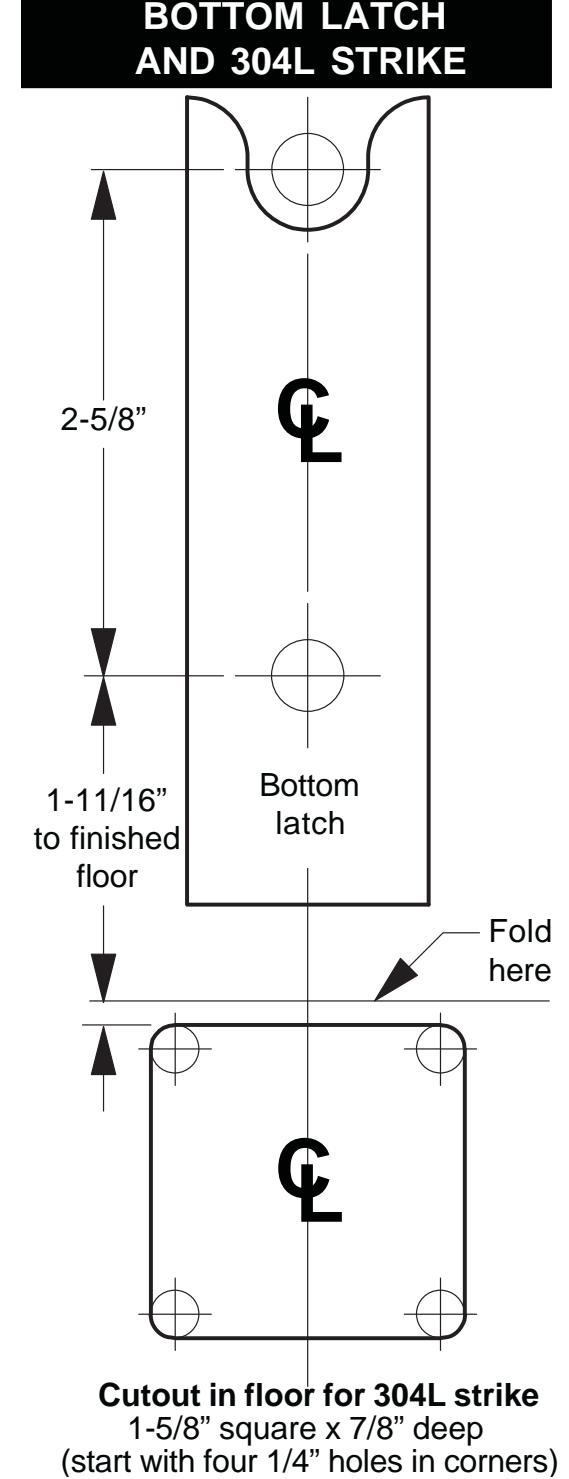

Von Duprin 248L-4 Strike For Use With 2227 Series Exit Device Template diagram on page 2

Von Duprin 248L-4 Strike For Use With 2227 Series Exit Device Template diagram on page 2
