Von Duprin 230 EO Trim for Hollow Metal Door Template

Home
Resource Library
Request a Quote

Original Source Document Full PDF Version

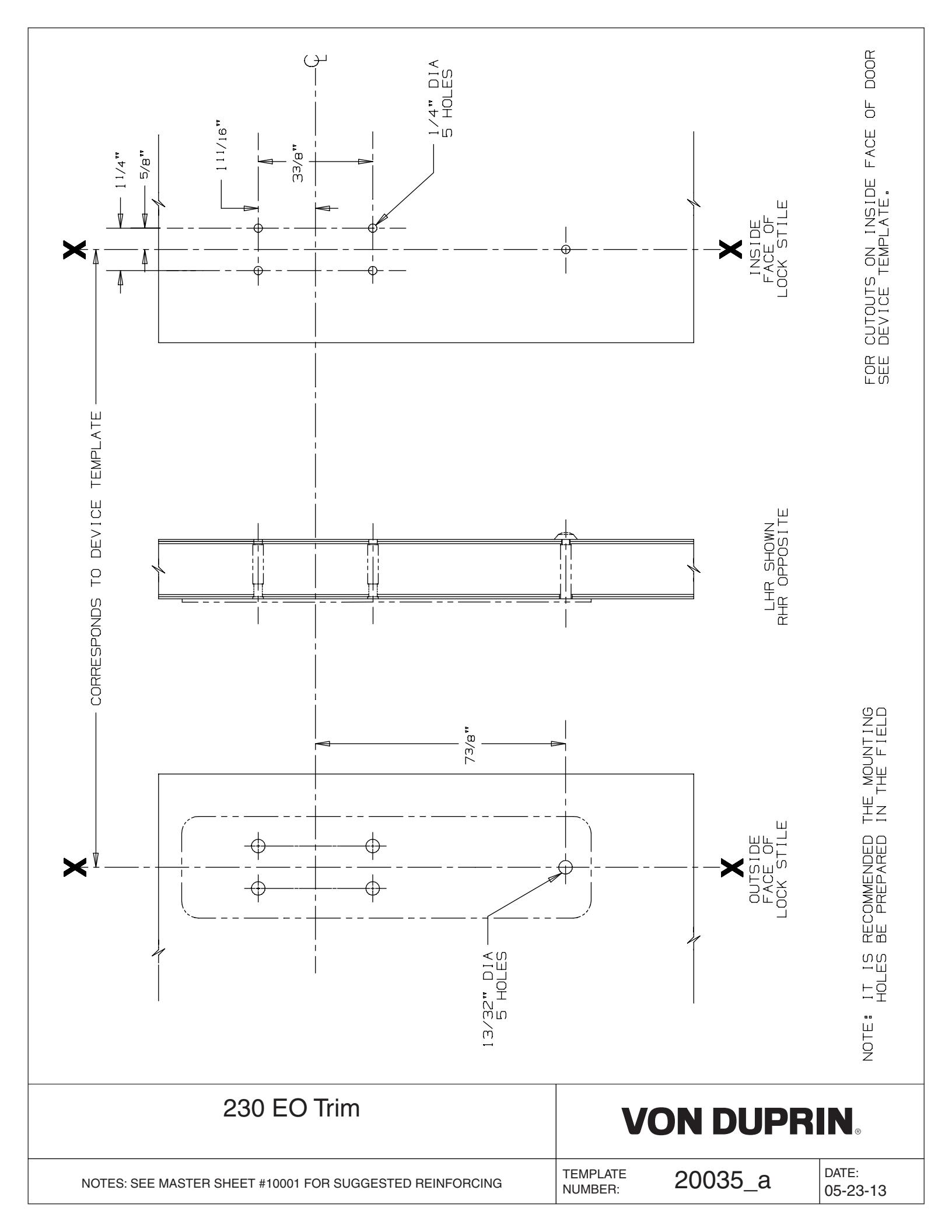

Von Duprin 230 EO Trim for Hollow Metal Door Template diagram on page 1
