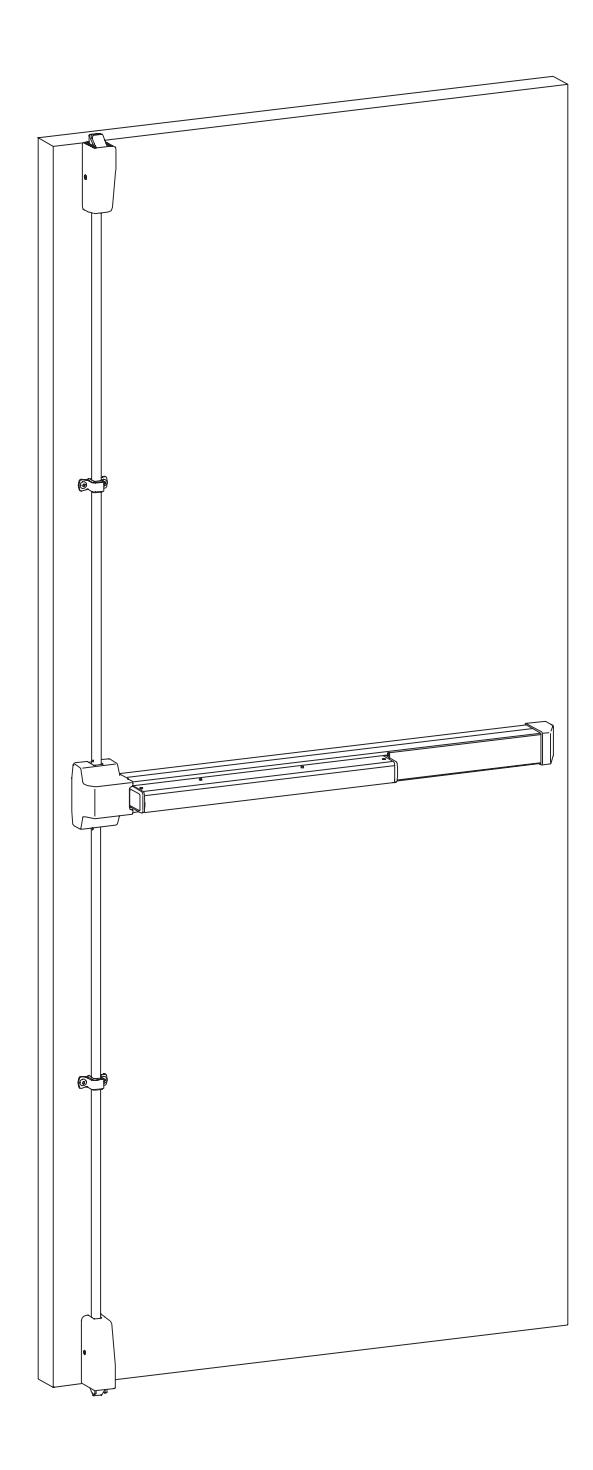

2227 Series Vertical Rod Exit Device
Service manual
INDEX
| 2227 Vertical Rod Devices | |
|---|---|
| Basic Panic Device 4-5 | |
| Basic Fire Device 6-7 | |
| Vertical Rods and Latch Cases 8-9 | |
| BaseplateAssemblies 10 | |
| Center CaseAssembly11 | |
| LBR Fire Latch Kit 12 | |
| Variations of the Basic Device | |
| RX (Request to Exit) 13 | |
| LX (Latch Bolt Monitoring) 13 | |
| ALK Exit Alarm Kit 14 | |
| General Information | |
| Introduction 2 | |
| How to Order 2 | |
| Part Number Changes 2 | |
| Finishes 3 | |
| Outside Trim Functions 3 | |
| Strikes 3 | |
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 2227 and 2227-F Exit Hardware Devices.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, IN 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.
22 SERIES FINISHES

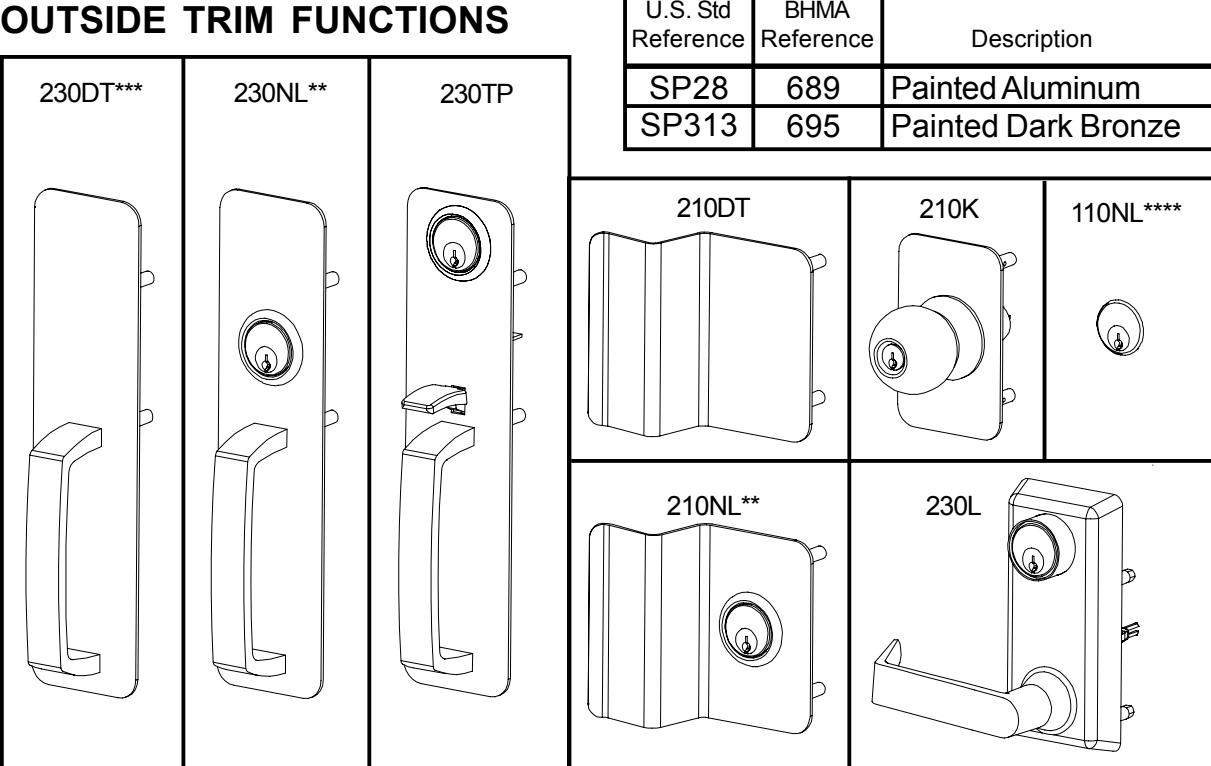

OUTSIDE TRIM FUNCTIONS
- * "BE" (Blank Escutcheon) no cylinder used lever always active
- ** "NL" (Night Latch) rigid lever key retracts latch bolt
- *** "DT" (Dummy Trim) rigid lever for pull operation
- **** Optional Pull needs to be added
STRIKES
1 Metal Door Screw Package PKGSRV.1023 (Pkg of 10) Wood Door Screw 964291 (Qty of 1)

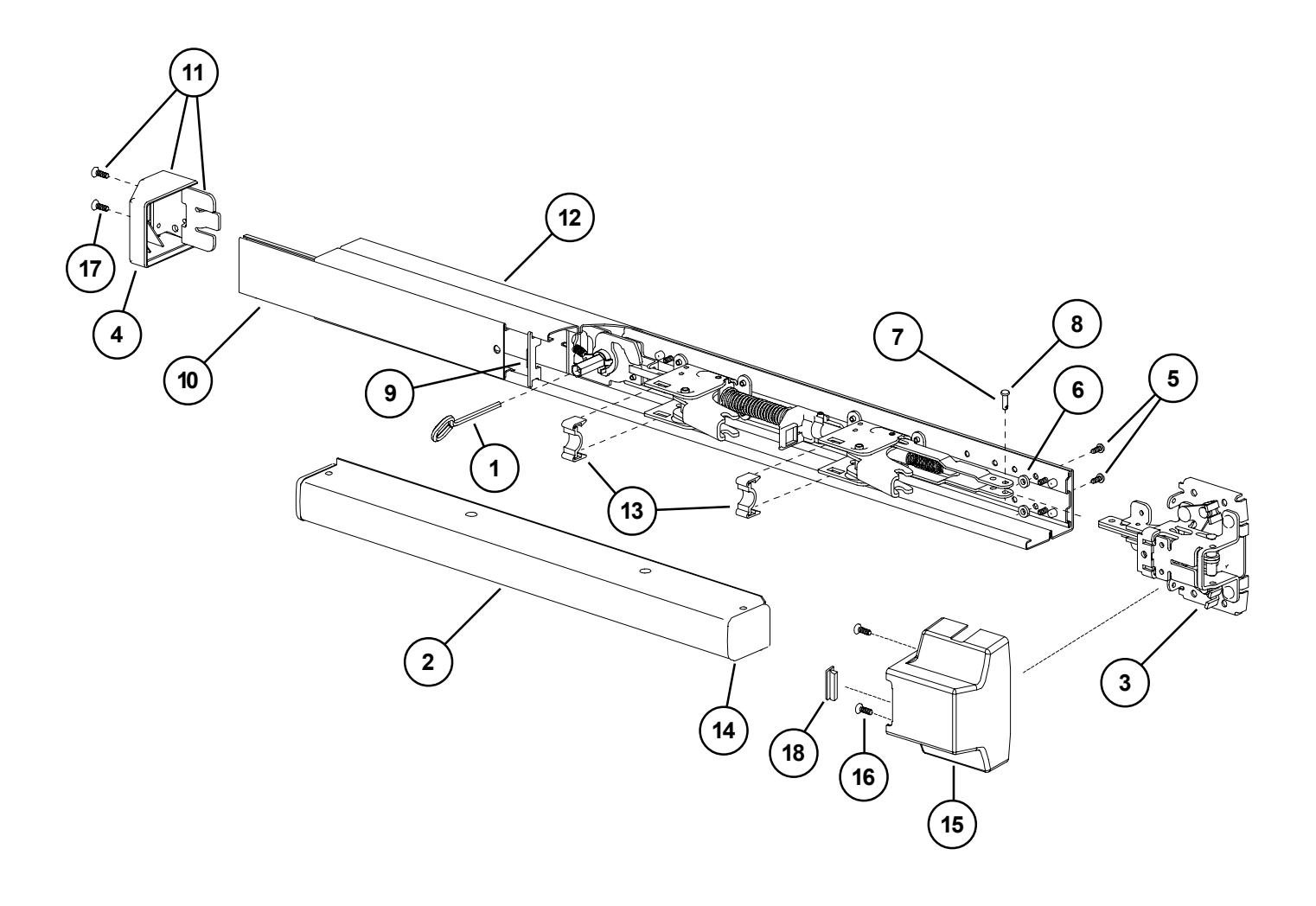

VERTICAL ROD PANIC DEVICE
VERTICAL ROD PANIC DEVICE
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 900563 |
2227
Series Mounting Pkg 1-3/4 Door |
||
| 1 | 900568 |
2227
Series Mounting Pkg 2-1/4 Door |
||
| 1 | 1 | 090085 |
227
Dog Key 5/32" Hex (Pkg of 10) |
|
| 1 | 1 | 090005 |
227
Dog Key 5/32" Hex (Pkg of 2) |
|
| 2 | 1 | *PBKIT |
22
Series Push Bar Retrofit Kit - 3' Door |
X |
| 2 | 1 | *PBKIT |
22
Series Push Bar Retrofit Kit - 4' Door |
X |
| 3 | 1 | 109358 |
2227/27-F
Center Case Less Cover |
|
| 4 | 1 | 968601 |
22
Mechanism Case End Cap |
|
| 5 | 2 | 090037 |
Baseplate
Screw (Pkg of 10) |
|
| 6 | 2 | 964013 |
3/8"
x 3/16" x 3/32" Washer |
|
| 7 | 1 | 050529 |
Control
Link Pin |
|
| 8 | 1 | 090031 |
Control
Link Pin (Pkg of 10) |
|
| 9 | 1 | 968592 |
CoverPlateBearing
Insert |
|
| 10 | 1 | 968595 |
22/2227
Cover Plate - 3' Dr |
X |
| 10 | 1 | 968596 |
22/2227
Cover Plate - 4' Dr |
X |
| 11 | 1 | 900981 |
22
End Cap Kit |
|
| 12 | 1 | 970035 |
22
Mechanism Case - 3' Dr |
X |
| 12 | 1 | 970036 |
22
Mechanism Case - 4' Dr |
X |
| 13 | 2 | 966268 |
TouchBar
CoverBearing Insert |
|
| 14 | 1 | 968598 |
22
Push Bar End Cap |
|
| 15 | 1 | 968888 |
2227/27-F
Center Case Cover |
X |
| 16 | 2 | 090077 |
22
Series Center Case Cover Screw Pkg/4 |
|
| 17 | 2 | 964520 |
22
End Cap Screw |
|
| 18 | 1 | 966268 |
Touch
Bar Cover Bearing Insert |
X in "Finish" column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 22 3' SP28

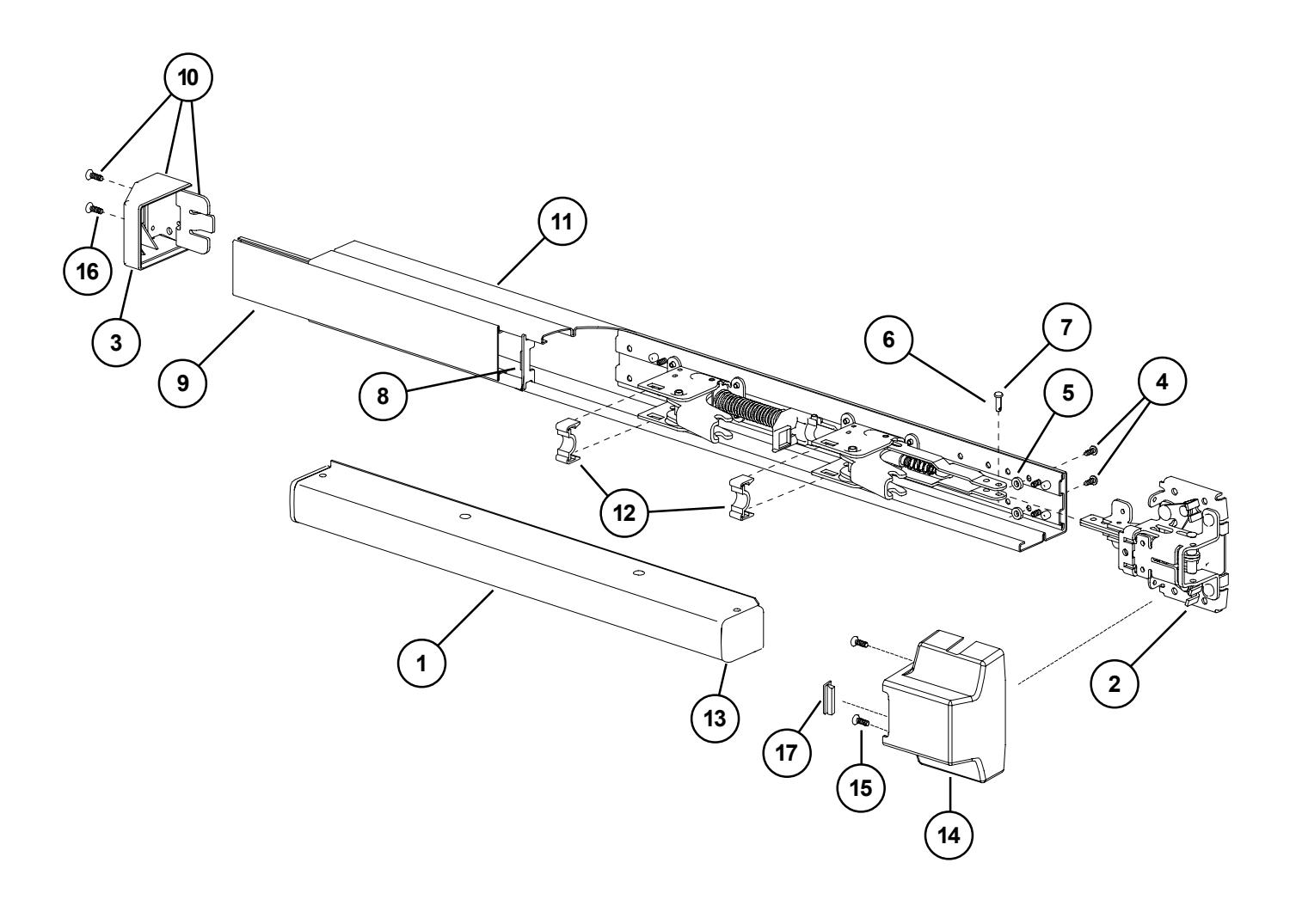

2227-F VERTICAL ROD FIRE DEVICE
2227-F VERTICAL ROD FIRE DEVICE
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 900563 |
2227
Series Mounting Pkg 1-3/4 Door |
||
| 1 | 900568 |
2227
Series Mounting Pkg 2-1/4 Door |
||
| 1 | 1 | *PBKIT |
22
Series Push Bar Retrofit Kit - 3' Door |
X |
| 1 | 1 | *PBKIT |
22
Series Push Bar Retrofit Kit - 4' Door |
X |
| 2 | 1 | 109358 |
2227/27-F
Center Case Less Cover |
|
| 3 | 1 | 968601 |
22
Mechanism Case End Cap |
|
| 4 | 2 | 090037 |
Baseplate
Screw (Pkg of 10) |
|
| 5 | 2 | 964013 |
3/8"
x 3/16" x 3/32" Washer |
|
| 6 | 1 | 050529 |
Control
Link Pin |
|
| 7 | 1 | 090031 |
Control
Link Pin (Pkg of 10) |
|
| 8 | 1 | 968592 |
CoverPlateBearing
Insert |
|
| 9 | 1 | 969127 |
22/2227-F
Cover Plate - 3' Dr |
X |
| 9 | 1 | 969126 |
22/2227-F
Cover Plate - 4' Dr |
X |
| 10 | 1 | 900981 |
22
End Cap Kit |
|
| 11 | 1 | 970035 |
22
Mechanism Case - 3' Dr |
X |
| 11 | 1 | 970036 |
22
Mechanism Case - 4' Dr |
X |
| 12 | 2 | 966268 |
TouchBar
CoverBearing Insert |
|
| 13 | 1 | 968598 |
22
Push Bar End Cap |
|
| 14 | 1 | 968888 |
2227/27-F
Center Case Cover |
X |
| 15 | 2 | 090077 |
22
Series Center Case Cover Screw Pkg/4 |
|
| 16 | 2 | 964520 |
22
End Cap Screw |
|
| 17 | 1 | 966268 |
Touch
Bar Cover Bearing Insert |
X in "Finish" column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 22 3' SP28

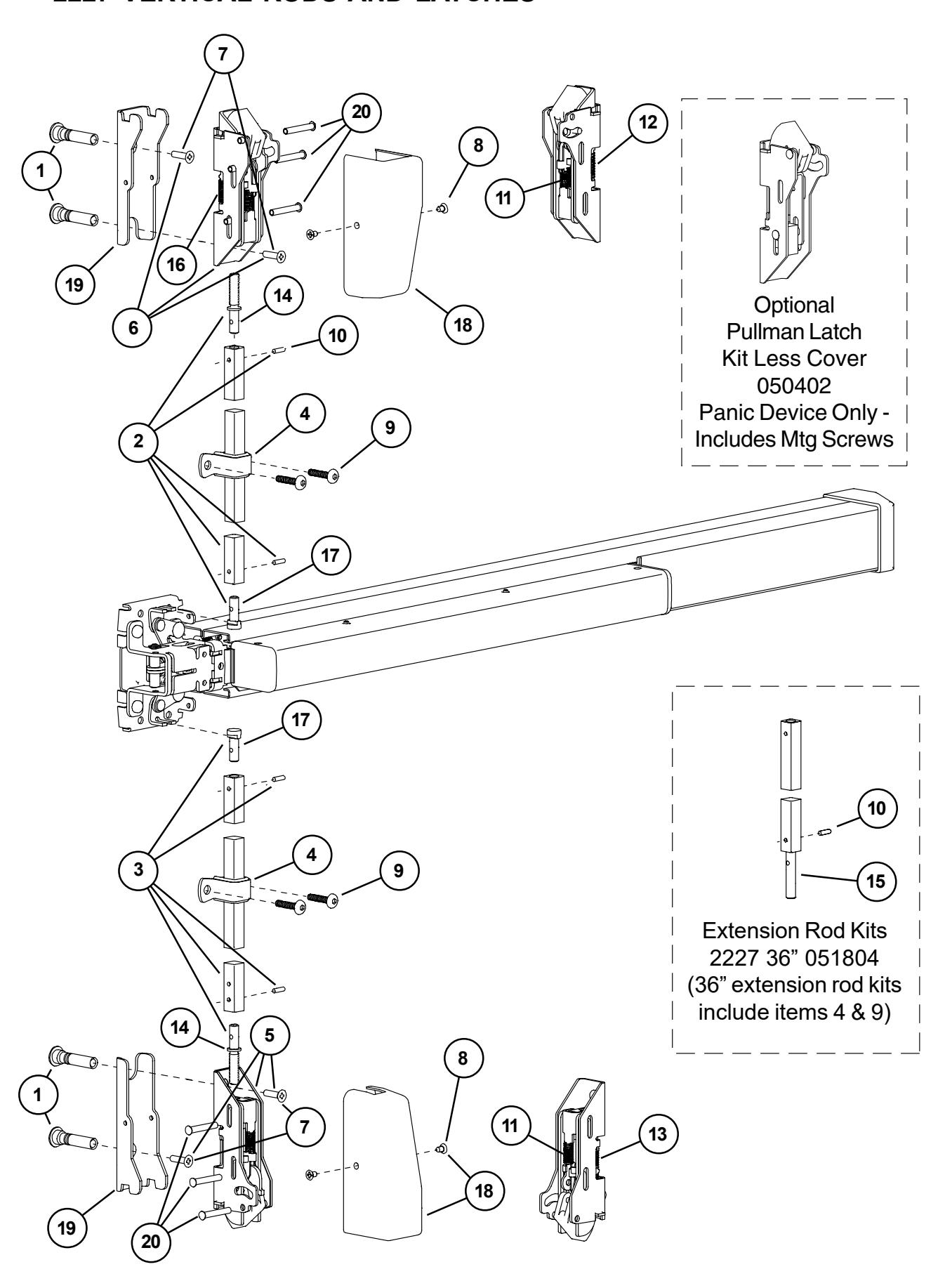

VERTICAL RODS AND LATCHES
VERTICAL RODS AND LATCHES
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 2 | 034902 |
325
Sex Bolt Package (Pkg of 2) |
X |
| 2 | 1 | 109361 |
2227
Top Vertical Rod |
X |
| 3 | 1 | 109362 |
2227
Bottom Vertical Rod |
X |
| 4 | 2 | 112063 |
2227
Rod Guide Pkg |
X |
| 5 | 1 | 050401 |
2227
Bottom Latch Kit Less Cover |
|
| 6 | 1 | 050400 |
2227
Top Latch Kit Less Cover |
|
| 7 | 1 | 900589 |
Latch
Mounting Package (Pkg of 4) |
|
| 8 | 2 | 900850 |
Latch
Case Cover Screw (Pkg of 2) |
X |
| 9 | 2 | 900919 |
2227
Rod Guide Mounting Package |
X |
| 10 | 4 | 090054 |
Rod
Roll Pin (Pkg of 10) |
|
| 11 | 2 | 090065 |
Bolt
Return Spring (Pkg of 10) |
|
| 12 | 1 | 090056 |
Top
Latch Compression Spring (Pkg of 10) |
|
| 12 | 1 | 090057 |
PL
Top Latch Spring (Pkg of 10) |
|
| 13 | 1 | 090058 |
Bottom
Latch Case Spring (Pkg of 10) |
|
| 14 | 2 | 090067 |
Rod
Connector - Latch (Pkg of 2) |
|
| 15 | 1 | 090075 |
2227
Rod Extension Connector Pkg/4 |
|
| 16 | 1 | 090076 |
Aux.
Bolt Spring (Pkg of 10) |
|
| 17 | 2 | 090068 |
Rod
Connector - Center Case (Pkg of 2) |
|
| 18 | 2 | 050566 |
Latch
Case Cover Kit w/Screws |
X |
| 19 | 2 | 050546 |
Latch
Case Mtg. Bracket Kit |
|
| 20 | 6 | 090055 |
Housing
Guide Pin (Pkg of 10) |
|
| * | 1 | 050090 |
2227
Bottom Latch Retrofit Kit |
X |
| * | 1 | 050091 |
2227
Top Latch Retrofit Kit |
X |
* For devices shipped before October 1998.
X in "Finish" column designates finished items; finish must be specified when ordering.

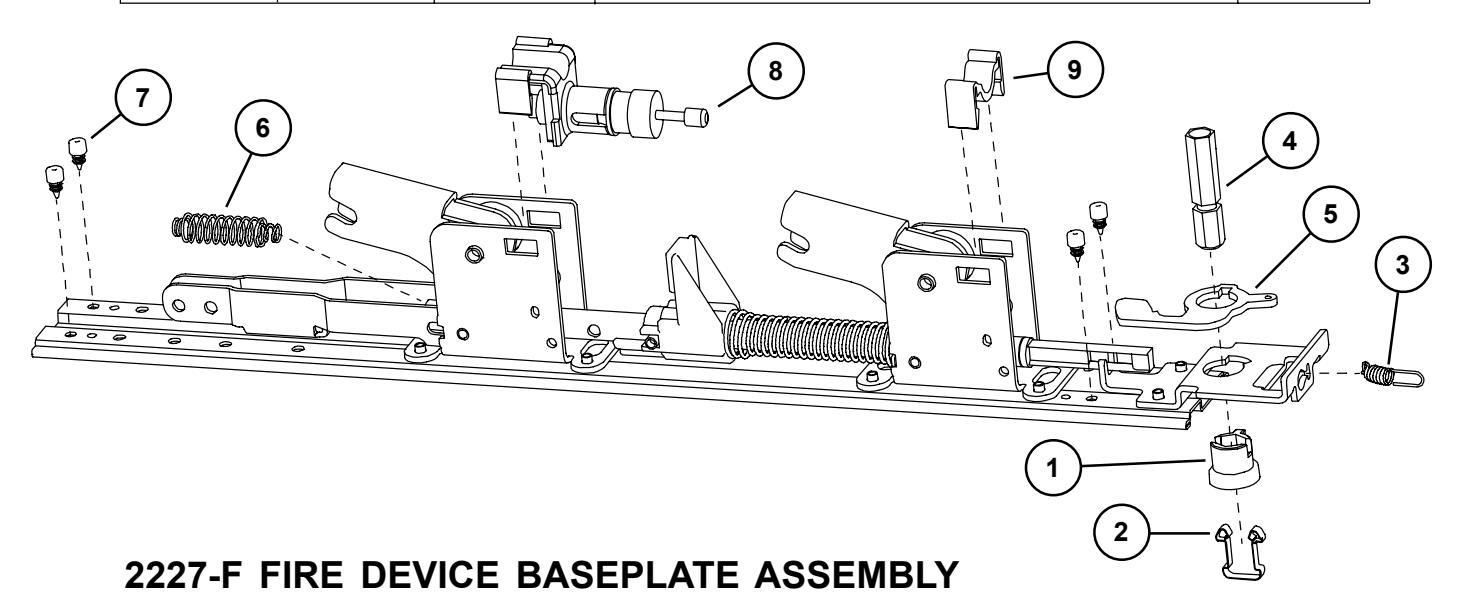

PANIC DEVICE BASEPLATE ASSEMBLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 090043 |
Dogging
adapter (Pkg of 2) |
|
| 2 | 1 | 090042 |
Dogging
adapter spring (Pkg of 2) |
|
| 3 | 1 | 090041 |
Dogging
spring (Pkg of 2) |
|
| 4 | 1 | 090040 |
Hex
dogging shaft (Pkg of 2) |
|
| 5 | 1 | 090044 |
Dogging
hook (Pkg of 2) |
|
| 6 | 1 | 090039 |
Latch
return spring (Pkg of 10) |
|
| 7 | 4 | 090038 |
Rubber
bumper (Pkg of 4) |
|
| 8 | 1 | 050491 |
Shock
absorber |
|
| 9 | 1 | 090048 |
Baseplate
Bearing Strip (Pkg of 2) |
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 4 | 090038 |
Rubber
bumper (Pkg of 4) |
|
| 2 | 1 | 090039 |
Baseplate
Return Spring Pkg/10 |
PANIC & 2227-F FIRE DEVICE CENTER CASE ASSEMBLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 109358 |
2227/27-F
Center Case Less Cover |
|
| 2 | 1 | 090074 |
NL
Drive Screw (Pkg of 10) |
|
| 3 | 1 | 971592 |
22/2227
Pushbar Stop |
|
| 4 | 1 | 090079 |
2227
Latchbolt Pin Pkg/10 |
|
| 5 | 1 | 090107 |
Control
Link Pin Ret. Ring Pkg/10 |

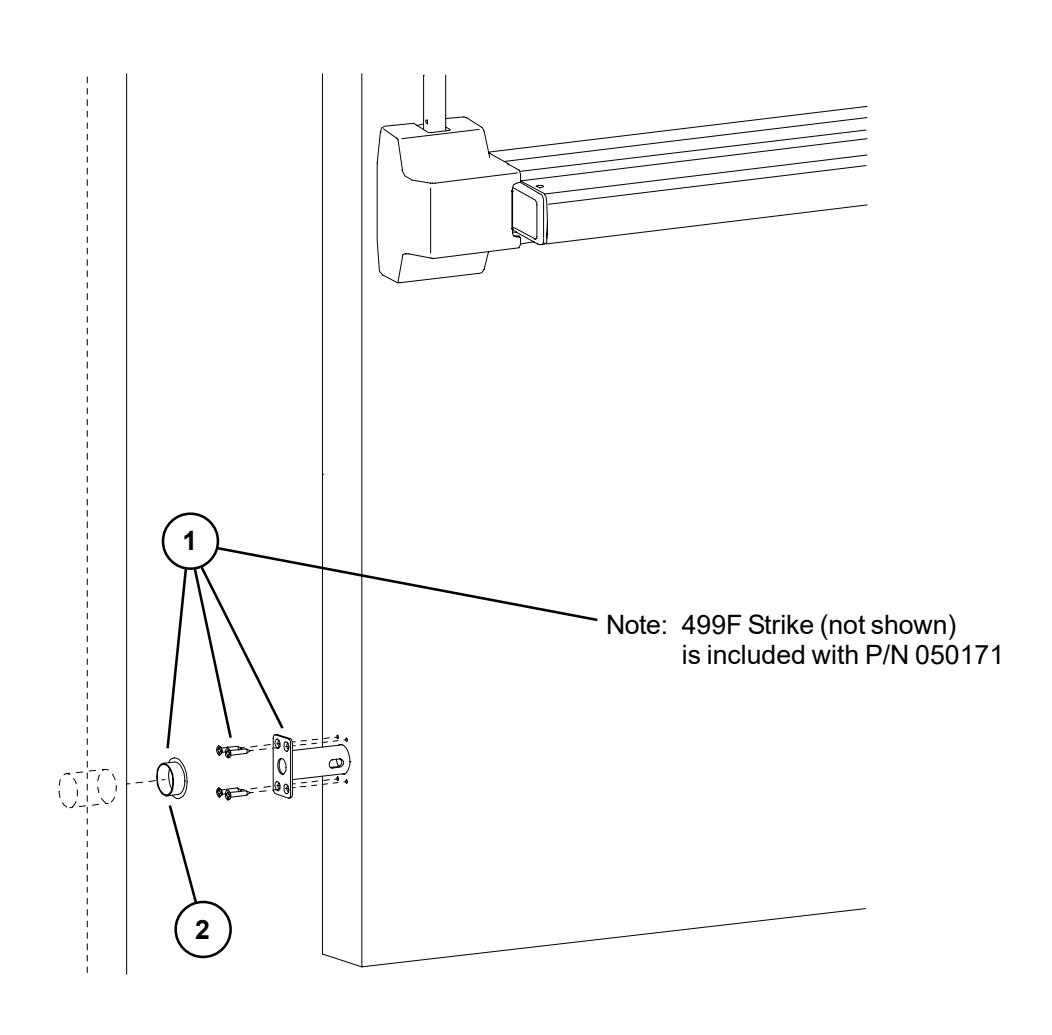

2227-F LBR (LESS BOTTOM ROD) FIRE LATCH KIT
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050171 |
LBR
Fire Latch/Strike kit |
|
| 2 | 1 | 050509 |
LBR
Fire Strike Plug |

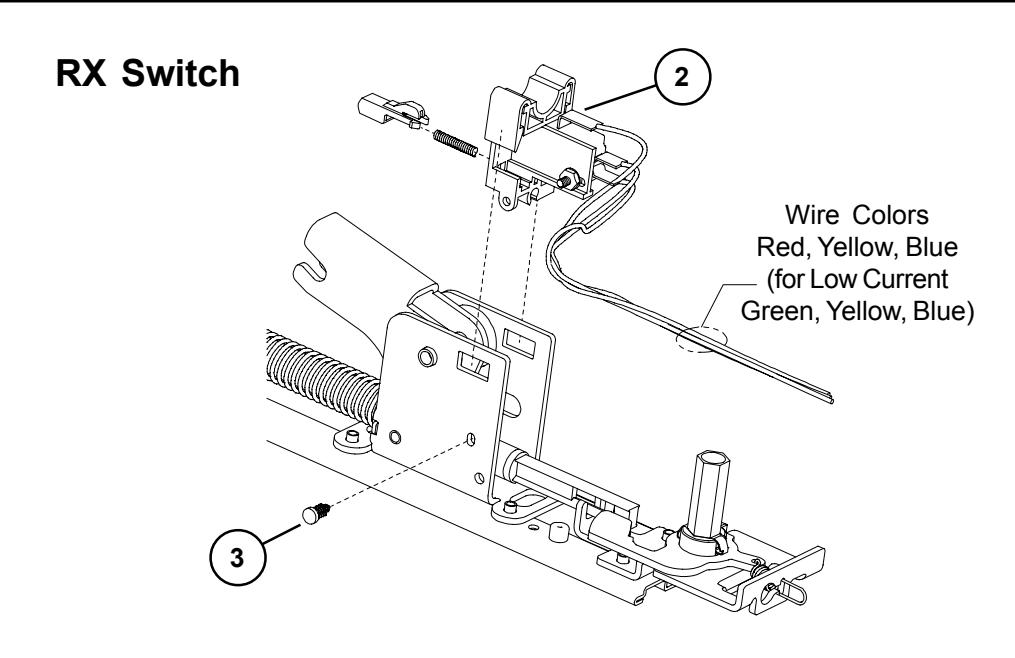

2227 SERIES LX (LATCH BOLT MONITOR) & RX (REQUEST TO EXIT) OPTIONS
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050254 |
LX
Switch Kit 3' Device |
|
| 1 | 1 | 050255 |
LX
Switch Kit 4' Device |
|
| 1 | 1 | 050283 |
LX-LC
(Low Current) Switch Kit 3' Device |
|
| 1 | 1 | 050285 |
LX-LC
(Low Current) Switch Kit 4' Device |
|
| 2 | 1 | 050251 |
RX
Switch Kit |
|
| 2 | 1 | 050281 |
RX-LC
(Low Current) Switch Kit |
|
| 3 | 1 | 090099 |
Pine
Tree Clip (Pkg of 10) |
|
| 4 | 1 | 971091 | LXActuator |

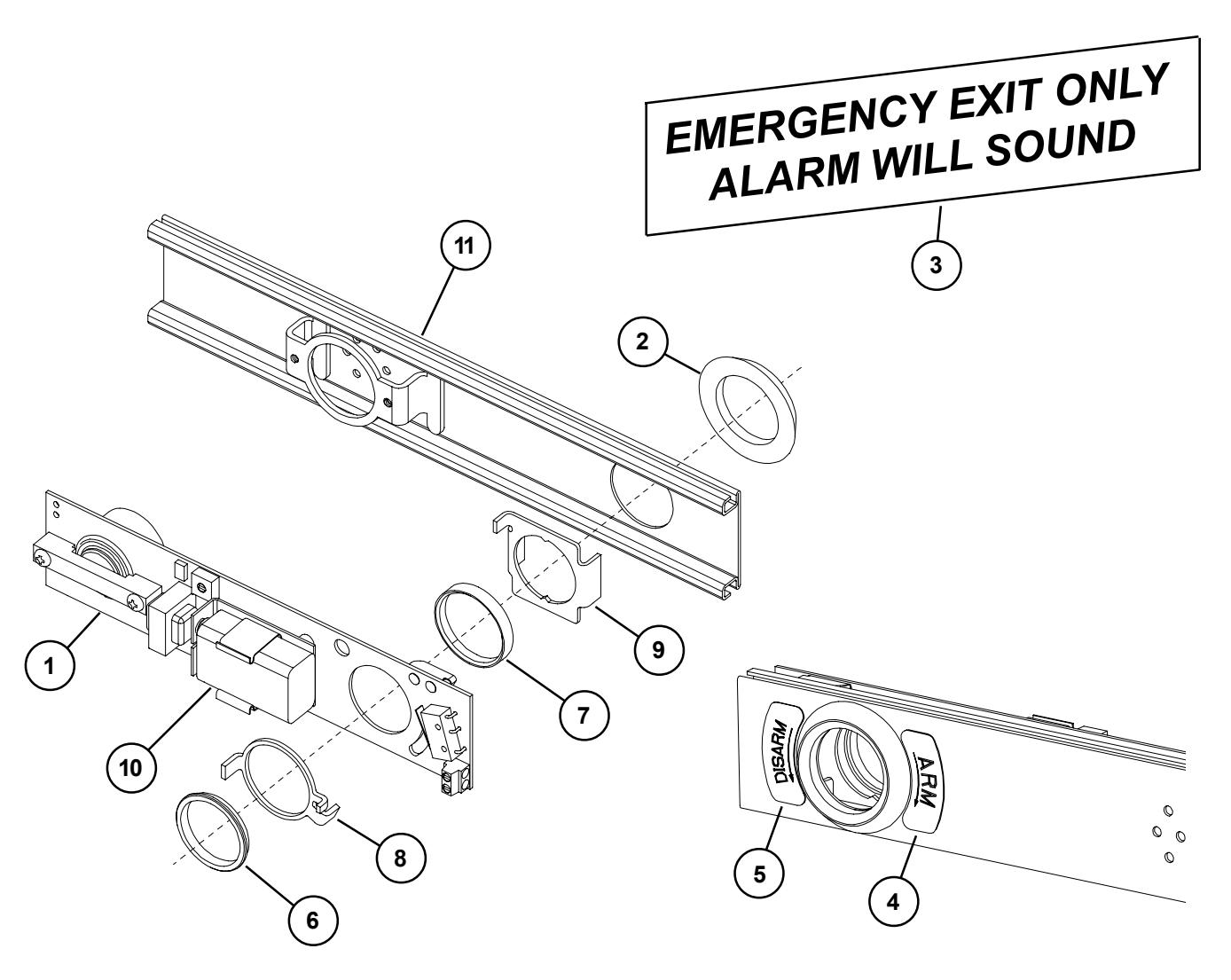

ALK EXIT ALARM KIT
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 111795 |
ALK
PCB Assembly |
|
| 2 | 1 | 967704 |
Cylinder
Collar |
X |
| 3 | 1 | 969122 |
ALK
Alarm Device Sign |
|
| 4 | 1 | 969349 |
ALK
Arming Label |
|
| 5 | 1 | 969350 |
ALK
Disarming Label |
|
| 6 | 1 | 969354 |
Retainer
Nut |
|
| 7 | 1 | 970594 |
ALK
Cylinder Spacer |
|
| 8 | 1 | 971556 |
ALK
SwitchActuator |
|
| 9 | 1 | 971557 |
ALK
Cylinder Bracket |
|
| 10 | 1 | 990637 |
ALK
Battery |
|
| 11 | 1 | 971470 |
22
ALK Cover Plate - 3' Dr |
X |
| 11 | 1 | 971471 |
22
ALK Cover Plate - 4' Dr |
X |
X in "Finish" column designates finished items; finish must be specified when ordering.
