REMOVE GLASS STOP HEAD OR BEAD IN AREA OF DEVICE IF REQUIRED

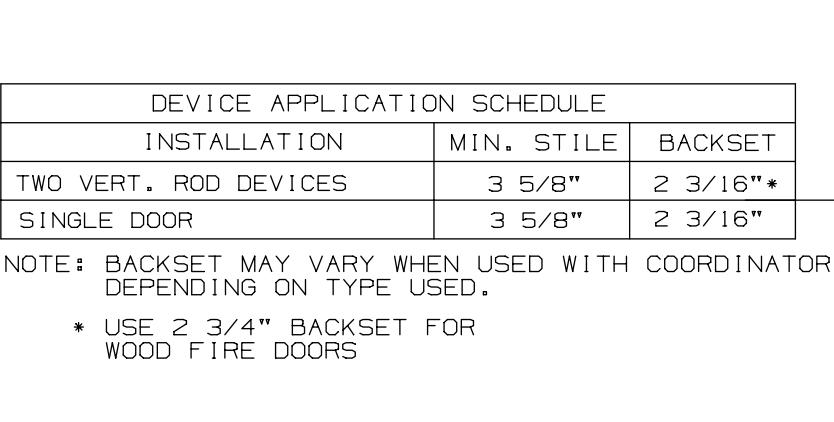

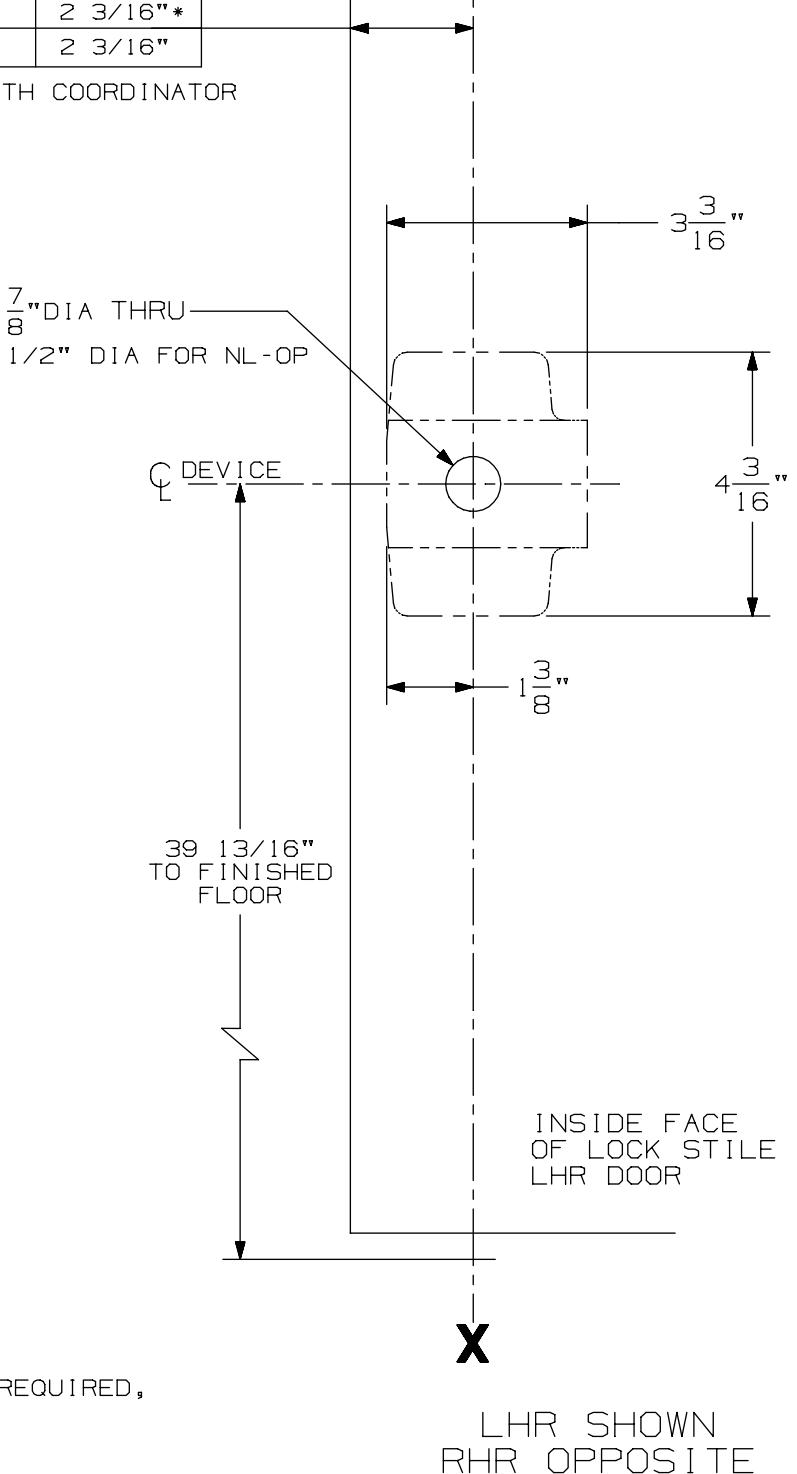

NOTE: MOUNTING HOLES TO BE PREPARED AT INSTALLATION ON DOOR.

FOR OUTSIDE TRIM PREPARATION, WHEN REQUIRED, SEE ADDITIONAL TRIM TEMPLATE.

2227 & 2227-F K, L, & TP Series Vertical Rod Device (Wood Door)

VON DUPRIN ®

TEMPLATE NUMBER:

W10013 a

DATE: 05-28-13
