22 Series Rim Exit Device
INDEX
| 22 Rim Devices | |
|---|---|
| Basic Panic Device 4-5 | |
| Basic Fire Device 6-7 | |
| BaseplateAssemblies 8 | |
| Center CaseAssembly 9 | |
| Variations of the Basic Device | |
| RX (Request to Exit) 10 | |
| LX (Latch Bolt Monitoring) 10 | |
| ALK Exit Alarm Kit11 | |
| General Information | |
| Introduction 2 | |
| How to Order 2 | |
| Part Number Changes 2 | |
| Finishes 3 | |
| Outside Trim Functions 3 | |
| Strikes 3 | |
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 22 Rim Exit Hardware Devices.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, Indiana 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.
22 SERIES FINISHES
OUTSIDE TRIM FUNCTIONS
| OUTSIDE | TRIM | FUNCTIONS |
U.S. Std
Reference |
BHMA
Reference |
Description | |
|---|---|---|---|---|---|---|
| 230DT*** |
230NL**
230TP |
SP28
SP313 |
689
695 |
PaintedAluminum
Painted Dark |
Bronze | |
| 210DT | 210K | 110NL**** | ||||
| 210NL** | 230L | |||||
- * "BE" (Blank Escutcheon) no cylinder used lever always active
- ** "NL" (Night Latch) rigid lever key retracts latch bolt
- *** "DT" (Dummy Trim) rigid lever for pull operation
- **** Optional Pull needs to be added

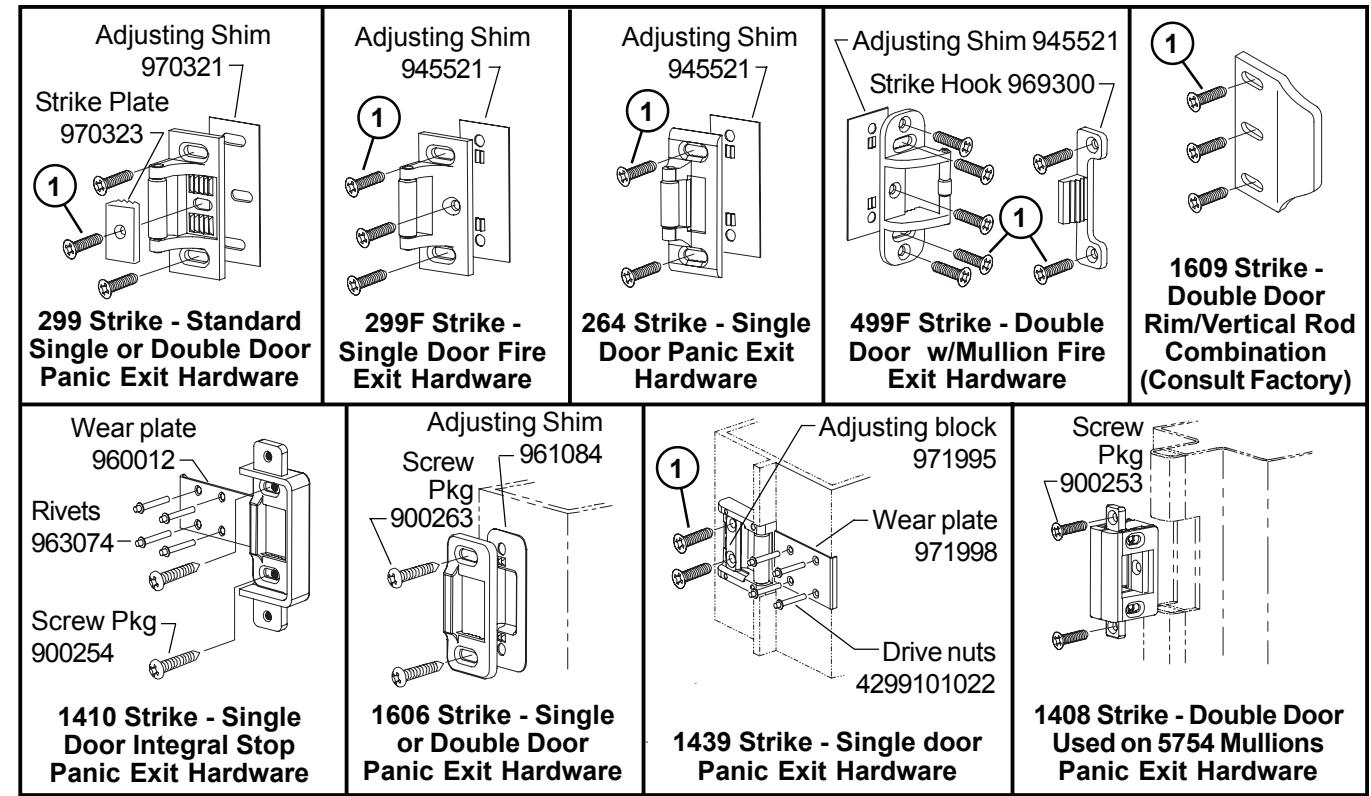

STRIKES
1 Metal Door Screw Package PKGSRV.1023 (Pkg of 10) Wood Door Screw 964291 (Qty of 1)

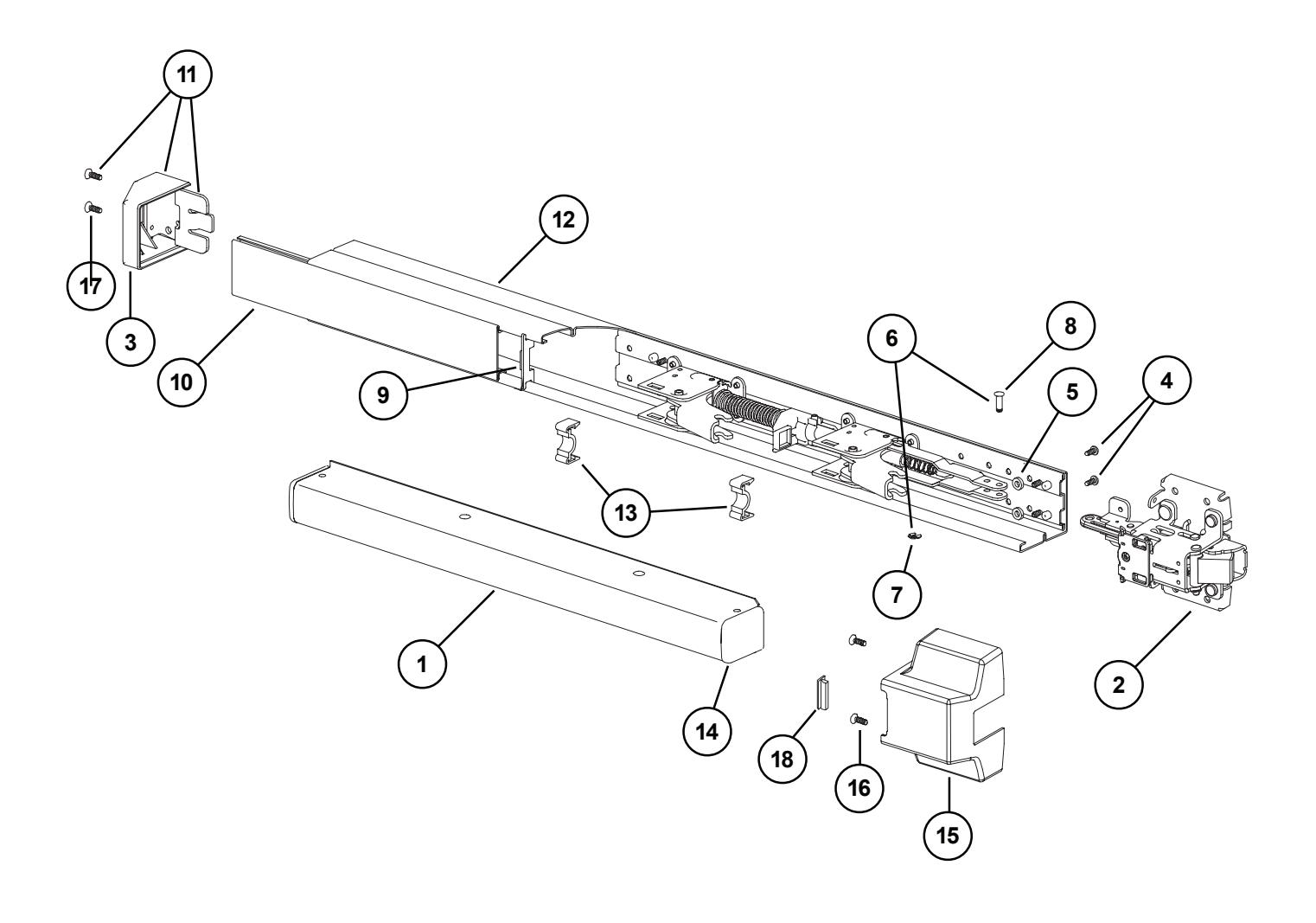

RIM PANIC DEVICE
RIM PANIC DEVICE
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 900561 |
22
Series Mounting Pkg. (1-3/4 & 2-1/4) |
||
| 1 | 1 | 090085 |
227
Dog Key 5/32" Hex (Pkg of 10) |
|
| 1 | 1 | 090005 |
227
Dog Key 5/32" Hex (Pkg of 2) |
|
| 2 | 1 | *PBKIT |
22
Series Push Bar Retrofit Kit - 3' Door |
X |
| 2 | 1 | *PBKIT |
22
Series Push Bar Retrofit Kit - 4' Door |
X |
| 3 | 1 | 109012 |
22 Rim
Center Case Less Cover |
|
| 4 | 1 | 968601 |
22
Mechanism Case End Cap |
|
| 5 | 2 | 090037 |
Baseplate
Screw (Pkg of 10) |
|
| 6 | 2 | 964013 |
3/8"
x 3/16" x 3/32" Washer |
|
| 7 | 1 | 050529 |
22
Series Control Link Pin & Ret. Ring |
|
| 8 | 1 | 090107 |
Ret.
RingPkg/10 |
|
| 9 | 1 | 090031 |
Control
Link Pin Pkg/10 |
|
| 10 | 1 | 968592 |
CoverPlateBearing
Insert |
|
| 11 | 1 | 968595 |
22/2227
Cover Plate - 3' Dr |
X |
| 11 | 1 | 968596 |
22/2227
Cover Plate - 4' Dr |
X |
| 12 | 1 | 900981 |
22
End Cap Kit |
|
| 13 | 1 | 970035 |
22
Mechanism Case - 3' Dr |
X |
| 13 | 1 | 970036 |
22
Mechanism Case - 4' Dr |
X |
| 14 | 2 | 966268 |
TouchBar
CoverBearing Insert |
|
| 15 | 1 | 968598 |
22
Push Bar End Cap |
|
| 16 | 1 | 968603 |
22/22-F
Center Case Cover |
X |
| 17 | 2 | 090077 |
22
Series Center Case Cover Screw Pkg/4 |
X |
| 18 | 2 | 964520 |
22
End Cap Screw |
|
| 19 | 1 | 966268 |
Touch
Bar Cover Bearing Insert |
X in "Finish" column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 22 3' SP28
22-F RIM FIRE DEVICE
22-F RIM FIRE DEVICE
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 900561 |
22
Series Mounting Pkg. (1-3/4 & 2-1/4) |
||
| 1 | 1 | *PBKIT |
22
Series Push Bar Retrofit Kit - 3' Door |
X |
| 1 | 1 | *PBKIT |
22
Series Push Bar Retrofit Kit - 4' Door |
X |
| 2 | 1 | 109915 |
22-F Rim
Center Case Less Cover |
|
| 3 | 1 | 968601 |
22
Mechanism Case End Cap |
|
| 4 | 2 | 090037 |
Baseplate
Screw (Pkg of 10) |
|
| 5 | 2 | 964013 |
3/8"
x 3/16" x 3/32" Washer |
|
| 6 | 1 | 050529 |
22
Series Control Link Pin & Ret. Ring |
|
| 7 | 1 | 090107 |
Ret.
RingPkg/10 |
|
| 8 | 1 | 090031 |
Control
Link Pin Pkg/10 |
|
| 9 | 1 | 968592 |
CoverPlateBearing
Insert |
|
| 10 | 1 | 969127 |
22/2227-F
Cover Plate - 3' Dr |
X |
| 10 | 1 | 969126 |
22/2227-F
Cover Plate - 4' Dr |
X |
| 11 | 1 | 900981 |
22
End Cap Kit |
|
| 12 | 1 | 970035 |
22
Mechanism Case - 3' Dr |
X |
| 12 | 1 | 970036 |
22
Mechanism Case - 4' Dr |
X |
| 13 | 2 | 966268 |
TouchBar
CoverBearing Insert |
|
| 14 | 1 | 968598 |
22
Push Bar End Cap |
|
| 15 | 1 | 968603 |
22/22-F
Center Case Cover |
X |
| 16 | 2 | 090077 |
22
Series Center Case Cover Screw Pkg/4 |
X |
| 17 | 2 | 964520 |
22
End Cap Screw |
|
| 18 | 1 | 966268 |
Touch
Bar Cover Bearing Insert |
X in "Finish" column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 22 3' SP28

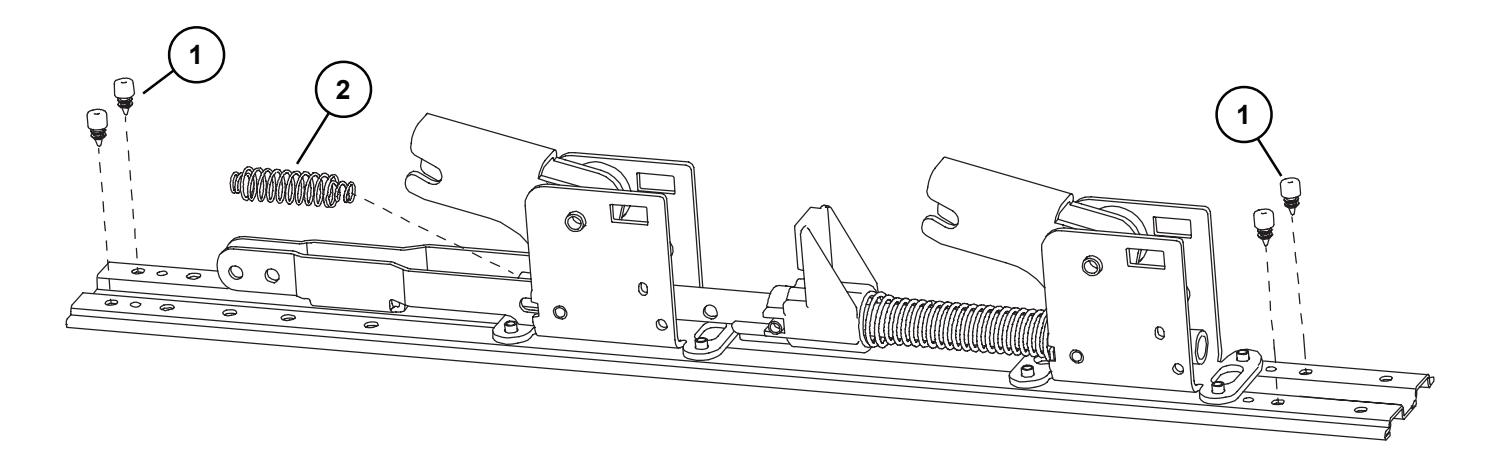

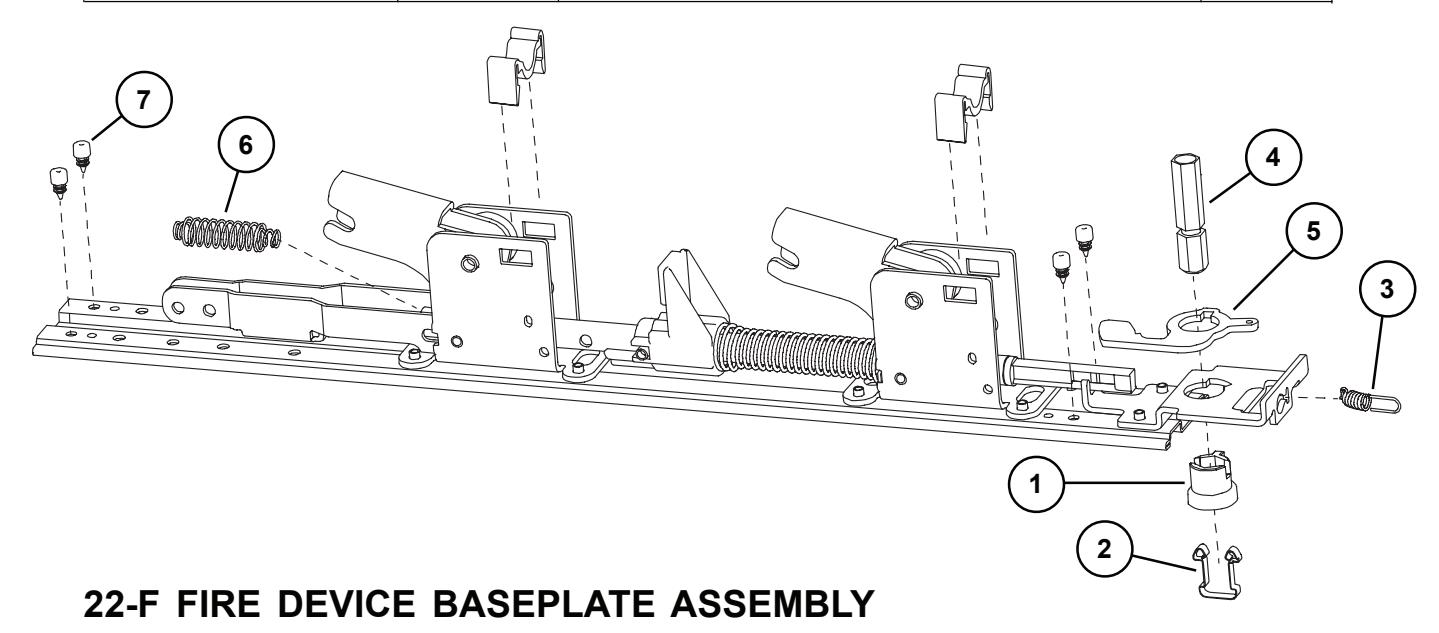

RIM PANIC DEVICE BASEPLATE ASSEMBLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 090043 |
Dogging
adapter (Pkg of 2) |
|
| 2 | 1 | 090042 |
Dogging
adapter spring (Pkg of 2) |
|
| 3 | 1 | 090041 |
Dogging
spring (Pkg of 2) |
|
| 4 | 1 | 090040 |
Hex
dogging shaft (Pkg of 2) |
|
| 5 | 1 | 090044 |
Dogging
hook (Pkg of 2) |
|
| 6 | 1 | 090039 |
Latch
return spring (Pkg of 10) |
|
| 7 | 4 | 090038 |
Rubber
bumper (Pkg of 4) |
|
| 8 | 2 | 090048 |
Baseplate
Bearing Strip (Pkg of 2) |
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 4 | 090038 |
Rubber
bumper (Pkg of 4) |
|
| 2 | 1 | 090039 |
Latch
return spring (Pkg of 10) |

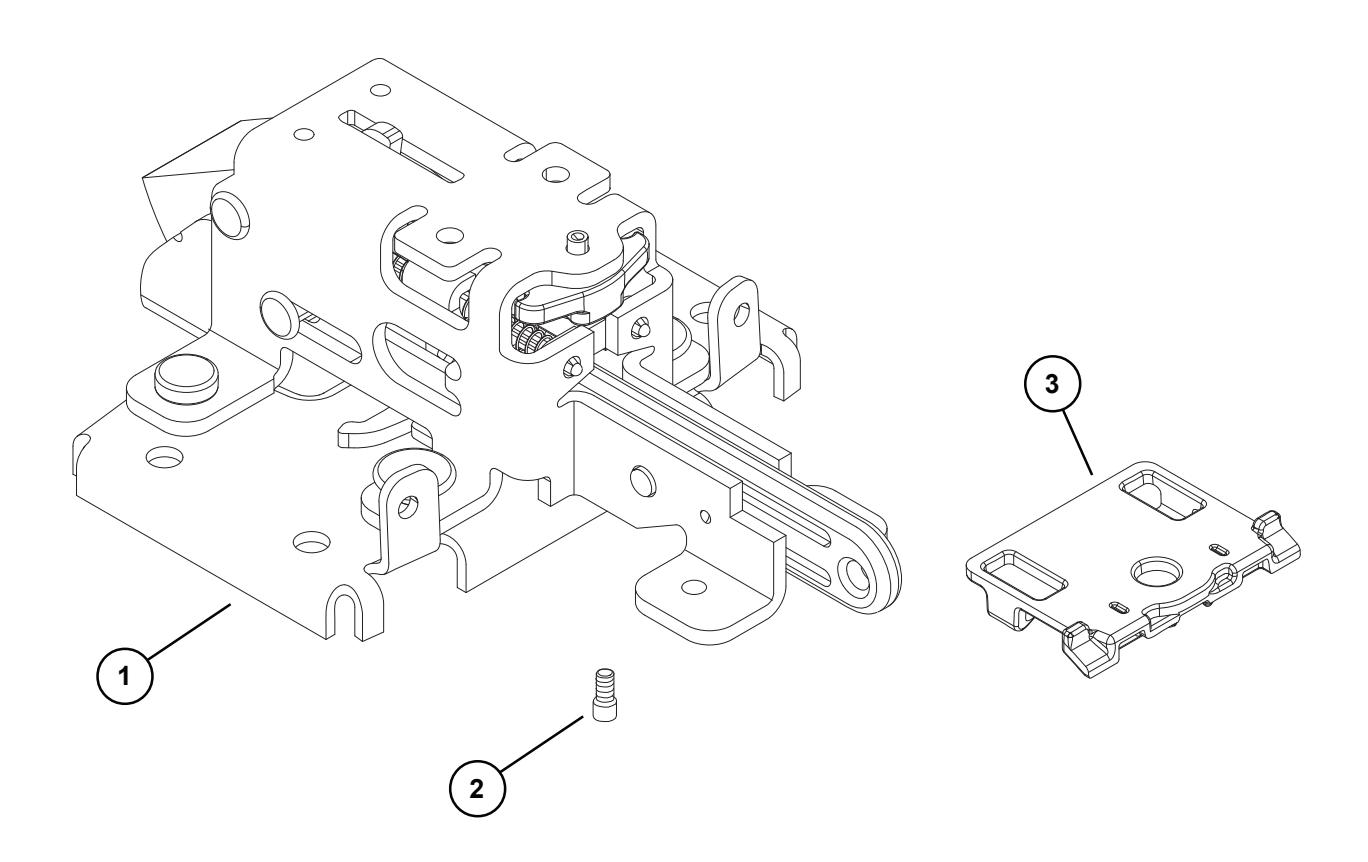

PANIC & 22-F FIRE DEVICE CENTER CASE ASSEMBLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 109012 |
22
Rim Center Case Less Cover |
|
| 1 | 1 | 109915 |
22-F
Center Case Less Cover |
|
| 2 | 1 | 090074 |
NL
Drive Screw (Pkg of 10) |
|
| 3 | 1 | 965409 |
22/2227
Pushbar Stop |

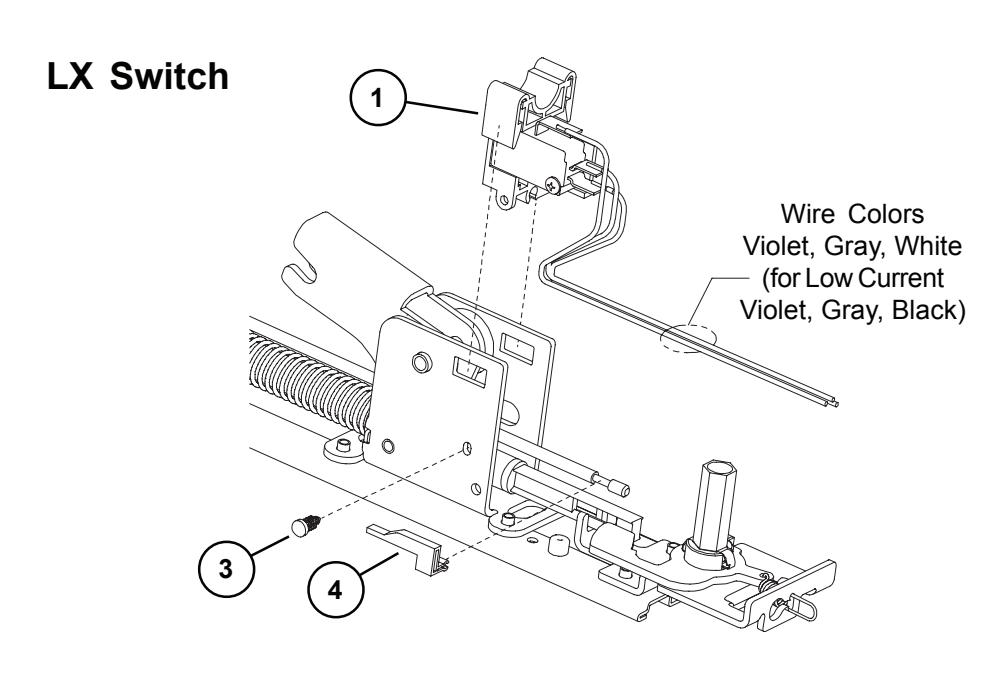

22 SERIES LX (LATCH BOLT MONITOR) & RX (REQUEST TO EXIT) OPTIONS
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050254 |
LX
Switch Kit 3' Device |
|
| 1 | 1 | 050255 |
LX
Switch Kit 4' Device |
|
| 1 | 1 | 050283 |
LX-LC
(Low Current) Switch Kit 3' Device |
|
| 1 | 1 | 050285 |
LX-LC
(Low Current) Switch Kit 4' Device |
|
| 2 | 1 | 050251 |
RX
Switch Kit |
|
| 2 | 1 | 050281 |
RX-LC
(Low Current) Switch Kit |
|
| 3 | 1 | 090099 |
Pine
Tree Clip (Pkg of 10) |
|
| 4 | 1 | 971091 | LXActuator |

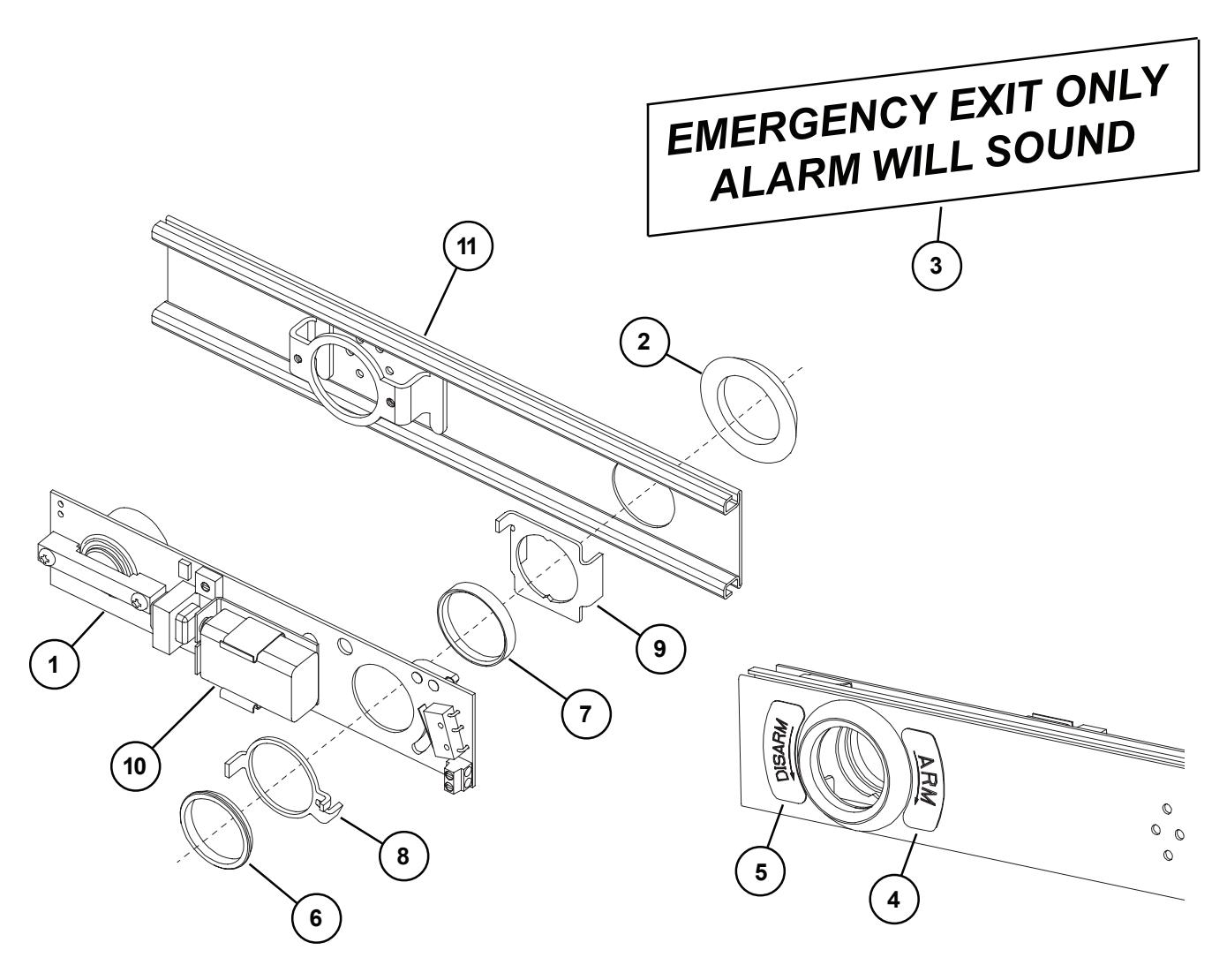

ALK EXIT ALARM KIT
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 111795 |
ALK
PCB Assembly |
|
| 2 | 1 | 967704 |
Cylinder
Collar |
X |
| 3 | 1 | 969122 |
ALK
Alarm Device Sign |
|
| 4 | 1 | 969349 |
ALK
Arming Label |
|
| 5 | 1 | 969350 |
ALK
Disarming Label |
|
| 6 | 1 | 969354 |
Retainer
Nut |
|
| 7 | 1 | 970594 |
ALK
Cylinder Spacer |
|
| 8 | 1 | 971556 |
ALK
SwitchActuator |
|
| 9 | 1 | 971557 |
ALK
Cylinder Bracket |
|
| 10 | 1 | 990637 |
ALK
Battery |
|
| 11 | 1 | 971470 |
22
ALK Cover Plate - 3' Dr |
X |
| 11 | 1 | 971471 |
22
ALK Cover Plate - 4' Dr |
X |
X in "Finish" column designates finished items; finish must be specified when ordering.
