Von Duprin 22 Series Rim Device – 22 NL, K, L, TP, NL-F, K-F, L-F, & TP-F Series

Original Source Document Full PDF Version

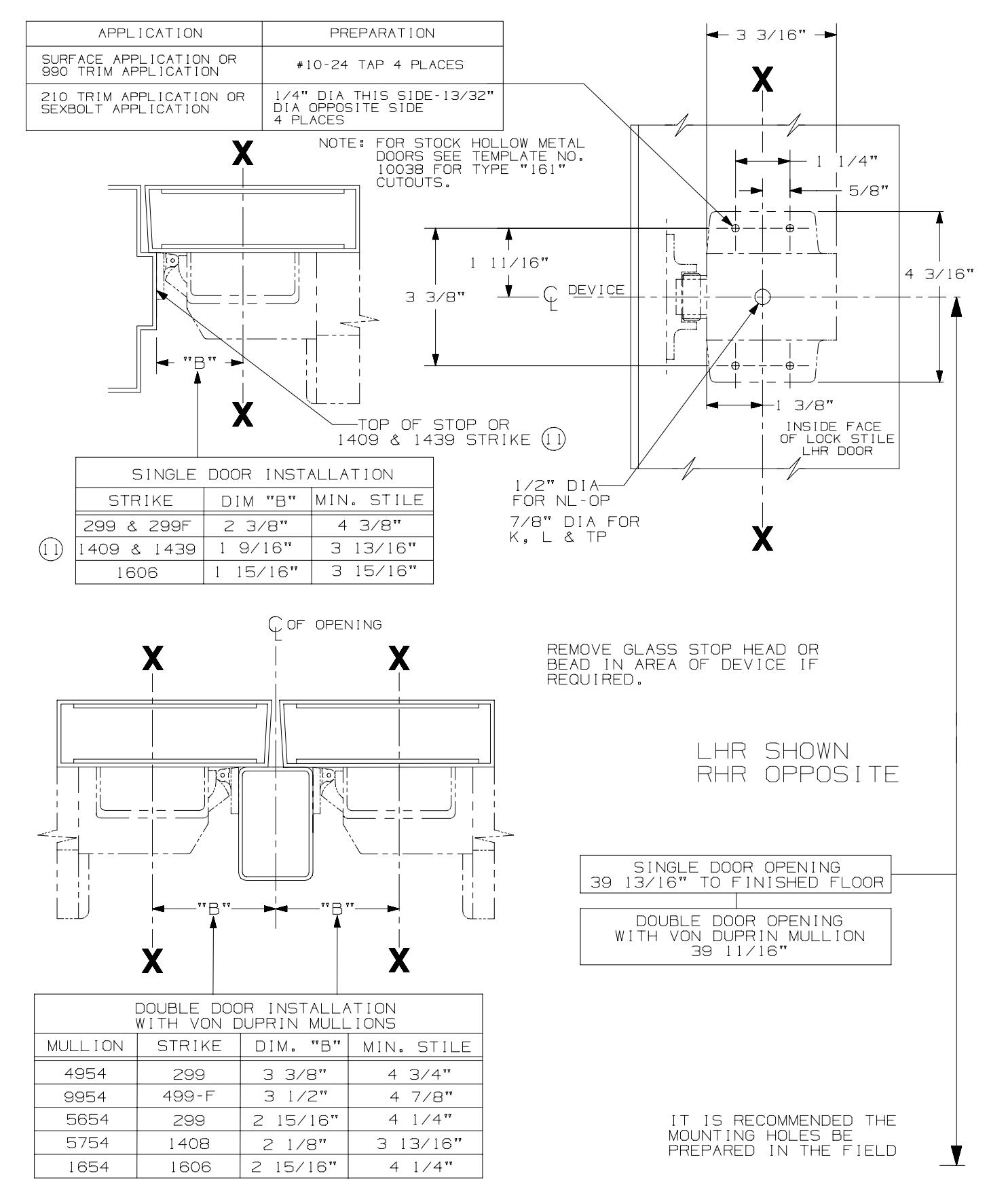

Von Duprin 22 Series Rim Device – 22 NL, K, L, TP, NL-F, K-F, L-F, & TP-F Series – For Hollow Metal Applications Template dia

FOR OUTSIDE TRIM PREPARATION, WHEN REQUIRED, SEE ADDITIONAL TRIM TEMPLATE.

22 NL, K, L, TP, NL-F, K-F, L-F, & TP-F Series Rim Devices

TEMPLATE NUMBER:

10012 a

DATE: 05-15-13
