Von Duprin 22-F Series Fire Rim Device Wood Door Template

Original Source Document Full PDF Version

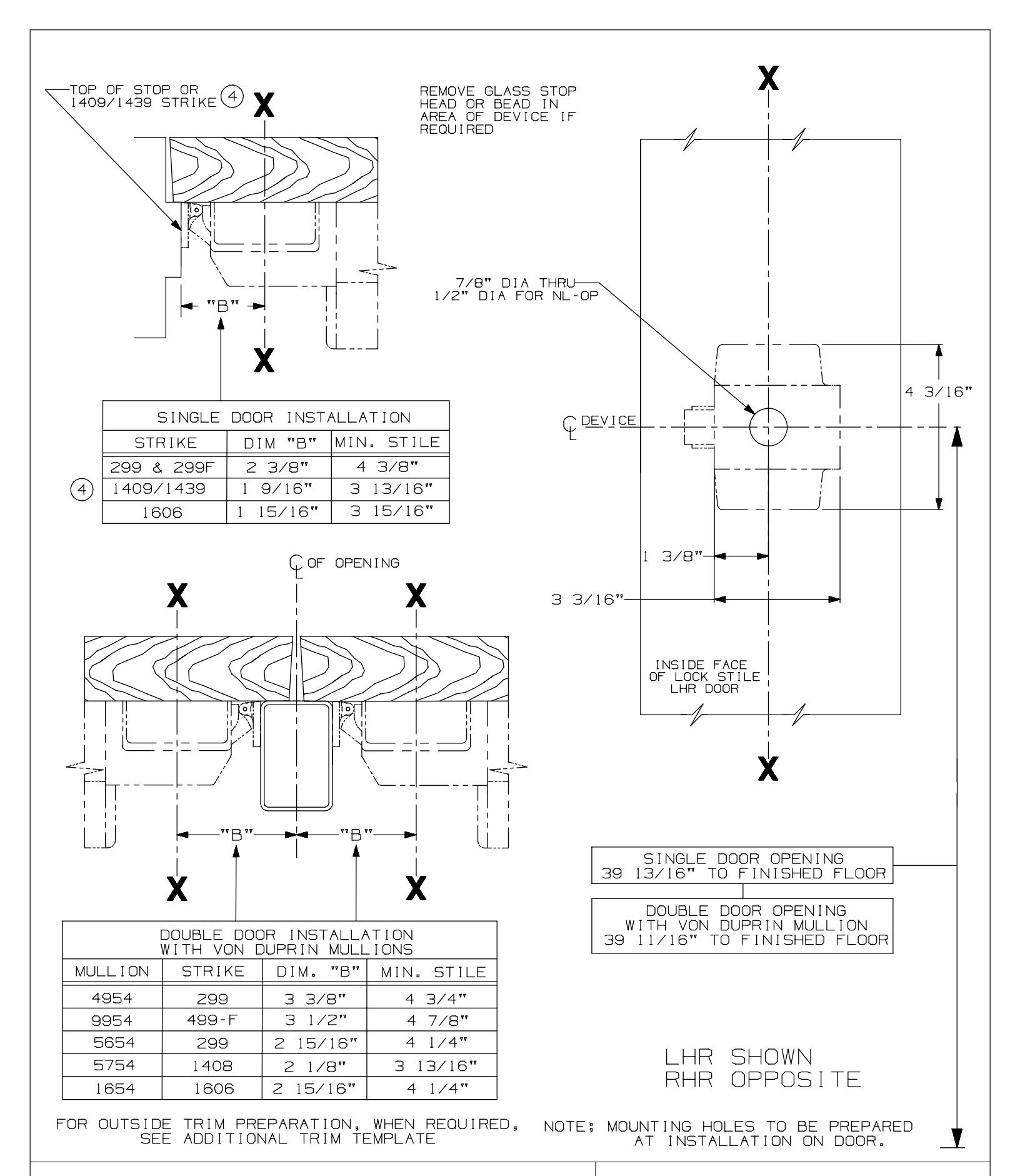

Von Duprin 22-F Series Fire Rim Device Wood Door Template diagram on page 1

22 Series Rim Device (Wood Door)

VON DUPRIN ®

TEMPLATE NUMBER:

W10012 a

DATE: 05-28-13
