← Von Duprin
3. A COORDINATOR MUST BE USED ON THE INACTIVE DOOR.

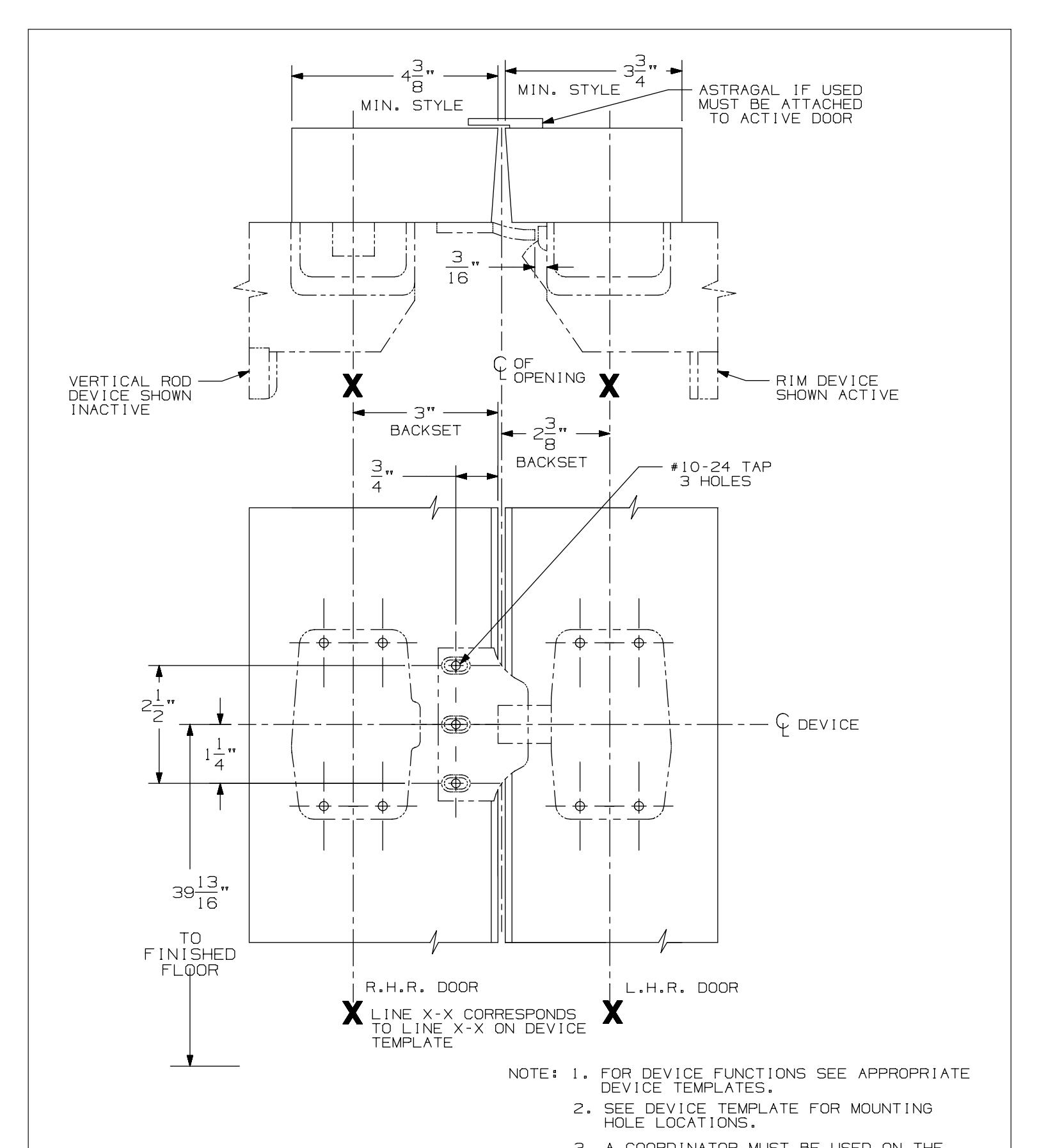

1609 Strike Application for 2227 Vertical Rod & 22 Rim Devices (Panic Device Only)
VON DUPRIN ®
TEMPLATE NUMBER:
30244 a
DATE: 05-28-13
3. A COORDINATOR MUST BE USED ON THE INACTIVE DOOR.
TEMPLATE NUMBER:
30244 a
DATE: 05-28-13
