Von Duprin 1609 Strike For 98 and 99 Series Exit Device Metal Door Template

Original Source Document Full PDF Version

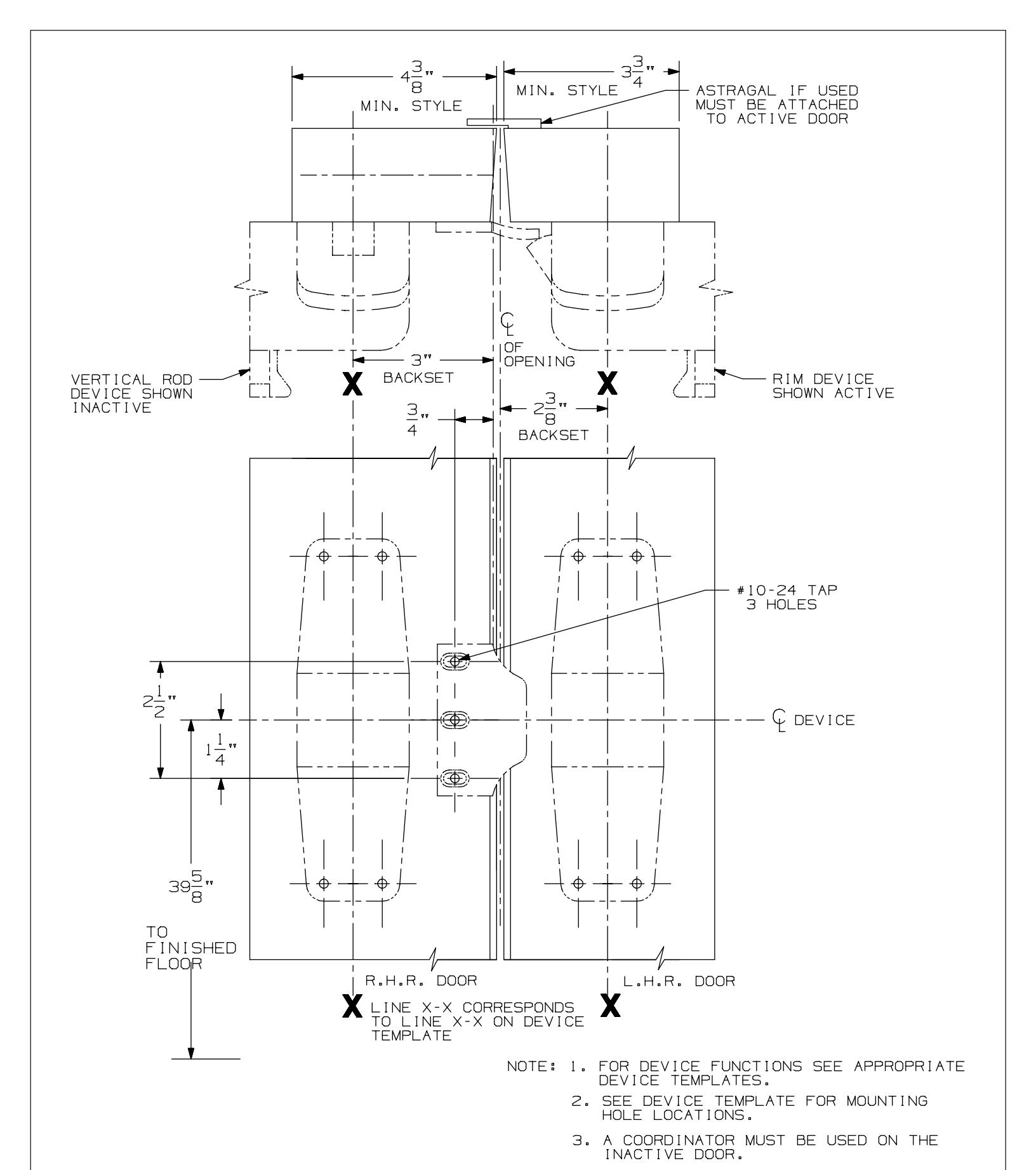

Von Duprin 1609 Strike For 98 and 99 Series Exit Device Metal Door Template diagram on page 1

1609 Strike Application for 98/99 Vertical Rod & 98/99 Rim Devices (Panic Device Only)

VON DUPRIN ®

TEMPLATE NUMBER:

30229_a

DATE: 05-28-13
