Von Duprin 1606 Strike Used With 55 Rim For Metal Doors Template

Original Source Document Full PDF Version

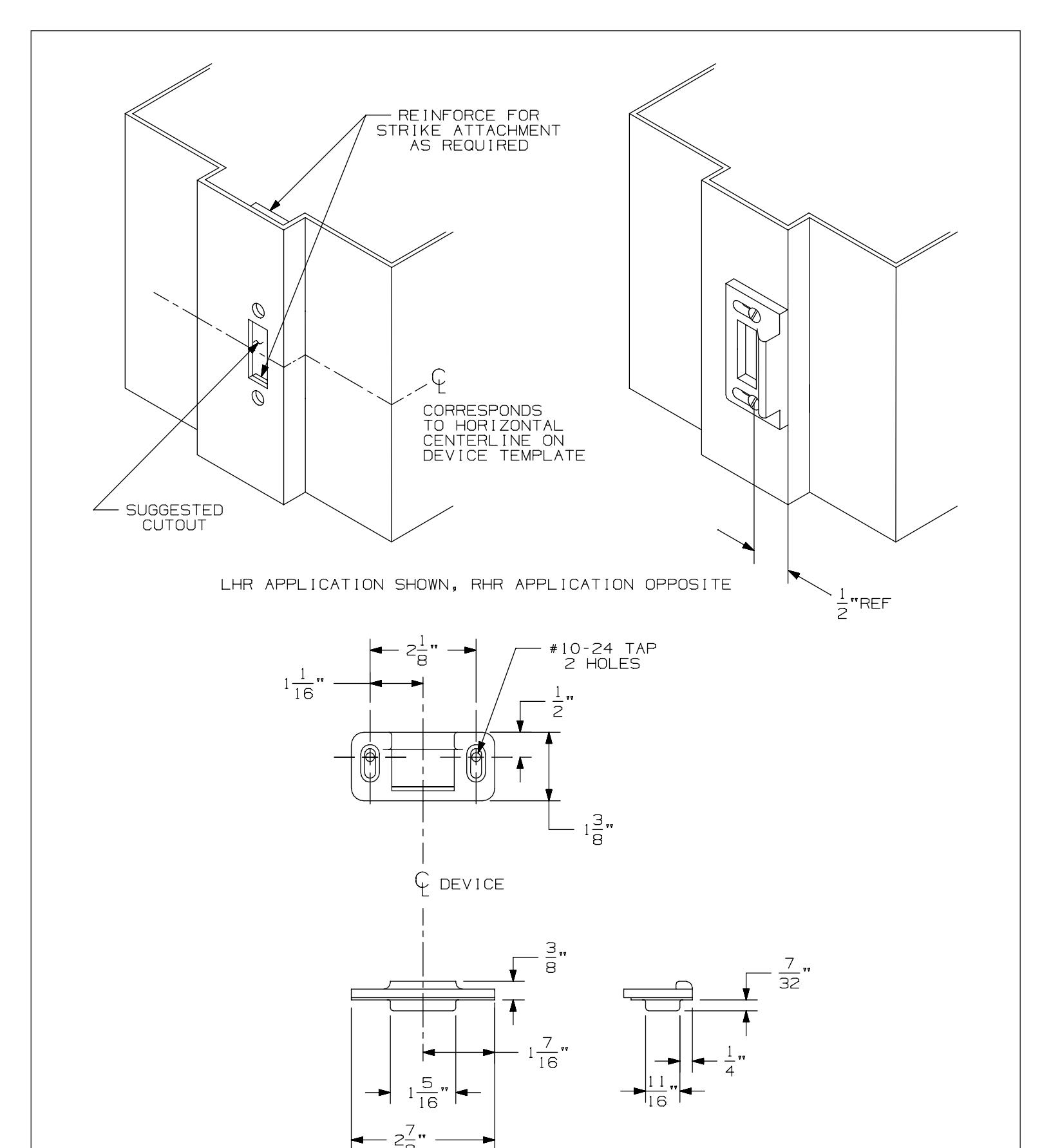

Von Duprin 1606 Strike Used With 55 Rim For Metal Doors Template diagram on page 1

1606 Half Mortise Strike

TEMPLATE NUMBER:

30024_a

DATE: 05-23-13
