Von Duprin 1410 Strike For 98 and 99 Series Exit Device Metal Door Template

Original Source Document Full PDF Version

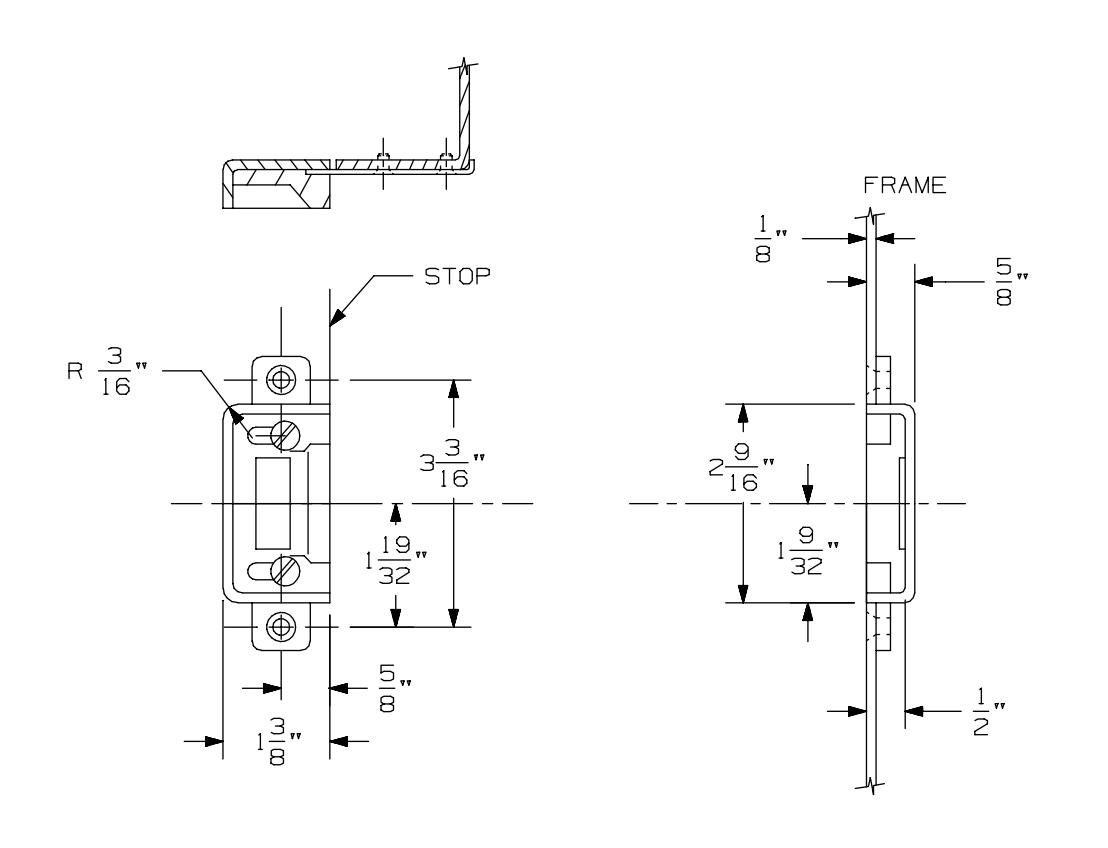

Von Duprin 1410 Strike For 98 and 99 Series Exit Device Metal Door Template image on page 1

LHR APPLICATION SHOWN, RHR APPLICATION OPPOSITE.

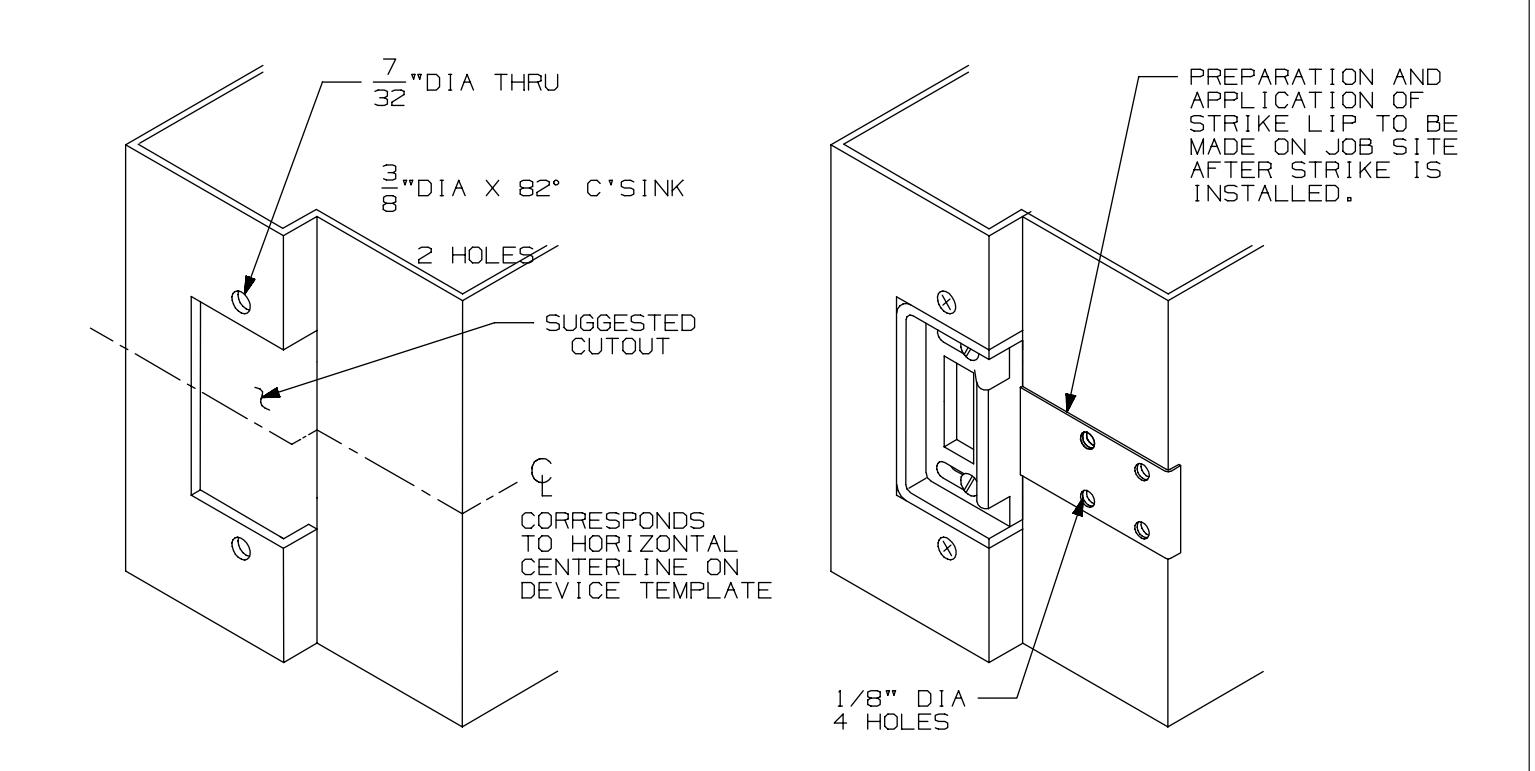

Von Duprin 1410 Strike For 98 and 99 Series Exit Device Metal Door Template image on page 1

1410 Strike VON DUPRIN ® DATE: TEMPLATE

NUMBER:
