| SINGLE DOOR INSTALLATION | |||

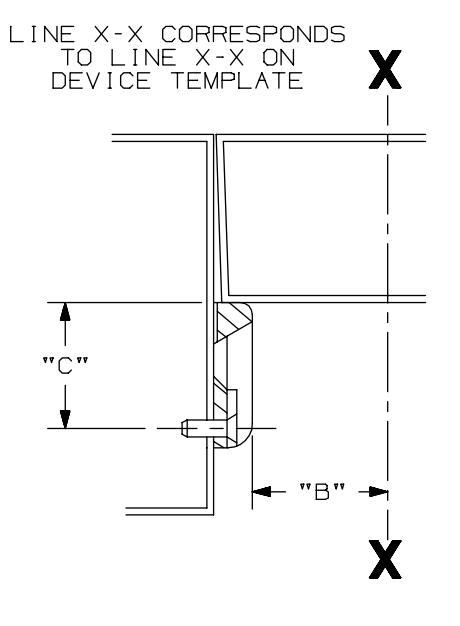

| DEVICE | DIM "B" | DIM "C" | MIN STILE |
| 33/35 RIM | 19/32" | 1 7/16" | 1 3/4" |
| 44 RIM EO,DT,NL,TP | 1 11/16" | 1 7/16" | 3 3/8" |
| 44 RIM K | 1 9/16" | 1 7/16" | 3 3/8" |
| 55 RIM | 17/32" | 1 7/16" | 1 3/4" |
| 22 RIM | 1 9/16" | 1 9/16" | 3 13/16" |
| 88 RIM EO,DT,NL,TP | 1 11/16" | 1 7/16" | 3 3/8" |
| 88 RIM K,L | 1 9/16" | 1 7/16" | 3 3/8" |
| 98/99 RIM | 1 9/16" | 1 9/16" | 3 13/16" |

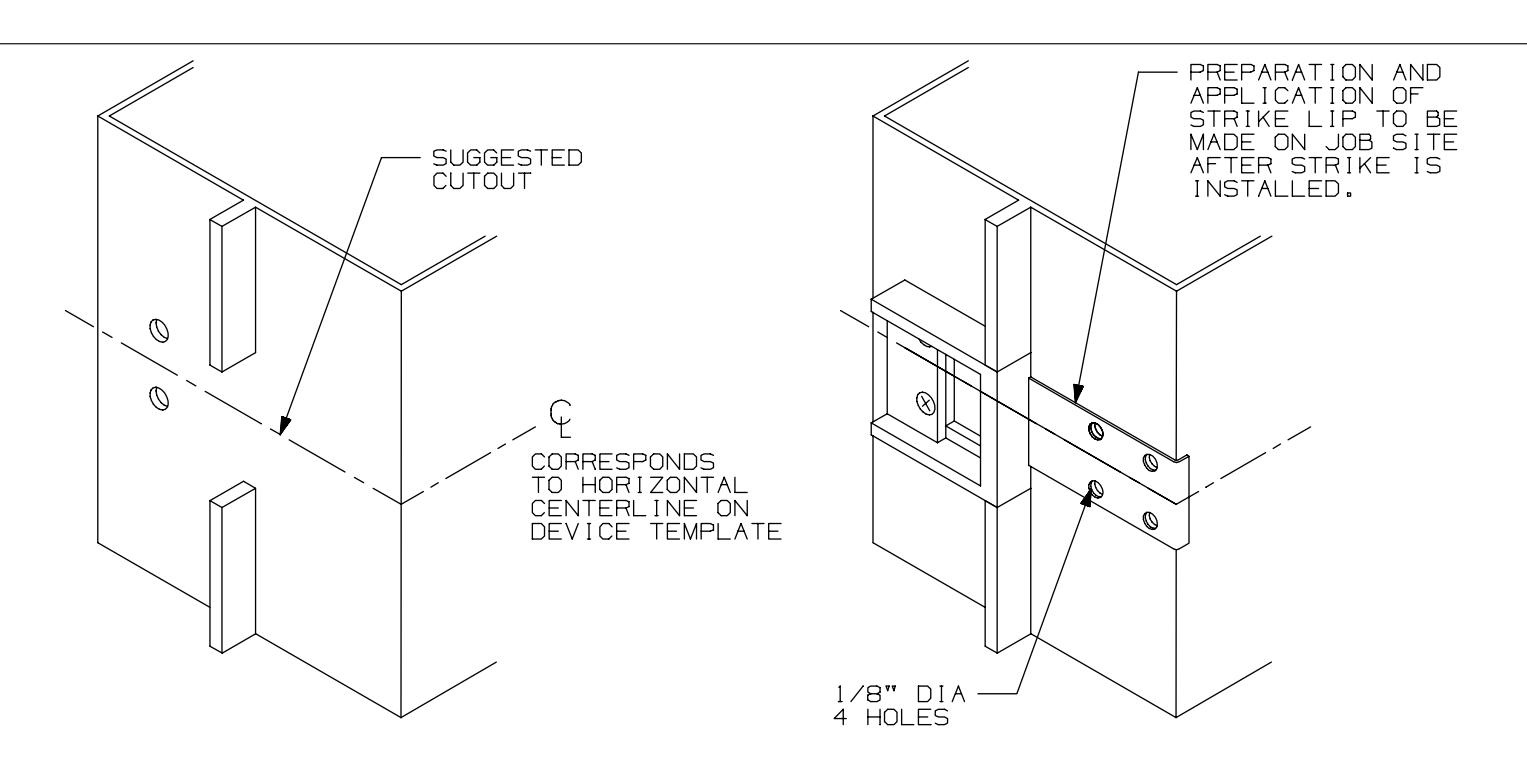

LHR APPLICATION SHOWN, RHR APPLICATION OPPOSITE

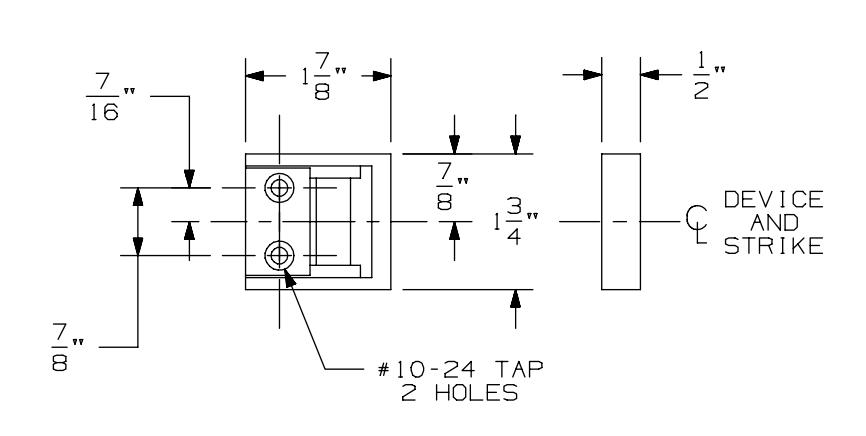

1409 Strike
VON DUPRIN ®
TEMPLATE NUMBER:
30022_a
DATE: 05-23-13
