941034-00 Removable Mullion

5754

VON DUPRIN ®

Installation Instructions

Note: Use lock washers on top and bottom mullion fittings except for counter sunk screws.

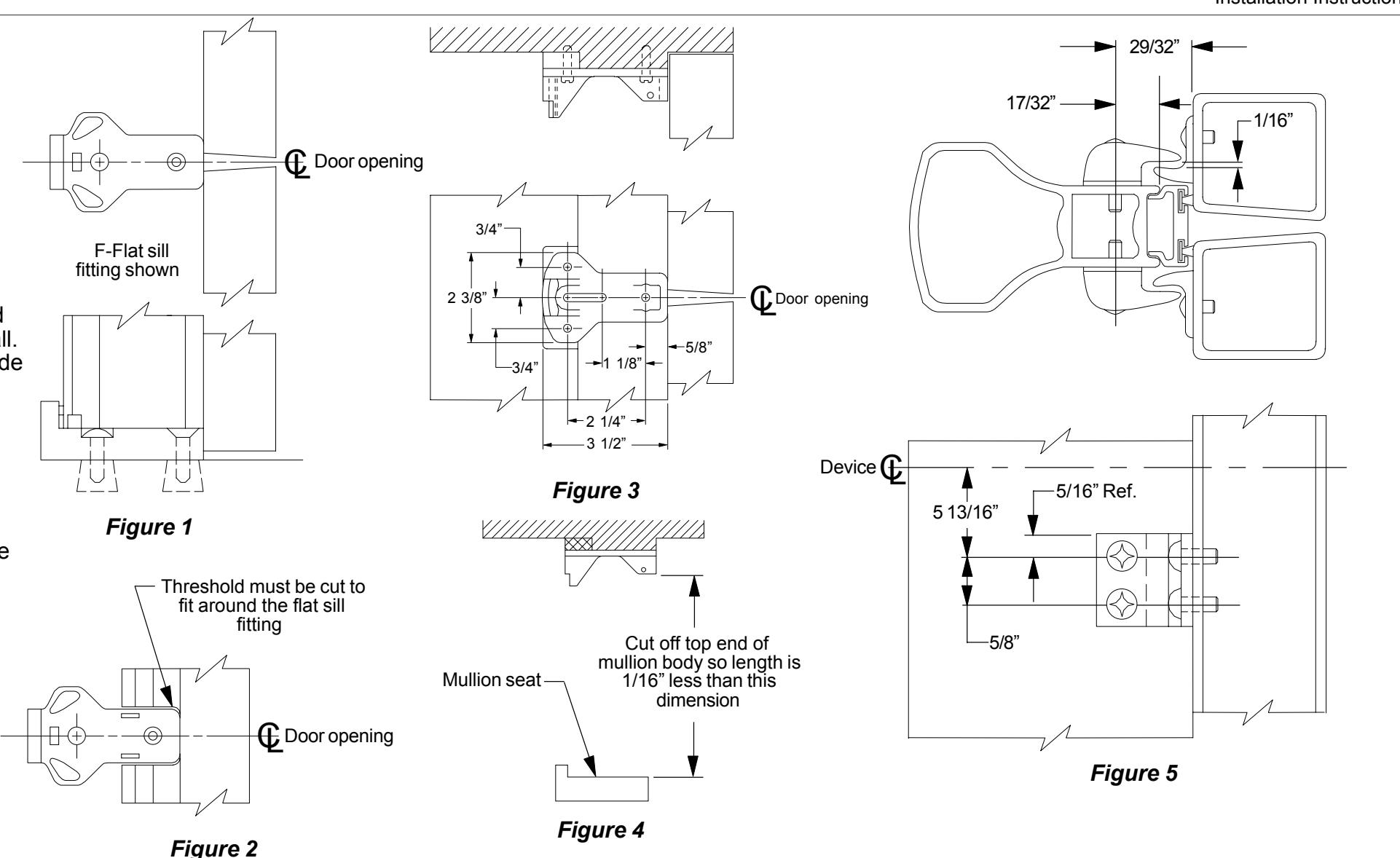

• 1. Line up bottom mullion fitting with center of door opening and flush with closed doors (Figure 1 or 2) and install.

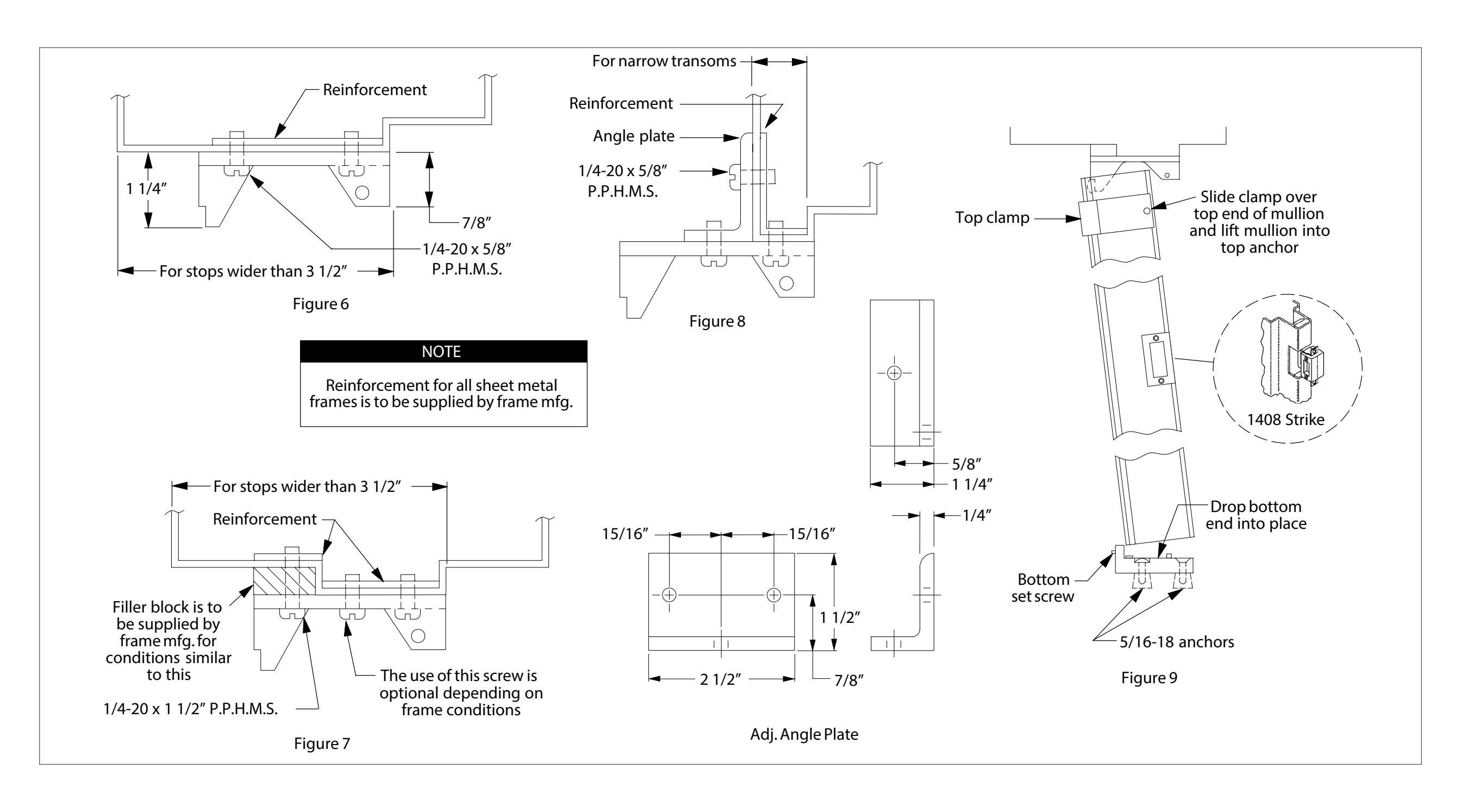

• 2. Line up top mullion fitting with center of door opening and flush with closed doors as shown in Figure 3 and install. See Figures 6, 7, and 8 on reverse side for optional frame conditions.
• 3. Cut mullion body to length as shown in Figure 4.
• 4. Insert mullion in top fitting and slide bottom of mullion into place in bottom fitting (see Figure 9 on reverse side).
• 5. Secure bottom set screw.
• 6. Raise top mullion clamp over top mullion fitting and secure with mounting screws (see Figure 9 on reverse side).
• 7. Apply stabilizer block to door as shown in Figure 5.
• 8. Adjust strikes for 1/32" clearance between latchbolt and strike (see For cutouts on inside face of door, see directions in device carton Figure 9 on reverse side).
