Von Duprin 110NL Cylinder Preparation Wood Door Template

Original Source Document Full PDF Version

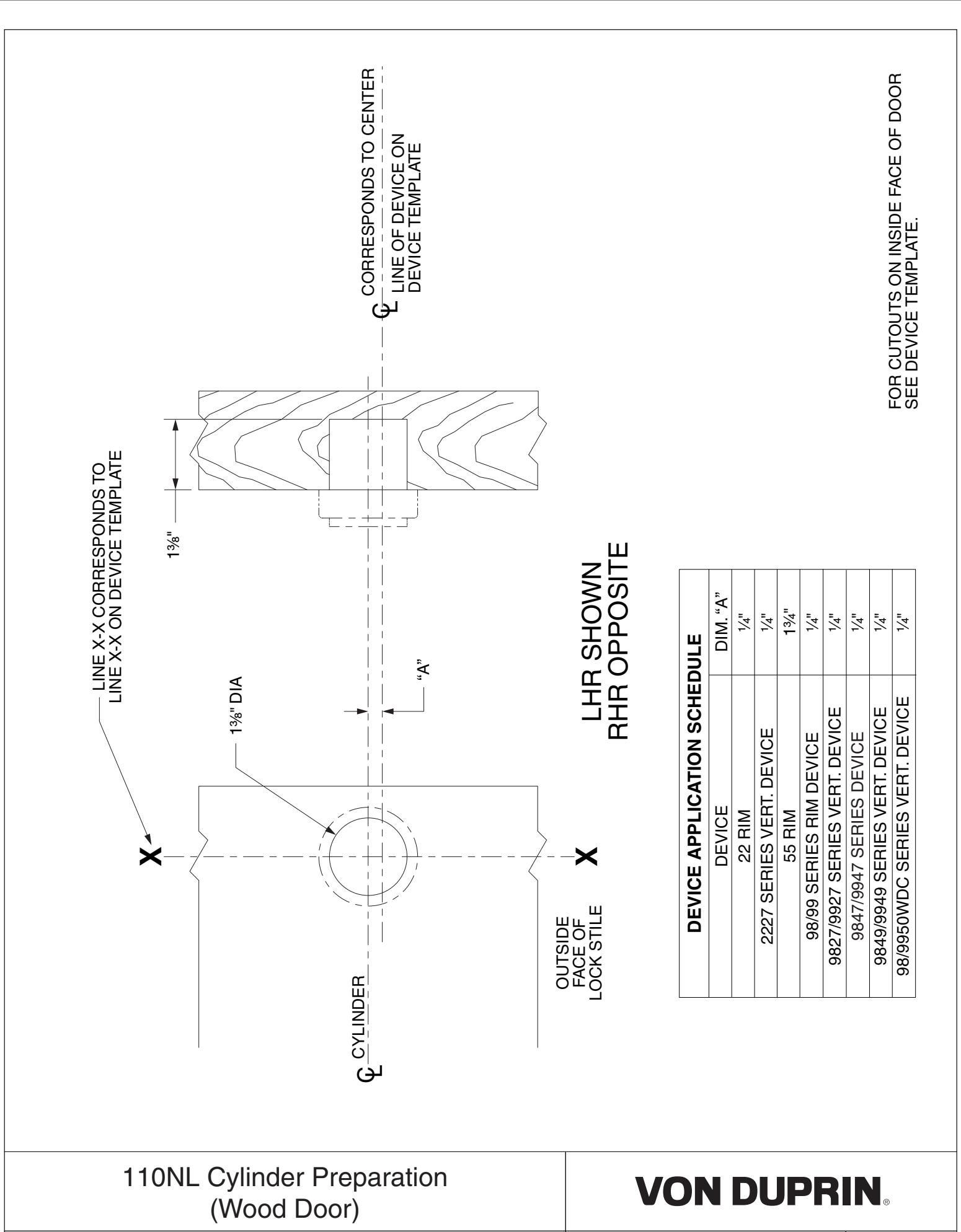

Von Duprin 110NL Cylinder Preparation Wood Door Template diagram on page 1

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

W40016_e

DATE: 08-07-19
