Von Duprin 110NL Cylinder Assembly Used With 55NL Less Trim For Metal Doors Template

Original Source Document Full PDF Version

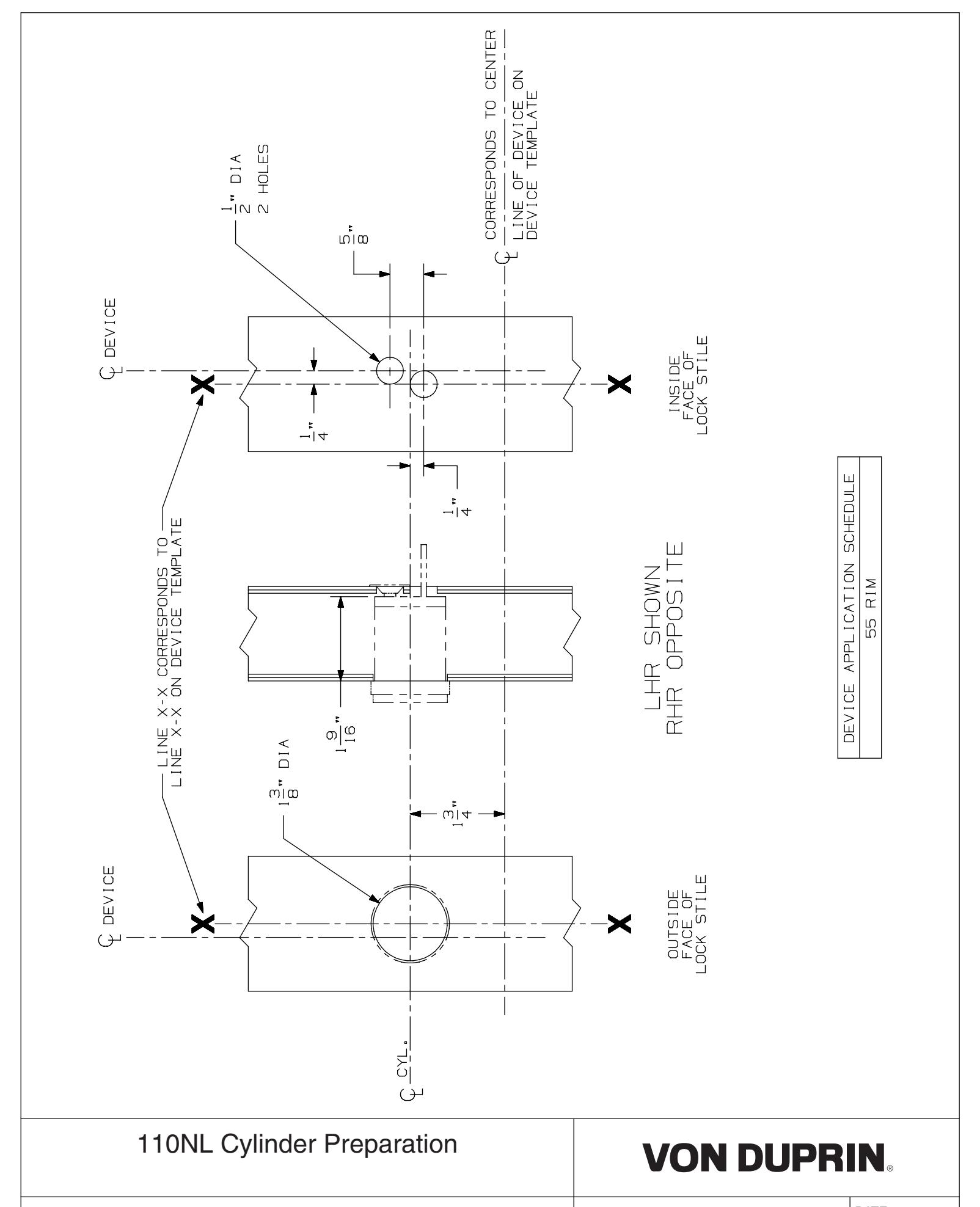

Von Duprin 110NL Cylinder Assembly Used With 55NL Less Trim For Metal Doors Template diagram on page 1

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

40016_a

DATE: 05-28-13
