Von Duprin 110NL Cylinder Assembly For 98 and 99 Series Exit Device Metal Door Template diagram on page 1

Von Duprin 110NL Cylinder Assembly For 98 and 99 Series Exit Device Metal Door Template diagram on page 1

22 RIM SERIES

2227 SERIES

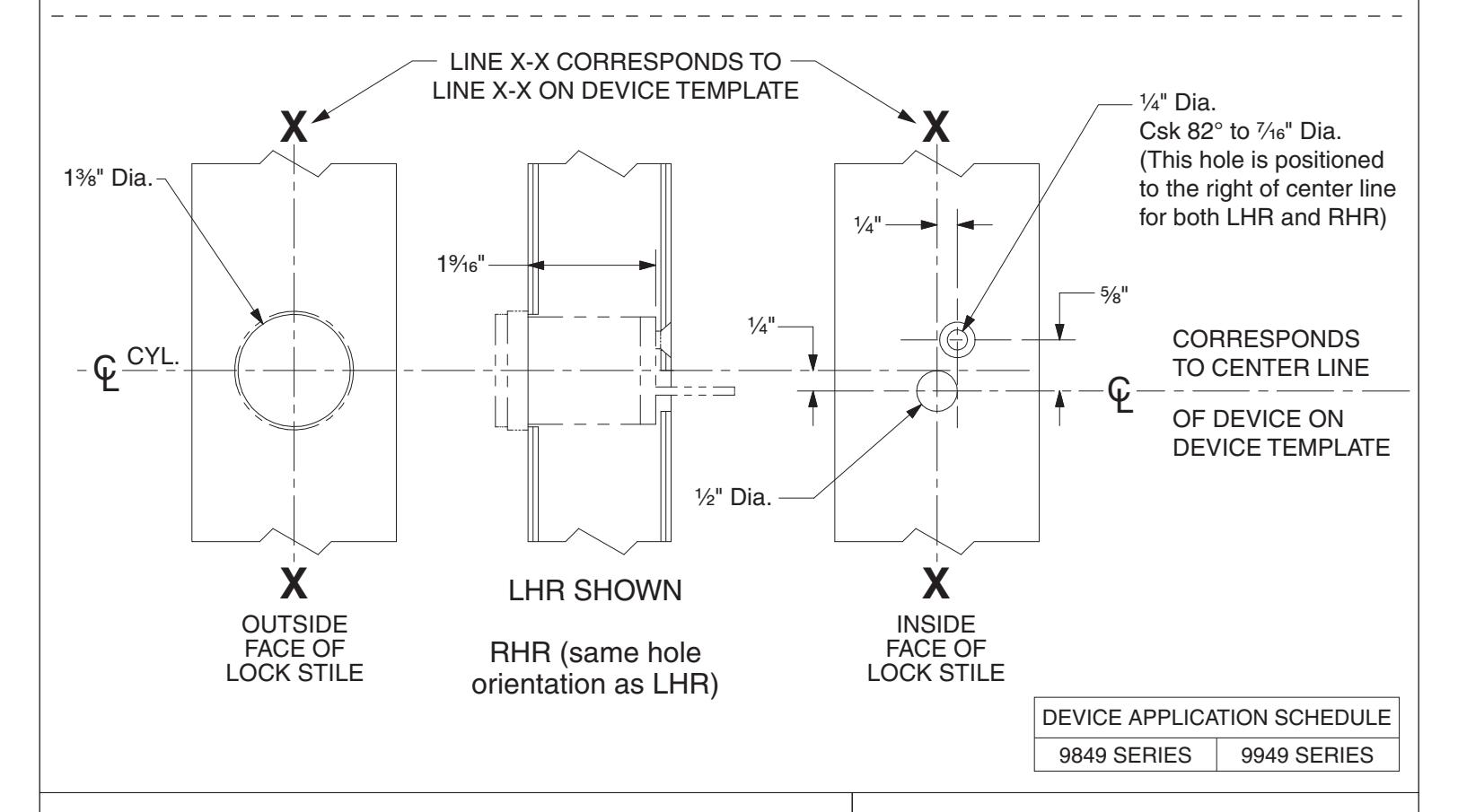

110NL Cylinder Preparation VON DUPRIN NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING TEMPLATE NUMBER: 40022_C DATE: 05-28-13
